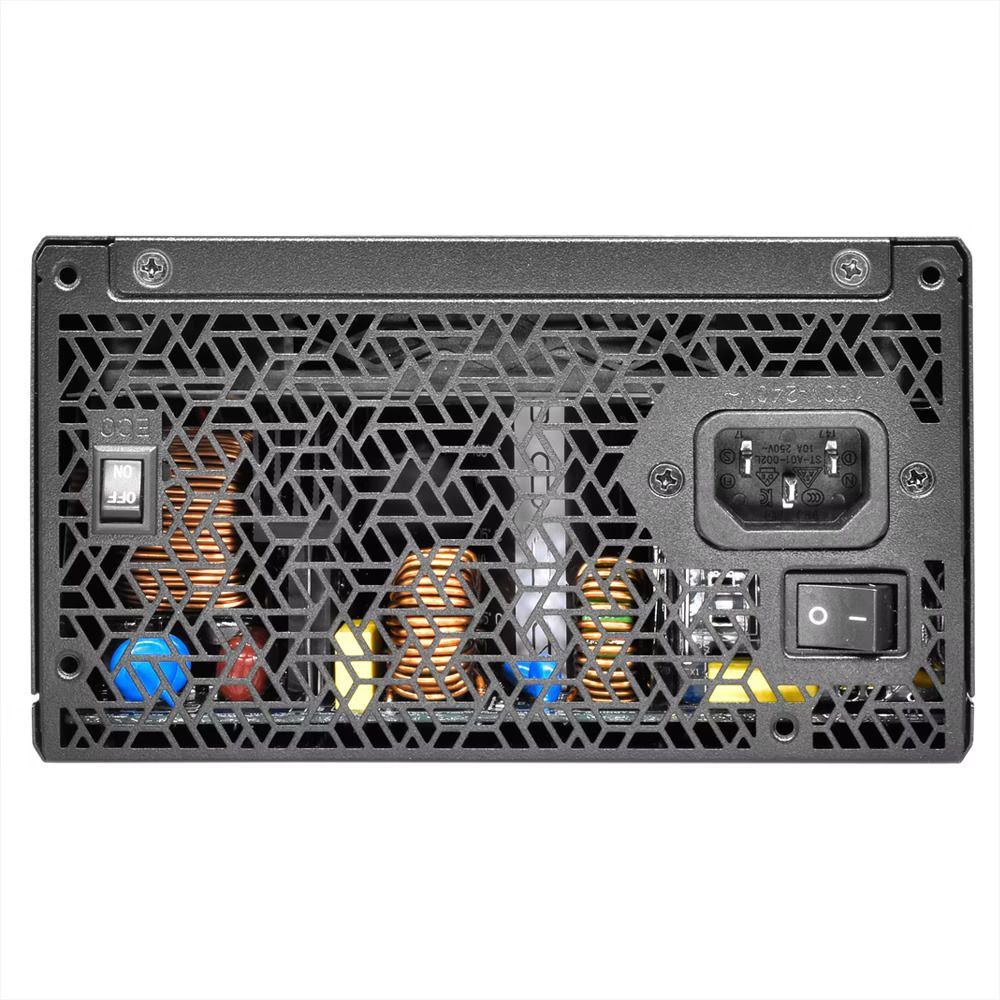

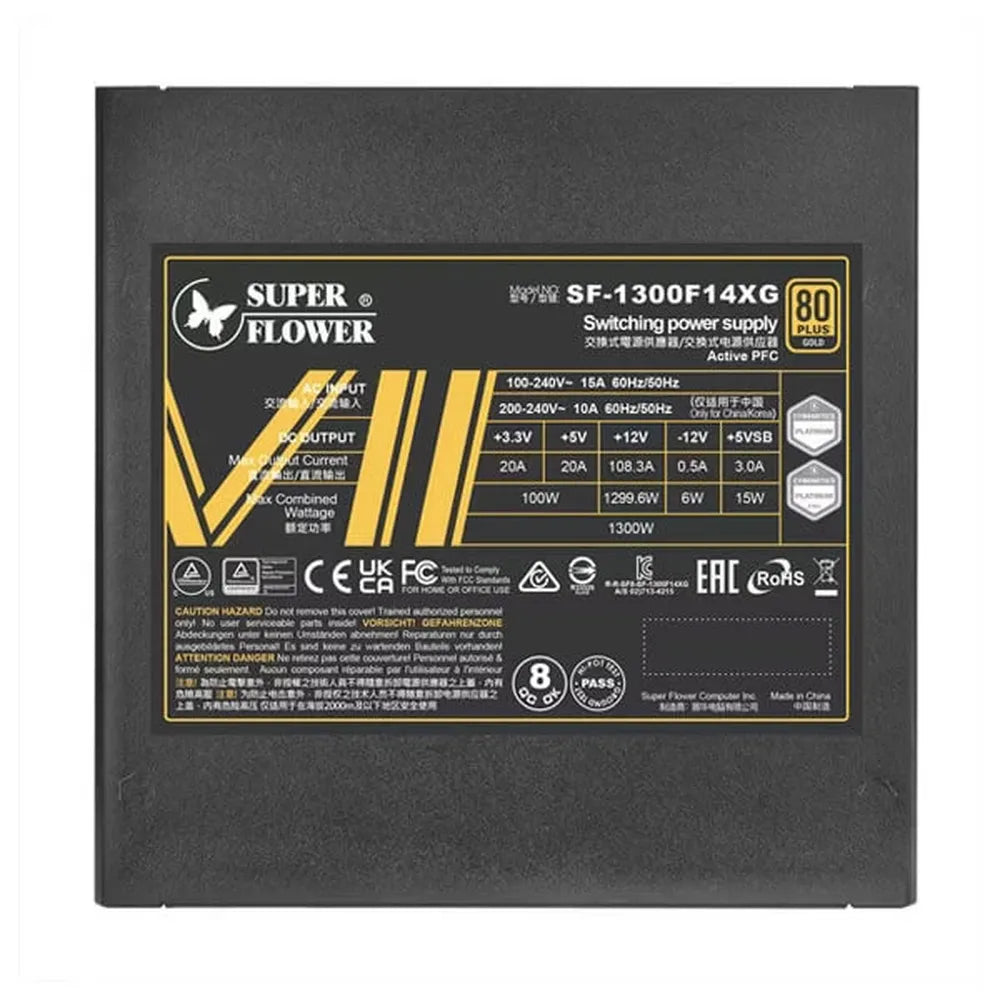

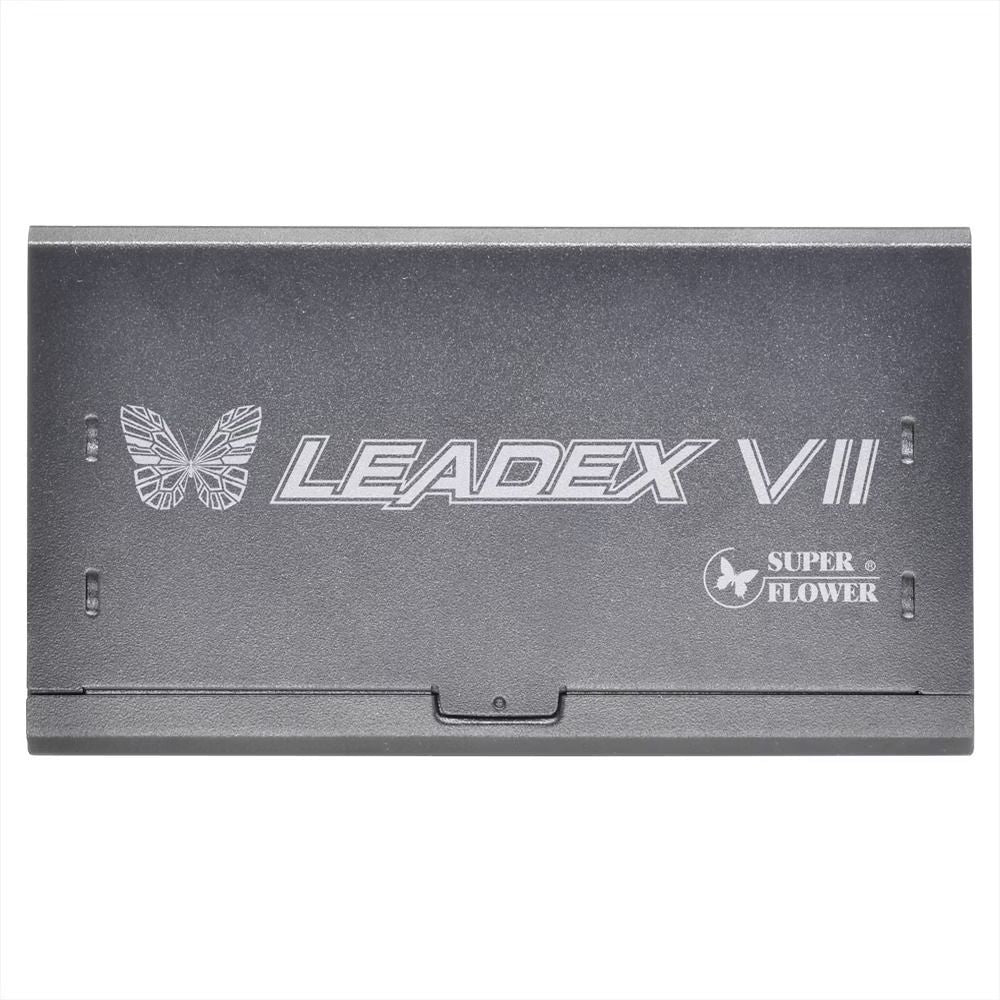

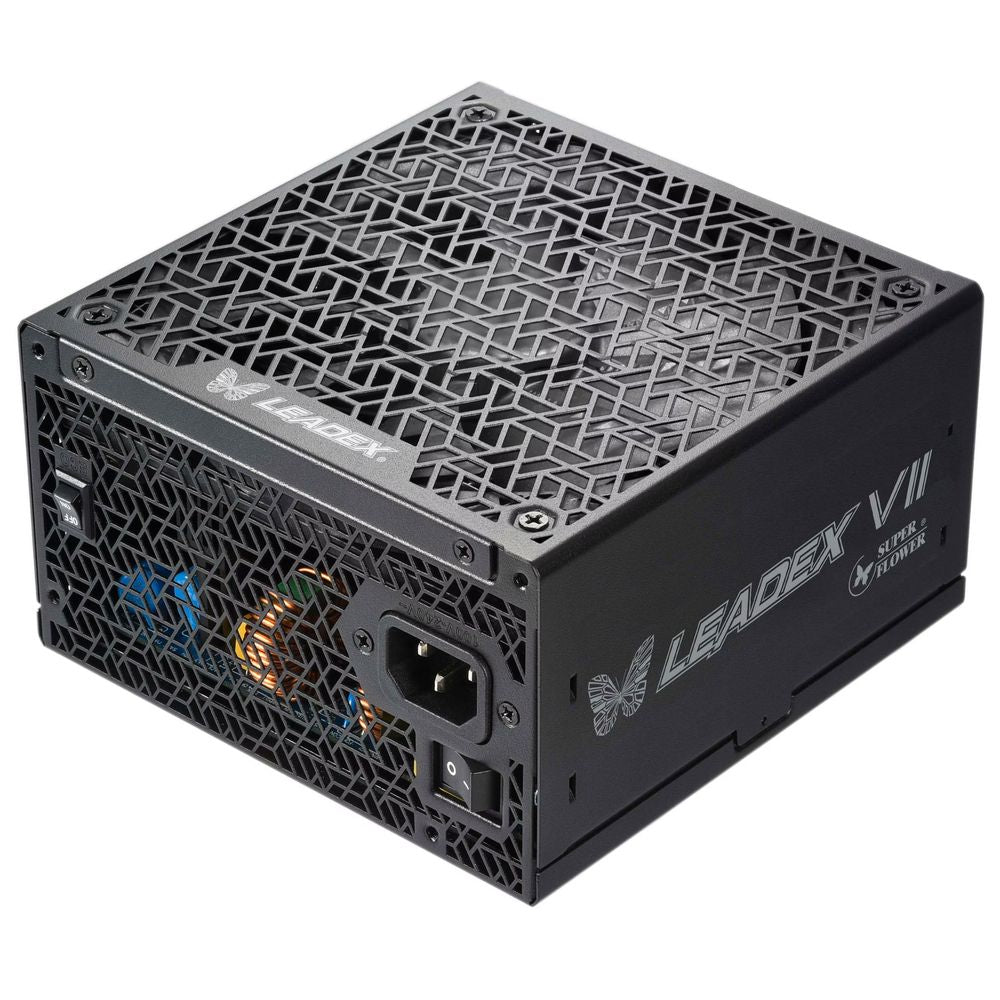

Features of SUPER FLOWER Leadex VII 1300 80 Plus Gold Fully Modular Power Supply (1300 W)

SUPER FLOWER Leadex VII 1300W Power Supply is fully compatible with Intel ATX 3.0 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.

CABLE & CONNECTOR INNOVATIVE DESIGN

Compact 150mm size, Fully modularity with all flat cables design makes it easy for installation and cable management. Patented connector design makes it fully compatible with all motherboards connection (20-24pin for MB/ 8, 8+4 or 8+8 for CPU).

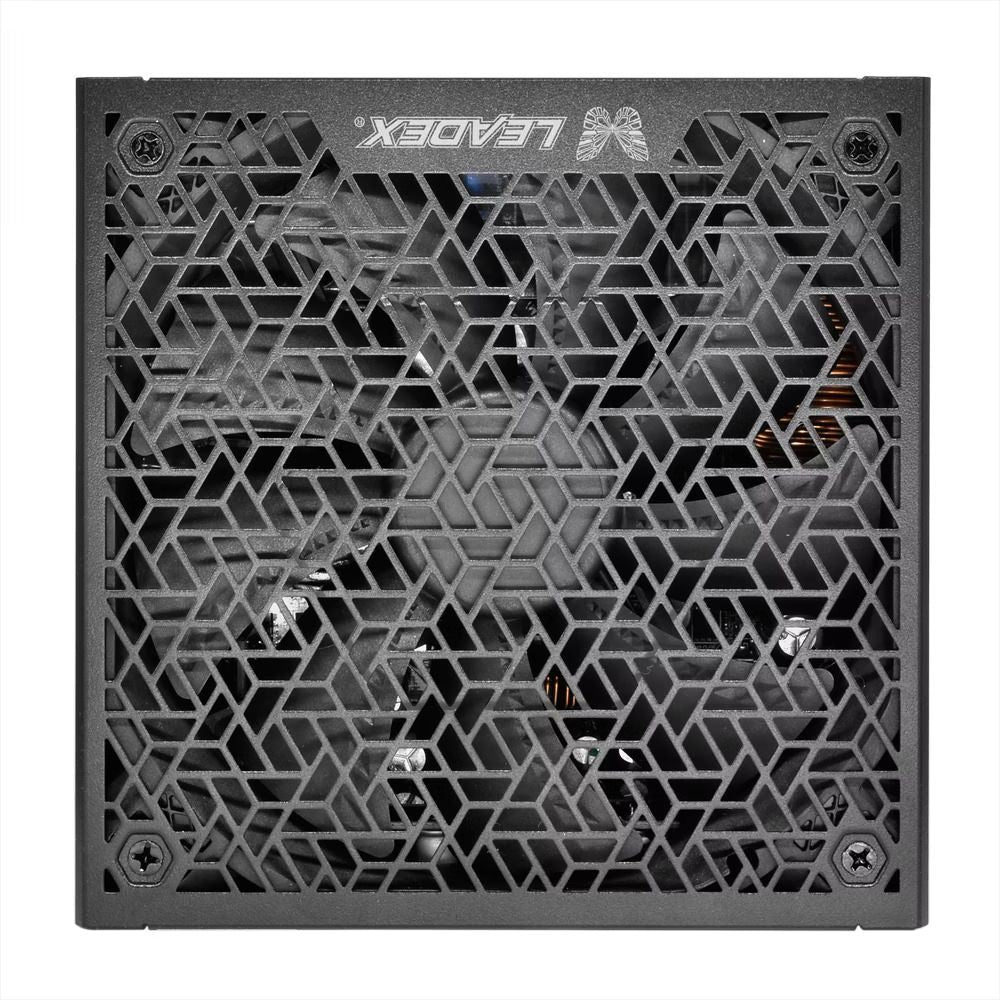

14CM FDB FAN WITH ECO DESIGN WHICH MINIMIZES THE NOISE (dBA)

Linear fan grill design and 140mm & F.D.B Fan with ECO function. Provides superb airflow for better heat dissipation thus maintaining overall efficiency.

RECOMMENDED BADGES FROM HW BUSTERS

Super Flower Power Supply offers you a superb power! Obtaining the badges from Hardware Busters means XG series scores top performance: Tight load regulation, Good ripple suppression, 100% High Quality Japanese Capacitors and LLC half-Bridge with DC-DC Design

• 140mm F.D.B Fan: Unique 9-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).
• New patented technology of Buckle (20+4) Pin connector
• Innovative Design for gaming System & PSU protection

1. DC output +12V/+5V/+3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements
4. Low Output Voltage Ripple

• ECO-design

1. Auto & ECO Fan control
2. High efficiency on all rails, including 5VSB

• 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
• 80 PLUS® Gold Certified,87% 90% 87% Efficiency At 20% 50% 100% Rated Load.
• 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)
• Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
• Comply With ATX 12V v3.0, EPS 12V v2.92 Specification.
• Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
• Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection
• Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)
• Support NVIDIA SLI & ATI CrossFireX High Performance Graphic Card
• More than 2,000 times On/Off test
• Lead-free Green Materials with RoHS / WEEE Compliance
• Perfect For Professional & High Performance Gaming System
• PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
• Complete Japanese Capacitors.

Get the best 80 Plus Silver smps for pc price from us today!

Specifications of SUPER FLOWER Leadex VII 1300 80 Plus GoldFully Modular Power Supply (1300 W)
