Description

Features of SILVERSTONE ST50F-ES230

The stunning and SILVERSTONE ST50F-ES230 500W Power Supply has four SATA Connectors. Along with 2* (6+2) PCIe Connectors. The Mean Time Between Failures (MTBF) of a fascinating 100,000 hours is provided. SilverStone ST50F-ES230 500 Watt PSU is equipped with a silent 120mm fan for smooth and quiet operations. It offers more stability and reliability as it provides better cooling to the system. It is designed and tested to accurate standards for trouble-free installation and smooth operation. The dimensions of SilverStone ST50F-ES230 500 Watt PSU are 150 mm (W) x 86 mm (H) x 140 mm (D). The amazing Silverstone Power Supply comes with a warranty of five years.

High efficiency with 80 PLUS certification
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail
Active PFC Circuitry
PCI-E 8pin and PCI-E 6pin connector support

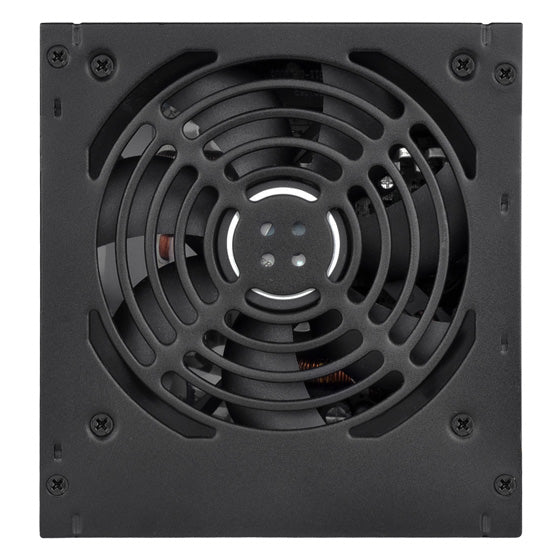

Silent running 120mm fan with 18dBA

Get the best 80 Plus White computer SMPS price from us today!

Specifications of SILVERSTONE ST50F-ES230

Model No.	SST-ST50F-ES230
Max. DC Output	500W
Power density	277W per liter
Load Range (V2.0)
3.3V 5V 12V 5VSB -12V Max.(Amps) 18A 17A 38A 2.5A 0.3A Peak (Amps) / / / / / Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±5% ±5% ±5% ±5% ±10% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV Load Range (V1.0)3.3V 5V 12V 5VSB -12V Max.(Amps) 24A 20A 34A 2.5A 0.3A Peak (Amps) / / / / / Min.(Amps) 0.1A 0.2A 0.1A 0A 0A Range (%) ±5% ±5% ±5% ±5% ±10% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined 3.3V & 5V	110W (V2.0) 120W (V1.0)
Combined 12V	456W (V2.0) 400W (V1.0)
Input Voltage	180 ~ 264Vrms (V2.0) 207 ~ 253Vrms (V1.0)
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC.（PF>0.9 at Full Load）
Efficiency	82%~85% @ 20% ~ 100% loading
MTBF	100,000 hours
Operating temperature	0°C ~ 40°C
Protection	Over power protection Over voltage protection Short circuit protection Under voltage protection (V1.0)
Connectors	V2.0 1 x 24 / 20-Pin motherboard connector（500mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（750mm） 2 x 8 / 6-Pin PCIE connector（”500mm / 150mm” x 2） 4 x SATA connector（”500mm / 150mm” x 2） 2 x 4-Pin Peripheral connector（500mm / 150mm / 150mm / 150mm） 1 x 4-Pin Peripheral connector（500mm / 150mm / 150mm） 1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）V1.0 1 x 24 Pin motherboard connector（450mm） 1 x 8-Pin EPS12V connector（550mm） 1 x 4-Pin ATX12V connector（550mm / 150mm） 2 x 8 / 6-Pin PCIE connector（400mm / 150mm） 6 x SATA connector（700mm / 150mm / 150mm） 3 x 4-Pin Peripheral connector （400mm / 150mm / 150mm） 1 x 4-Pin Floppy connector（400mm / 150mm / 150mm / 150mm）
Cooling System	Silent 120mm fan
Noise Level	18 dBA minimum
Dimension	150 mm (W) x 86 mm (H) x 140 mm (D) 5.91″ (W) x 3.39″ (H) x 5.51″ (D)
Weight	1.31kg (V2.0) 1.7kg (V1.0)
Certification	80 PLUS
Other	GPU Support list Compatible with ATX12V v2.4
