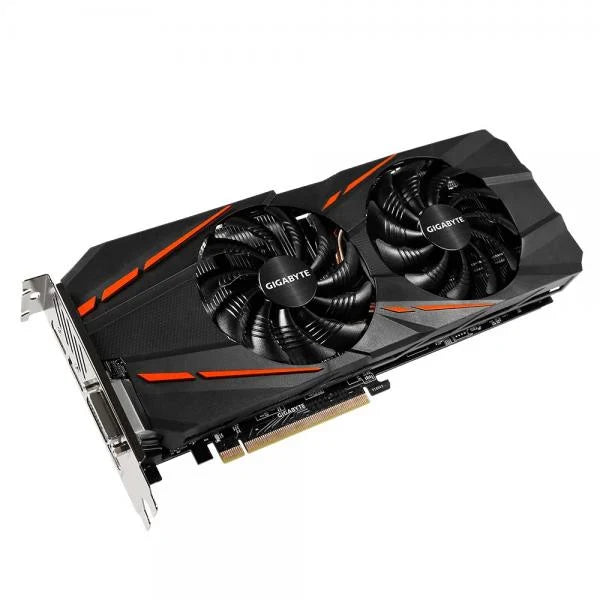

Features of GIGABYTE GeForce 1060 G1 Gaming 6GB Nvidia Graphic Card

GIGABYTE G1 Gaming Series graphics cards are crafted for perfection in pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the revolutionary NVIDIA® Pascal™ GPU architecture, G1 gaming graphics card brings you incredible gaming experience.
-Pascal-powered graphics card give you superior performance and power efficiency
-Support up to 8K display @60Hz
-Outstanding performance for Virtual Reality gaming

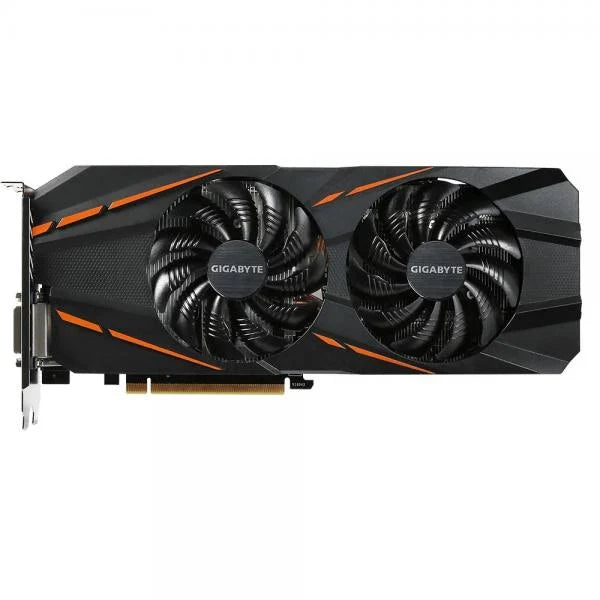

WINDFORCE 2X COOLING SYSTEM

The GIGABYTE GeForce 1060 G1 Gaming 6GB Nvidia graphics card for pc 2X cooling system features 2x 100mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan, together delivering an effective heat dissipation.

ALTERNATE SPINNING

Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

LARGE COPPER PLATE & HEAT-PIPE

With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

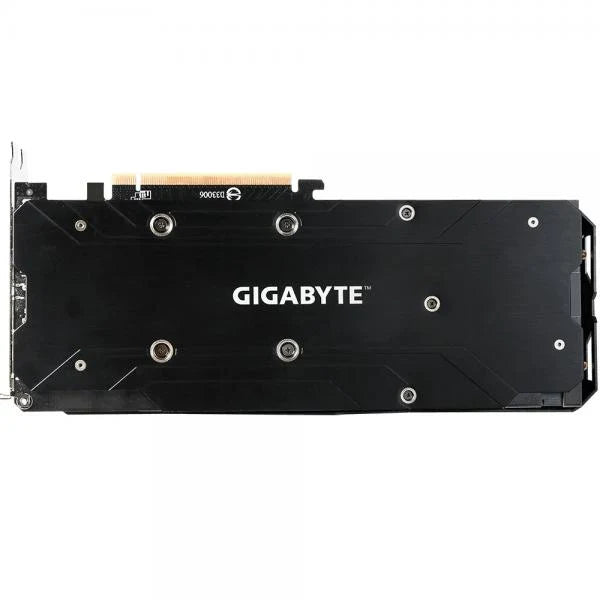

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

EXTREME DURABILITY & OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

NVIDIA AMPERE ARCHITECTURE

The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.

1. 6GB 192-Bit GDDR5
2. Core Clock OC Mode: 1620 MHz
3. Gaming Mode: 1594 MHz
4. Boost Clock OC Mode: 1847 MHz
5. Gaming Mode: 1809 MHz

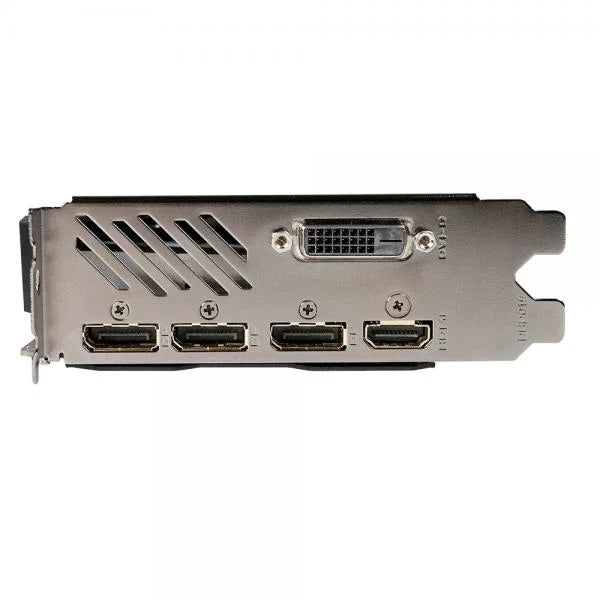

6. 1 x Dual-link DVI-D 1 x HDMI 2.0b 3 x DisplayPort 1.4
7. 1280 CUDA Cores
8. PCI Express 3.0 x16

Specifications of GIGABYTE GeForce 1060 G1 Gaming 6GB Nvidia Graphic Card
