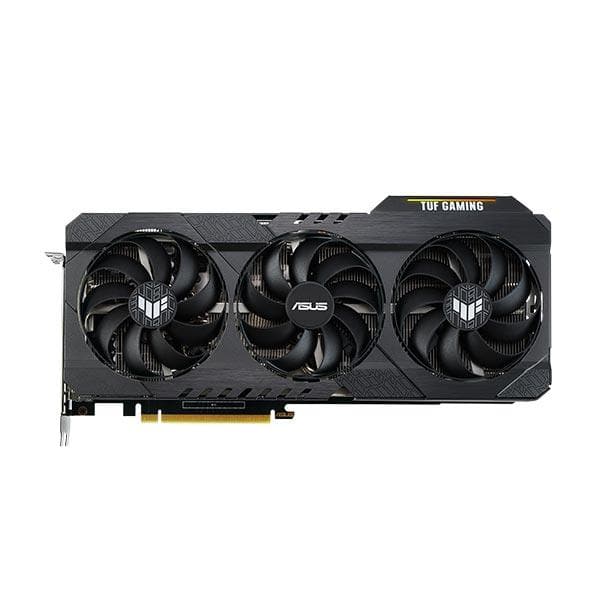

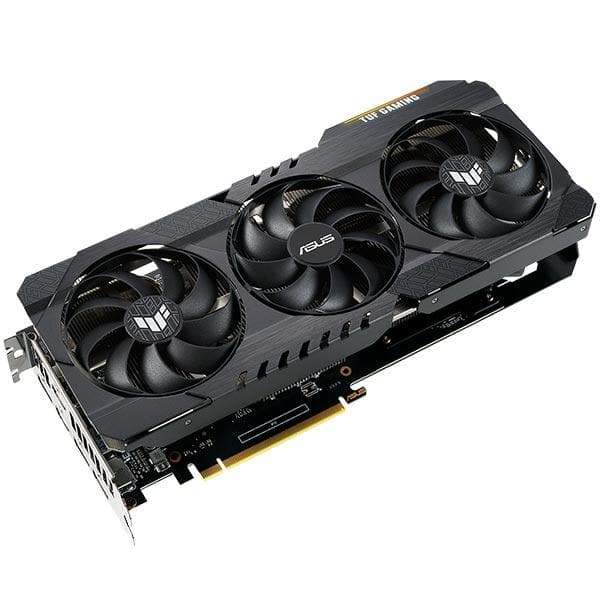

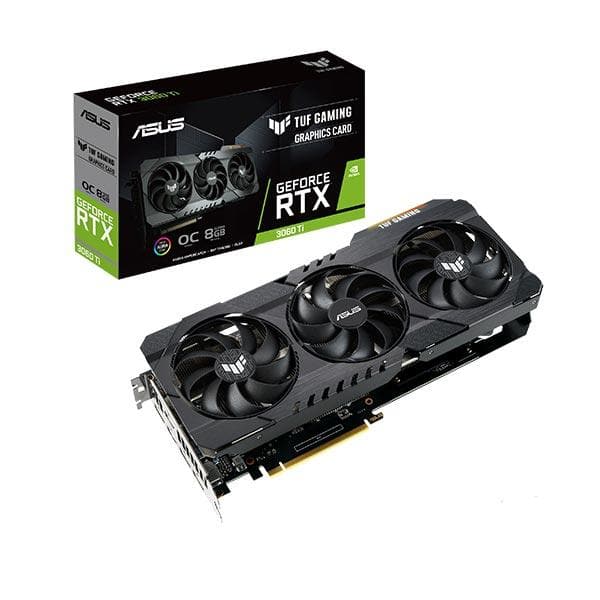

Features of ASUS TUF Gaming RTX 3060 Ti OC 8GB Nvidia Graphic Card

Built TUF

The TUF GAMING GeForce RTX™ 3060 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back.

Axial-tech Upgrades

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

NEW DIRECTIONS

The two side fans spin counterclockwise to reduce turbulence. And to eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

MaxContact

To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer.

2.7-slot Design

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.7-slot footprint. This generation of TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs.

TUF Components

Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

Fresh Shroud

An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

Functional Front

The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3060 Ti, two 8-pin connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.

GPU TWEAK III

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

1. NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2. 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3. 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
4. Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
5. Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
6. Military-grade Capacitors and other TUF components enhance durability and performance.
7. GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Specifications of ASUS TUF Gaming RTX 3060 Ti OC 8GB Nvidia Graphic Card
