- 22%
Motherboard

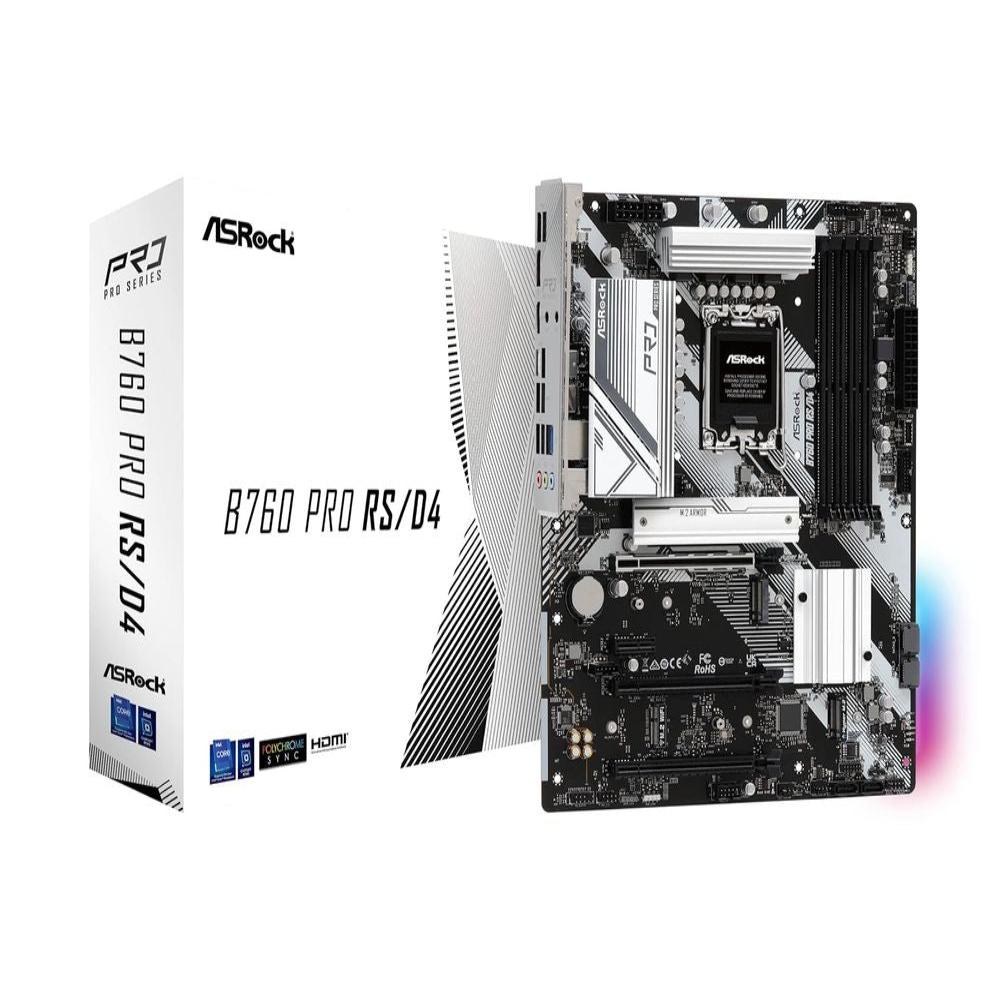

ASROCK B760 Pro RS/DDR4 Wifi Intel Motherboard
Rs. 18,799.00
Rs. 14,499.00
Out Of Stock
Brand : ASROCK
asrock-b760-pro-rs-ddr4
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Features of ASROCK B760 Pro RS/DDR4 Wifi Intel Motherboard
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR4 DIMMs
Supports Dual Channel, up to 5333+ (OC) - 2 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1,
1 M.2 Key E for WiFi - Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen4x2) - 1 USB 3.2 Gen2 Type-C (Front),
1 USB 3.2 Gen1 Type-C (Rear),
7 USB 3.2 Gen1 Type-A (5 Rear, 2 Front),
4 USB 2.0 (2 Rear, 2 Front) - Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
PETERES Race Sport / EDITION
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!
Optimized VRM Design
ASROCK B760 Pro RS/DDR4 is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for
each phase, thus providing improved thermal result and superior performance.
High Speed M.2 Solution(PCle Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation,
giving a lightning fast data transferring experience.
Dragon 2.5 Gb/S LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding reguirements of
home networking, content creators, online gamers and high-quality streaming media. Boost networking performance
up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised
connectivity experience for gaming, file transfers and backups.

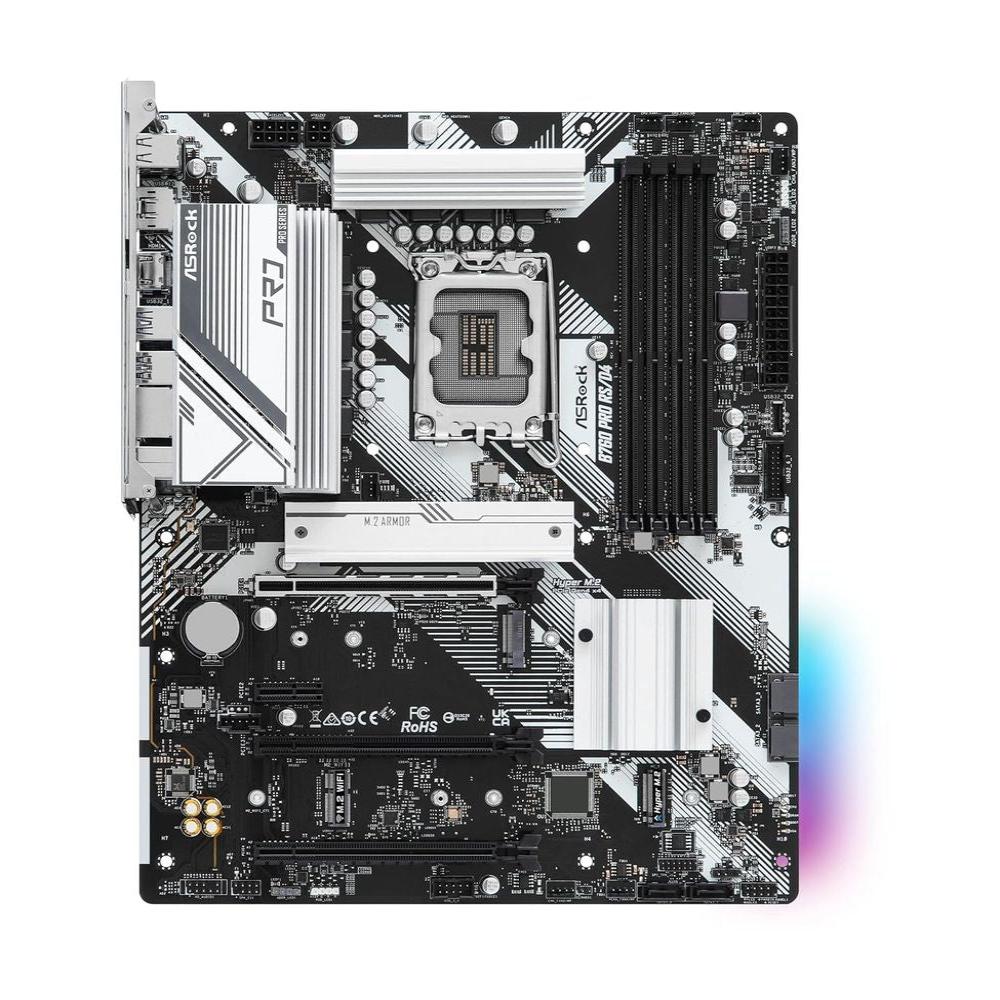

Specifications of ASROCK B760 Pro RS/DDR4 Wifi Intel Motherboard
| Model | B760 Pro RS/D4 |
| Unique Feature | Rock-Solid Durability 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Pre-Installed I/O Shield ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology Ultrafast Connectivity 2.5G LAN EZ Update ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker |
| CPU | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel B760 |
| Memory | Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. capacity of system memory: 128GB Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Slots | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode 1 x PCIe 3.0 x1 Slot (PCIE2) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire |
| Storage | CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 1 x USB 3.2 Gen2 Type-C (Front) 1 x USB 3.2 Gen1 Type-C (Rear) 7 x USB 3.2 Gen1 Type-A (5 Rear, 2 Front) 4 x USB 2.0 (2 Rear, 2 Front) |
| Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 2 x RGB LED Headers 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~5/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. |

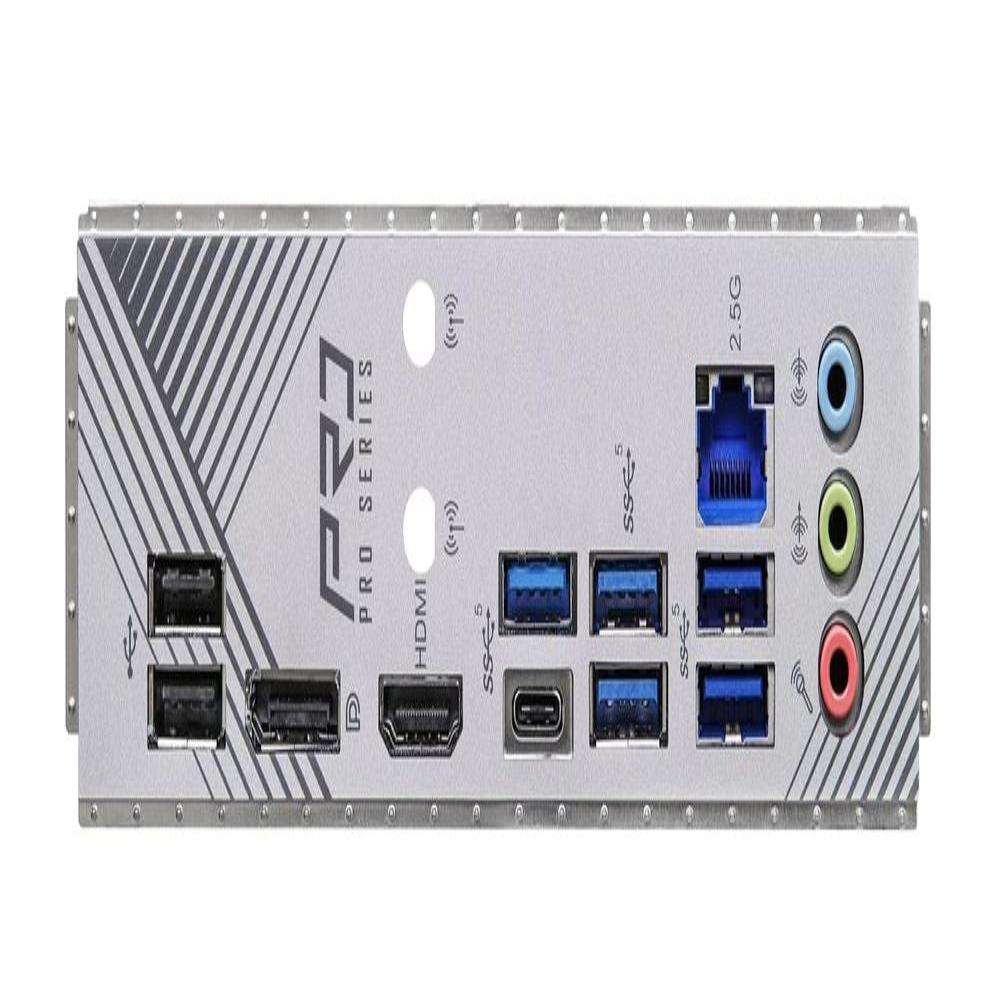

| Rear Panel I/O | 2 x Antenna Mounting Points 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 5 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer |
| Accessories | 1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Image use for reference only. *** Features, Price, Specifications are subject to change without notice. |
