Discover the ZEBRONICS 1205VA UPS, designed to provide essential power protection for your connected devices. This reliable unit helps safeguard your electronics from unexpected power fluctuations and outages.
Key Features at a Glance
Explore the essential features of the ZEBRONICS 1205VA UPS designed to support your power needs. Detailed features are presented visually below.
Technical Specifications
| Line interactive UPS | |

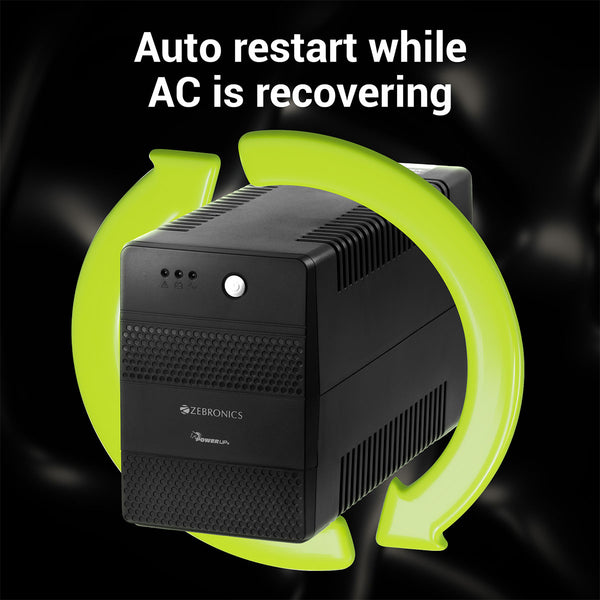

| Auto restart while AC is recovering | |
| Double Boost | |
| Automatic Voltage Regulation (AVR) | |

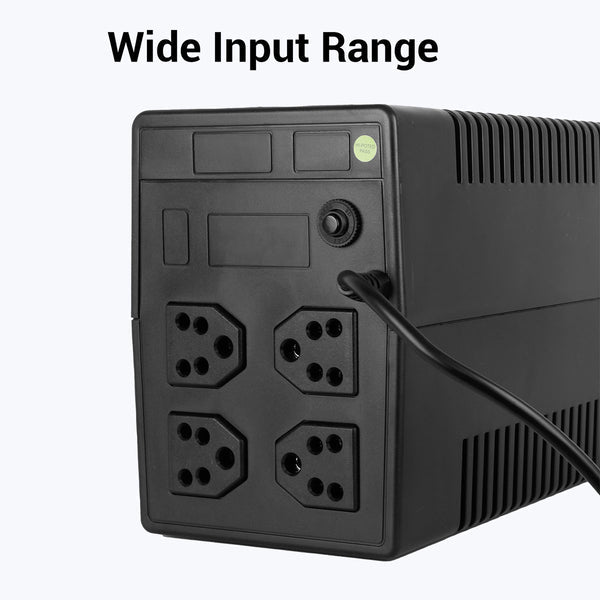

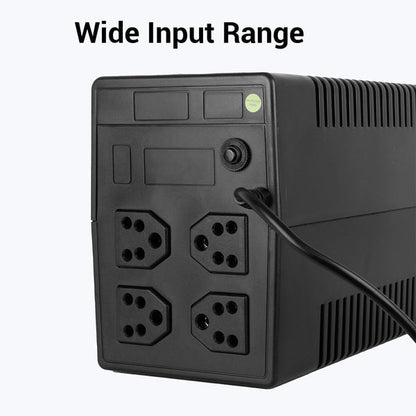

| Wide Input Range | |
| Microcontroller Based | |
| Generator Compatible |
Reliable Power Support
The ZEBRONICS 1205VA UPS is built to offer consistent power, supporting your electronics when it matters most during power interruptions.
Protect Your Devices
Ensure your valuable equipment is protected from unexpected power fluctuations and outages with this dependable UPS solution.
For comprehensive details regarding the ZEBRONICS 1205VA UPS, please refer to the specifications provided below.
| Capacity | ||
| (VA/W) | 1000VA / 600W | |
| Input | ||
| Nominal voltage | 220-240 VAC | |
| Voltage range | 140-300 VAC | |
| Frequency | 50/60 Hz | |
| Plug type | 3 Pin plug | |
| Output | ||
| Voltage range (AC mode) | 230VAC ± 5 % | |
| Voltage range (Batt. mode) | 230 VAC ± 10 % | |
| Frequency range (Batt. mode) | 50 / 60 Hz ±1% | |
| Transfer time | 4 - 8 ms typ. | |
| Wave form | Simulated sine wave | |
| No. of output sockets | 4 |
|
| Protections | Overload, Short circuit, Over discharge & Over charge | |
| Battery | ||
| Battery type | 12V 7Ah x 2 nos | |
| Charging current | 1.2A | |
| Recharge time | 6 - 8H typ. (upto 90% capacity after complete discharge) |
|

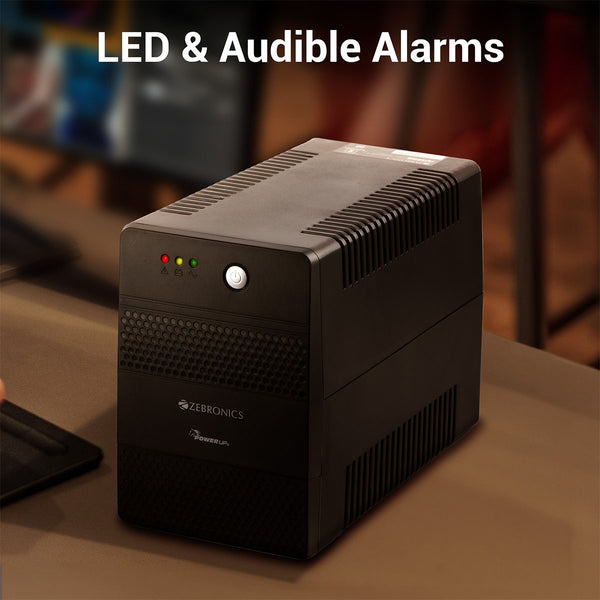

| Indicators | ||
| No. of LEDs | 3 LEDs | |
| AC mode | Green LED glows | |
| Battery mode | Orange LED blinks in an interval of 10 seconds | |
| Fault | Red LED Glows | |
| Alarm | ||
| Battery mode | Beeping every 10 seconds | |
| Low battery | Beeping every 1 second | |
| Overload | Beeping every 0.5 second | |
| Fault | Continuous beeping | |
| Physical Details | ||
| Product dimension (W x D x H) |
13 x 31.4 x 17.5 cm |
|
| Net. weight | 7.19 kg | |
| Package dimension (W x D x H) |
36.8 x 17.3 x 24.8 cm |
|
| Environmental Factors | ||
| Operational temperature | 0-40⁰C | |
| Noise Level | < 45dB | |
| Country of Origin | People’s Republic of China |
|
| Package Contents | ||
| ZEB-U1205 | 1U | |
| QR code guide | 1U | |
Frequently Asked Questions
Q: What is the primary function of the ZEBRONICS 1205VA UPS?
A: The ZEBRONICS 1205VA UPS is designed to provide backup power and protect electronic devices from power interruptions and surges.
Q: Where can I find detailed specifications for this UPS?
A: All technical specifications for the ZEBRONICS 1205VA UPS are available in the dedicated section above.
Q: Is this UPS suitable for home or office use?
A: The ZEBRONICS 1205VA UPS is suitable for various applications requiring reliable power backup and protection. Please consult the specifications for capacity details.
