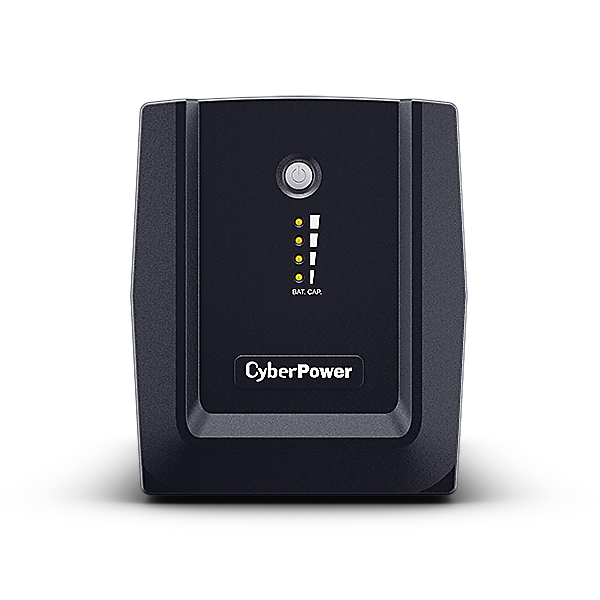

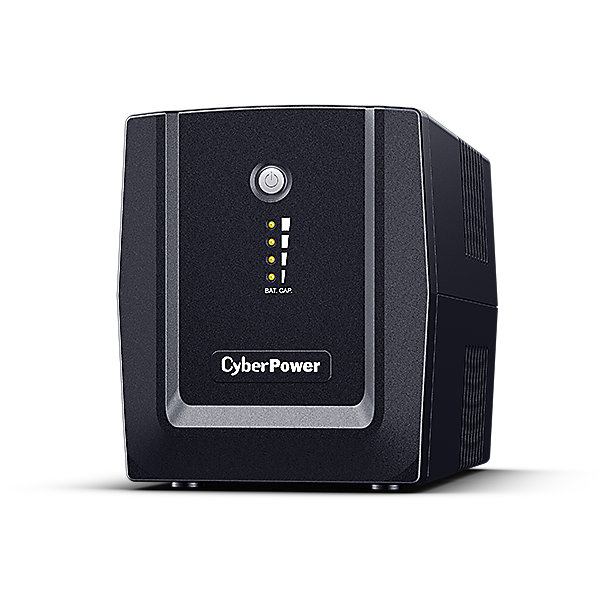

Safeguard your essential electronics with the CYBER POWER 1.2 KVA UPS. Designed for reliable power protection, this line-interactive UPS offers a range of features to ensure your devices remain powered and secure during fluctuations or outages.

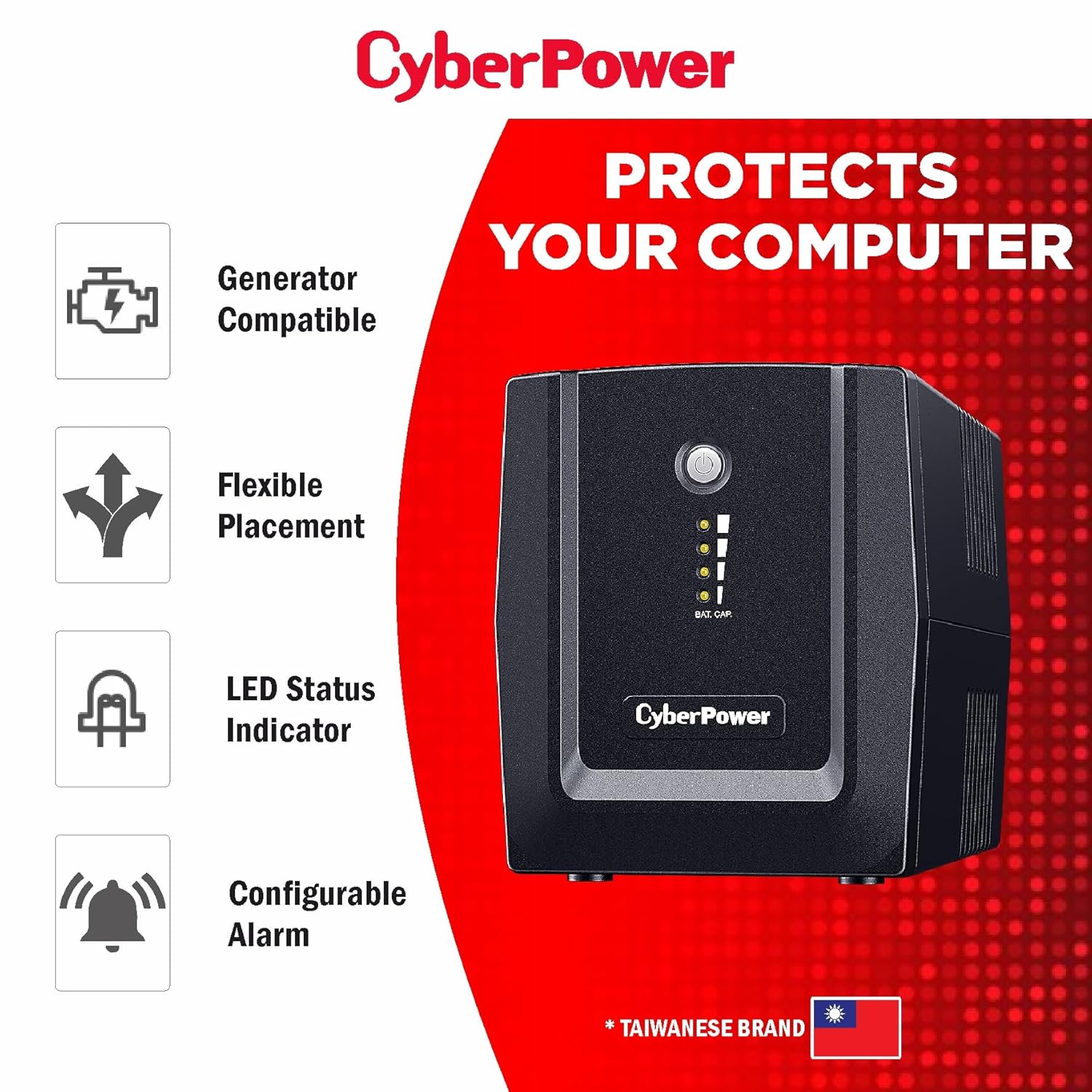

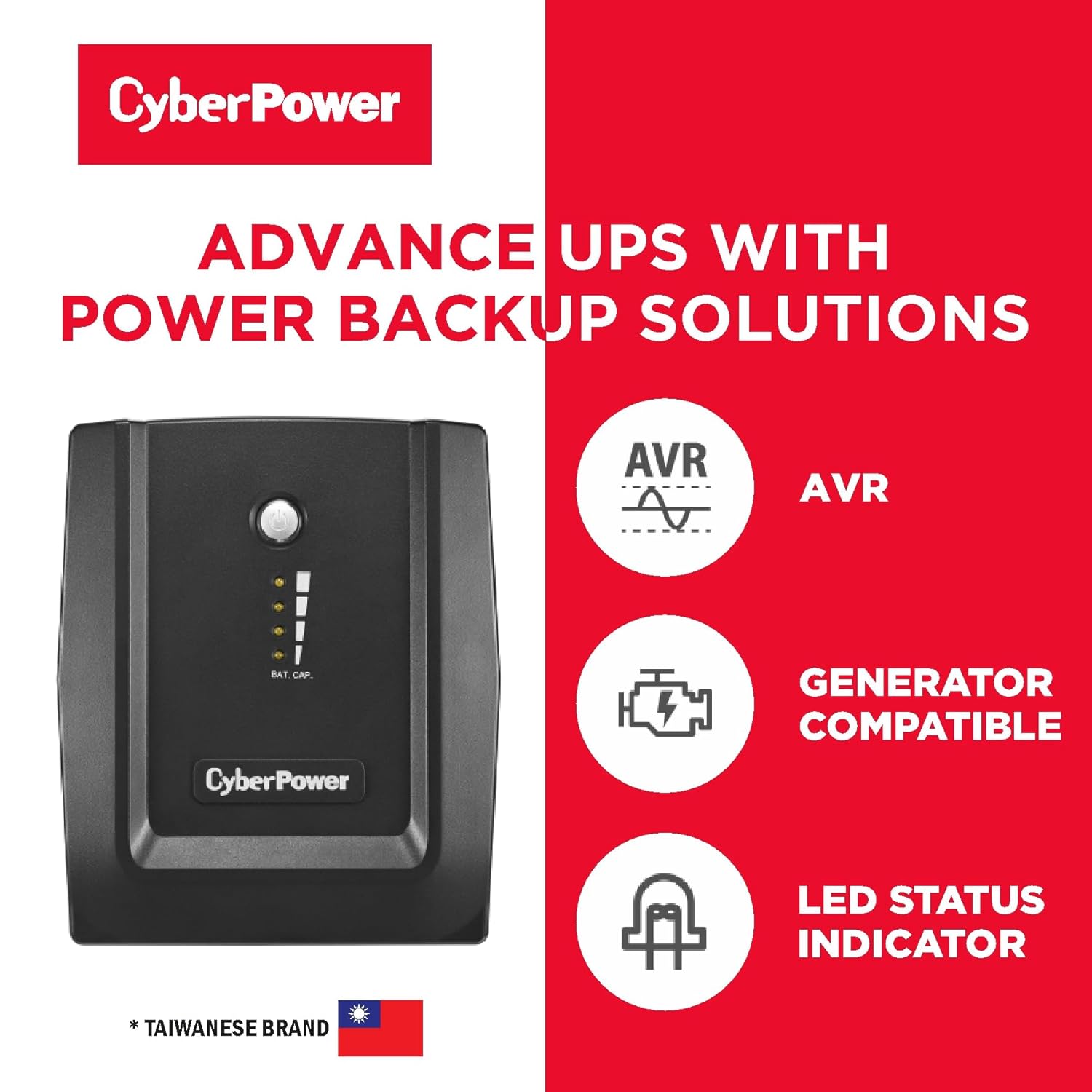

Key Features at a Glance
- Line-interactive UPS Topology
- Automatic Voltage Regulation (AVR)
- Generator Compatible
- EMI and RFI Filtration
- Overload Protection
- LED Status Indicator
- Configurable Alarm
Reliable Power Stability
Experience consistent and clean power with this UPS. Its line-interactive topology, combined with Automatic Voltage Regulation (AVR) and EMI/RFI filtration, actively corrects minor power fluctuations without switching to battery, safeguarding your connected equipment.
Enhanced Protection for Your Devices
This UPS offers comprehensive protection, supporting connectivity with generators for extended runtime during outages. Built-in overload protection shields your valuable electronics from damage due to excessive power draw, ensuring longevity and performance.
Intuitive Monitoring and Alerts

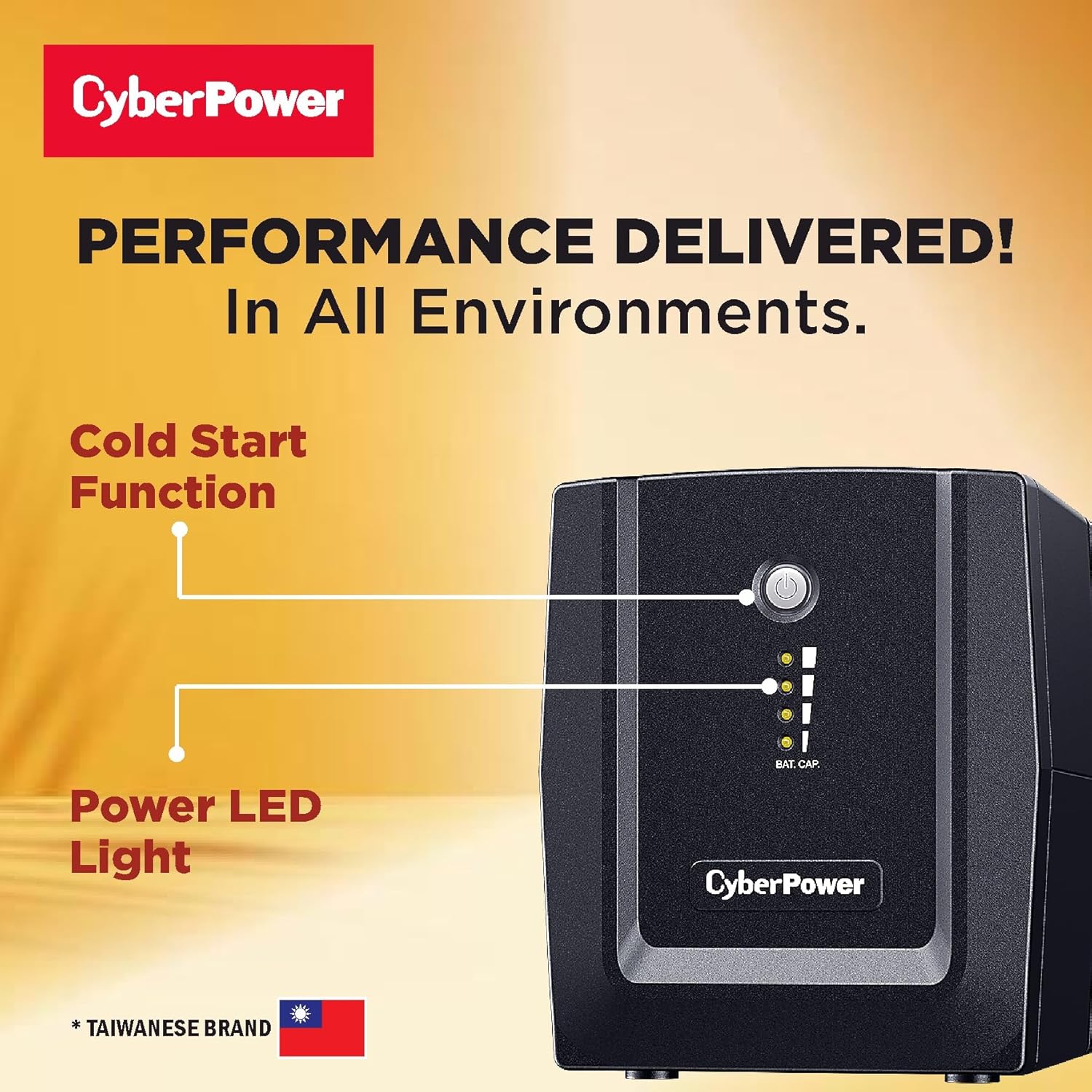

Stay informed about your power status with the clear LED indicator. The configurable alarm system provides timely alerts for power events, allowing you to react promptly and manage your connected systems effectively.
Technical Specifications
| Category | Specifications |
|---|---|
| General | |
| Phase | Single Phase |
| Form Factor | Tower |
| UPS Topology | Line-interactive |
| Input | |
| Generator Compatibility | Yes |
| Nominal Input Voltage | 230 ± 10% Vac |
| Input Voltage Range | 140 ~ 300 Vac |
| Input Frequency | 50 ± 10 Hz, 60 ± 10 Hz |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current | 5.45 A |
| Input Connector Type | IN/ZA |
| Power Cord Length | 4 ft (1.2 m) |
| Output | |
| Capacity (VA) | 1200 |
| Capacity (Watts) | 720 |
| On Battery Waveform | Simulated Sine Wave |
| On Battery Voltage | 230 ± 10% Vac |
| On Battery Frequency | 60 ± 1% Hz, 50 ± 1% Hz |
| Automatic Voltage Regulation (AVR) | Double Boost, Single Buck |

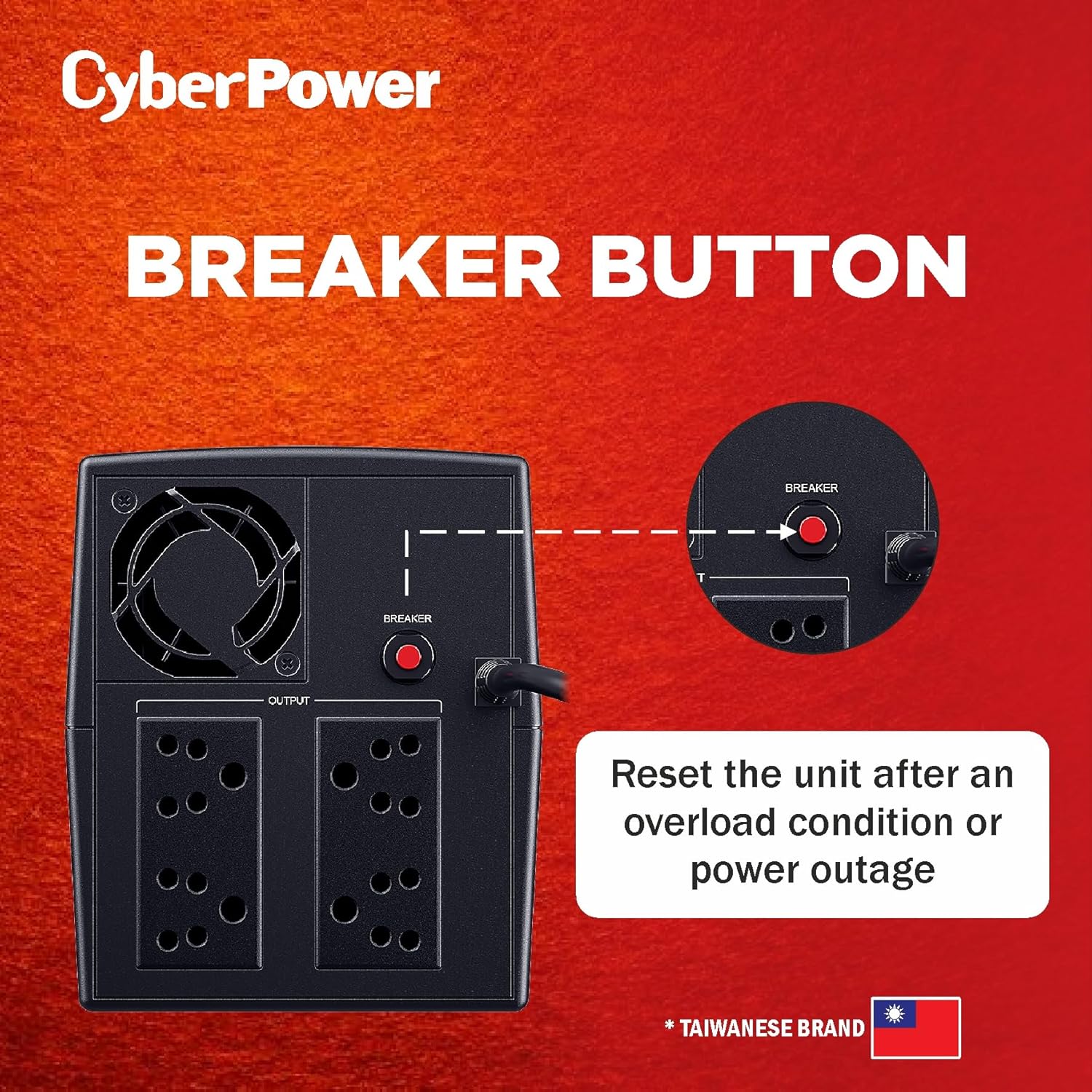

| Overload Protection | Circuit Breaker |

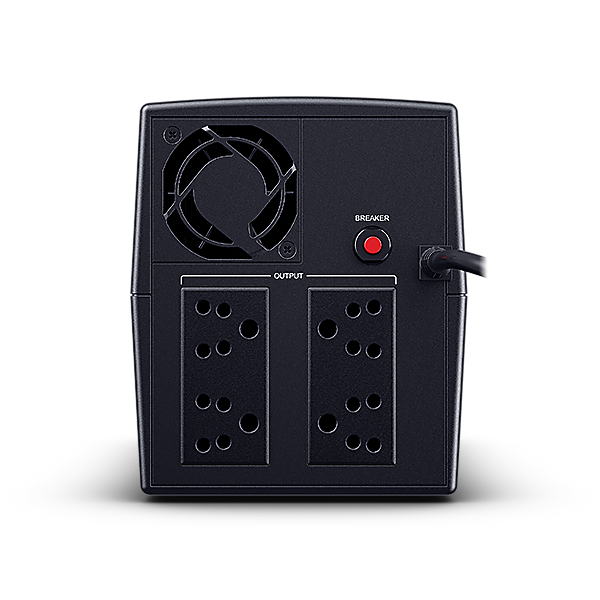

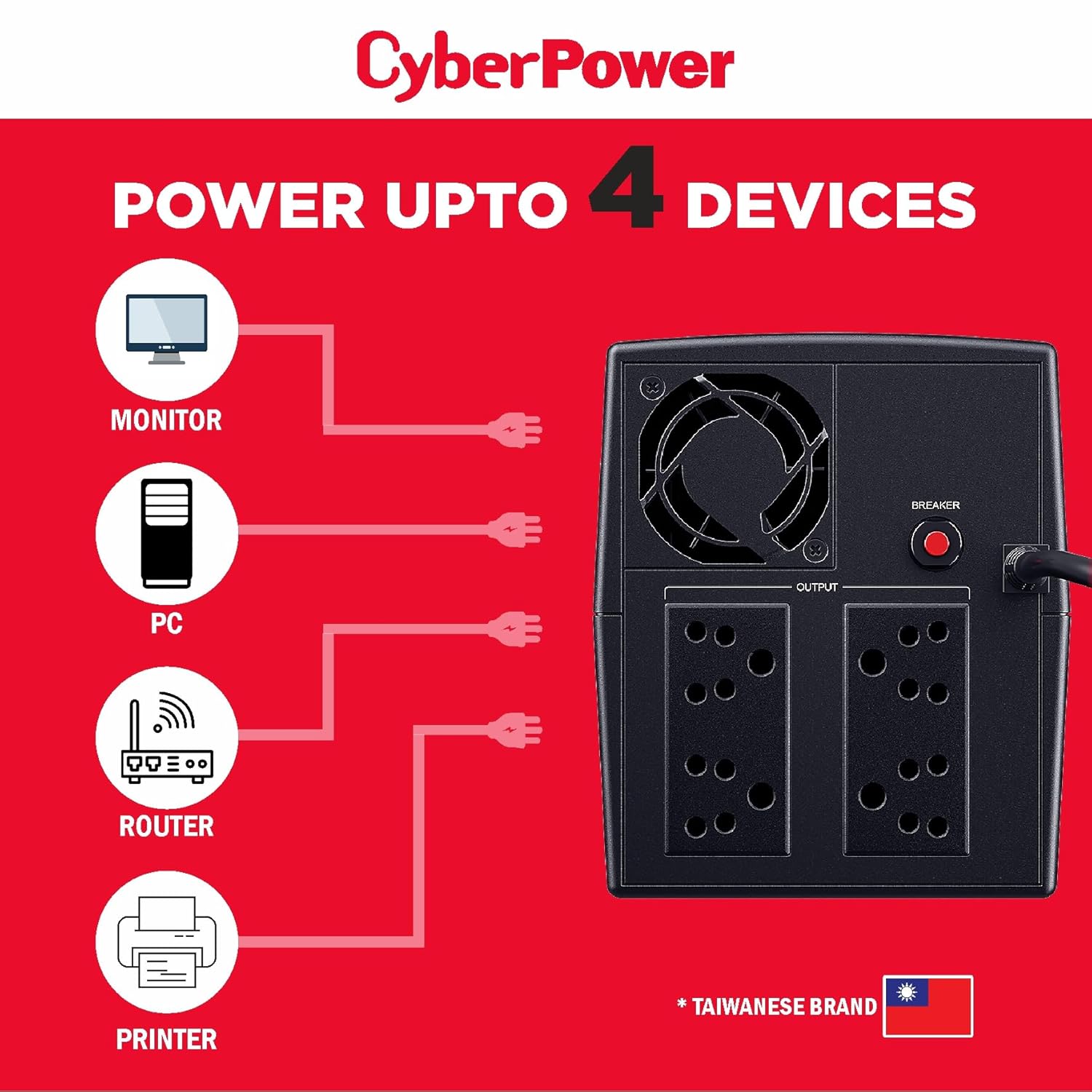

| Outlet(s) - Total | 4 |
| Outlet Type | IN/ZA x 4 |
| Outlet(s) - Battery Backup | 4 |
| Battery | |
| Runtime at 60W | 65 min |
| Runtime at 90W | 40 min |
| Runtime at 200W | 14 min |
| Typical Recharge Time | 8 hours |
| Start On Battery | Yes |
| User-replaceable | No |
| Battery Type | Sealed Lead-acid |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| LED Indicators | Power On, Line Mode, Battery Mode, Battery Capacity, Low Battery |
| Audible Alarms | Battery Mode, Low Battery, Overload, UPS Fault |
| Physical | |
| Enclosure Construction | Plastic |
| Color | Black |
| Physical Size (WxHxD) | 148 x 178 x 298 mm (5.83 x 7.01 x 11.73 in) |
| Weight | 7.6 kg (16.8 lbs) |
| Shipping Dimensions | 271 x 202 x 397 mm (10.67 x 7.95 x 15.63 in) |
| Shipping Weight | 8.1 kg (17.9 lbs) |
| Environmental | |
| Operating Temperature | 0 ~ 40°C (32 ~ 102°F) |
| Storage Temperature | -20 ~ 50°C (-4 ~ 122°F) |
| Operating Relative Humidity | 0 ~ 90% (non-condensing) |
| Storage Relative Humidity | 0 ~ 90% (non-condensing) |
| Operating Elevation | 0-9,843 ft (0-3,000 m) |
| Online Thermal Dissipation | 52 BTU/hr |
| Audible Noise | 40 dBA |
| Certifications | |
| Certifications | BIS, RoHS |
| Warranty | |
| Product Warranty | 2 years |
| Battery Warranty | 2 years |
Frequently Asked Questions
Q: What type of UPS topology does this model use?
A: The CYBER POWER 1.2 KVA UPS utilizes a line-interactive UPS topology.
Q: Is this UPS compatible with generators?
A: Yes, the CYBER POWER 1.2 KVA UPS is designed to be compatible with generators.
Q: How does this UPS inform me about power events or status?
A: It features an LED status indicator for visual cues and a configurable alarm system for audible alerts regarding power status.
