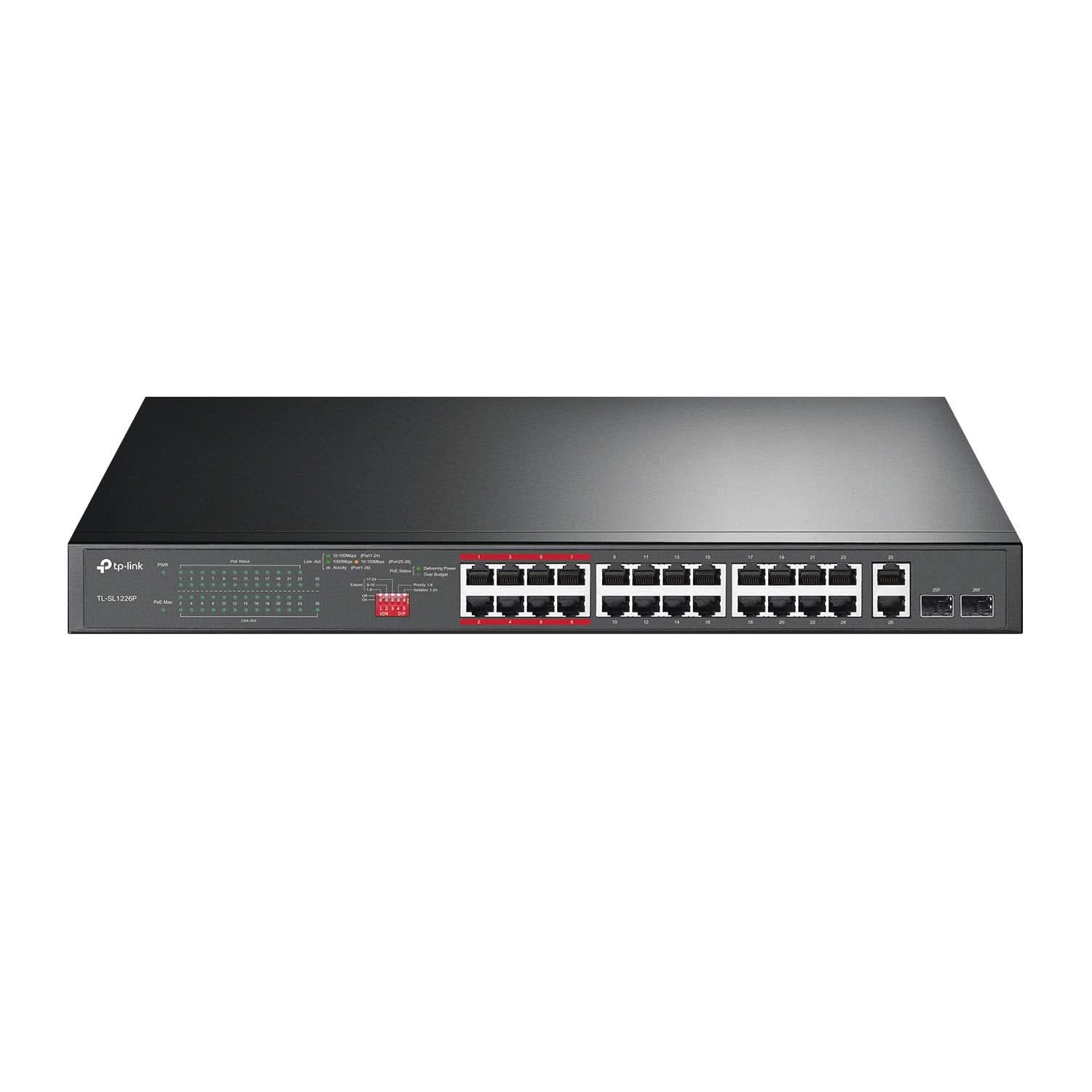

The TP-LINK 24 Port Fast Ethernet PoE Switch (TL-SL1226P) provides a robust and flexible networking solution, designed for powering multiple devices efficiently. Featuring 24 PoE+ ports for power and data transmission, along with two Gigabit uplink ports and two combo Gigabit SFP slots, this switch ensures versatile connectivity options. Its plug-and-play design allows for easy setup without complex configuration.
Key Features at a Glance
- 24× PoE+ 10/100 Mbps RJ45 ports for power and data.
- 2× Gigabit RJ45 Uplink ports and 2× combo Gigabit SFP slots.
- Total PoE budget of 250W, delivering up to 30W per port.
- Plug-and-play setup requires no software installation or configuration.
- Extend Mode supports up to 250m PoE transmission range for surveillance.
- Priority Mode on ports 1-8 ensures high-quality video or voice data transmission.
- Isolation Mode helps to isolate broadcast storms and improve LAN security.
Flexible Network Connectivity
Expand your network with 24 dedicated PoE+ 10/100 Mbps RJ45 ports for efficient device connectivity. This switch also includes two Gigabit RJ45 Uplink ports and two combo Gigabit SFP slots, offering versatile options for high-speed connections and fiber integration.

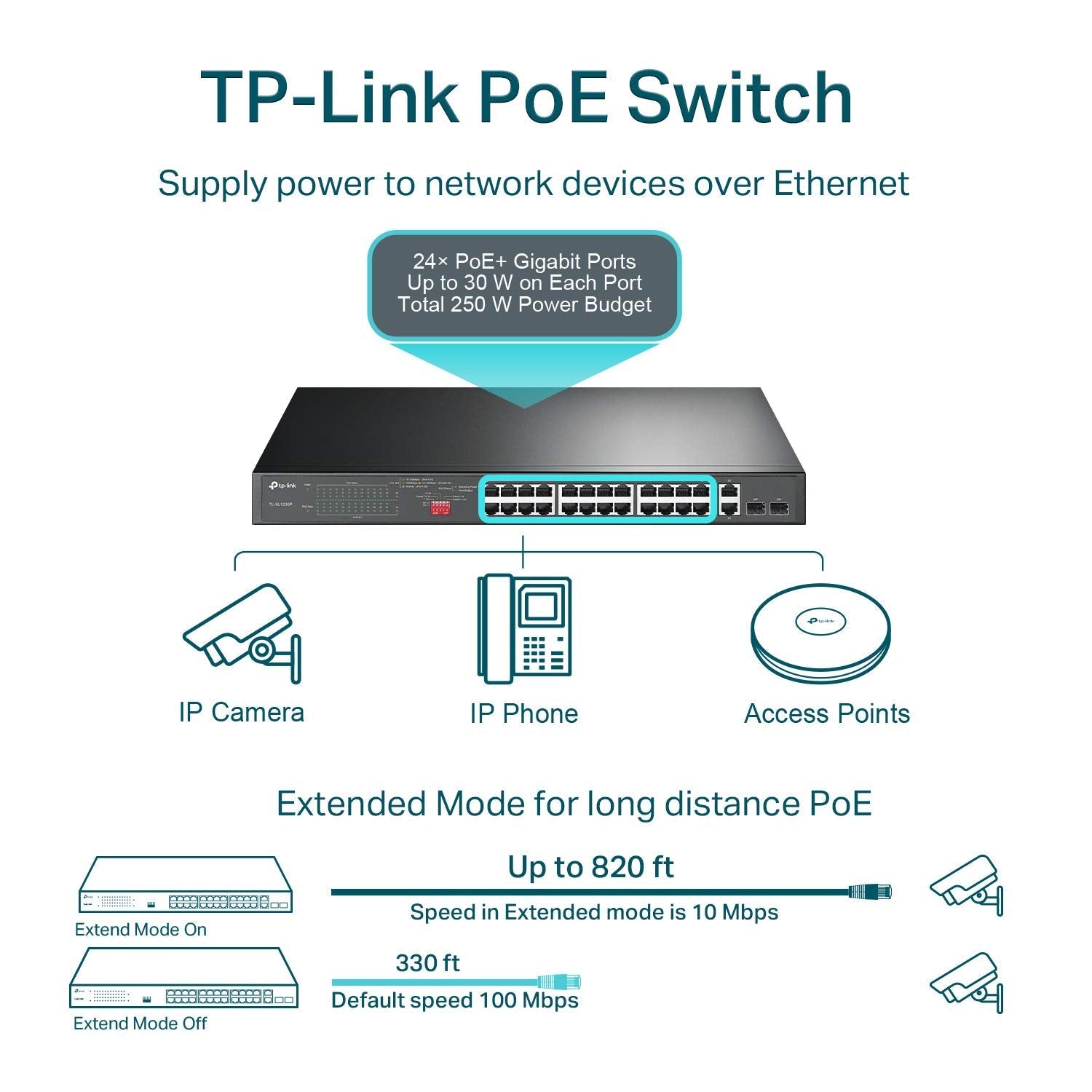

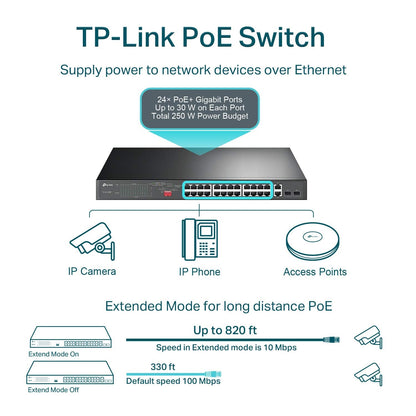

Simplified Power Over Ethernet Deployment
With 24 PoE+ (802.3at/af) ports, this switch delivers up to 30W of power per port, supporting a total PoE budget of 250W. Power compatible devices directly through the Ethernet cable, streamlining installations and reducing cable clutter.

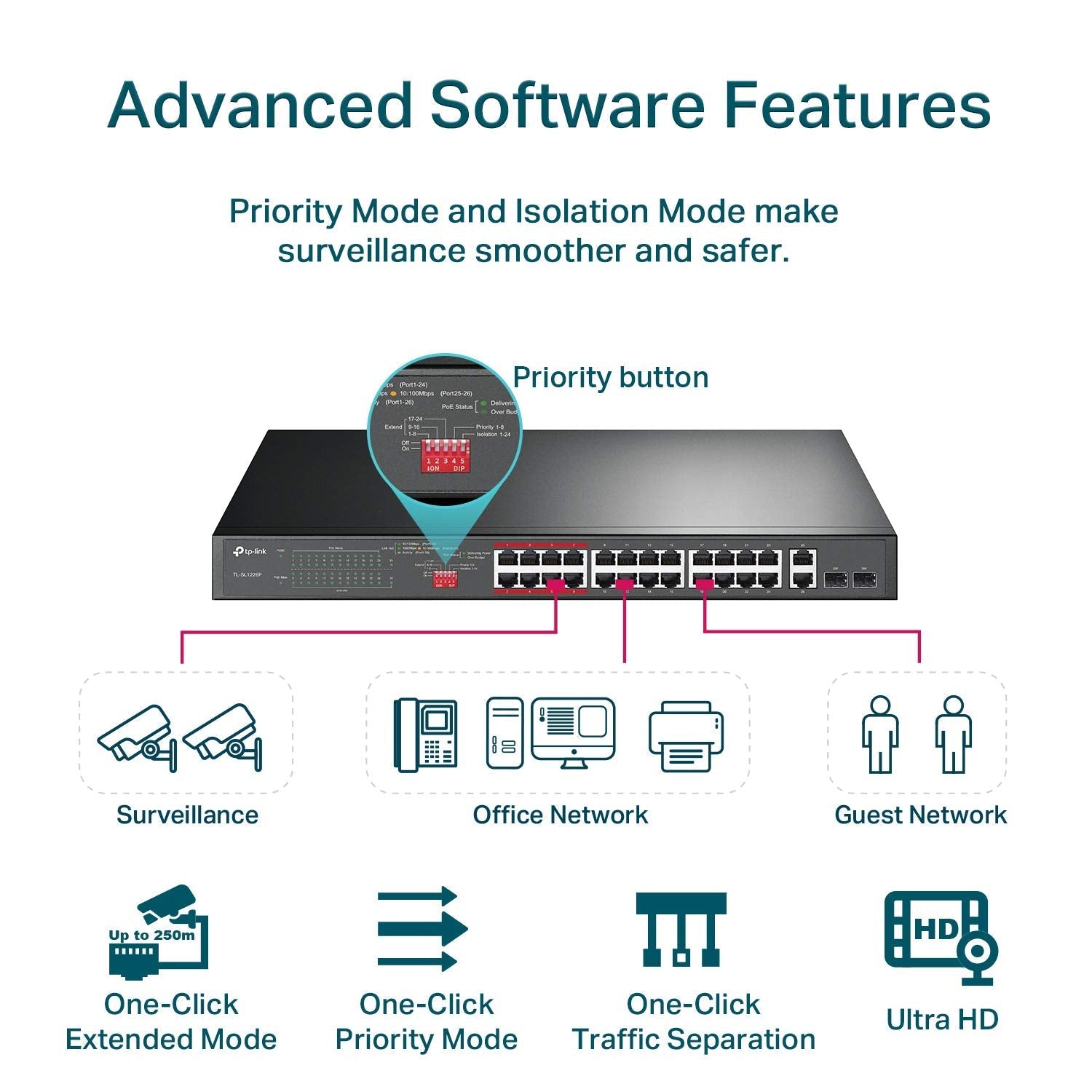

Optimized Performance Modes
Utilize Extend Mode for data and power PoE transmission up to 250 meters, making it ideal for IP surveillance systems (note: speed will be 10 Mbps). Engage Priority Mode for ports 1-8 to guarantee high-quality transmission for critical applications like video and voice data. Isolation Mode further enhances LAN security and data flow by isolating broadcast storms.
Effortless Plug-and-Play Setup
Enjoy immediate network expansion with the plug-and-play functionality of the TP-LINK 24 Port Fast Ethernet PoE Switch. This switch requires no software installation or complex configuration, enabling quick and straightforward deployment for your network needs.
Technical Specifications
| Switch Type | Ethernet Switch |
|---|---|
| Item Weight | 6.4 Pounds |
| Platform | Not Machine Specific |
| Case Material Type | Plastic |
| Maximum Power | 2.5E+2 Watts |
| Upper Temperature Rating | 50 Degrees Celsius |
| Interface Type | PoE, RJ45 |
| Data Transfer Rate | 8.8 Gigabits Per Second |
| Current Rating | 1 Amps |
| Manufacturer | TP-Link |
| UPC | 845973089443 |
| Model | TL-SL1226P |
| Product Dimensions | 44 x 18 x 4.4 cm; 2.9 kg |
| Item model number | TL-SL1226P |
| Number of items | 1 |
| Wattage | 18.32 Watts |
| Batteries Included | No |
| Batteries Required | No |
| Connector Type | Ethernet |
| Material | Steel |
| Mounting Type | Rack Mount |
| Item Weight | 2 kg 900 g |
Frequently Asked Questions
Q: How many PoE+ ports does this switch feature?
A: The TP-LINK 24 Port Fast Ethernet PoE Switch features 24 PoE+ 10/100 Mbps RJ45 ports.
Q: What is the total PoE budget for this switch?
A: This switch offers a total PoE budget of 250W, providing up to 30W per port.
Q: Does this switch require special software for installation?
A: No, the switch is plug-and-play, meaning it requires no software installation or configuration for easy setup.
