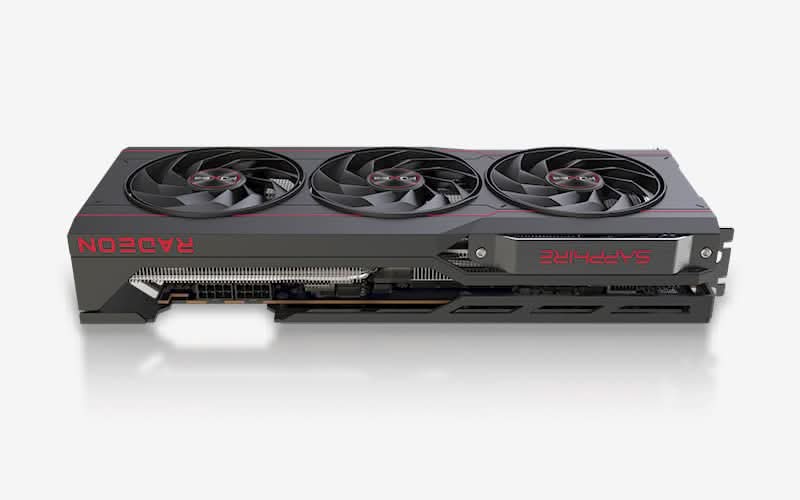

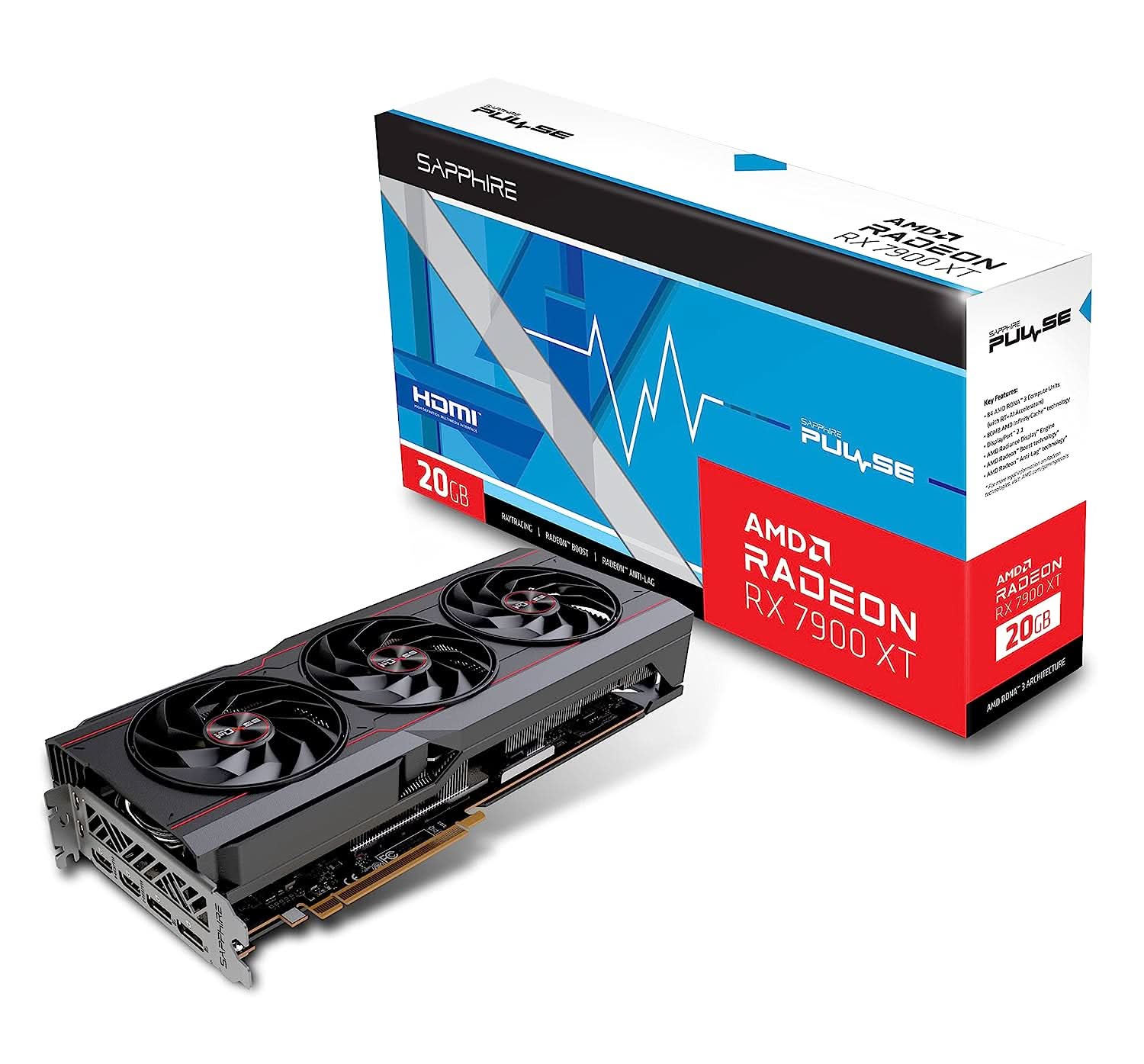

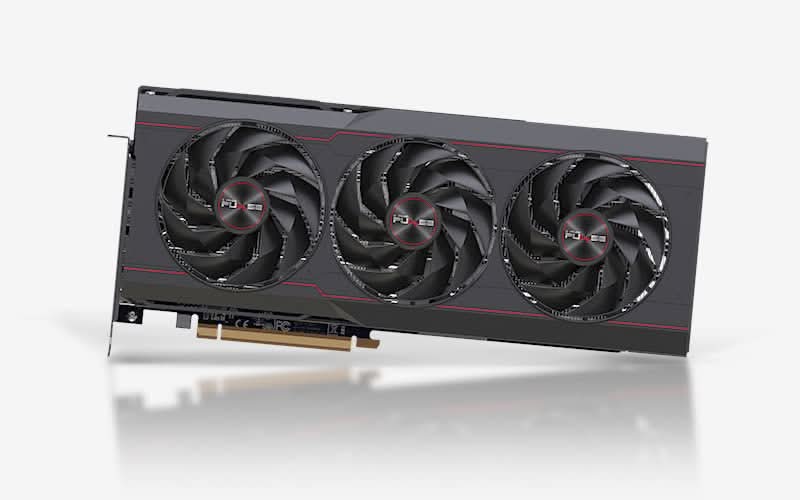

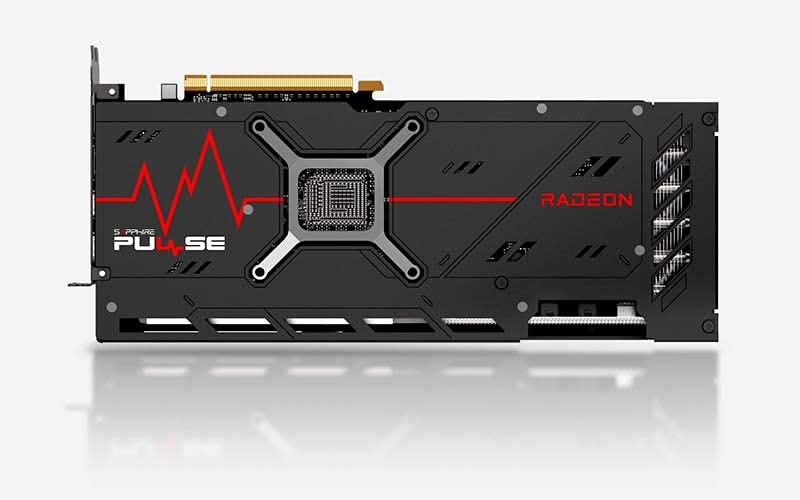

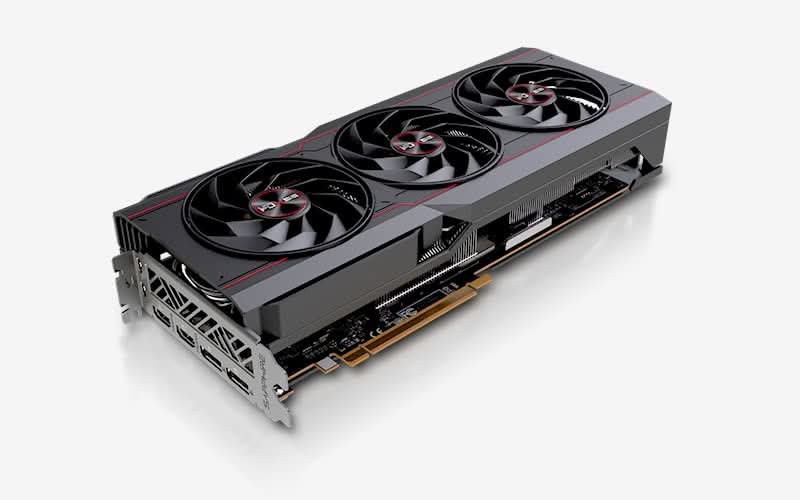

SAPPHIRE AMD RADEON RX7900XT 20GB PLUSE GAMING OC GRAPHIC CARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
| GPU |
AMD Radeon RX 7900 XT Graphics Card
|
| 5nm GPU | |
| AMD RDNA 3 Architecture | |
|
Engine Clock
|
Boost Clock: Up to 2450 MHz
|
| Game Clock: Up to 2075 MHz | |
|
Stream Processors
|
5376
|
|
Compute Units
|
84 CU (with RT+AI Accelerators)
|
|
Infinity Cache
|
80MB
|
|
Ray Accelerators
|
84
|
|
Memory Size/Bus
|
20GB/320 bit GDDR6
|
|
Memory Clock
|
20 Gbps Effective
|
|
Displays
|
Maximum 4 Displays
|
|
Resolution
|
HDMI 7680◊4320
|
| DisplayPort 2.1: 7680x4320 | |
|
Interface
|
PCI-Express 4.0 x16
|
|
Output
|
2x HDMI
|
| 2x DisplayPort | |
|
BIOS Support
|
UEFI
|
|
Game Index
|
4K
|
|
Sapphire Features
|
Digital Power Design
|
| Ultra High Performance Conductive Polymer Aluminum Capacitors | |
| Fuse Protection | |
| High TG Copper PCB | |
| Optimized Composite Heat pipe | |
| Tri-X Cooling Technology | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| Metal Backplate | |
| Angular Velocity Fan Blade | |
| Dual-Ball Bearing Fans | |
| TriXX Supported | |
| TriXX Boost | |
|
Accessories Bundled
|
Graphics Card Supporter
|
|
AMD Features
|
AMD RDNA 3 Architecture
|
| 84 AMD RDNA 3 Compute Units (with RT+AI Accelerators) | |
| 80MB AMD Infinity Cache Technology | |
| Display Port 2.1 Support | |
| AMD Radiance Display Engine | |
| 20GB GDDR6 on 320-Bit Memory Bus | |
| PCIÆ Express 4.0 ready | |
| AMD Fidelity FX Super Resolution technology | |
| Microsoft DirectX 12 Ultimate Support | |
| Microsoft Direct Storage Support | |
| Vulkan Optimized | |
| AMD Smart Technologies | |
| AMD Software: Adrenalin Edition | |
| AMD Noise Suppression | |
| AMD Privacy View | |
| AMD Radeon Super Resolution technology | |
| AMD Link | |
| AMD FreeSync technology | |
|
Cooling
|
3 Fans
|
|
Form Factor
|
2.7 slot, ATX
|
| Dimension: 313(L)X 133.75(W)X 52.67 (H)mm | |
|
Power Consumption
|
331W Total Board Power
|
|
OS
|
Linux, Windows 10, and Windows 11. 64-bit operating system required
|
|
System Requirement
|
Minimum 750 Watt Power Supply
|
| 2 x 8-pin Power Connector. | |
| PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. |
| Warranty | 3 Years |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
