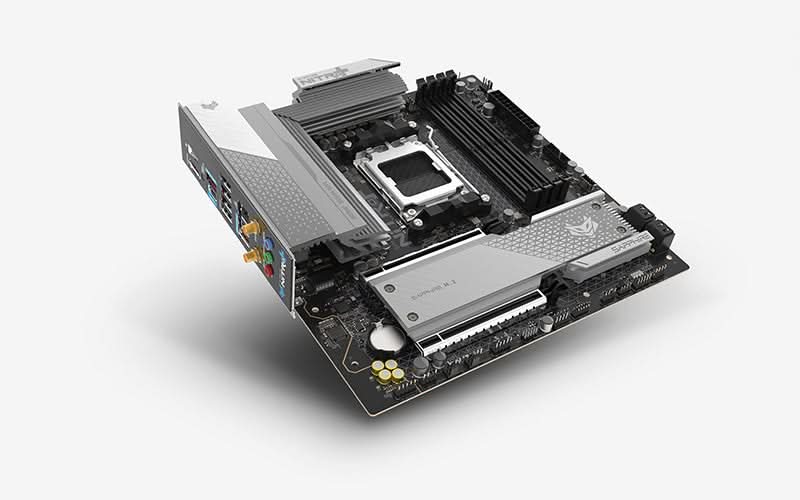

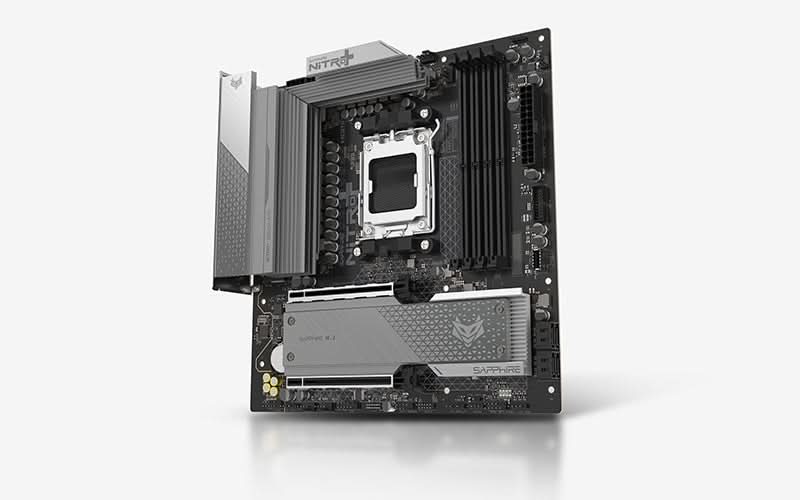

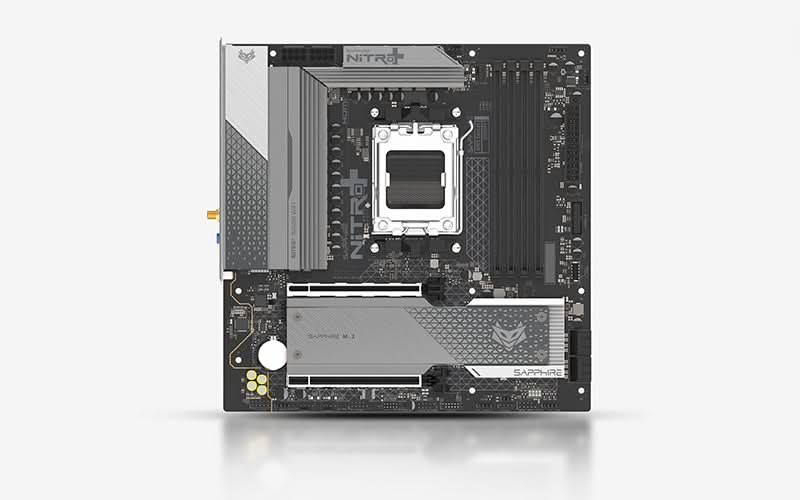

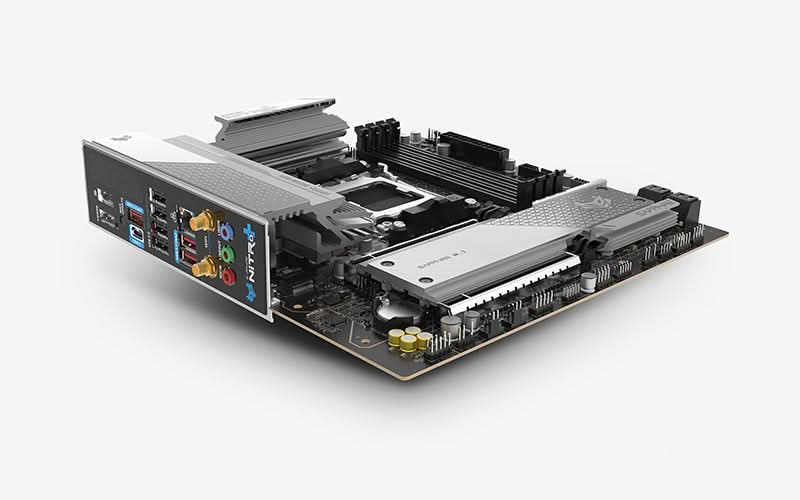

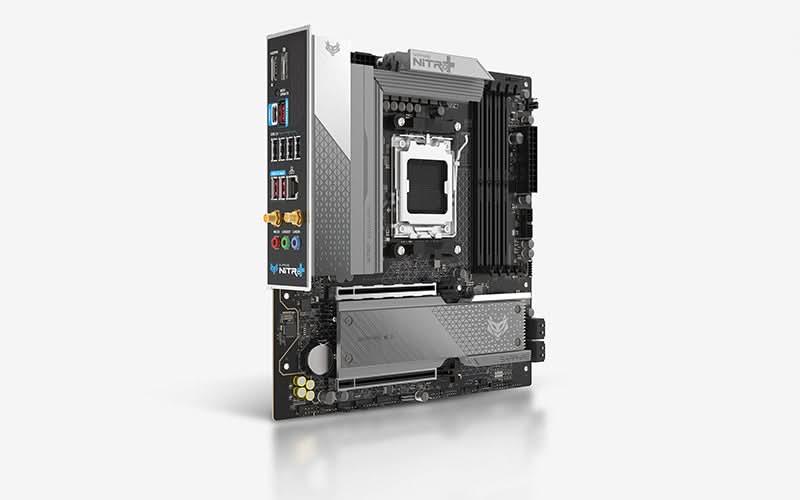

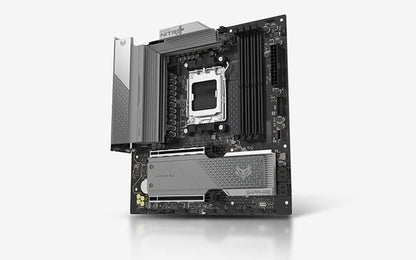

SAPPHIRE NITRO Plus B850M DDR5, AM5, Micro-ATX Motherboard
SAPPHIRE NITRO Plus B850M DDR5, AM5, Micro-ATX Motherboard
Regular price
Rs. 15,435.00
Sale price
Rs. 15,435.00
Regular price
Rs. 22,766.00
Unit price
per
Low stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
NITRO+ B850M WIFI
- AMD AM5 CPU SUPPORT
- SAPPHIRE CORE BIOS
- 12+2+1 Phase CPU Power, 55A Per Phase,
- Robust VRM, M.2 and PCH Cooling
- Dual Channel, 8000 MHz Memory OC
- PCI Express 5.0 x16
- PCIe 5.0 M.2 Support
- Debug LED
Specifications:
| Chipset | AMD® B850 |
| CPU Support | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory Support |
4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC)
|
| PCI-E Expansion Slots |
1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot
|
| Display Connector | DisplayPort x1, HDMI x1 |
| Audio |
Realtek® ALC897 HD Audio, 5.1 Channel
|
| Network | Realtek® RTL8125BG 2.5 Gigabit Ethernet M.2 WiFi 6 Module, Support 802.11 a/b/g/n/ac/ax, 2.4 GHz/ 5 GHz band, Bluetooth 5.3 Support |
| Front USB Headers |
1x USB 3.2 Gen1 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 1x USB 2.0 (2 x Type-A)
|
| Rear Ports | 1× DisplayPort, 1× HDMI™, 1× RJ45 LAN, 2× Wi-Fi Antenna One-click Flash BIOS Button, 4× USB 2.0, 3× USB 3.2 Gen2 Type-A 1× USB 3.2 Gen2 Type-C, 3× Audio Jacks |
| Storage |
1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA
|
| Dimensions |
Micro-ATX, 244x244mm
|
| Debug LED |
DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
|
