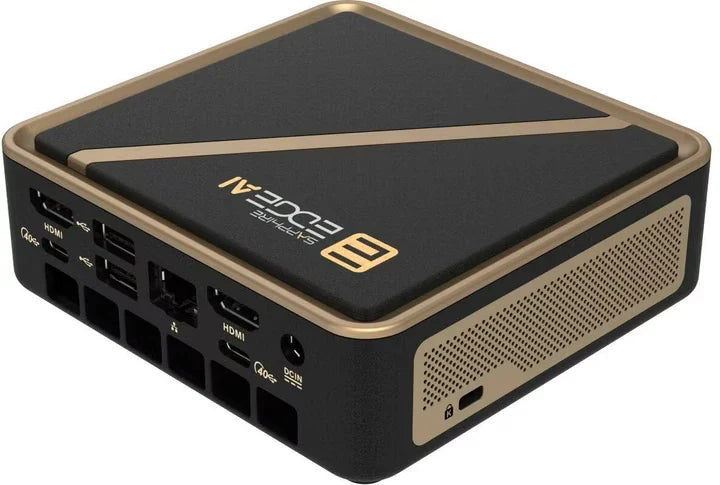

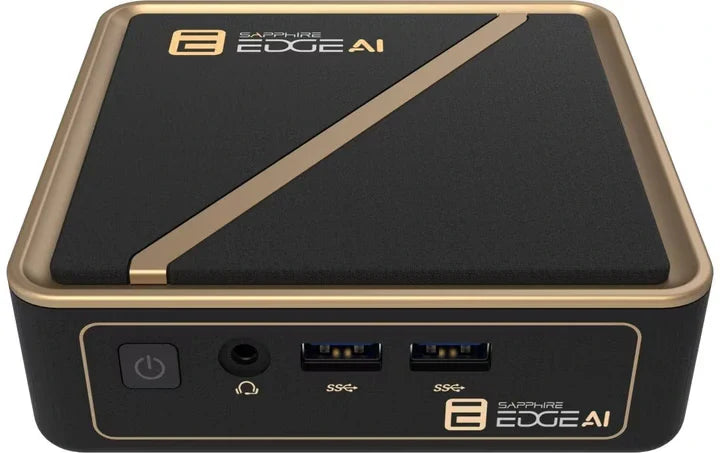

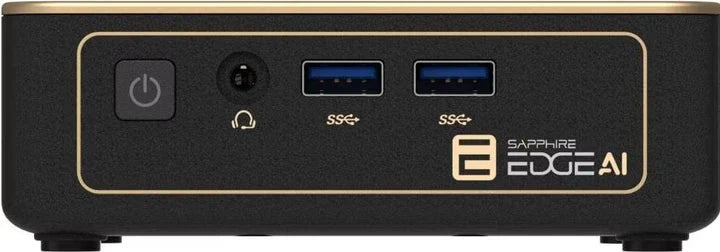

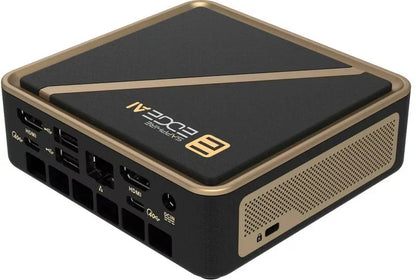

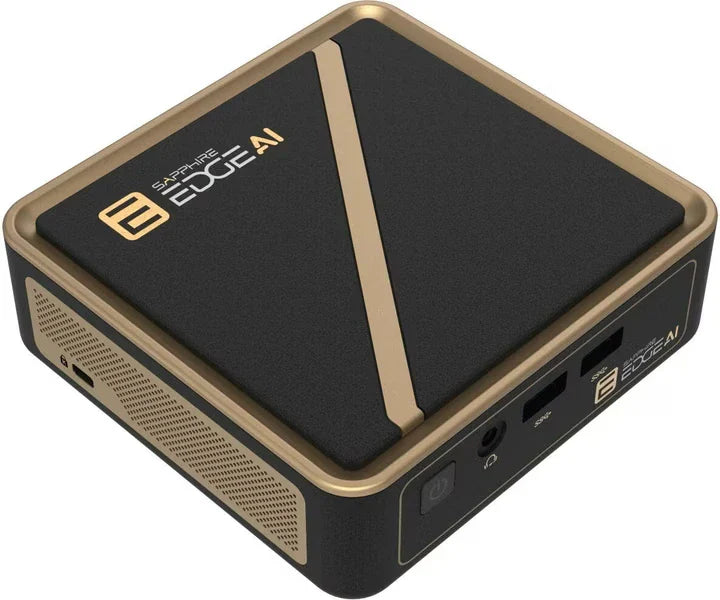

The Sapphire EDGE AI 340 Barebone AMD Ryzen AI 5 340 is a compact and powerful barebone system, equipped with a pre-installed AMD Ryzen AI 5 340 processor. This solution provides a flexible and customizable platform, allowing users to integrate their own storage and operating system solutions.
Key Features at a Glance
- Pre-installed AMD Ryzen AI 5 340 processor
- Ultra Small Form Factor (USFF) case design
- Supports up to 96 GB of DDR5 RAM
- Features 3 M.2 slots for storage expansion
- Active cooling with an integrated fan
- Equipped with two HDMI 2.1 ports
- Maximum RJ-45 speed of 2.5 Gbit/s
Compact & Versatile Design
With its Ultra Small Form Factor (USFF) case, the Sapphire EDGE AI 340 offers a space-saving option suitable for various environments. It is ideal for setups in the office, home office, or for digital signage applications, providing flexibility without sacrificing power.
Powerful Performance & Expandability
Equipped with an AMD Ryzen AI 5 340 processor, this barebone system supports DDR5 RAM, allowing for up to 96 GB, and features three M.2 slots. This configuration enables future-proof expansion and high performance for diverse computing tasks, adapting to your evolving needs.
Efficient Cooling & Connectivity

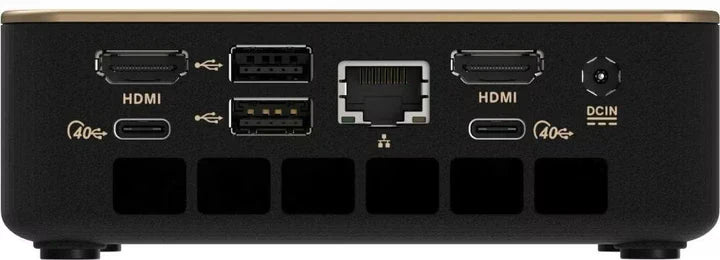

Active cooling with a fan ensures efficient heat dissipation, maintaining optimal performance during operation. Connectivity options include two HDMI 2.1 ports for high-resolution video output and a 2.5 Gbit/s RJ-45 port for fast network connections, supporting a wide range of peripherals and network demands.
Technical Specifications
|
Number of processor cores
|
6 -Core |
|
Memory type
|
DDR5-RAM |
|
Internal connection options
|
M.2 (3x) |
|
USB ports
|
USB-A, USB-C
|
|
Video connections
|
HDMI (2x) |
|
Processor type
|
AMD Ryzen AI 5 340 |
|
Clock frequency
|
2 GHz |
|
Number of processors
|
1x |
|
Number of processor cores
|
6 -Core |
|
Number of threads
|
12 |
|
Socket
|
FP8 |
|
Max. turbo clock rate
|
4.80 GHz |
|
Max. TDP
|
28 W |
|
Processor properties
|
Onboard processor |
|
Memory type
|
DDR5-RAM |
|
Memory form factor
|
SO-DIMM |
|
Memory Slots available
|
2 |
|
Max. memory slots
|
2 |
|
Max. RAM
|
96 GB |
|
Internal connection options
|
M.2 (3x) |
|
USB ports
|
USB-A, USB-C
|
|
Exact USB ports
|
USB-A 2.0 (1x), USB-C 4 (2x)
|
|
Max. port speed
|
2500 Mbit/s |
|
Connectivity
|
Bluetooth, HDMI, LAN, USB
|
|
Video connections
|
HDMI (2x) |
|
Power
|
120 W |
Frequently Asked Questions
Q: What processor is included with the Sapphire EDGE AI 340 Barebone system?
A: The Sapphire EDGE AI 340 Barebone comes with a pre-installed AMD Ryzen AI 5 340 processor.
Q: What kind of RAM does this barebone system support?
A: This system supports up to 96 GB of DDR5 RAM.
Q: What are the video output options for the Sapphire EDGE AI 340?
A: It features two HDMI 2.1 ports for high-resolution video output.
