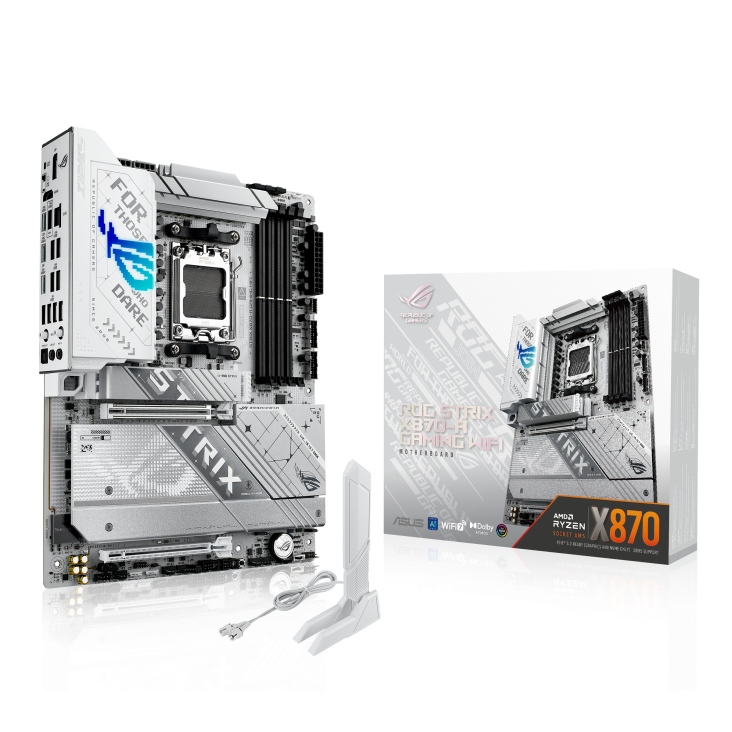

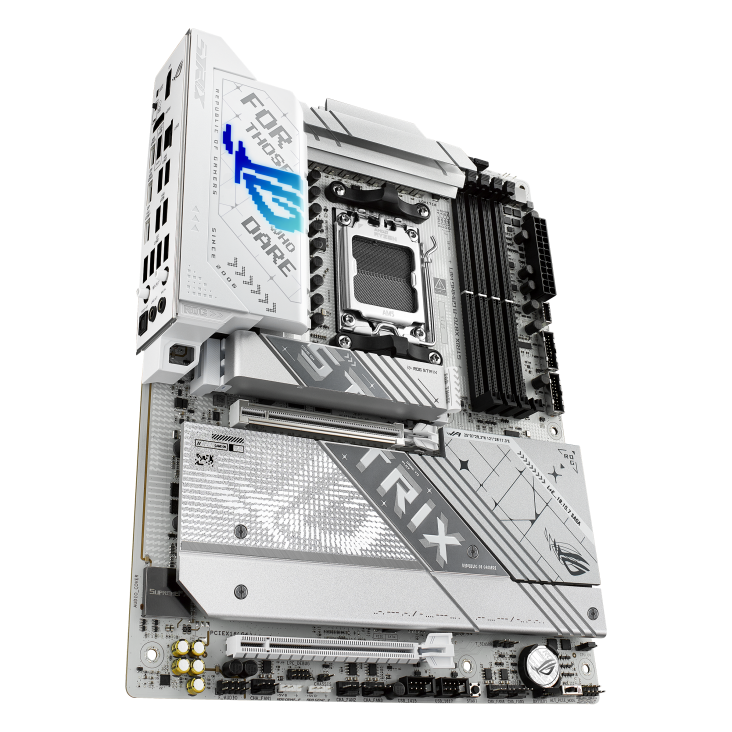

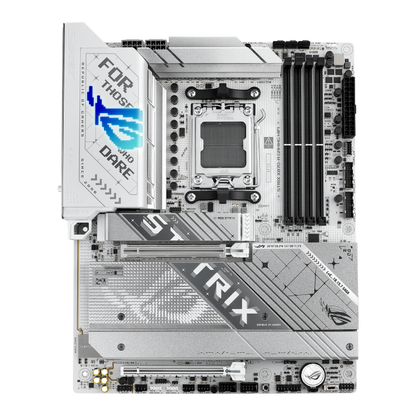

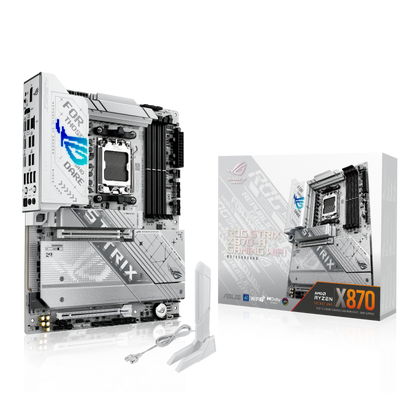

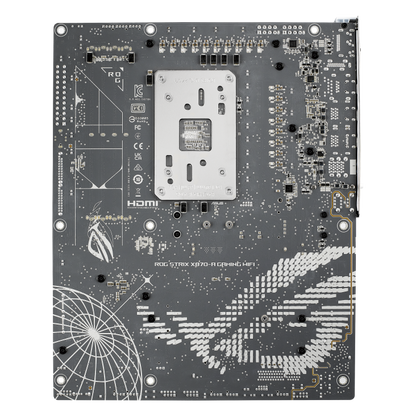

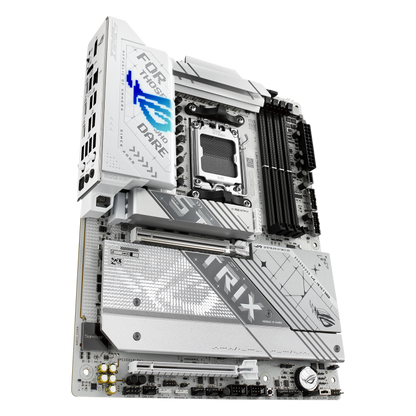

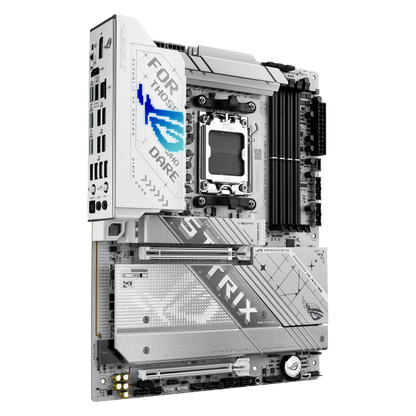

ASUS ROG STRIX X870-A GAMING WIFI MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Unleash the full potential of your gaming rig with the ASUS ROG STRIX X870-A GAMING WIFI MOTHERBOARD. Engineered for enthusiasts and competitive gamers alike, this motherboard provides a robust foundation for building a high-performance system. With its advanced features and integrated connectivity, it stands ready to power your most demanding applications and immersive gaming experiences.
Key Features at a Glance
- Premium ASUS ROG STRIX series design
- Robust X870-A chipset architecture
- Integrated Wi-Fi connectivity for wireless freedom
- Optimized for high-performance gaming
- Foundation for a powerful and stable PC build
Elevate Your Gaming Experience
Designed with gamers in mind, the ASUS ROG STRIX X870-A GAMING WIFI MOTHERBOARD ensures your system runs smoothly even during intense gameplay. Experience responsive performance and stability, providing you with a competitive edge in every session.
Seamless Wireless Connectivity
Benefit from the convenience of integrated Wi-Fi. The ASUS ROG STRIX X870-A GAMING WIFI MOTHERBOARD allows for flexible network connections without the need for additional adapters, keeping your setup clean and efficient.
Built on the X870-A Platform
At its core, this motherboard features the X870-A chipset, providing a modern and robust platform for your components. This architecture supports advanced functionalities, making it ideal for high-end gaming and demanding applications.
Iconic ROG STRIX Design
The ROG STRIX series is renowned for its distinctive aesthetics and quality construction. The ASUS ROG STRIX X870-A GAMING WIFI MOTHERBOARD upholds this tradition, offering a visually striking component that complements any high-performance build.
Technical Specifications
| Category | Specification |
|---|---|
| CPU | AMD Socket AM5, supports Ryzen 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 |
| Memory | 4 x DIMM slots, max. 256GB DDR5, up to 8000+MT/s (OC), ECC & Non-ECC, Dual Channel, EXPO, AEMP |
| Graphics | 1 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz), 2 x USB4 Type-C with DP Alt mode (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000 & 7000), 1 x PCIe 4.0 x16 (Ryzen 8000), 1 x PCIe 4.0 x16 (x4 mode) |
| Storage | 4 x M.2 slots (PCIe 5.0/4.0), 2 x SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (PCIe & SATA) |
| Ethernet | 1 x Intel 2.5Gb Ethernet, ASUS LANGuard |
| Wi-Fi & Bluetooth | Wi-Fi 7 (2x2, 2.9Gbps, 2.4/5/6GHz), Bluetooth v5.4 |
| Rear USB (12 Ports) | 2 x USB4 (40Gbps, Type-C, DP Alt mode), 6 x USB 10Gbps (5 x Type-A, 1 x Type-C, 30W PD), 4 x USB 5Gbps (Type-A) |
| Front USB (9 Ports) | 1 x USB 20Gbps (Type-C), 2 x USB 5Gbps headers (4 additional ports), 2 x USB 2.0 headers (4 additional ports) |
| Audio | ROG SupremeFX 7.1 HD Audio (ALC4080), 120dB SNR, Savitech SV3H712 AMP, Optical S/PDIF |

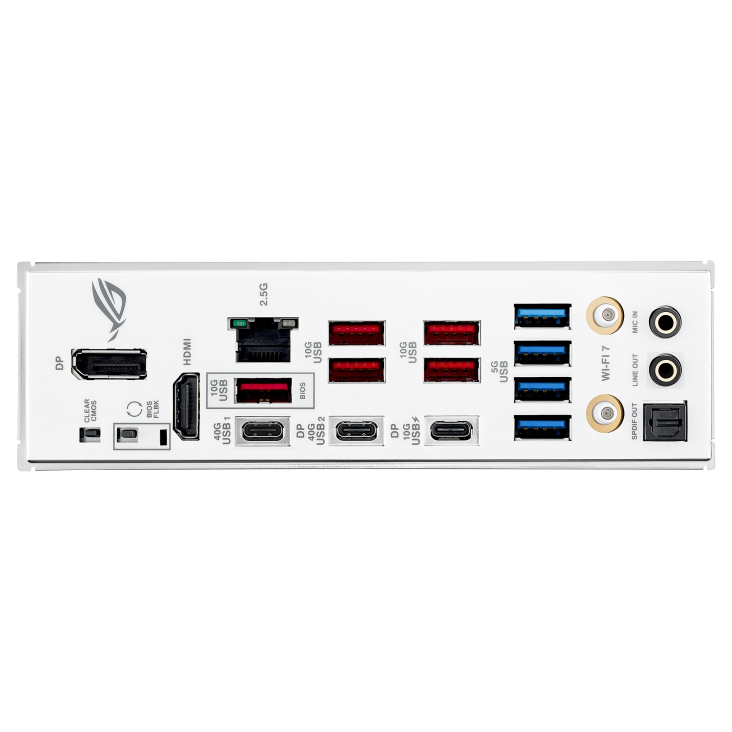

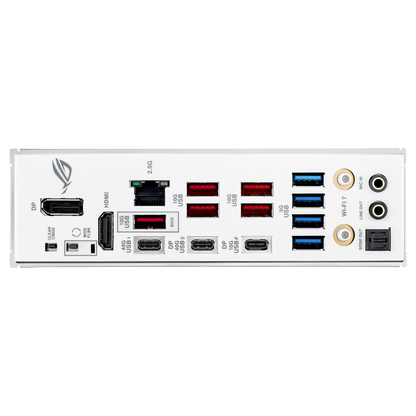

| Back Panel I/O | 2 x USB4, 6 x USB 10Gbps, 4 x USB 5Gbps, 1 x DisplayPort, 1 x HDMI, 1 x Intel 2.5Gb LAN, 2 x Audio Jacks, 1 x Optical S/PDIF, 1 x BIOS FlashBack, 1 x Clear CMOS |
| Internal I/O Connectors | 1 x 24-pin ATX Power, 2 x 8-pin CPU Power, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 5 x Chassis Fan, 4 x M.2, 2 x SATA, 3 x Addressable Gen 2 headers, 1 x Alteration PCIe mode switch, 1 x Chassis Intrusion, 1 x Overvoltage jumper, 1 x Front Panel Audio, 1 x Start Button, 1 x 10-1 pin System Panel, 1 x Thermal Sensor |
| Special Features | M.2 Q-Latch, PCIe Slot Q-Release Slim, Q-Antenna, Q-DIMM, Q-LED, Extreme Engine Digi+, SafeSlot, SafeDIMM, Armoury Crate, Fan Xpert 4, AI Overclocking |
| Software | ROG CPU-Z, Dolby Atmos, AIDA64 Extreme (60-day trial), GameFirst, Aura Sync, HWiNFO, Norton 360 (60-day trial), WinRAR (40-day trial) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking, Dynamic OC Switcher, ASUS EZ DIY |

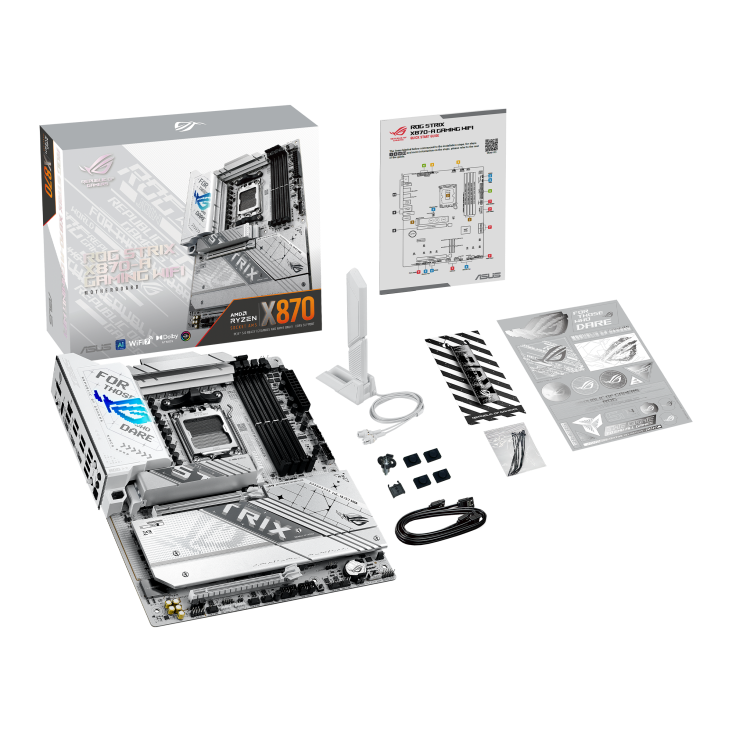

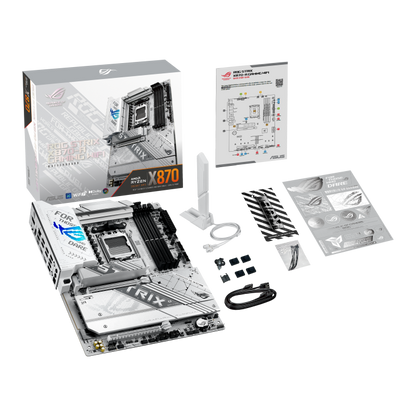

| Accessories | 2 x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, Cable ties, M.2 Q-Latch package, M.2 Q-Slide, ROG key chain, ROG Strix stickers, 4 x M.2 rubber packages, Quick start guide |
| Operating System | Windows 11 |
| Form Factor | ATX, 12" x 9.6" (30.5 cm x 24.4 cm) |
Frequently Asked Questions
Q: What is the primary use of the ASUS ROG STRIX X870-A GAMING WIFI MOTHERBOARD?
A: This motherboard is specifically designed as a high-performance foundation for advanced gaming PCs.
Q: Does this motherboard offer wireless network capabilities?
A: Yes, the "WIFI" in its name indicates that the ASUS ROG STRIX X870-A GAMING WIFI MOTHERBOARD comes with integrated wireless connectivity.
Q: What does the "X870-A" in the product name signify?
A: The "X870-A" refers to the chipset used on this motherboard, suggesting a modern and feature-rich platform for computing tasks.
