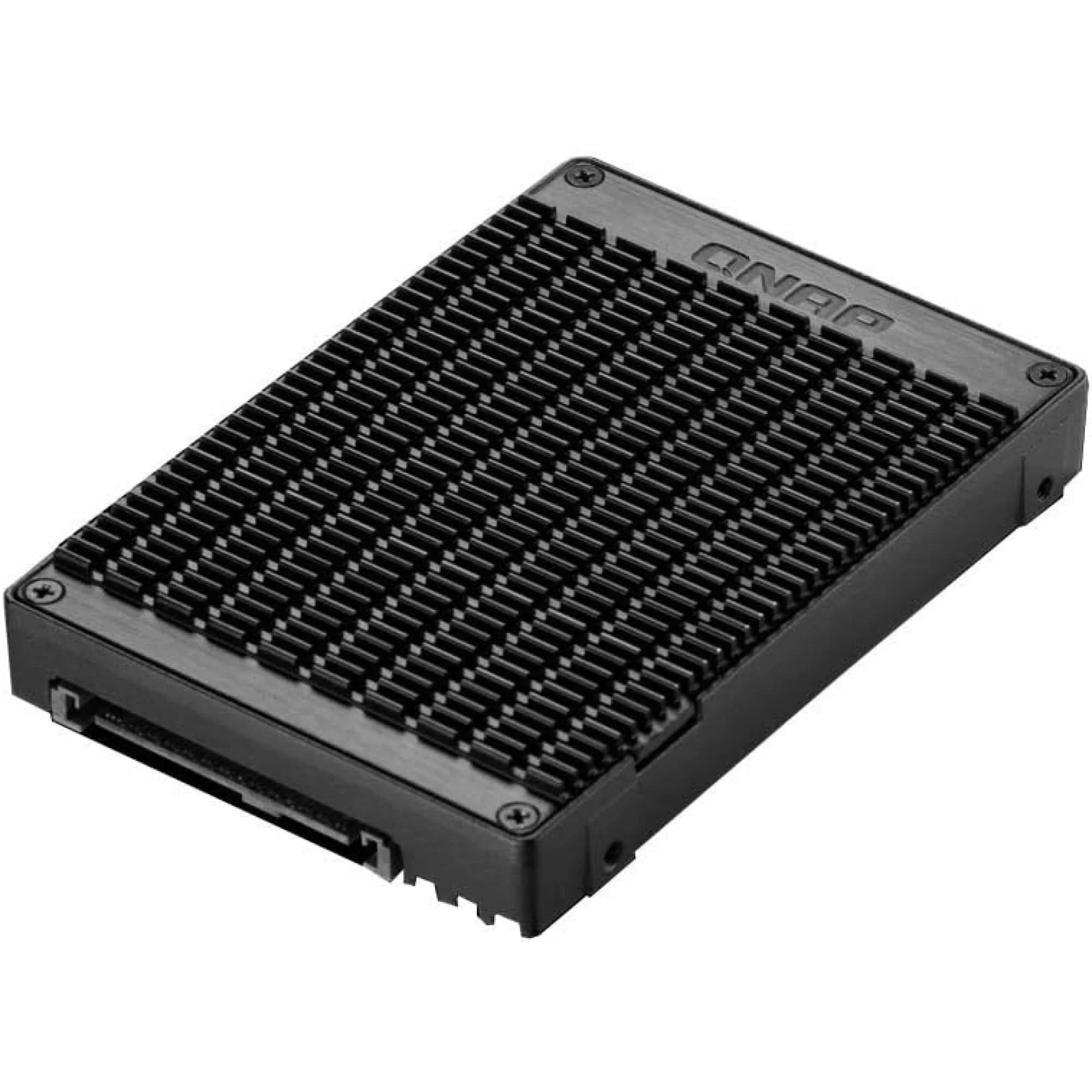

The QNAP QDA-U2MP is a versatile adapter designed to accommodate two M.2 2280 PCIe 3.0 x4 NVMe SSDs within a single 2.5-inch U.2 (SFF-8639) PCIe 3.0 x4 NVMe drive bay. This innovative solution enables users to replace expensive U.2 SSDs with more affordable M.2 SSDs, thereby enhancing storage performance in PCs, workstations, and QNAP NAS systems without the need for additional software drivers.

• Supported Drives: 2 x M.2 2280 PCIe 3.0 x4 NVMe SSDs
• Host Interface: U.2 (SFF-8639) PCIe 3.0 x4
• Dimensions (L x W x H): 100.4 × 69.85 × 15 mm
• Weight: 0.31 lbs (0.14 kg)
• Supported Operating Systems:
  • QTS 4.4.2 (or later)
  • Windows 7, 8.1, 10, Windows Server 2012 R2
  • Ubuntu

High-Performance Storage Solution: By utilizing the QDA-U2MP adapter, users can achieve high-speed data transfer rates, taking full advantage of PCIe 3.0 x4 bandwidth. This setup is ideal for bandwidth-intensive applications such as on-the-fly video editing, server-grade tasks, and online gaming.

Robust Build with Efficient Heat Dissipation: Constructed with a durable aluminum-alloy frame and equipped with thermal pads, the QDA-U2MP effectively dissipates heat generated by the M.2 SSDs. This design maintains optimal performance and prolongs the lifespan of the SSDs.

Easy Installation and Broad Compatibility: The QDA-U2MP adapter requires no additional software or drivers, facilitating a straightforward installation process. It is compatible with:

• PCs and Workstations: Enhance system performance by installing M.2 NVMe SSDs in existing U.2 drive bays, providing a cost-effective storage upgrade.
• QNAP NAS Systems: Optimize data-intensive applications and boost IOPS performance by configuring SSD caching with M.2 NVMe SSDs. Users can monitor drive health and manage SSD usage through the QTS Storage & Snapshots Manager.

Important Considerations:

• System Compatibility: Ensure that your PC or NAS has a U.2 (SFF-8639) PCIe NVMe SSD drive bay and supports U.2 NVMe SSDs. Consult your system provider for compatibility details.
• Operating System Support: Verify that your operating system is compatible with NVMe SSDs. The QDA-U2MP supports QTS 4.4.2 (or later), Windows 7/8.1/10, Windows Server 2012 R2, and Ubuntu.
• Performance Note: The connected drive may not reach its optimal performance due to protocol translation and some overhead.

The QNAP QDA-U2MP Dual M.2 PCIe NVMe SSD to U.2 Adapter offers a practical and cost-effective solution for users seeking to enhance their storage infrastructure by integrating high-performance M.2 NVMe SSDs into existing U.2 drive bays.
