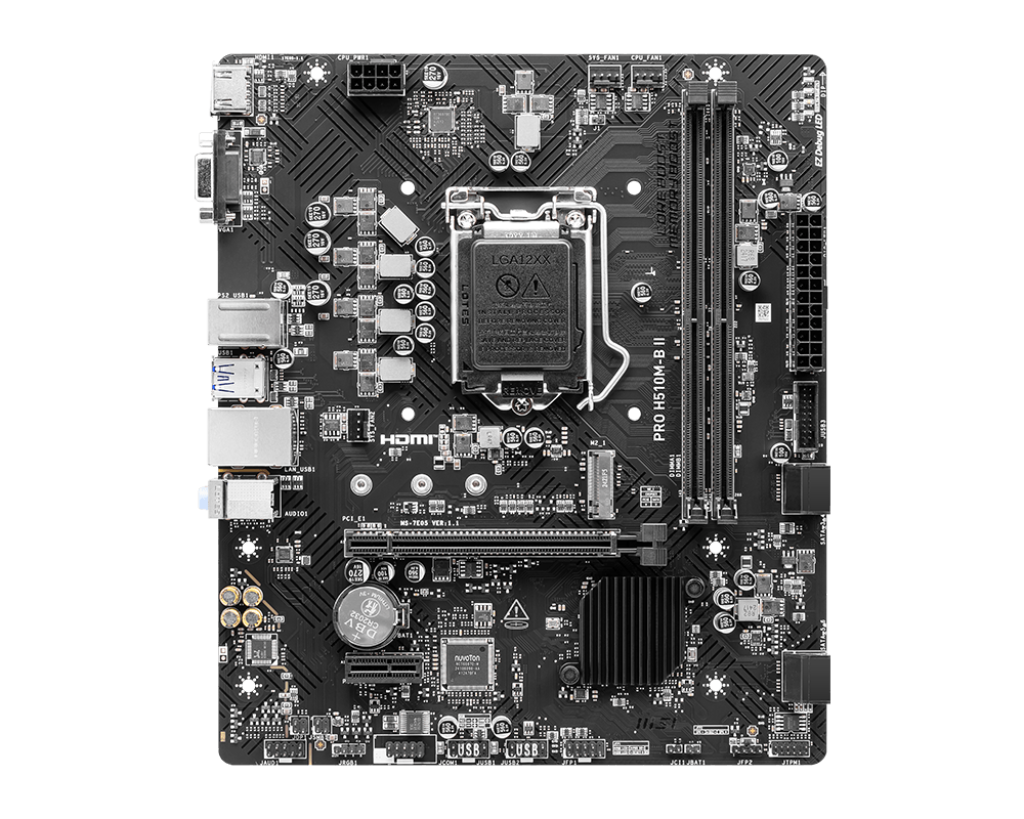

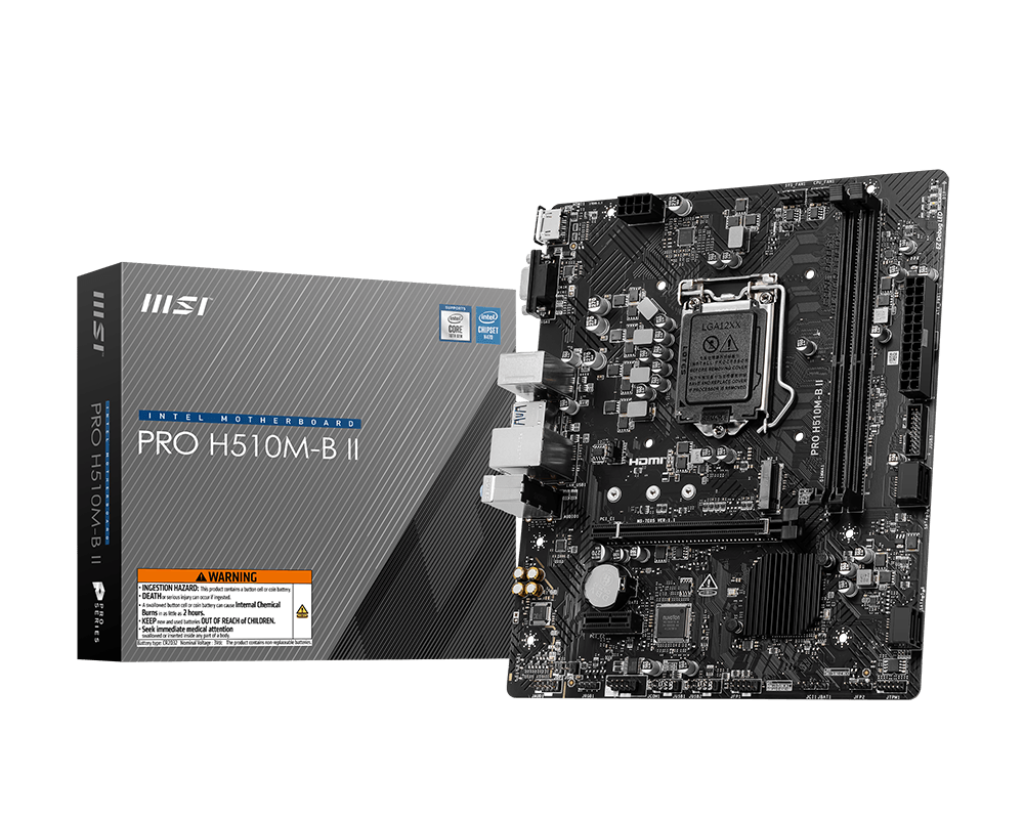

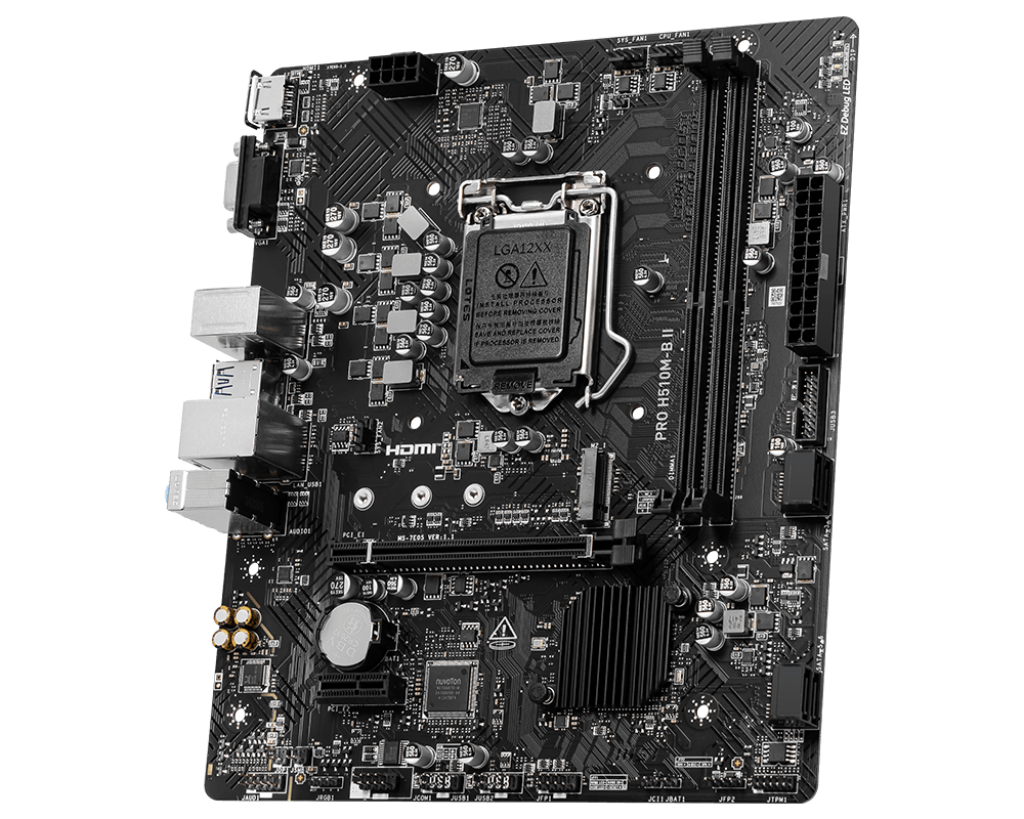

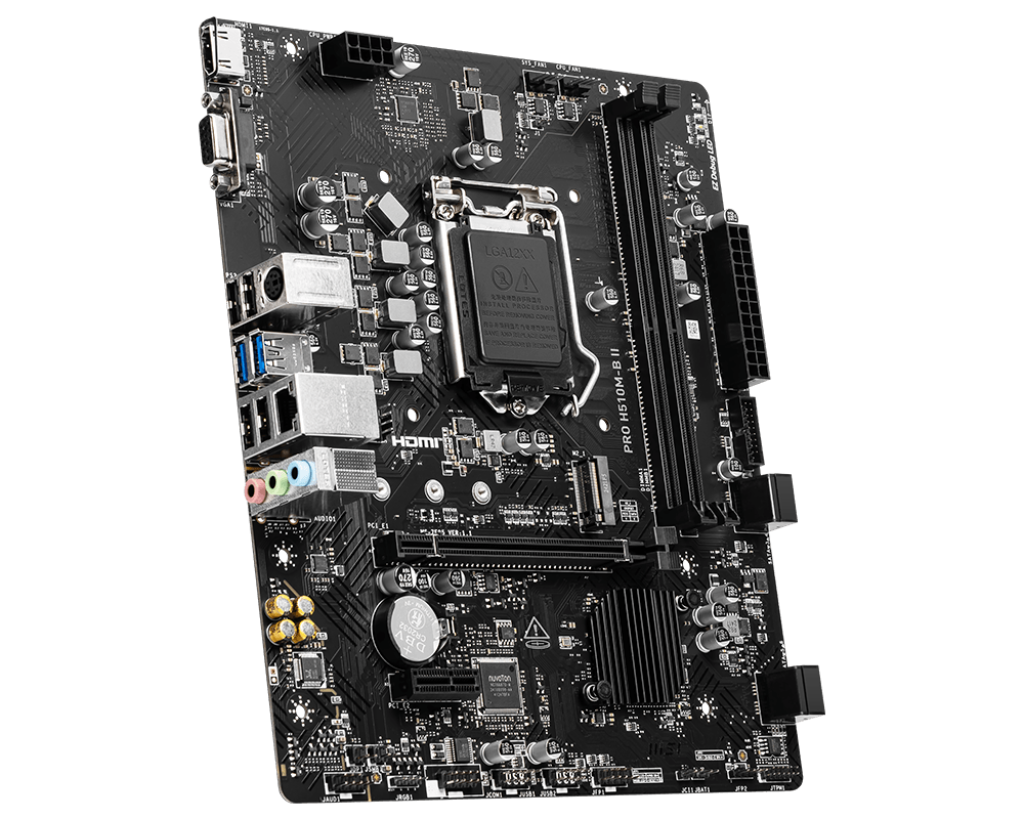

The MSI PRO H510M-B II Motherboard serves as the fundamental building block for your computer system, designed by MSI. This essential component is ready to support your PC's core operations.
Key Features at a Glance
- MSI Brand: Manufactured by MSI, a recognized name in computer hardware.
- PRO Series: Belongs to MSI's PRO series of products.
- Model H510M-B II: Identified by its specific model designation.
- Motherboard Type: A core motherboard component for system assembly.
Technical Specifications
| Chipset | INTEL H470 |
|---|---|
| CPU | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for IntelCore i9/ Core i7 CPU Supports 1R 2133/ 2666 MHz for IntelCore i5/ Core i3/ PentiumGold and CeleronCPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports IntelExtreme Memory Profile (XMP) |
| Onboard Graphics | 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | RealtekALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | Realtek8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |

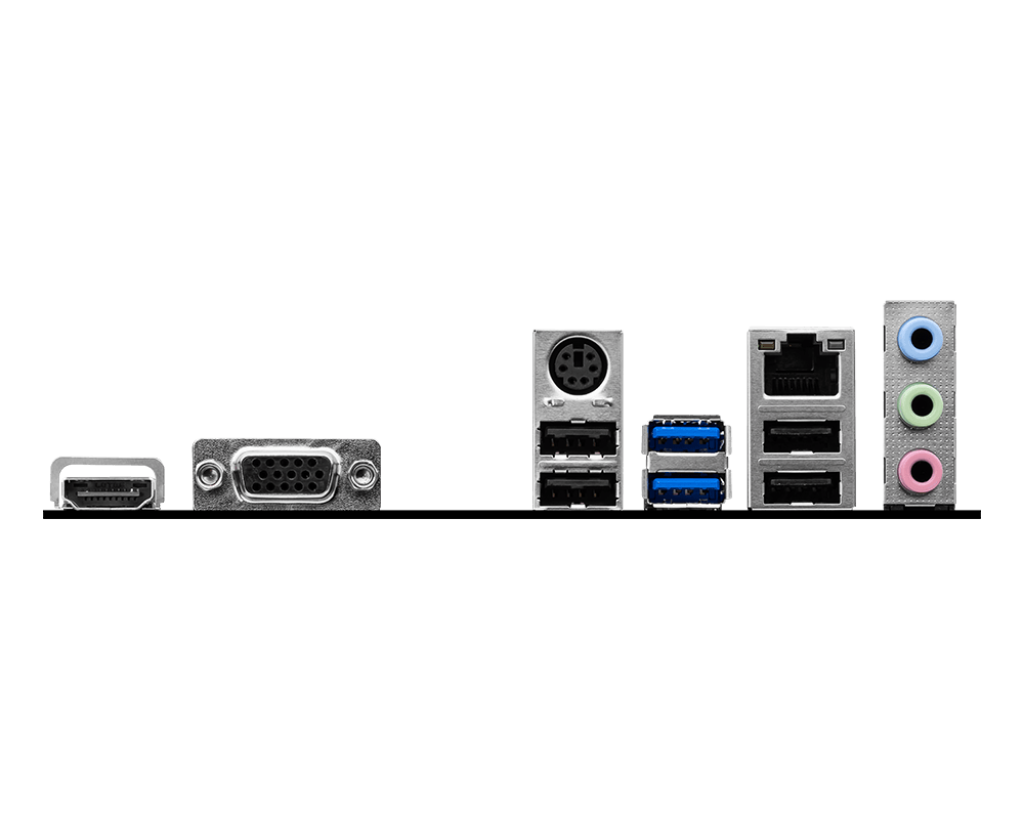

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows11 64-bit, Windows10 64-bit |
| BOX CONTENT |
 |
| PCB Info | mATX 202mmx236mm |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What is the MSI PRO H510M-B II Motherboard?
A: It is a motherboard, a primary circuit board that connects and allows communication between critical electronic components of a computer, manufactured by MSI.
Q: What series does this motherboard belong to?
A: This motherboard is part of the MSI PRO series, indicating its product line within the MSI brand.
Q: What is the model number of this product?
A: The specific model number for this product is H510M-B II.
