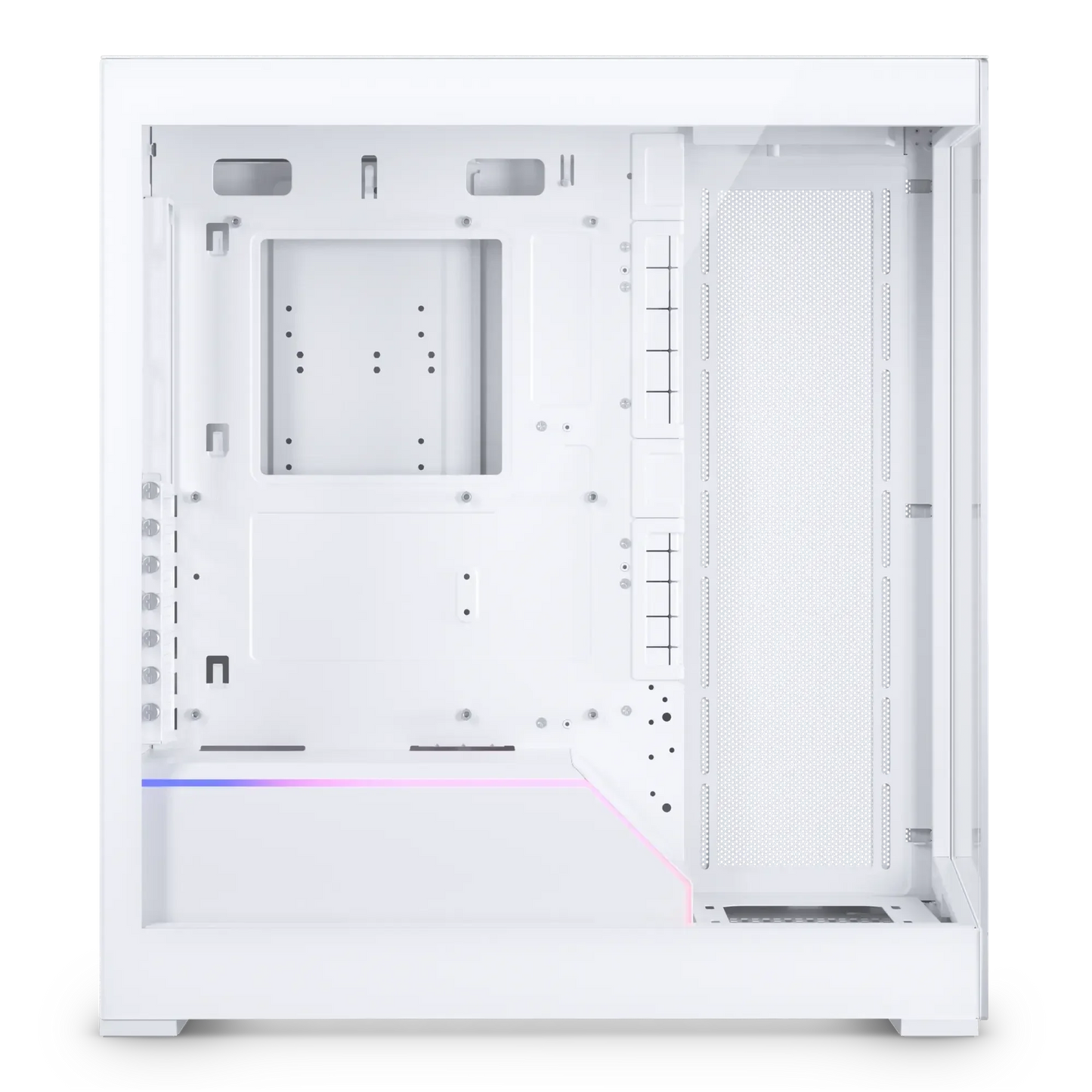

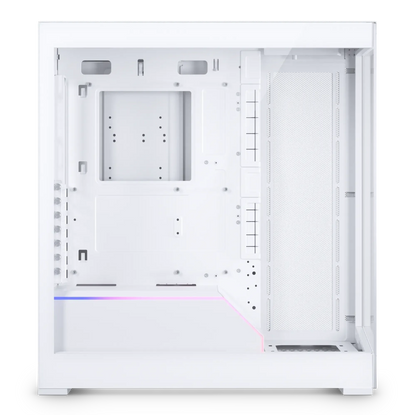

PHANTEKS NV5 TG E-ATX WHITE MID TOWER CASE (PH-NV523TG-DMW01)
PHANTEKS NV5 TG E-ATX WHITE MID TOWER CASE (PH-NV523TG-DMW01)
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

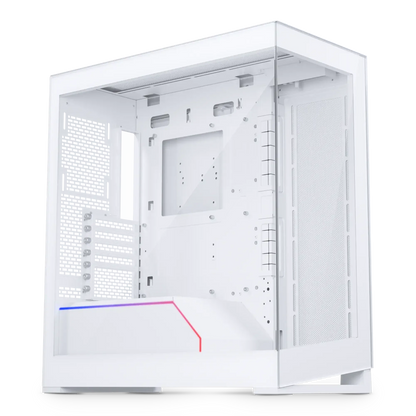

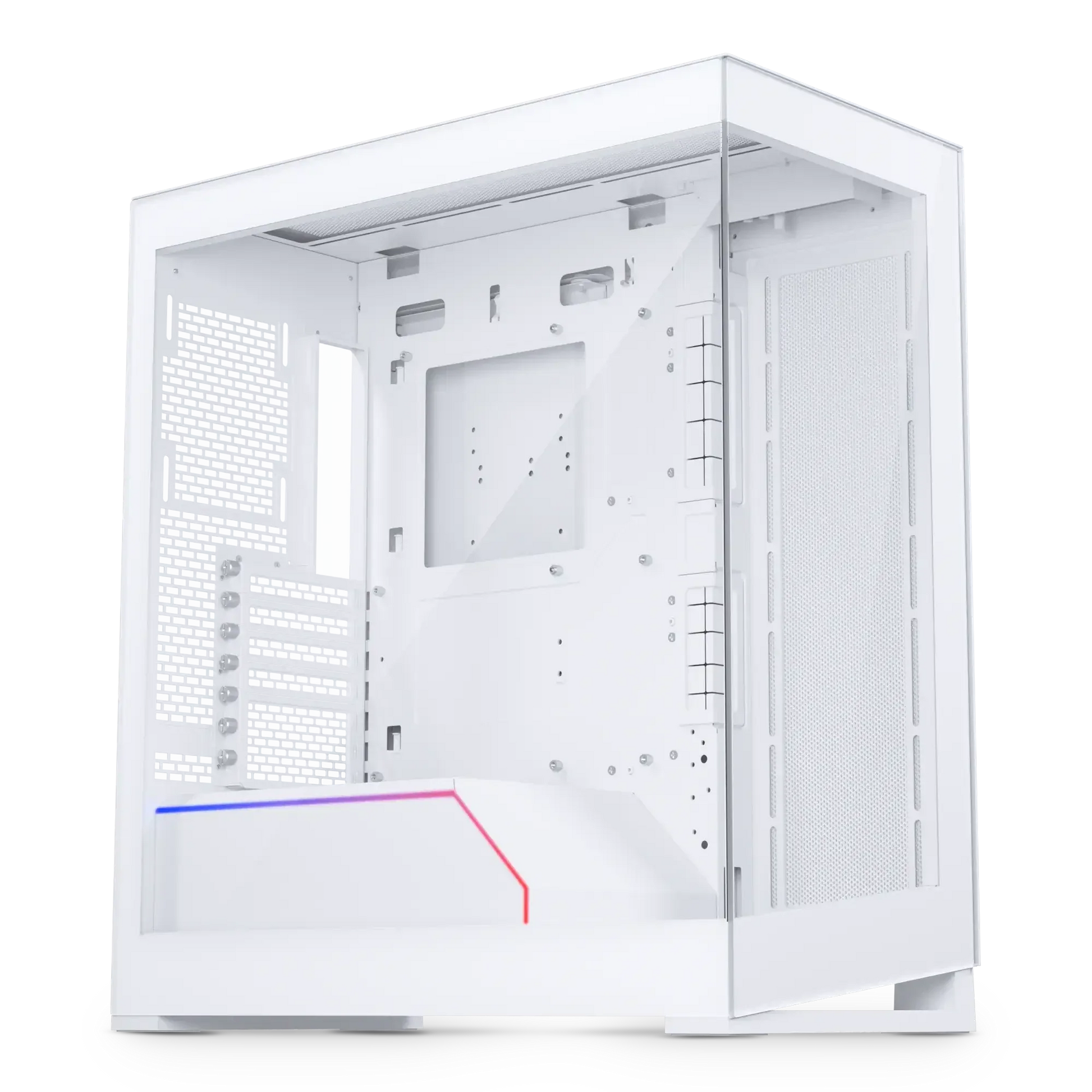

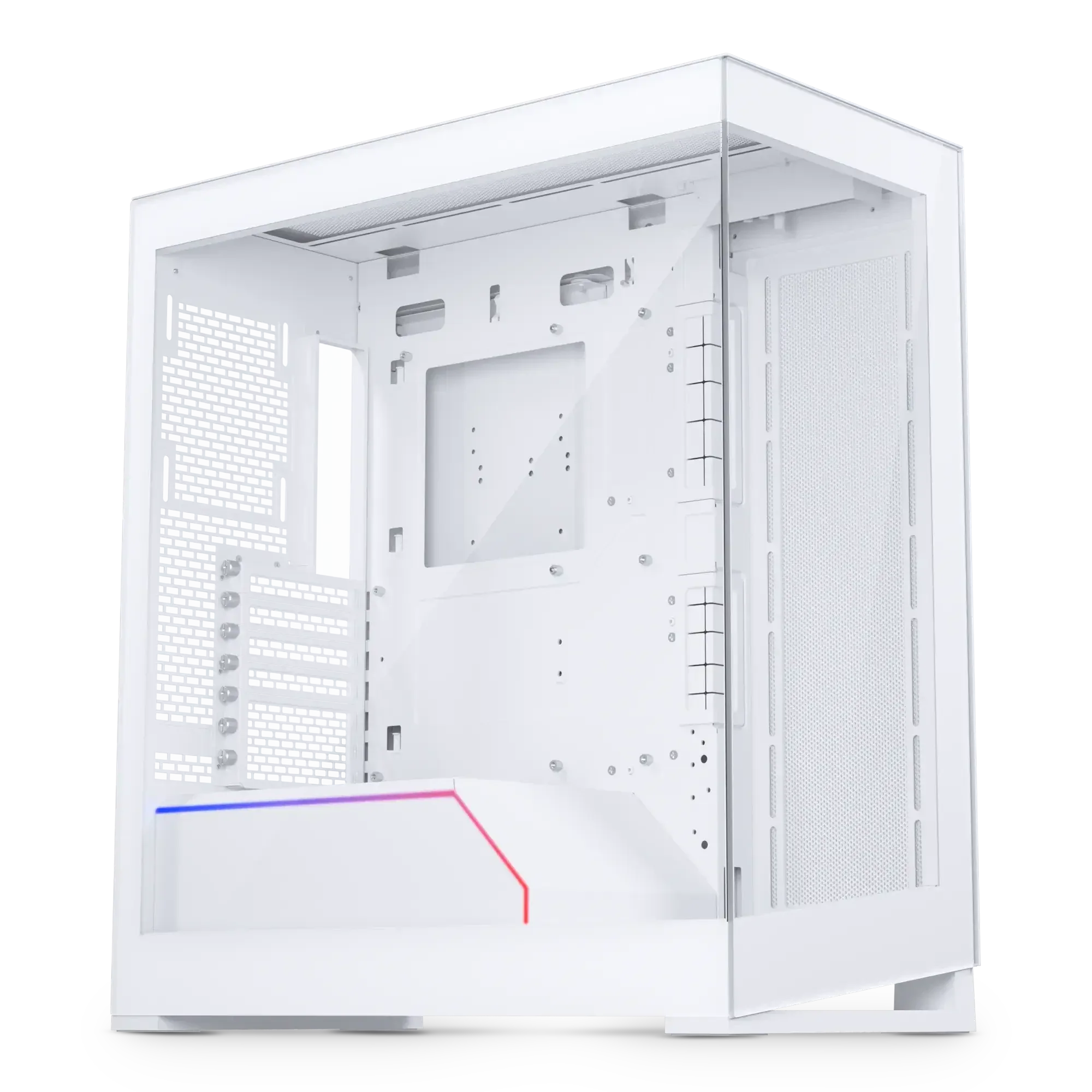

Discover the PHANTEKS NV5 TG E-ATX WHITE MID TOWER CASE (PH-NV523TG-DMW01), engineered to provide a robust and stylish foundation for your next high-performance PC build. This elegant mid tower case from PHANTEKS combines spacious E-ATX compatibility with a clean white aesthetic, making it an ideal choice for enthusiasts seeking both functionality and modern design.
Key Features at a Glance
- Designed to support E-ATX motherboard form factors.
- Stylish Mid Tower Case for versatile PC configurations.
- Elegant white finish to complement any setup.
- Part of the renowned PHANTEKS NV5 TG series.
Spacious E-ATX Compatibility
Build powerful systems with ease thanks to the generous internal layout supporting E-ATX motherboards. This allows for more advanced components and greater expansion possibilities within a mid tower footprint.
Elegant White Aesthetic
The clean white finish of the NV5 TG provides a sophisticated and modern look, ensuring your PC not only performs exceptionally but also stands out with a refined visual appeal. It integrates seamlessly into various room aesthetics.
Optimal Mid Tower Design
Experience the perfect balance of size and functionality. The mid tower form factor offers ample space for high-end components and efficient cable management, without occupying excessive desk space.
Technical Specifications
| Category | Specification |
|---|---|
| Model Number | PH-NV523TG_DMW01 |
| UPC Code | 886523302957 |
| Form Factor | Mid Tower |
| Case Dimensions (D × W × H) | 528 × 239 × 477 mm20.8 × 9.4 × 18.8 in |
| Materials | Steel chassis, Tempered glass |
| Side Window | Yes |
| Motherboard Support | E-ATX* (up to 280 mm), ATX, Micro-ATX, Mini-ITX*E-ATX limited without GPU support bracket |
| PCI Slots | 7 |
| Vertical GPU Support | Up to 3 slots (Riser cable sold separately) |
| Drive Bays | - 2.5": 4- 3.5": 3 |
| Front I/O Ports | - 1 × USB-C 3.2 Gen 2- 2 × USB 3.0- Microphone / Headphone- D-RGB Mode Button- D-RGB Color Button- Power Button |
| Fan Support (120mm) | - Total: 8- Top: 3- Side: 3- Rear: 1- Bottom: 1 |
| Fan Support (140mm) | Not supported |
| Pre-installed Fans | Not listed |
| Radiator Support (120mm) | - Top: up to 360mm- Side: up to 360mm- Rear: 120mm |
| Radiator Support (140mm) | Not supported |
| Radiator Dimensions | - Top: 134 × 430 × 62 mm- Side: 130 × 420 × 62 mm- Rear: 132 × 170 mm |
| Clearance – CPU Cooler | 180 mm / 7.08 in |
| Clearance – GPU | - Length: 440 mm / 17.32 in- Height: 170 mm / 6.69 in |
| Clearance – PSU | 230 mm / 9.05 in |
| Net Weight | 11.28 kg / 24.9 lbs |
| Gross Weight | 13.97 kg / 30.8 lbs |
| Warranty | 5 Years (Limited) |
| Scope of Delivery | - 1 × NV5 Chassis- Accessory Box: • 6 × Zip ties • 1 × GPU Support Bracket • Screws: • 22 × Mainboard/SSD Screws • 4 × PSU Screws • 4 × Thumb Screws • 12 × Case Screws • 1 × Stand-off • 1 × Stand-off Removal Tool |
Frequently Asked Questions
Q: What is the form factor of the PHANTEKS NV5 TG case?
A: The PHANTEKS NV5 TG Mid Tower Case is designed to support E-ATX motherboards, allowing for versatile and powerful PC builds.
Q: What color is this specific PHANTEKS NV5 TG case?
A: This model, PH-NV523TG-DMW01, features a clean white finish, offering a sleek and modern look for your setup.
Q: What type of PC case is the PHANTEKS NV5 TG?
A: The PHANTEKS NV5 TG is classified as a mid tower case, balancing internal space for components with a manageable external footprint.
