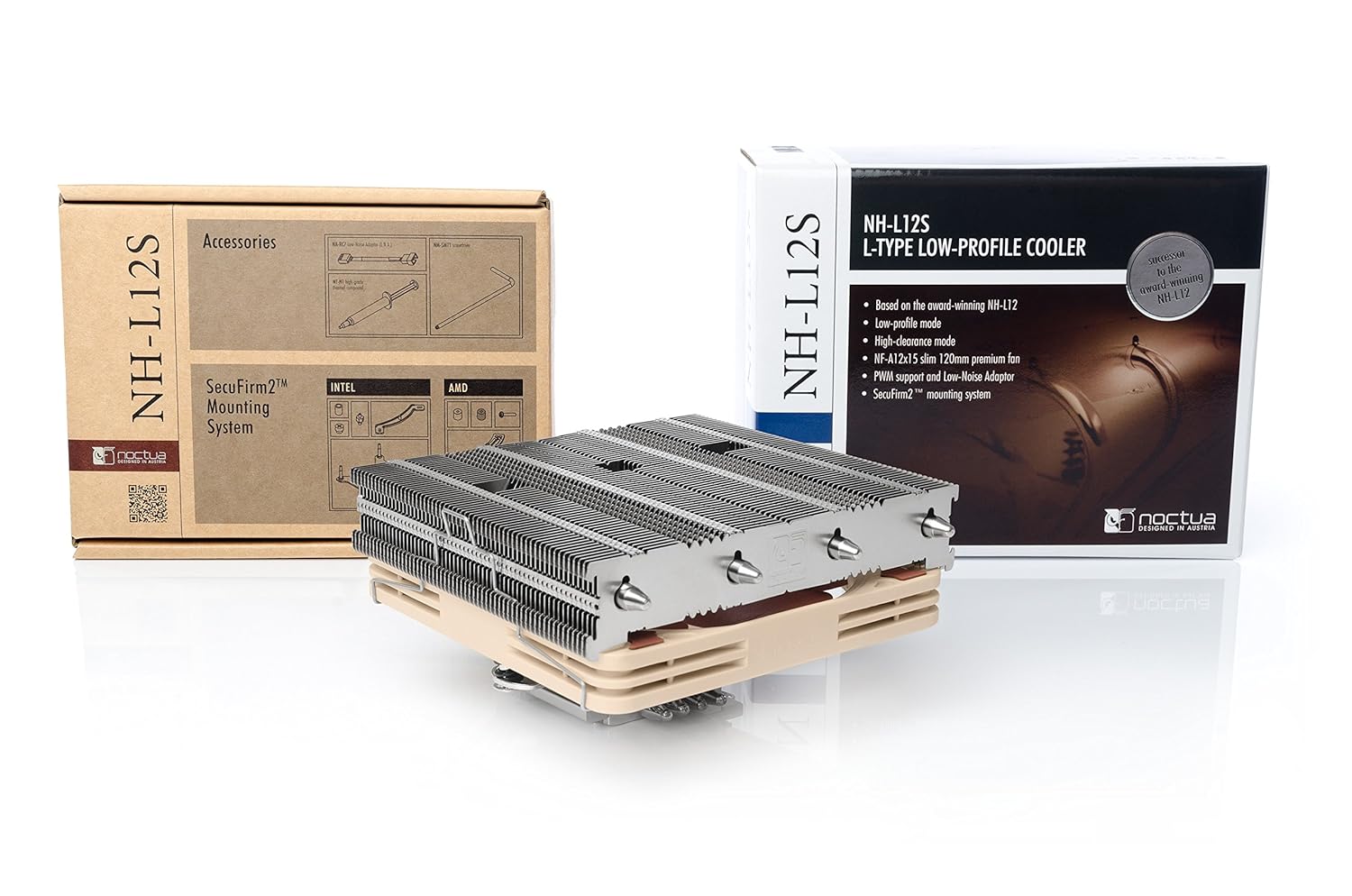

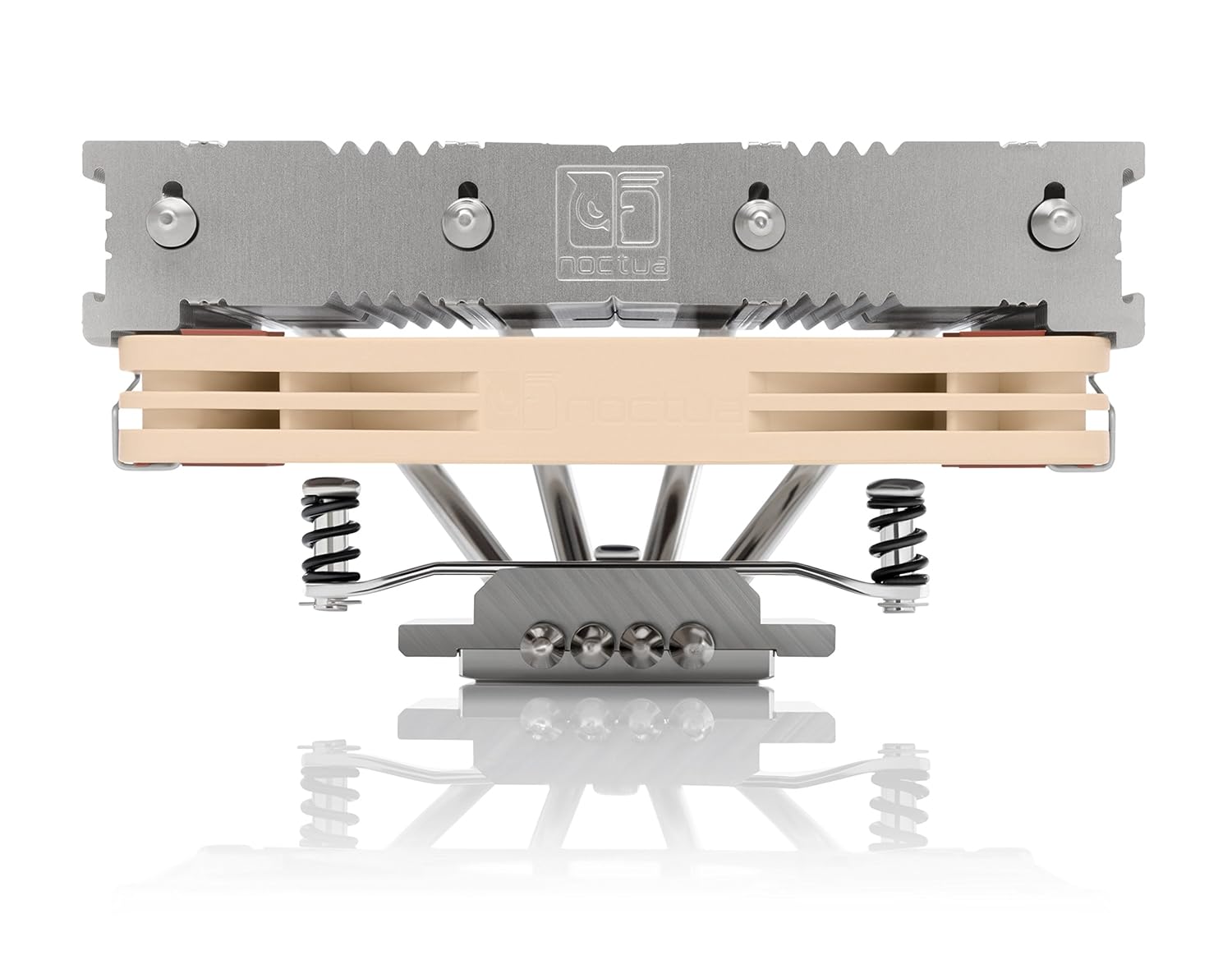

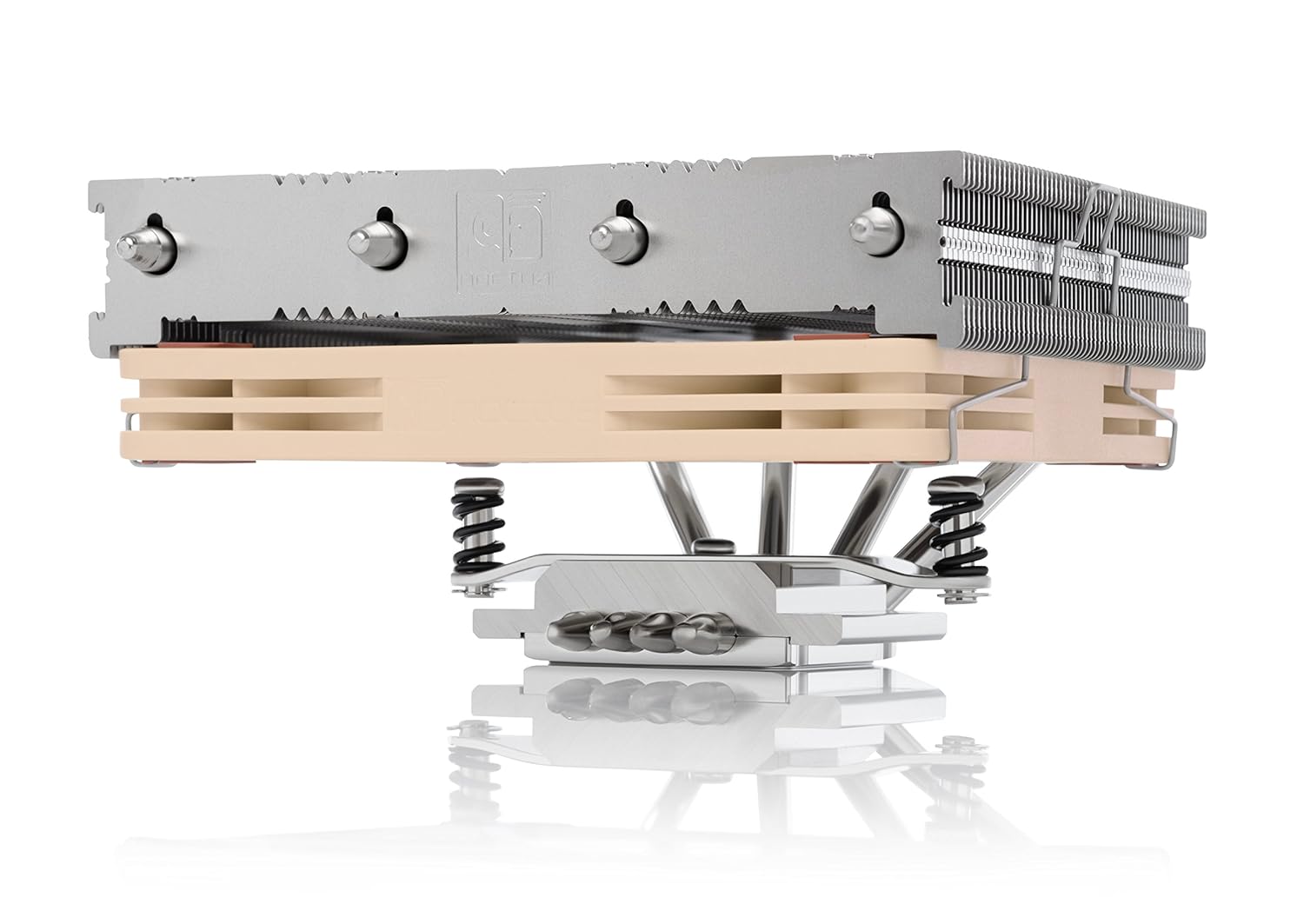

The NOCTUA NH-L12S CPU AIR COOLER LOW PROFILE delivers efficient cooling in a compact form factor. Designed for systems where space is at a premium, this NOCTUA cooler is an ideal choice for maintaining optimal CPU temperatures.
Key Features at a Glance
- From the NOCTUA brand.
- Model: NH-L12S.
- Type: CPU Air Cooler.
- Features a Low Profile design.
Compact System Integration
With its low profile design, the NH-L12S is perfectly suited for use in small form factor cases, HTPCs, and other systems where height restrictions are a concern. Maximize your build options without compromising on cooling.
Reliable CPU Temperature Management
As a dedicated CPU air cooler, this unit is engineered to effectively dissipate heat from your processor. It helps ensure stable operation and longevity for your valuable CPU components.
Technical Specifications
| Product Details | |
| Notes and warnings | The NH-L12S is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. ?While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L12 is recommended for your CPU. |
| Cooler Specification | |
| Socket compatibility | Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+ (backplate required) |
| Height (without fan) | 70 mm |
| Width (without fan) | 128 mm |
| Depth (without fan) | 146 mm |
| Weight (without fan) | 390 g |
| Height (with fan) | 70 mm |
| Width (with fan) | 128 mm |
| Depth (with fan) | 146 mm |
| Weight (with fan) | 520 g |

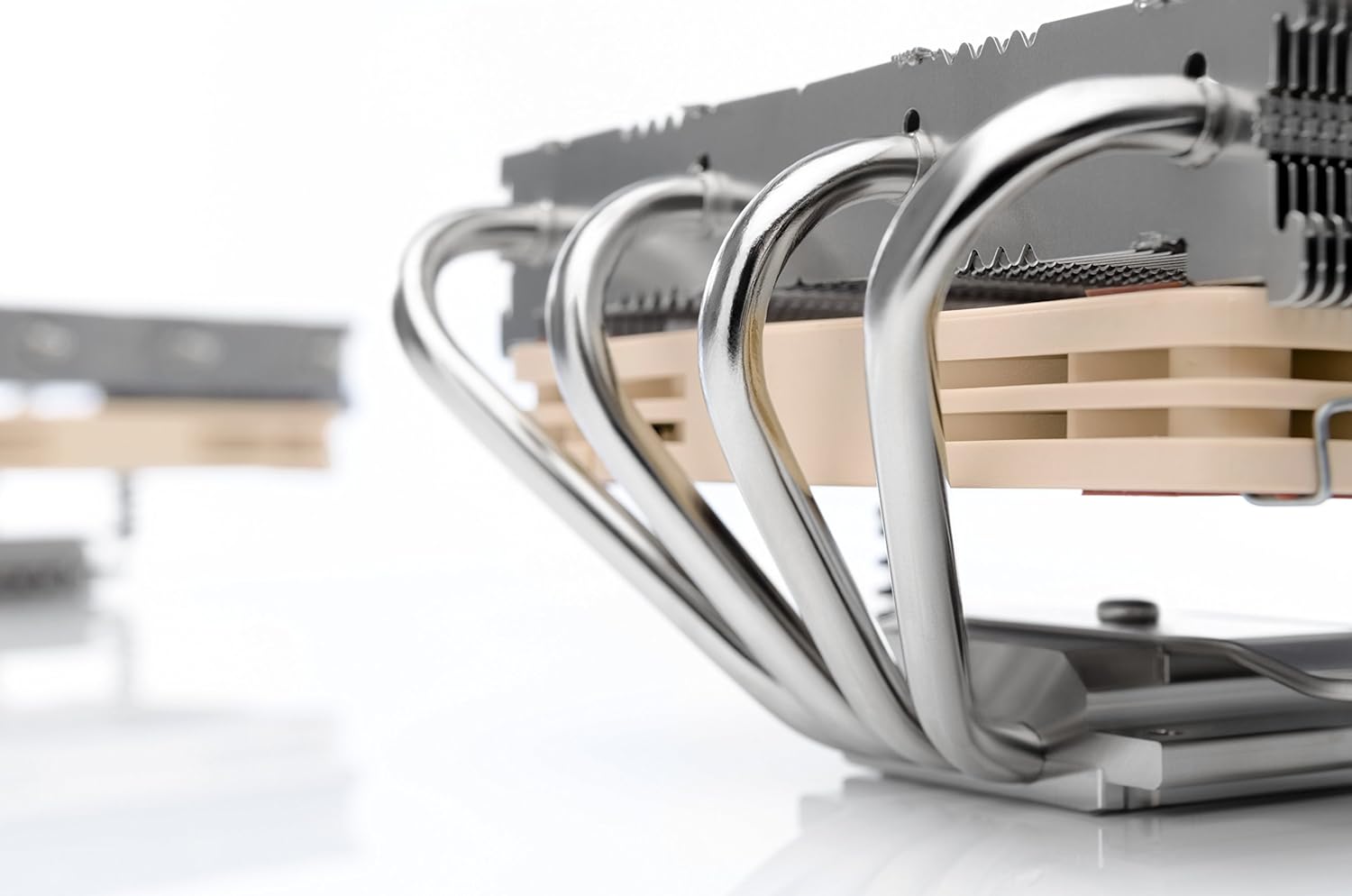

| Material | Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating |
| NSPR | 88 |
| Fan compatibility | 120x120x15 & 120x120x25 |
| Scope of delivery | 1x NF-A12x15 PWM premium fan |
| Low-Noise Adaptor (L.N.A.) | |
| NT-H1 high-grade thermal compound | |
| SecuFirm2ô mounting kit | |
| Noctua metal case-badge | |
| Warranty | 6 Years |
| FAN Specification | |
| Model | 1x Noctua NF-A12x15 PWM |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 1850 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1400 RPM |
| Min. rotational speed (PWM, +/-20%) | 450 RPM |
| Max. airflow | 94,2 m≥/h |
| Max. airflow with L.N.A. | 70,8 m≥/h |
| Max. acoustical noise | 23,9 dB(A) |
| Max. acoustical noise with L.N.A. | 16,8 dB(A) |
| Input power | 1,56 W |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
Frequently Asked Questions
Q: What type of product is the NOCTUA NH-L12S?
A: The NOCTUA NH-L12S is a CPU air cooler.
Q: What is a key design feature of this cooler?
A: It is designed with a low profile, making it suitable for compact systems.
Q: Who manufactures the NH-L12S?
A: The NH-L12S is manufactured by NOCTUA.
