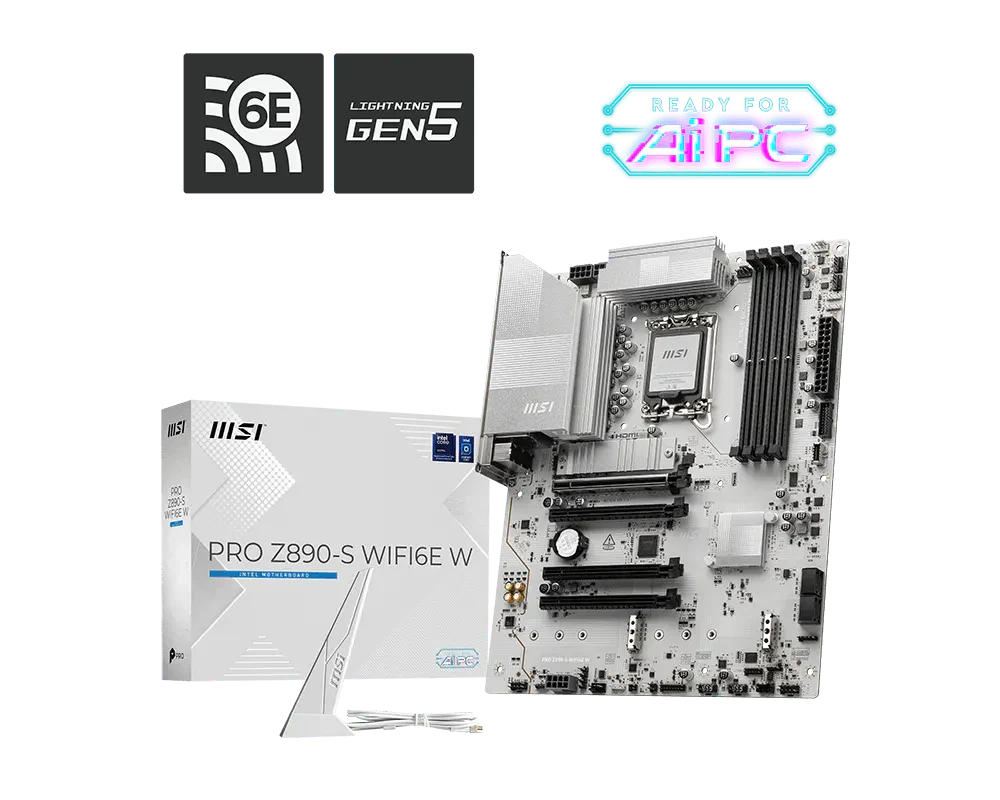

MSI PRO Z890-S WIFI6E White DDR5 LGA 1851 Motherboard
MSI PRO Z890-S WIFI6E White DDR5 LGA 1851 Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The MSI PRO Z890-S WIFI6E White DDR5 LGA 1851 Motherboard is engineered to power your next-generation PC build. Designed to support Intel® Core™ Ultra Processors (Series 2) for the LGA 1851 socket, it offers robust performance and advanced features. With support for dual channel DDR5 memory up to 8800+ MT/s (OC) and lightning-fast connectivity like PCIe 5.0 and Wi-Fi 6E, this motherboard provides a solid foundation for high-performance computing and immersive gaming.
Key Features at a Glance
- Supports Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket.
- Dual Channel DDR5 Memory with speeds up to 8800+ MT/s (OC).
- Enhanced 12+1+1+1 Duet Rail Power System.
- Frozr Guard thermal solution with Extended Heatsink and M.2 Shield Frozr.
- PCIe 5.0 slot and Lightning Gen 5 x4 M.2 for rapid data transfer.
- Integrated 2.5G LAN with Wi-Fi 6E Solution for advanced networking.
Unleash Next-Gen Performance
Engineered to support Intel® Core™ Ultra Processors (Series 2) for the LGA 1851 socket, this motherboard is ready for the latest computing demands. It supports dual channel DDR5 memory with speeds up to an impressive 8800+ MT/s (OC), ensuring rapid multitasking and smooth operation for demanding applications and gaming.
Robust Power and Cooling
Experience stable and efficient power delivery with the 12+1+1+1 Duet Rail Power System, featuring P-PAK and dual 8-pin CPU power connectors. Core Boost and Memory Boost technologies enhance stability and performance. The advanced Frozr Guard thermal solution, including an extended heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr, keeps your system cool even under heavy loads, built for high performance and a non-stop experience.
Blazing-Fast Connectivity
Achieve lightning-fast data transfer and gaming with a PCIe 5.0 slot and Lightning Gen 5 x4 M.2. The integrated 2.5G LAN combined with Wi-Fi 6E offers an upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking for an optimal online experience.
Simplified Building Experience
The EZ DIY features, including EZ PCIe Clip II, EZ Conn-Design, and EZ Antenna, streamline the building process. These thoughtful additions make system setup straightforward and hassle-free, contributing to an easier and more enjoyable build from start to finish.
Immersive Audio Experience
Reward your ears with studio-grade sound quality thanks to Audio Boost technology. This feature ensures an immersive gaming experience and rich audio output for all your multimedia needs.
Technical Specifications
| Chipset | INTEL Z890 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 4x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) *Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| LAN | Realtek® 8125D 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
Frequently Asked Questions
Q: What processors does the MSI PRO Z890-S WIFI6E Motherboard support?
A: This motherboard is designed to support Intel® Core™ Ultra Processors (Series 2) for the LGA 1851 socket.
Q: What type of memory is compatible with this motherboard?
A: It supports Dual Channel DDR5 Memory, capable of achieving overclocked speeds up to 8800+ MT/s.
Q: Does this motherboard include built-in wireless connectivity?
A: Yes, it features a 2.5G LAN with Wi-Fi 6E Solution, providing secure, stable, and high-speed networking capabilities for both professional and multimedia use.
