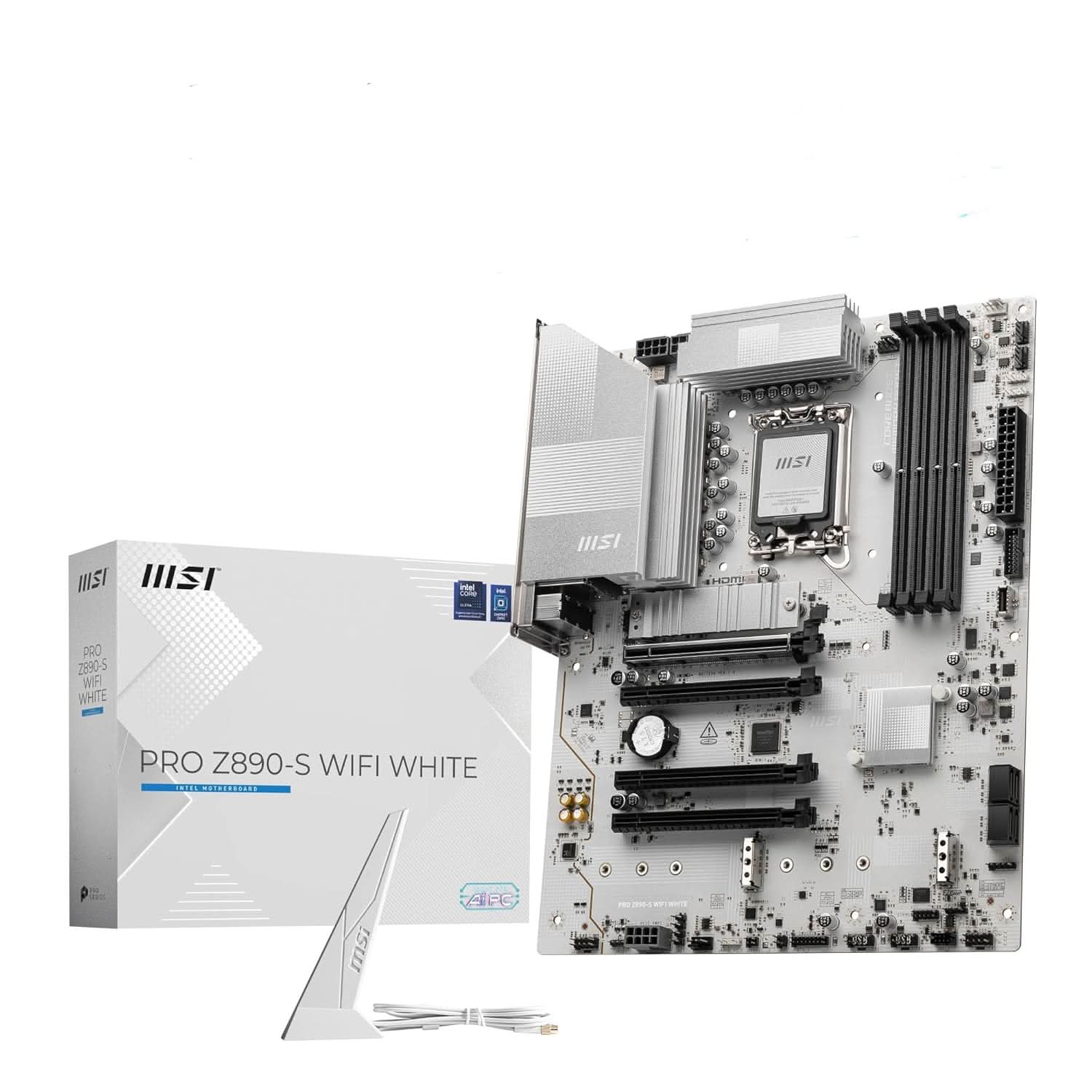

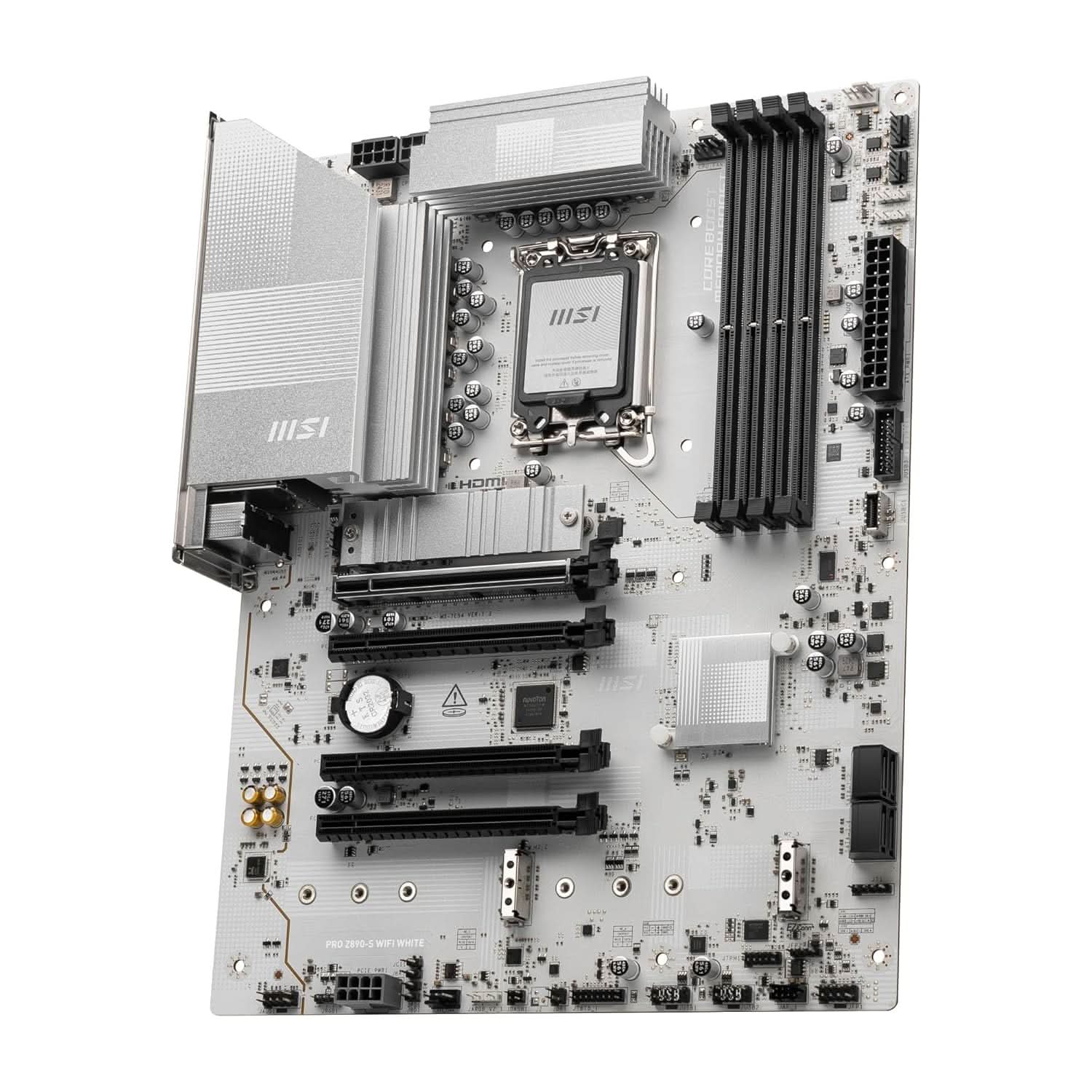

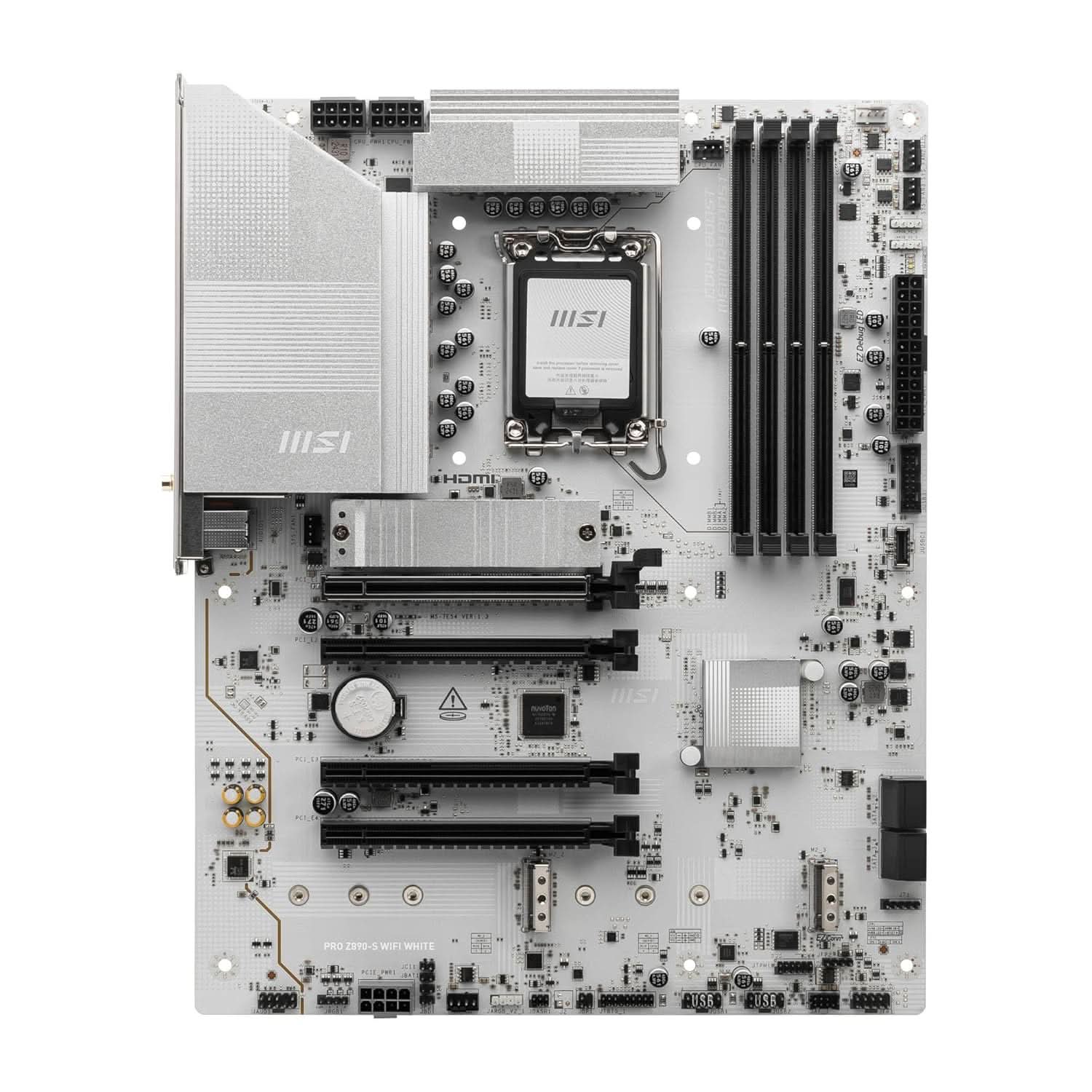

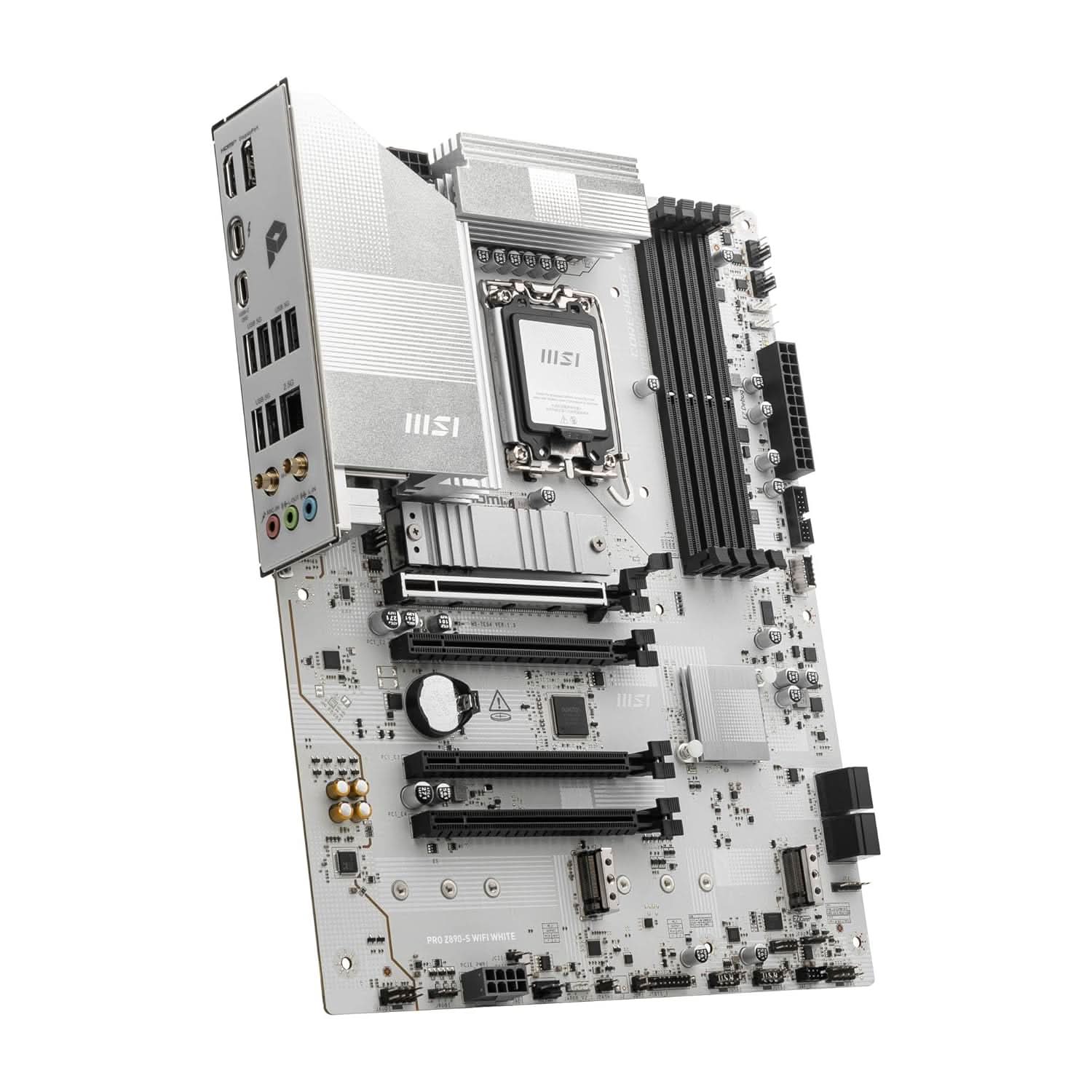

MSI PRO Z890-S WIFI WHITE GAMING MOTHERBOARD
MSI PRO Z890-S WIFI WHITE GAMING MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
The MSI PRO Z890-S WIFI WHITE GAMING MOTHERBOARD provides a robust foundation for your high-performance PC. Designed to support the latest processors and memory, it combines advanced power delivery with comprehensive thermal solutions and cutting-edge connectivity options for a stable and responsive computing experience.
Key Features at a Glance
- Supports Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
- Features DDR5 Memory with Dual Channel support up to 8800+ MT/s (OC).
- Enhanced power design with 12+1+1+1 Duet Rail Power System and 6-layer server-grade PCB.
- Advanced thermal management via Frozr Guard, including Extended Heatsink and M.2 Shield Frozr.
- Offers high-speed connectivity with PCIe 5.0 slot, Lightning Gen 5 x4 M.2, and Thunderbolt 4.
- Includes 2.5G LAN and Intel Wi-Fi 7 Solution for reliable wired and wireless networking.
Robust Power Delivery and Cooling
The MSI PRO Z890-S WIFI WHITE GAMING MOTHERBOARD features an enhanced 12+1+1+1 Duet Rail Power System, supported by dual 8-pin CPU power connectors and a 6-layer server-grade PCB. Frozr Guard, with its Extended Heatsink, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr, ensures efficient heat dissipation.
Next-Generation Connectivity
Experience fast data transfer and networking with the PCIe 5.0 slot and Lightning Gen 5 x4 M.2. Thunderbolt 4 brings true 40 Gb/s speeds to USB-C, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture, and is USB 4.0 compliant. The integrated 2.5G LAN and Intel Wi-Fi 7 Solution provide secure, stable, and high-speed network connections.
Simplified Building Experience
Designed for ease of use, the motherboard includes EZ DIY features such as EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna, making component installation straightforward.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 8800 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Site. |
| Graphics Port | 1x HDMI,1x DisplayPort,1x Type-C DisplayPort |
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI Thunderbolt 4 40Gbps (Type-C) USB 20Gbps Type-C USB 5Gbps Type-A |
| Internal I/O Connector | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors are compatible with this motherboard?
A: The MSI PRO Z890-S WIFI WHITE GAMING MOTHERBOARD supports Intel Core Ultra Processors (Series 2) for the LGA 1851 socket.
Q: What memory types does the motherboard support?
A: It supports DDR5 Memory in Dual Channel configuration, with speeds up to 8800+ MT/s (OC).
Q: Does this motherboard have integrated Wi-Fi?
A: Yes, it features an Intel Wi-Fi 7 Solution for advanced wireless networking, alongside 2.5G LAN.
