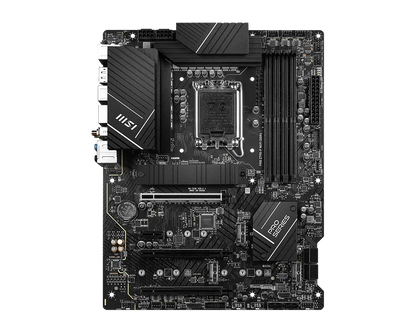

MSI PRO Z790-P WIFI DDR4 LGA 1700 Motherboard
MSI PRO Z790-P WIFI DDR4 LGA 1700 Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

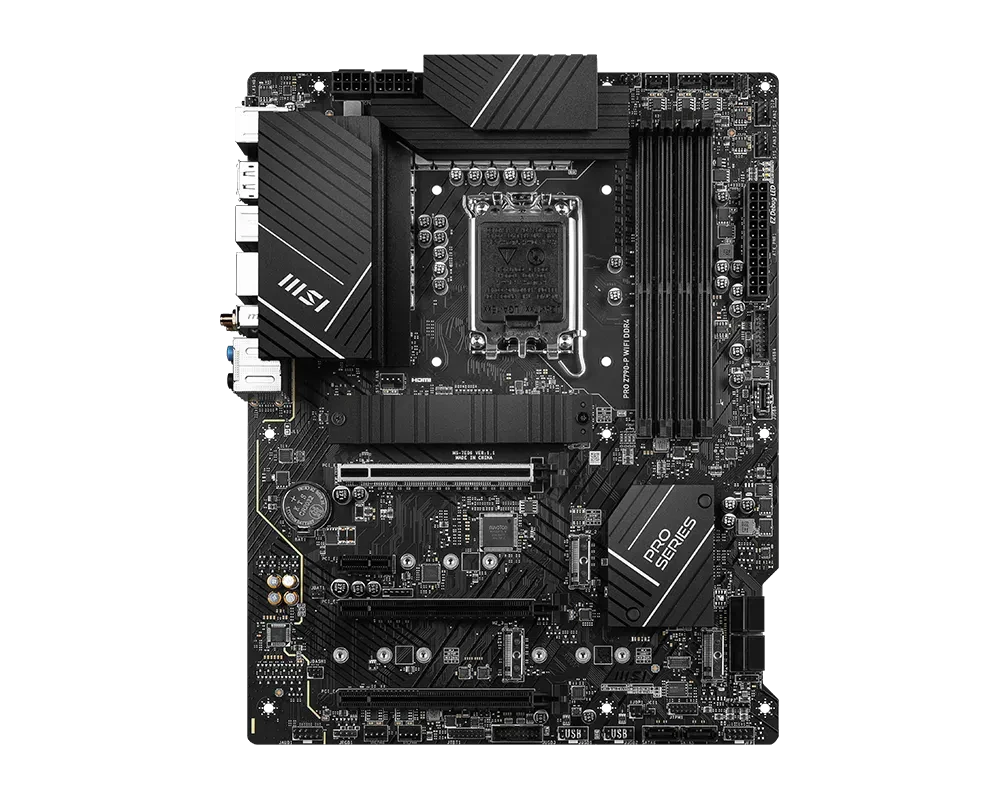

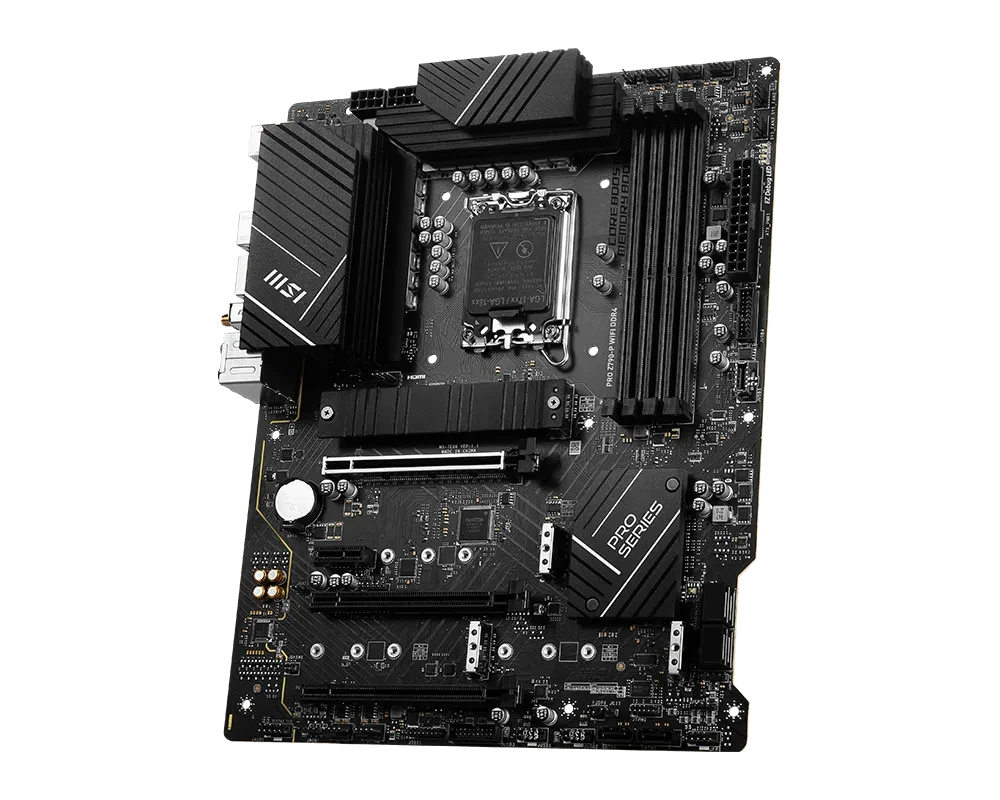

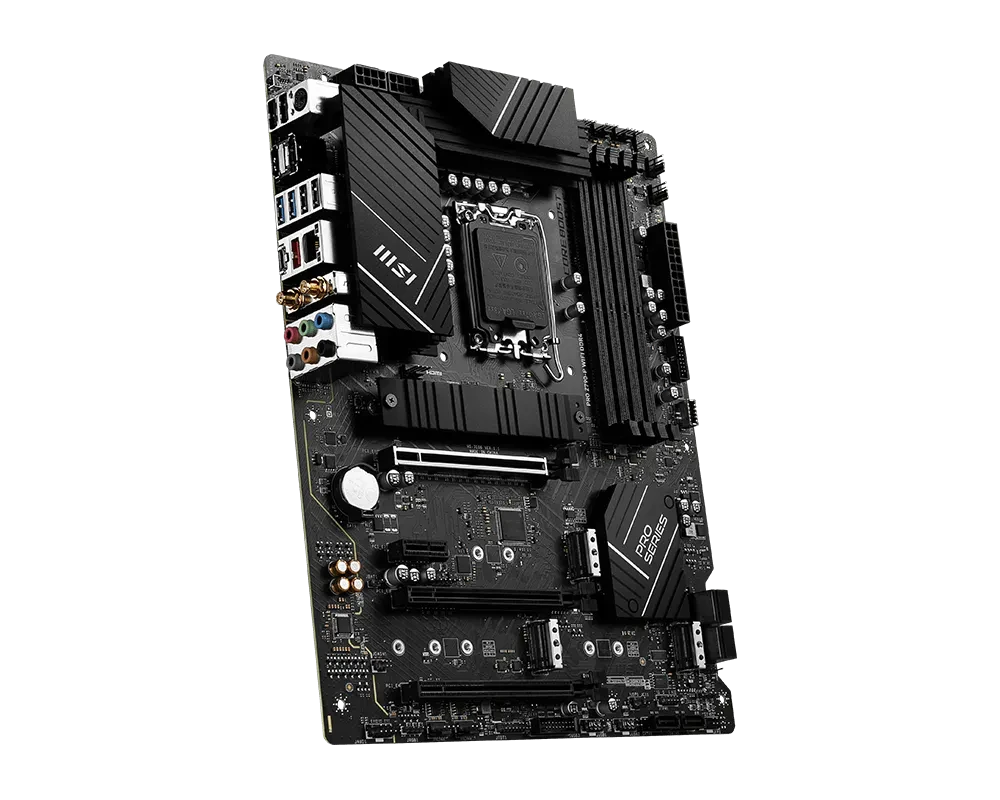

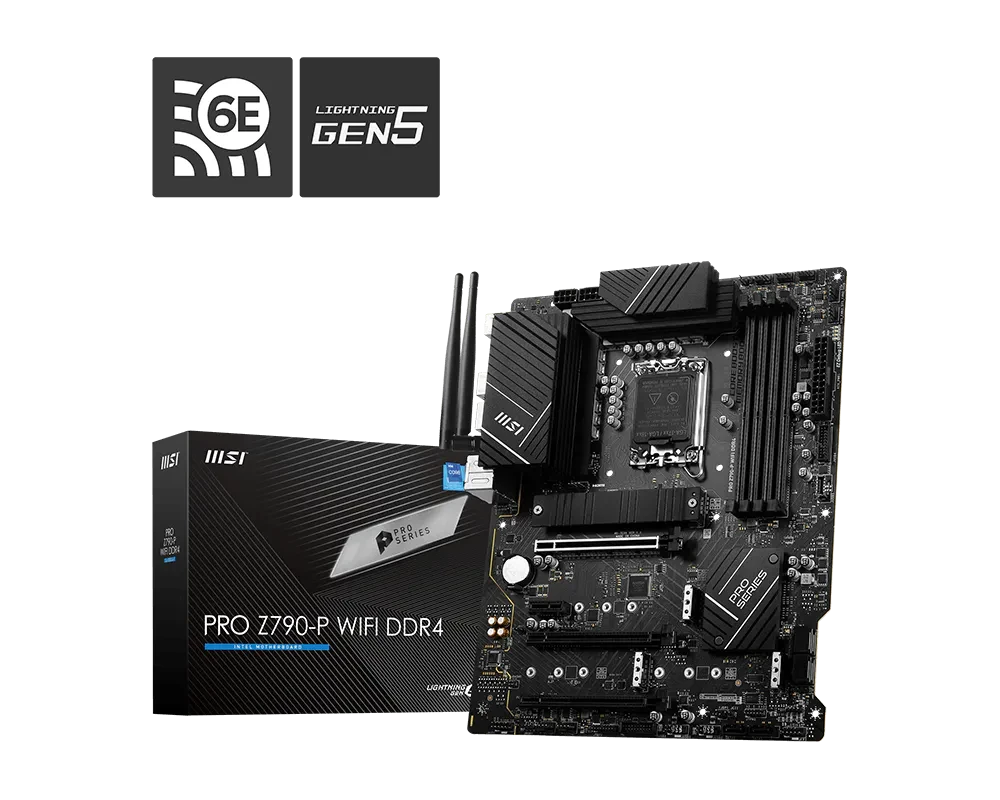

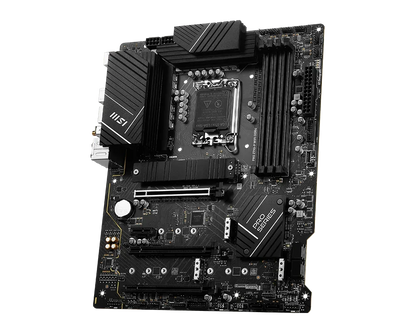

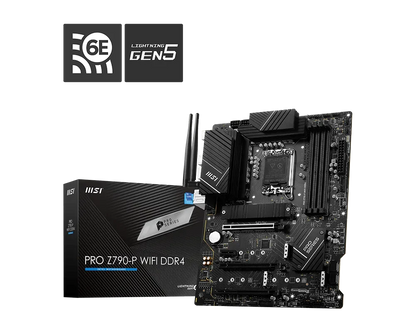

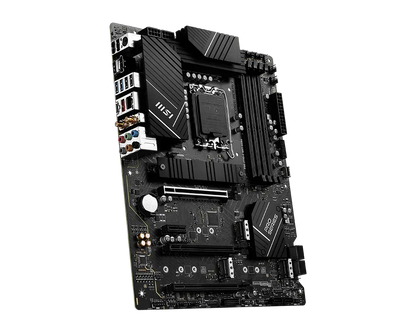

Discover the MSI PRO Z790-P WIFI DDR4 LGA 1700 Motherboard, engineered to support the latest Intel processors and advanced DDR4 memory for robust system performance. This motherboard offers a solid foundation for professional and gaming builds, combining high-speed connectivity with durable design.
Key Features at a Glance
- LGA 1700 socket for Intel Core 14th/13th/12th Gen, Pentium Gold, and Celeron Processors.
- Dual Channel DDR4 memory support up to 5333+MHz (OC).
- Enhanced 14+1+1 DRPS power design with 55A DrMOS for stable power delivery.
- Premium thermal solution featuring an Extended Heatsink and M.2 Shield Frozr.
- Lightning-fast connectivity with PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2.
- Integrated 2.5G LAN and Wi-Fi 6E for a secure, stable, and fast network.
Unleash Next-Gen Performance
Engineered with an LGA 1700 socket, the MSI PRO Z790-P WIFI DDR4 motherboard is ready for Intel Core 14th, 13th, and 12th Gen processors, alongside Pentium Gold and Celeron options. Support for Dual Channel DDR4 memory at speeds up to 5333+MHz (OC) ensures your system operates with remarkable efficiency and speed.
Stable Power and Superior Cooling
Experience rock-solid stability with an enhanced 14+1+1 DRPS power design, featuring 55A DrMOS and dual 8-pin CPU power connectors. This foundation is complemented by a premium thermal solution, including an Extended Heatsink, MOSFET thermal pads, and M.2 Shield Frozr, ensuring peak performance under demanding workloads and intense gaming sessions.
Experience Lightning-Fast Connections
Accelerate your system with PCIe 5.0 slot technology and Lightning Gen 4 x4 M.2 for rapid data transfer. The board also features USB 3.2 Gen 2x2 and Intel Turbo USB 3.2 Gen 2 for unmatched USB speeds and stability. For network performance, a 2.5G LAN and Wi-Fi 6E solution deliver secure, stable, and incredibly fast online experiences, perfect for professional work and immersive multimedia.
Immersive Audio Experience
With MSI's AUDIO BOOST technology, this motherboard provides studio-grade sound quality. Enjoy a truly immersive audio experience, enhancing every game, movie, and music track with rich, clear sound.
Technical Specifications
| Chipset | INTEL Z790 |
|---|---|
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |

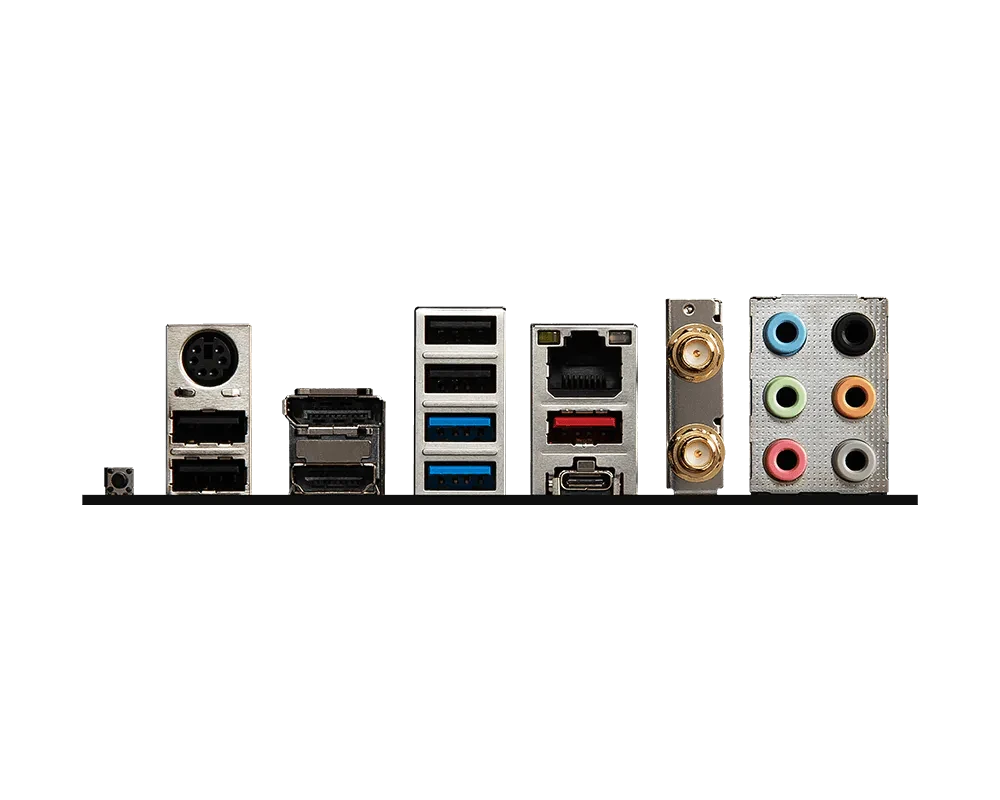

| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
Frequently Asked Questions
Q: What processors does this motherboard support?
A: The MSI PRO Z790-P WIFI DDR4 LGA 1700 Motherboard supports Intel Core 14th, 13th, and 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors, all compatible with the LGA 1700 socket.
Q: What type of memory is supported and at what speeds?
A: This motherboard supports Dual Channel DDR4 memory, with overclocked speeds of up to 5333+MHz.
Q: Does this motherboard have Wi-Fi and advanced networking?
A: Yes, it features a 2.5G LAN and a Wi-Fi 6E Solution, providing a secure, stable, and fast network connection ideal for professional and multimedia use.
