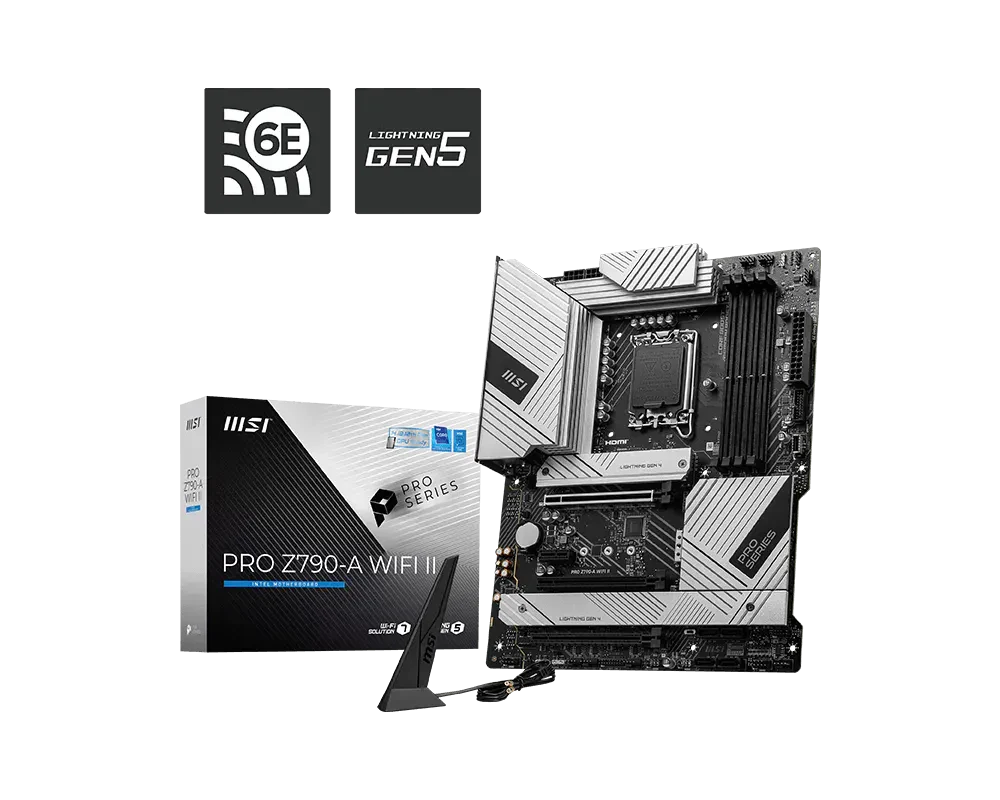

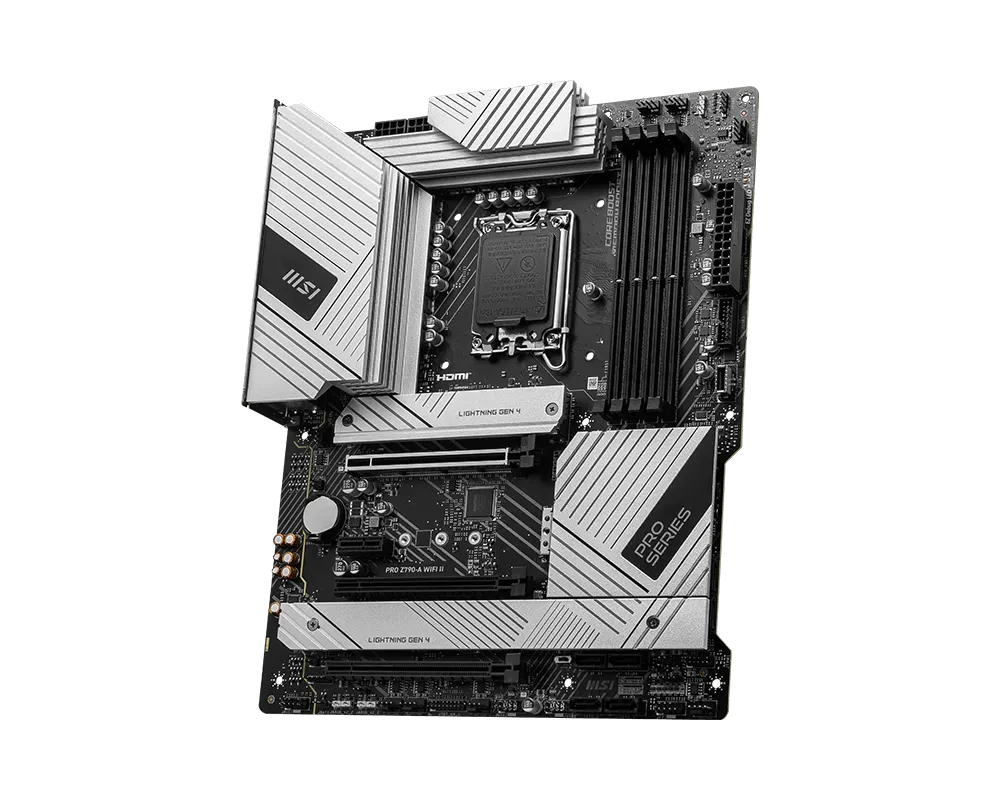

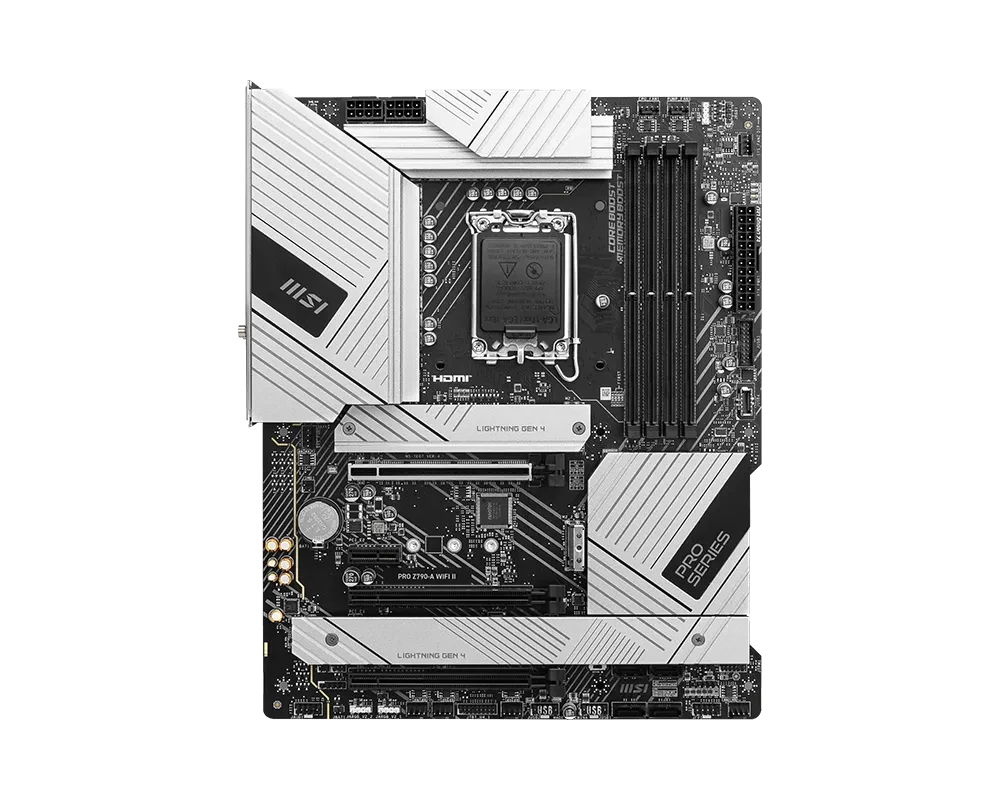

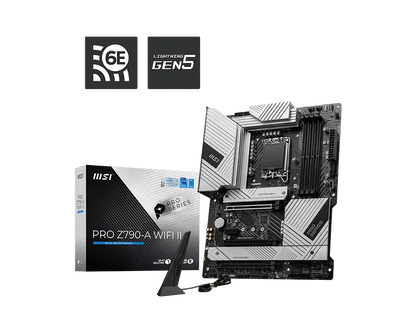

The MSI PRO Z790-A WIFI II DDR5 LGA 1700 Motherboard is engineered to support Intel Core 14th, 13th, and 12th Gen Processors, alongside Intel Pentium Gold and Celeron Processors for the LGA 1700 socket. This high-performance motherboard also supports DDR5 Memory, offering Dual Channel DDR5 with speeds up to 7800+MHz (OC) for advanced computing needs.
Key Features at a Glance
- Supports Intel Core 14th/13th/12th Gen Processors on LGA 1700 socket.
- DDR5 Memory with Dual Channel support up to 7800+MHz (OC).
- Enhanced Power Design featuring 16+1+1 DRPS and 80A SPS.
- Premium Thermal Solution with Extended Heatsink and M.2 Shield Frozr.
- High Quality 6-layer PCB made with 2oz thickened copper.
- Lightning Fast connectivity including PCIe 5.0 slot and Lightning Gen 4 x4 M.2.
- Integrated 2.5G LAN with Wi-Fi 6E Solution and AUDIO BOOST 5.
Robust Processor Compatibility
Unlock the full power of your system with comprehensive support for Intel Core 14th, 13th, and 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors, all designed for the LGA 1700 socket. This ensures a wide range of powerful CPU options for your build.
Superior Memory Performance
Experience cutting-edge data processing and multitasking efficiency with DDR5 Memory. This motherboard supports Dual Channel DDR5 at impressive speeds of up to 7800+MHz (OC), providing ample bandwidth for demanding applications and gaming.
Advanced Thermal Management
Maintain stable, high performance even under intense workloads, thanks to a Premium Thermal Solution. Features include an Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr, all designed to keep your system cool for a non-stop experience.
Rapid Connectivity and Networking
Enjoy a lightning-fast experience with a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2. The upgraded 2.5G LAN with Wi-Fi 6E Solution delivers a secure, stable, and fast network connection for professional and multimedia use, complemented by Intel Turbo USB 3.2 Gen 2 for uninterrupted, fast USB speeds.
Technical Specifications
| Chipset | INTEL Z790 |
|---|---|
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Storage | 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G (Qty) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |

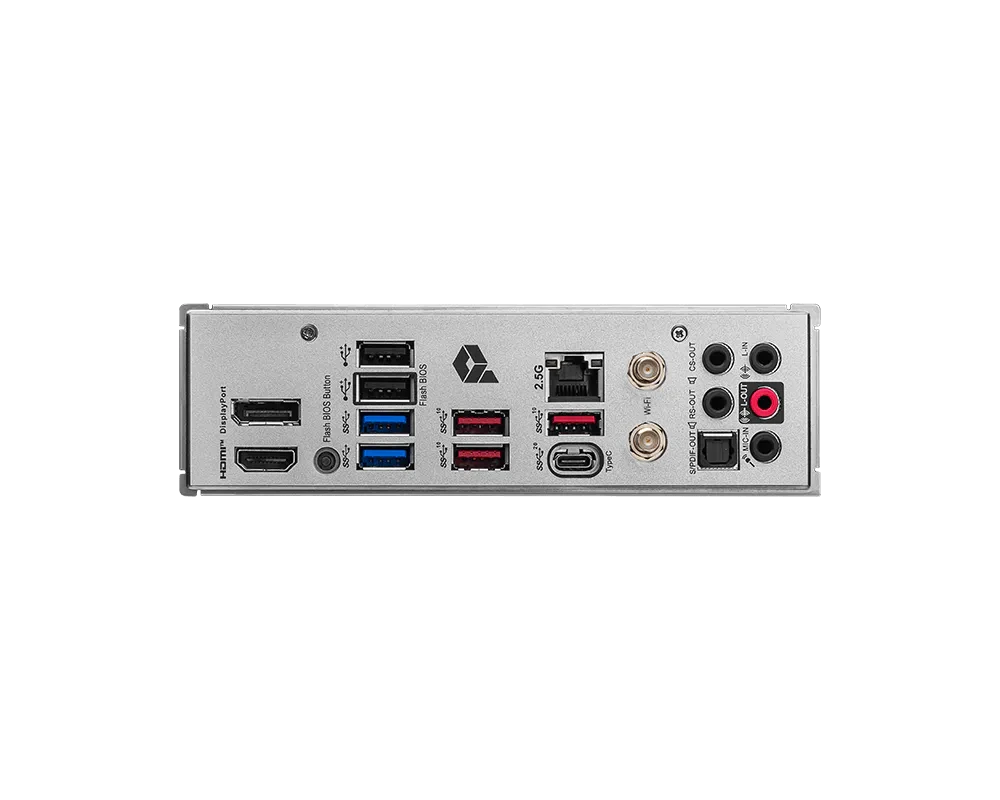

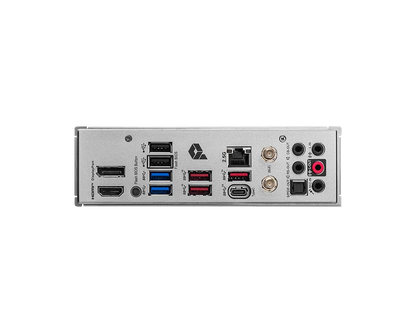

| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E requires Windows 11. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
Frequently Asked Questions
Q: Which Intel processors are compatible with this motherboard?
A: The MSI PRO Z790-A WIFI II DDR5 LGA 1700 Motherboard supports Intel Core 14th, 13th, and 12th Gen Processors, along with Intel Pentium Gold and Celeron Processors for the LGA 1700 socket.
Q: What type of memory does this motherboard support?
A: It supports DDR5 Memory with Dual Channel DDR5, capable of speeds up to 7800+MHz (OC).
Q: Does this motherboard include advanced thermal features?
A: Yes, it incorporates a Premium Thermal Solution, which includes an Extended Heatsink, MOSFET thermal pads (7W/mK), additional choke thermal pads, and M.2 Shield Frozr.
