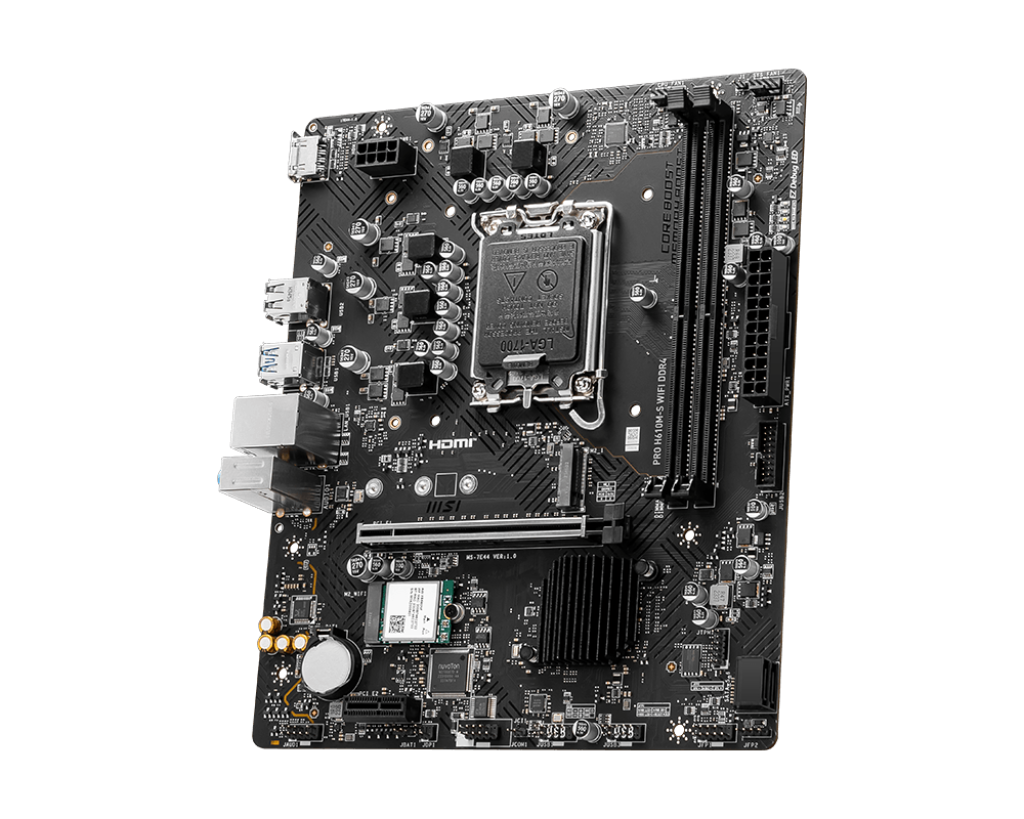

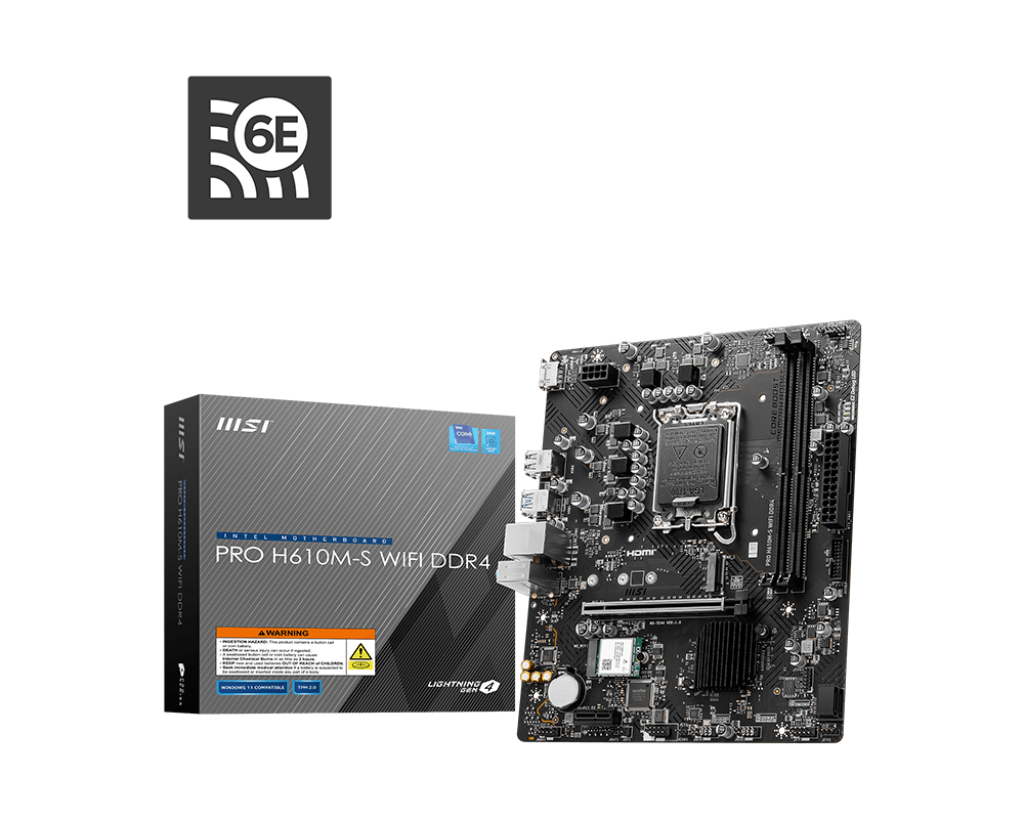

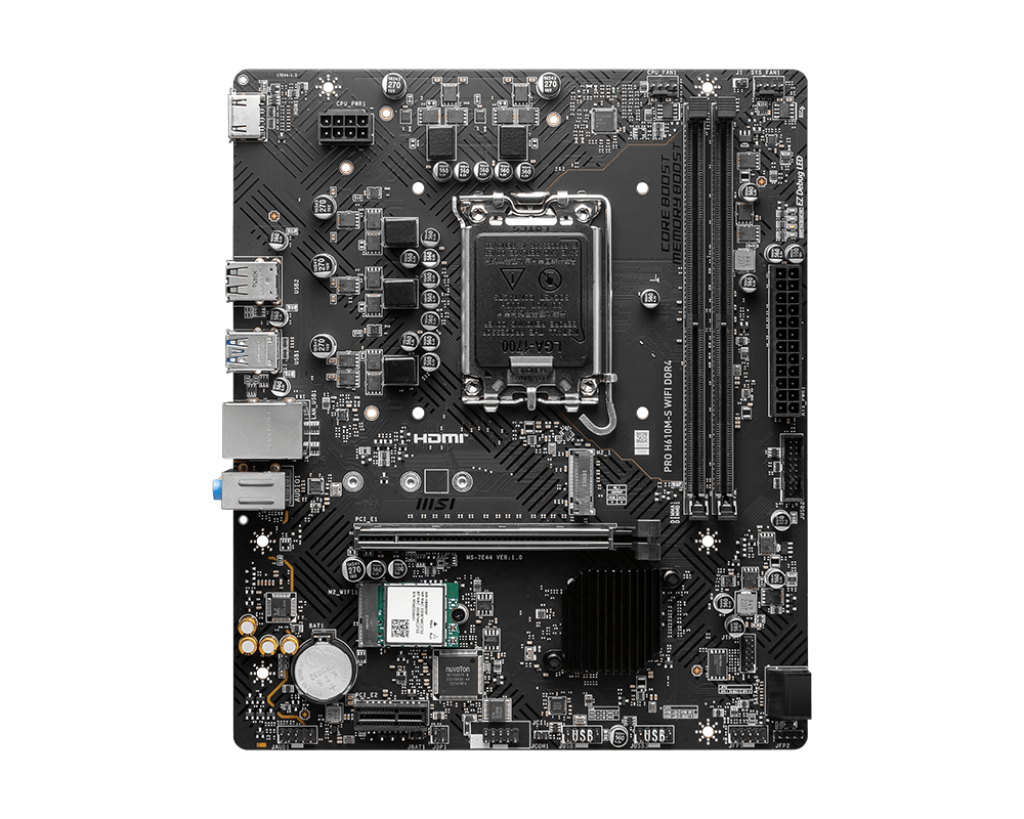

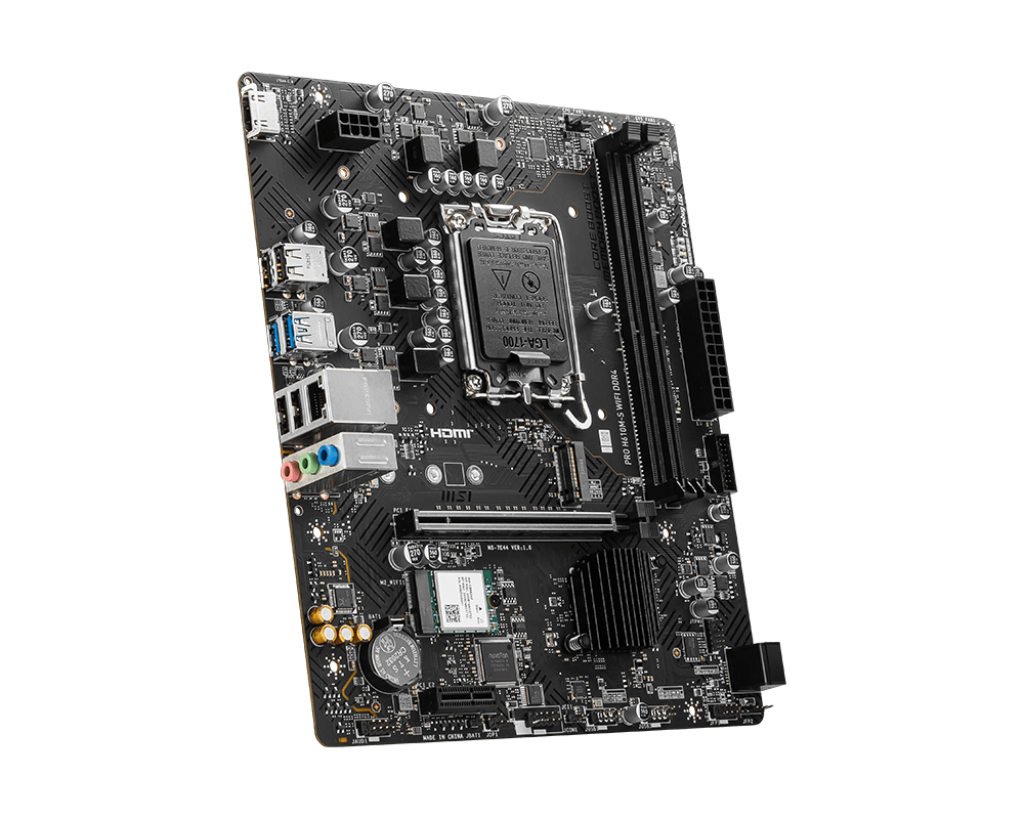

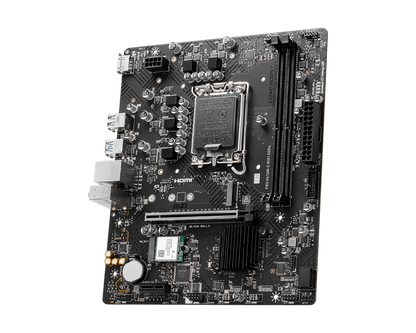

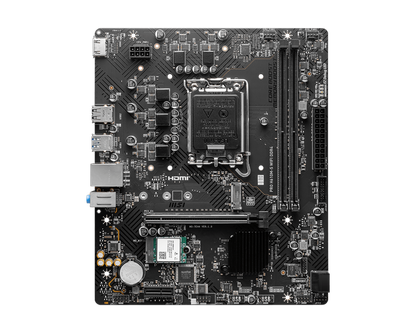

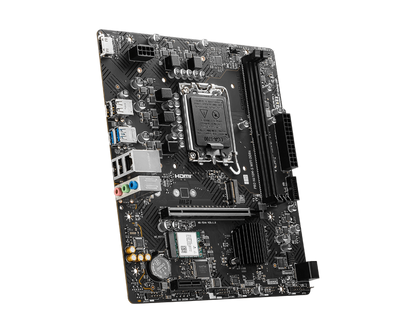

MSI PRO H610M-S WIFI DDR4 MOTHERBOARD
MSI PRO H610M-S WIFI DDR4 MOTHERBOARD
Regular price
Rs. 7,840.00
Sale price
Rs. 7,840.00
Regular price
Rs. 14,000.00
Unit price
per
Low stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Specifications:
| Chipset | INTEL H610 |
|---|---|
| CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| Socket | LGA 1700 |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support | DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC |
| Memory Channel | Supports Dual-Channel mode |
| Memory Type | Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI (Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz) |
| Slot | 1x PCI-E x16 slot, 1x PCI-E x1 slot |
| PCI_E1 Gen | PCIe 4.0 supports up to x16 (From CPU) |
| PCI_E2 Gen | PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 1x M.2 (supports up to PCIe 3.0 x4), 2x SATA 6G |
| USB | 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front) |
| LAN | Realtek RTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector (ATX_PWR), 1x Power Connector (CPU_PWR), 1x CPU Fan, 1x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports |
| Wireless LAN & Bluetooth | Wi-Fi 6E, Bluetooth 5.3 (FIPS, FISMA) |
| LED Feature | 4x EZ Debug LED |

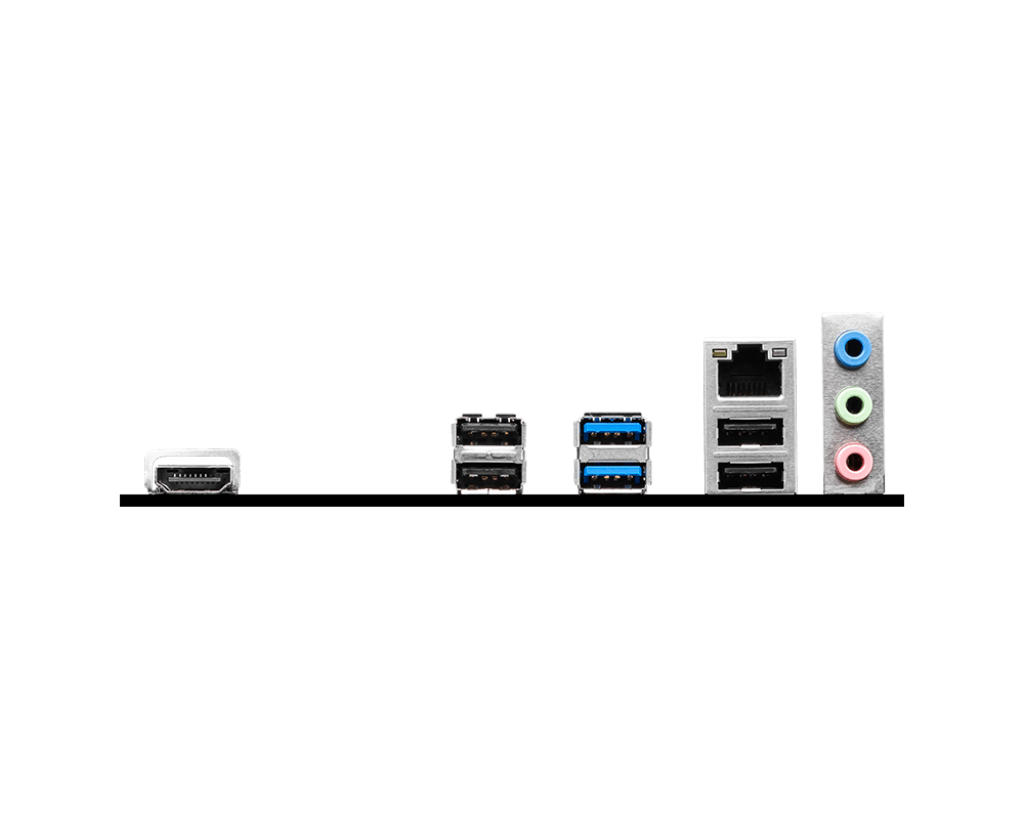

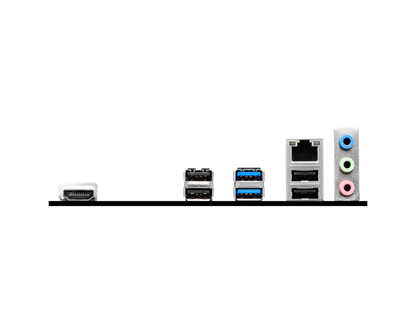

| Back Panel Ports | HDMI, USB 3.2 Gen 1 5Gbps (Type-A), USB 2.0, LAN port, Audio Connectors |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Info | mATX, 200mm x 236.16mm |
