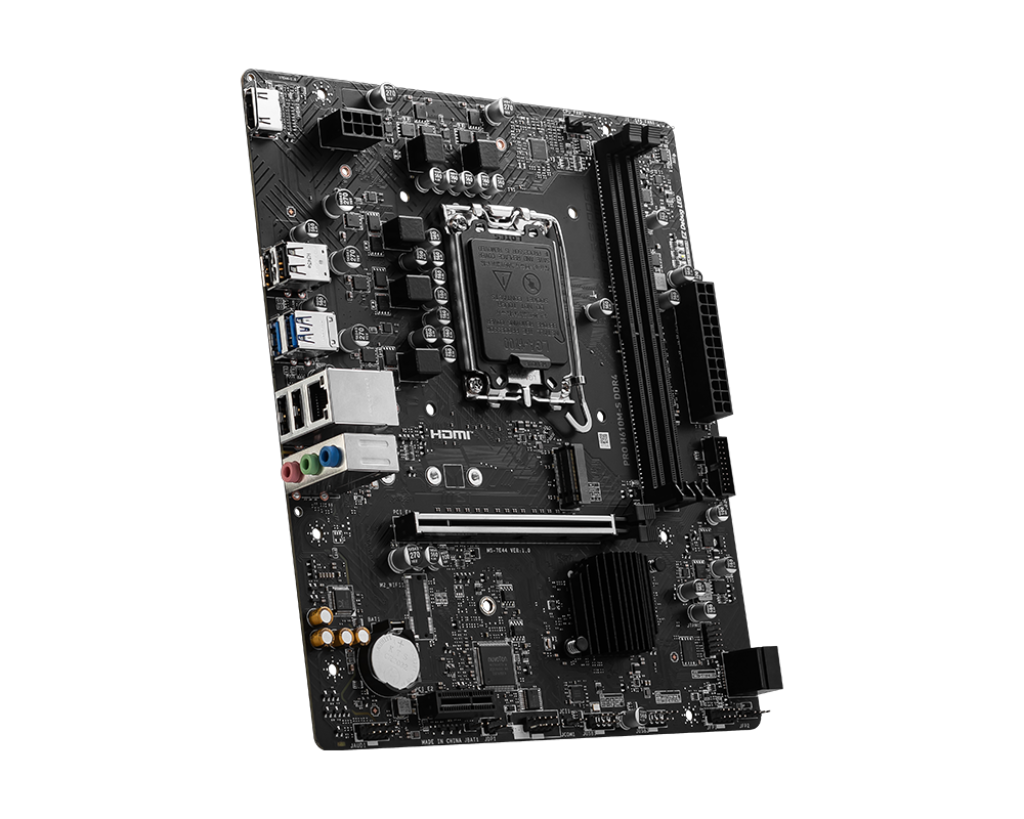

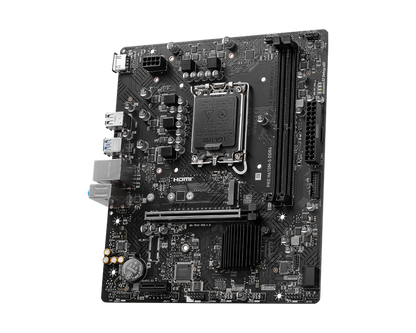

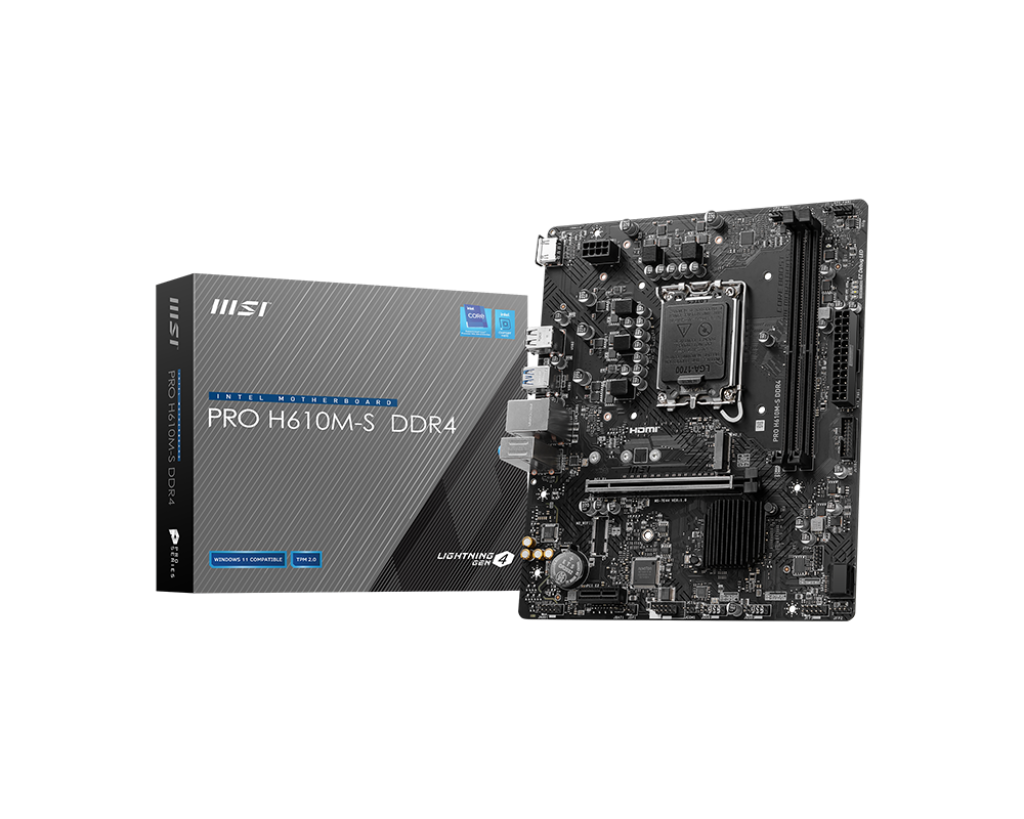

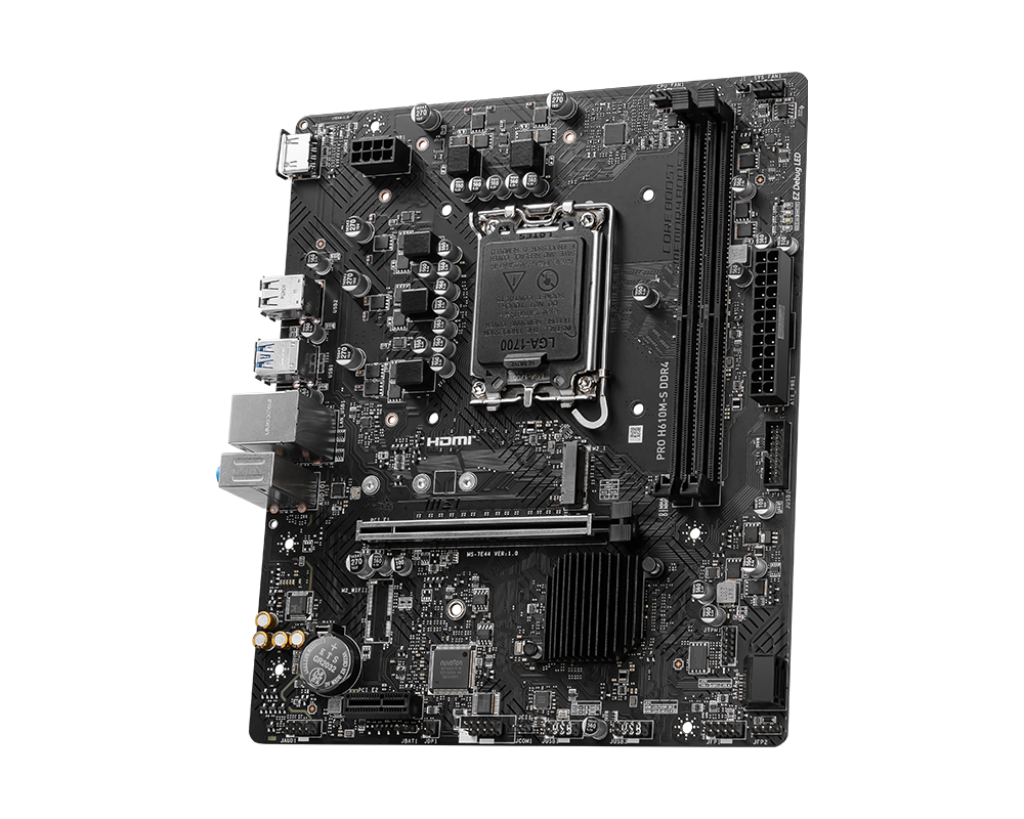

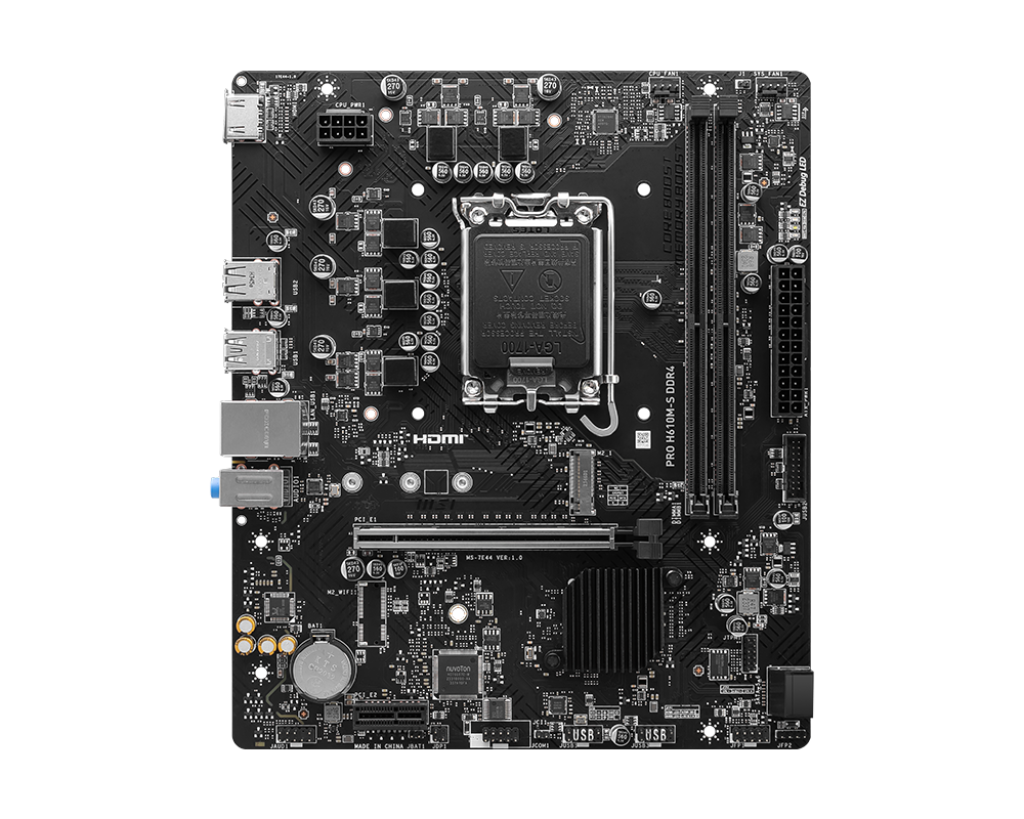

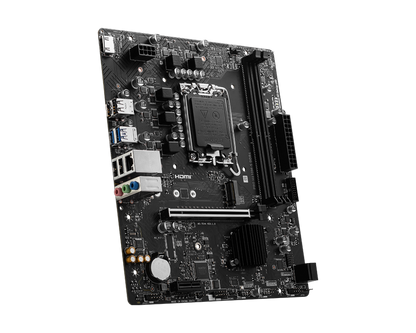

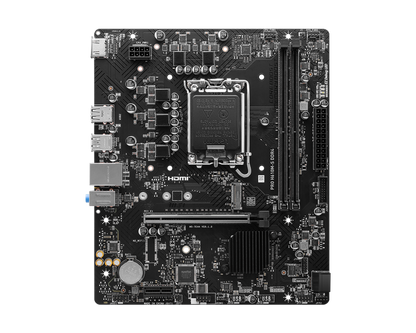

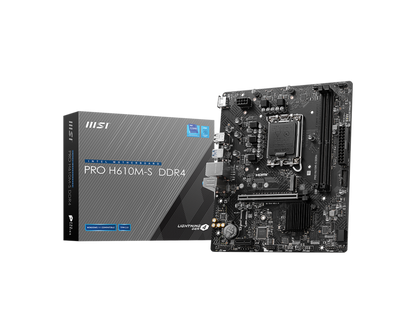

MSI PRO H610M-S DDR4 LGA1700 MICRO ATX MOTHERBOARD
MSI PRO H610M-S DDR4 LGA1700 MICRO ATX MOTHERBOARD
Regular price
Rs. 5,635.00
Sale price
Rs. 5,635.00
Regular price
Rs. 9,800.00
Unit price
per
Low stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
About this item
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0. Audio Boost: Reward your ears with studio grade sound quality
Technical Details
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen, Pentium, Celeron |
| Chipset | H610 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports non-ECC, un-buffered memory |
| Graphics Port | 1x HDMI |
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |

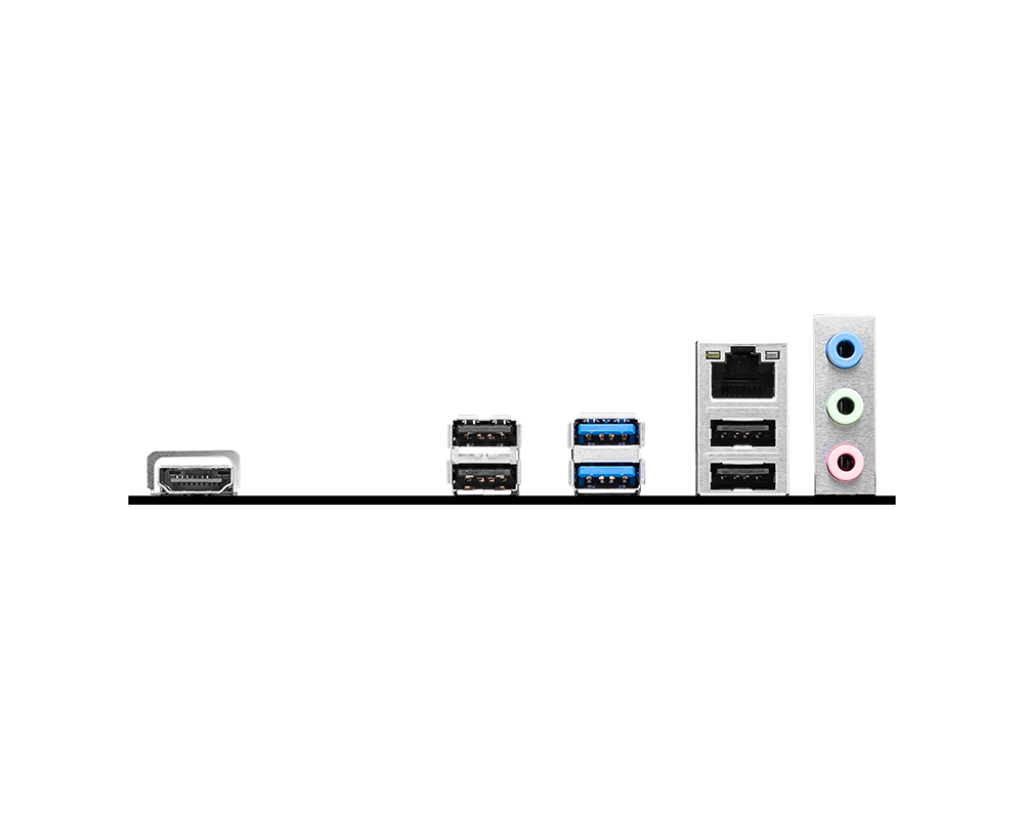

| Back Panel I/O Ports | HDMI USB 2.0 USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
