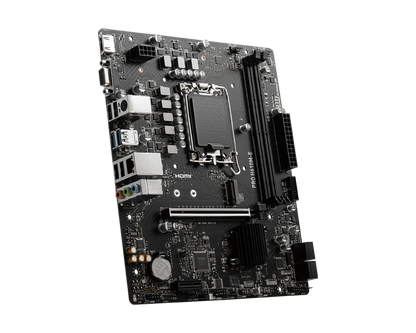

MSI PRO H610M-E INTEL LGA1700 DDR5 MOTHERBOARD
MSI PRO H610M-E INTEL LGA1700 DDR5 MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

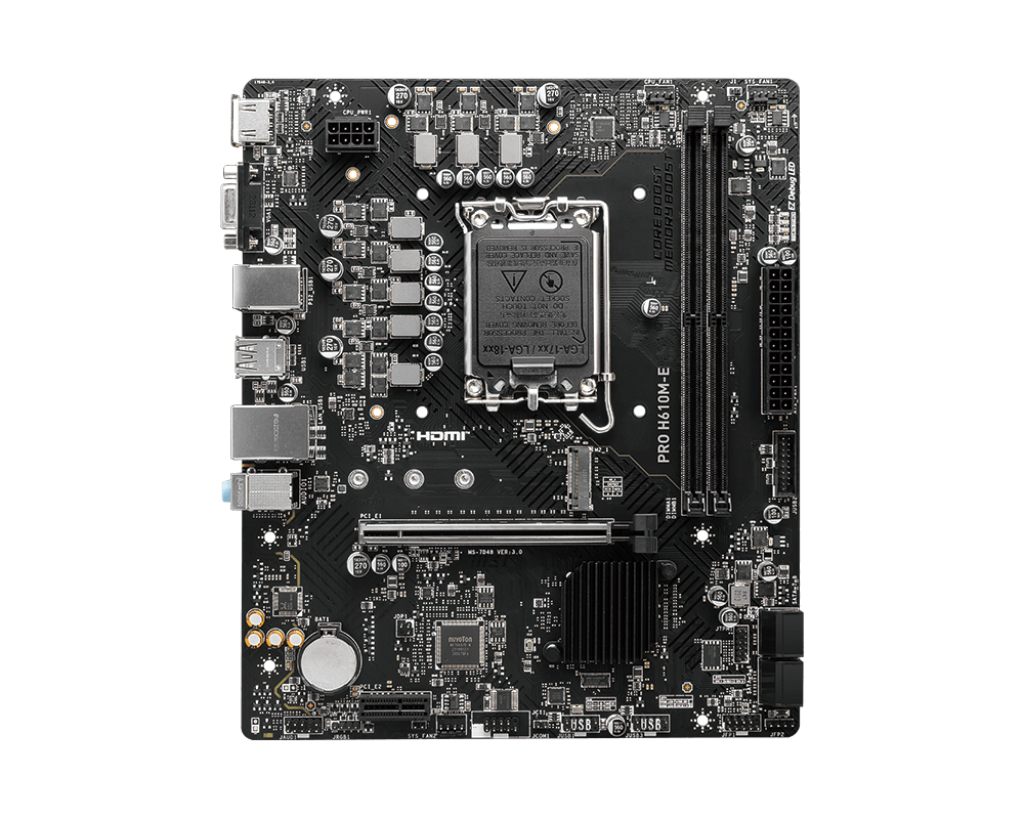

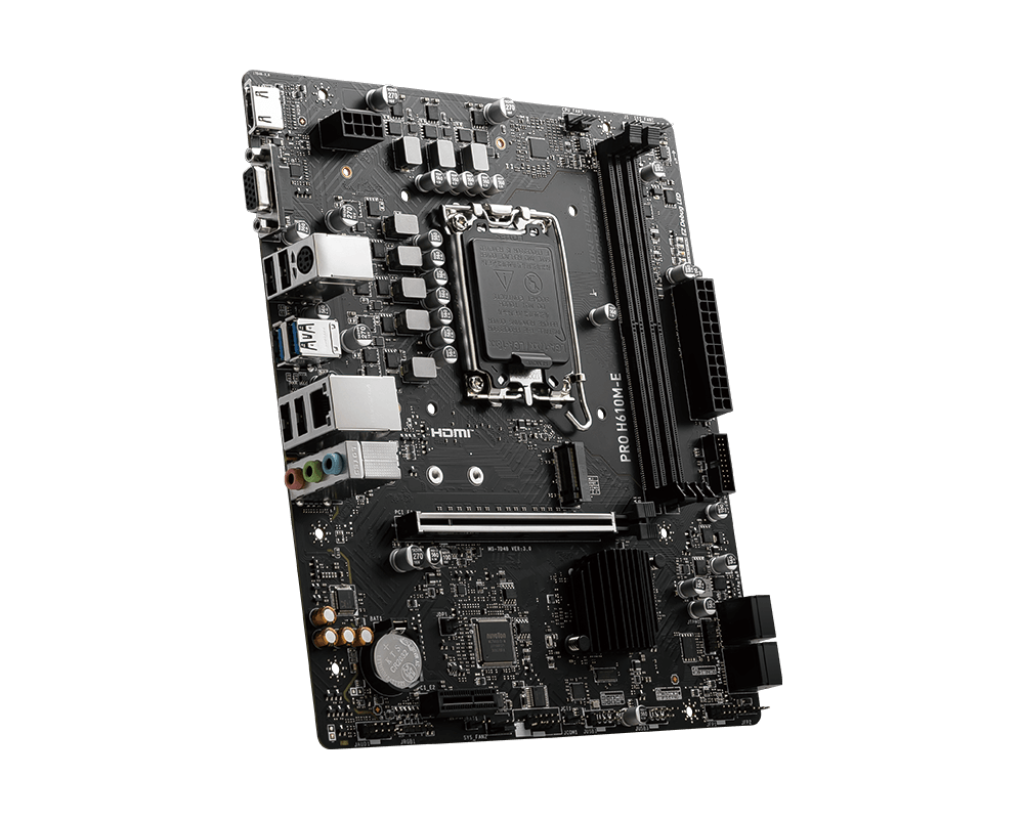

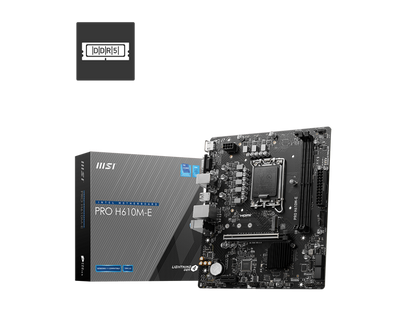

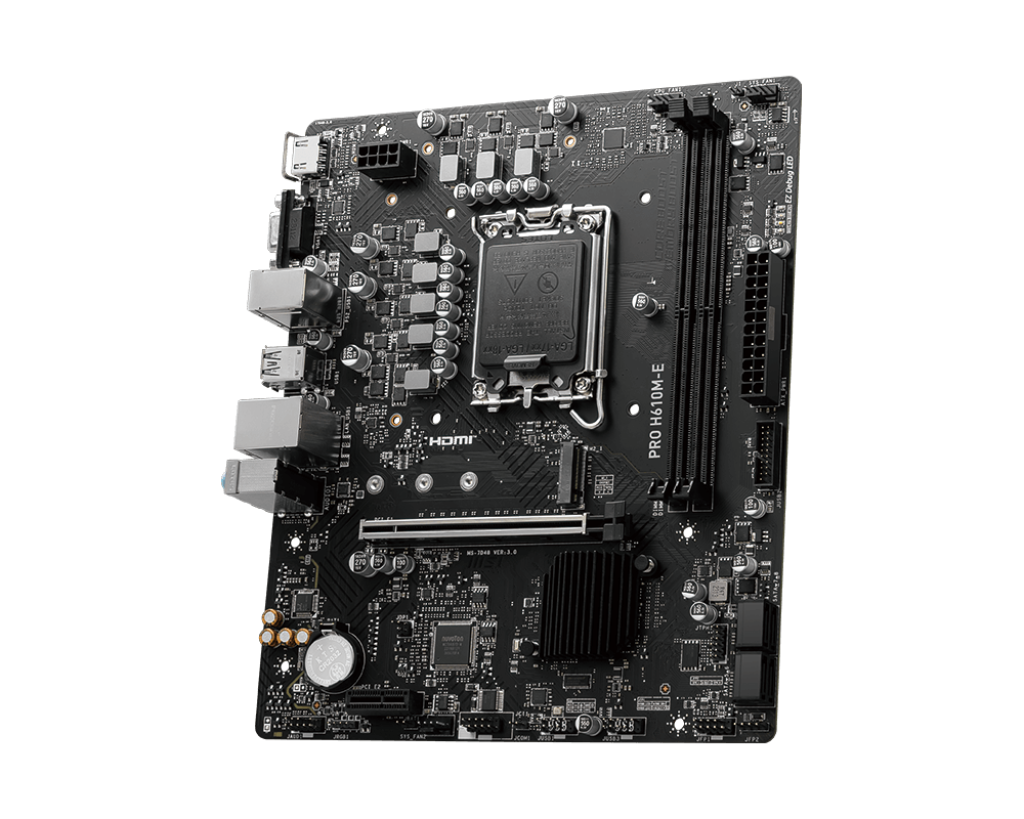

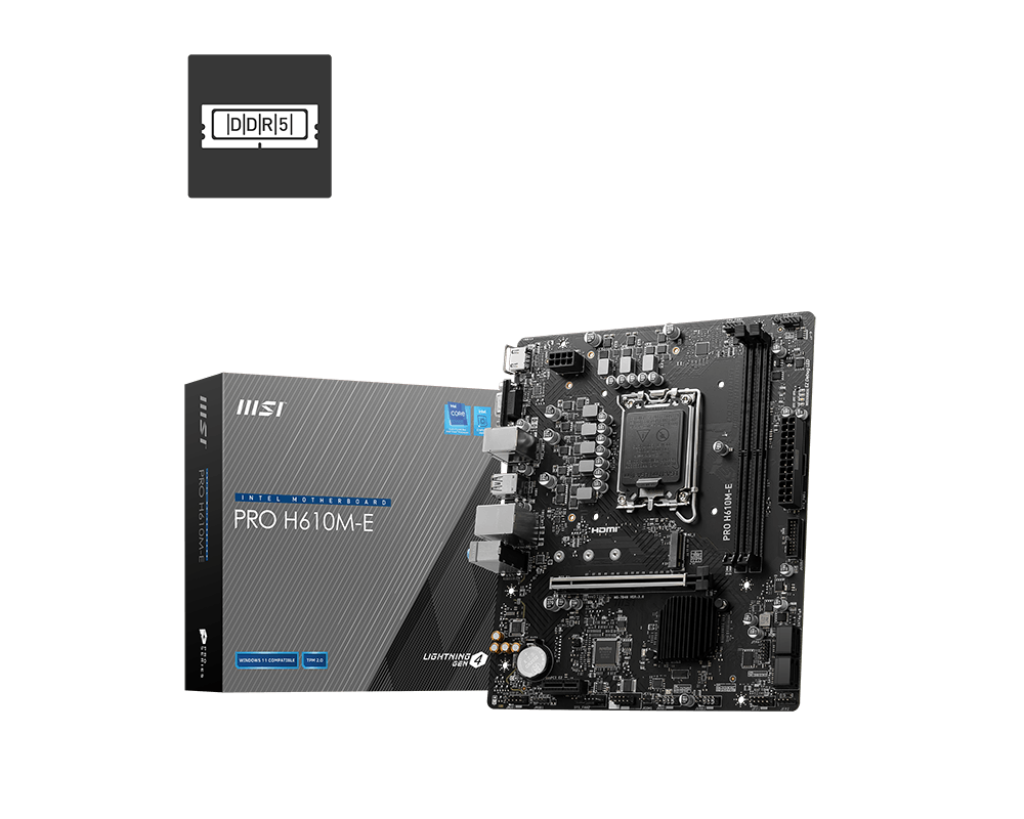

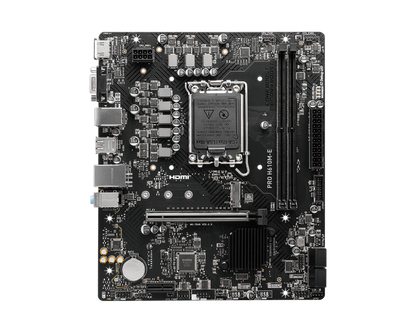

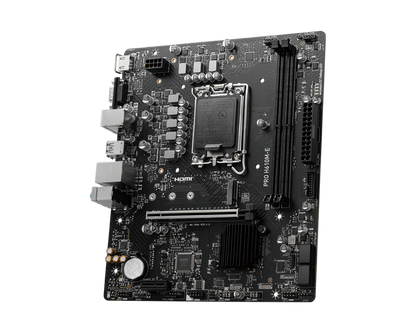

The MSI PRO H610M-E INTEL LGA1700 DDR5 MOTHERBOARD offers a robust and essential foundation for your computing needs. Designed to support Intel processors with the LGA1700 socket, this motherboard integrates DDR5 memory technology, providing a reliable platform for everyday tasks and productivity.
Key Features at a Glance
- Designed for Intel LGA1700 processors.
- Supports modern DDR5 memory.
- Part of the reliable MSI PRO series.
- Includes a 3-year manufacturer's warranty.
Next-Generation Processor Support
Equipped with the LGA1700 socket, this motherboard is ready to host the latest Intel processors, providing the necessary foundation for current and future computing demands. Build a system that keeps pace with technological advancements.
Enhanced Memory Performance
Leverage the power of DDR5 memory technology, allowing for faster data transfer speeds and improved system responsiveness. Experience smoother multitasking and more efficient operation across various applications.
Reliable and Stable Platform
As part of the MSI PRO series, the H610M-E is engineered for stability and durability. It provides a consistent and dependable base for your professional or everyday computing tasks, ensuring long-term operational integrity.
Technical Specifications
| Chipset | INTEL H610 |
|---|---|
| CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports IntelXMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Audio | RealtekALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | RealtekRTL8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |

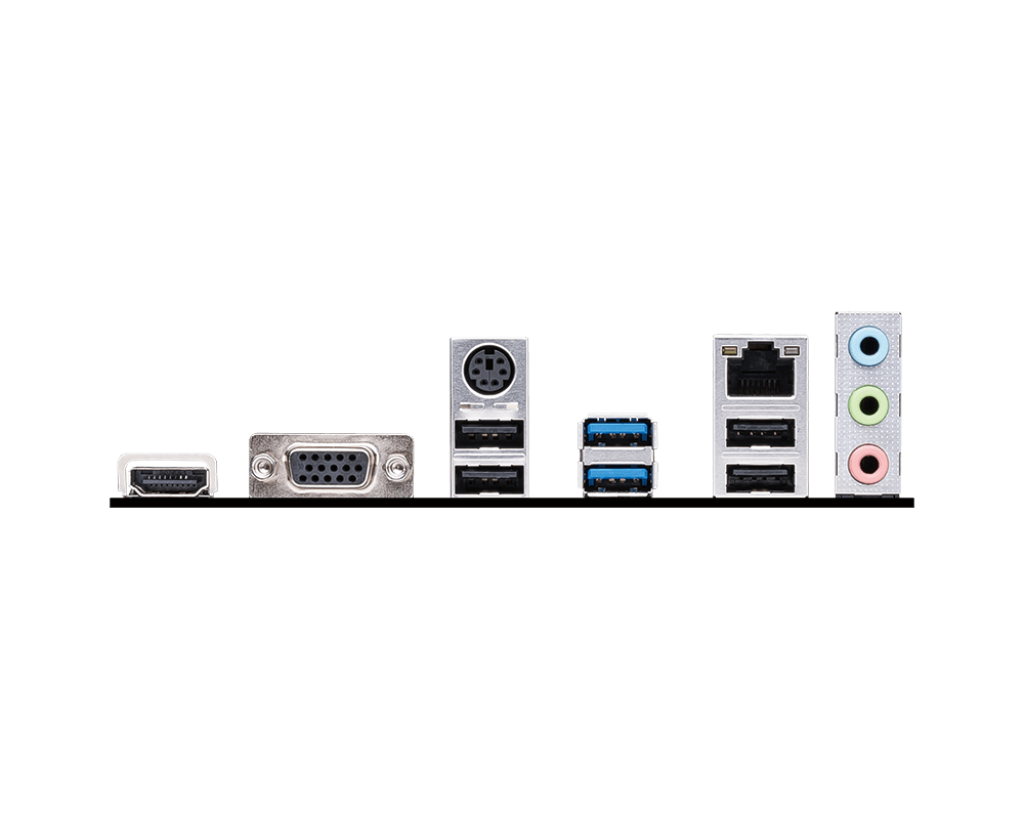

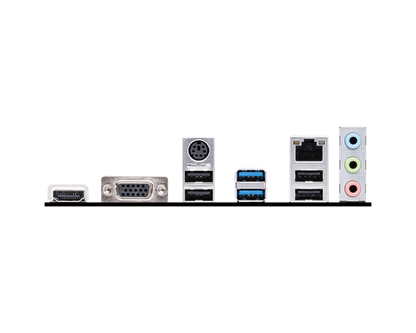

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows11 64-bit, Windows10 64-bit |
| BOX CONTENT |
 |
| PCB Info | mATX 200mmx236.16mm |
Frequently Asked Questions
Q: What processor socket does the MSI PRO H610M-E motherboard support?
A: The MSI PRO H610M-E motherboard is designed to support Intel processors with the LGA1700 socket.
Q: What type of memory is compatible with this motherboard?
A: This motherboard is built to support modern DDR5 memory technology.
Q: What is the warranty period for the MSI PRO H610M-E motherboard?
A: The MSI PRO H610M-E INTEL LGA1700 DDR5 MOTHERBOARD includes a 3-year manufacturer's warranty.
