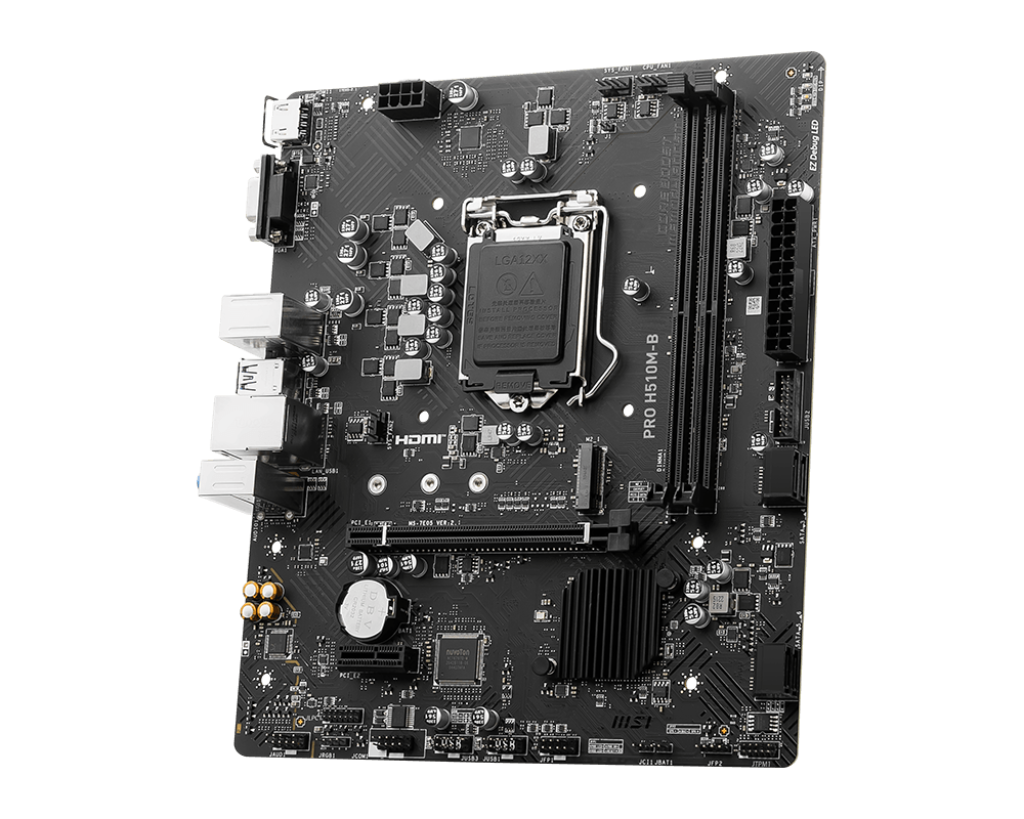

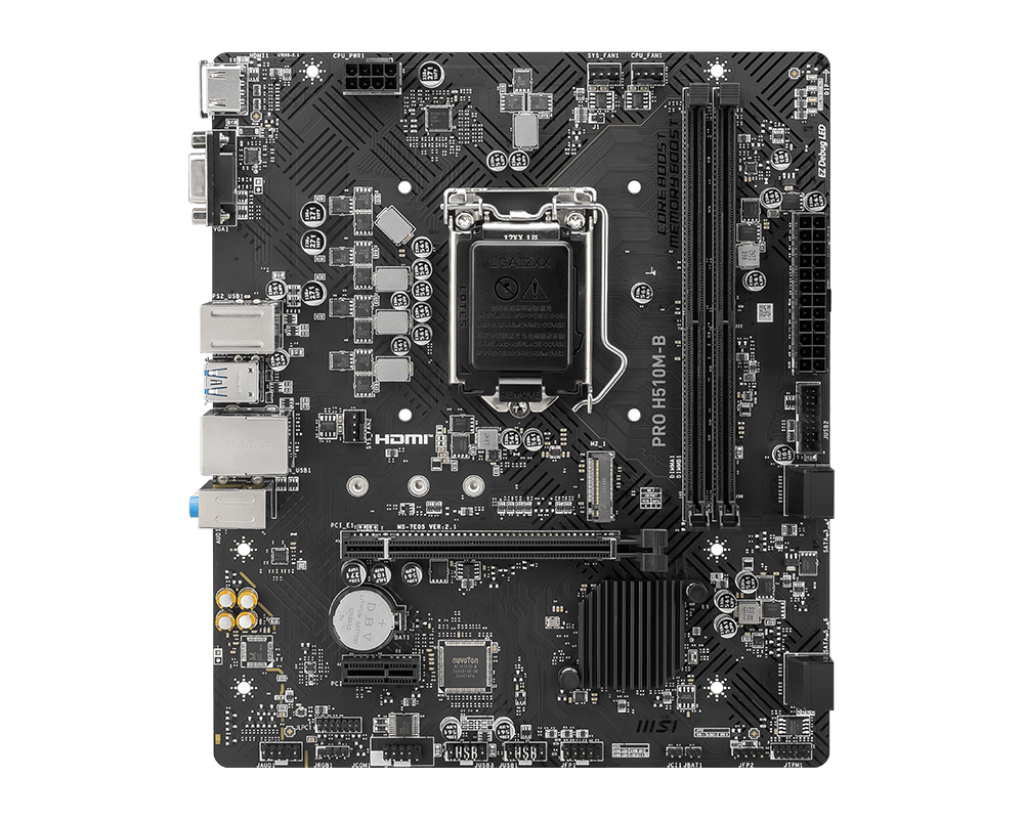

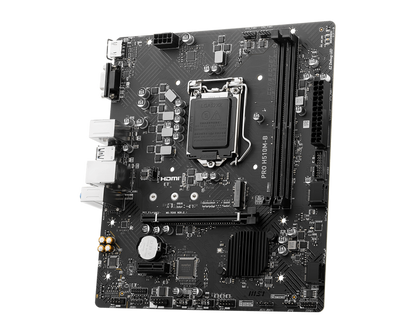

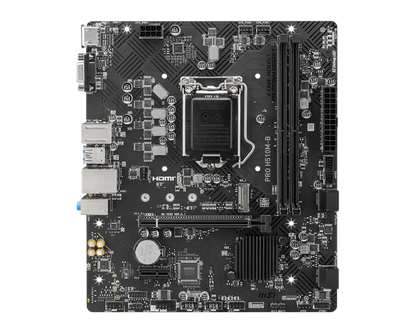

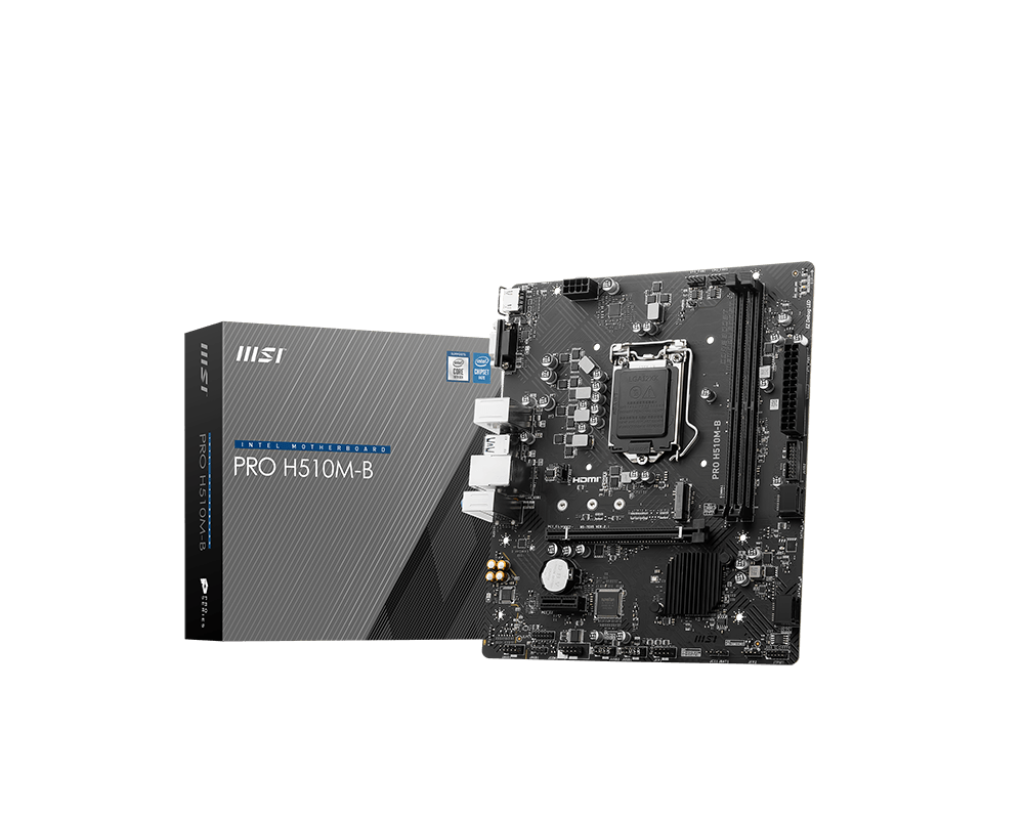

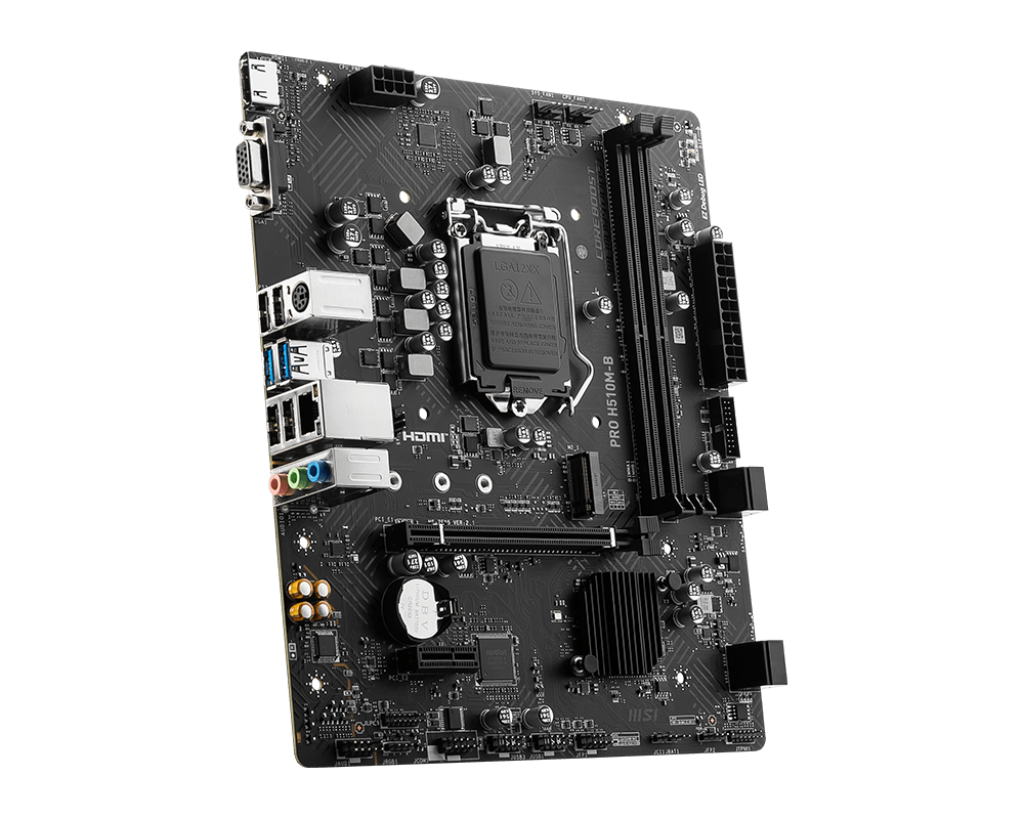

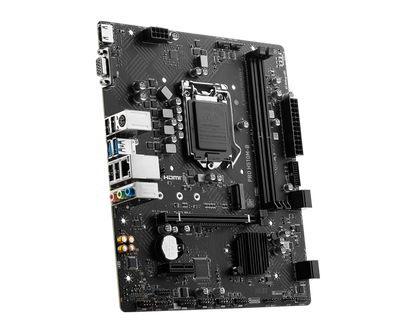

MSI PRO H510M-B INTEL LGA1200 MOTHERBOARD
Sale priceRs. 5,488.00Regular price
Rs. 7,350.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| CHIPSET | INTEL H470 |
| CPU SUPPORT | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket |
| MEMORY | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support 2933/ 2666/ 2400/ 2133 MHz | |
| Supports 1R 2133/ 2666/ 2933 MHz for IntelÃCoreô i9/ Coreô i7 CPU | |
| Supports 1R 2133/ 2666 MHz for IntelÃCoreô i5/ Coreô i3/ PentiumÃGold and CeleronÃCPU | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports IntelÃExtreme Memory Profile (XMP) | |
| ONBOARD GRAPHICS | 1x HDMIô |
| Support HDMIô 1.4, maximum resolution of 4K 30Hz* | |
| 1x VGA | |
| Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| EXPANSION SLOT | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| STORAGE | 1x M.2 |
| M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G | |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| LAN | RealtekÃ8111H Gigabit LAN |
| AUDIO | RealtekÃALC897 Codec |
| 7.1-Channel High Definition Audio | |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 3.2 Gen1 Type A ports | |
| LED FEATURE | 4x EZ Debug LED |

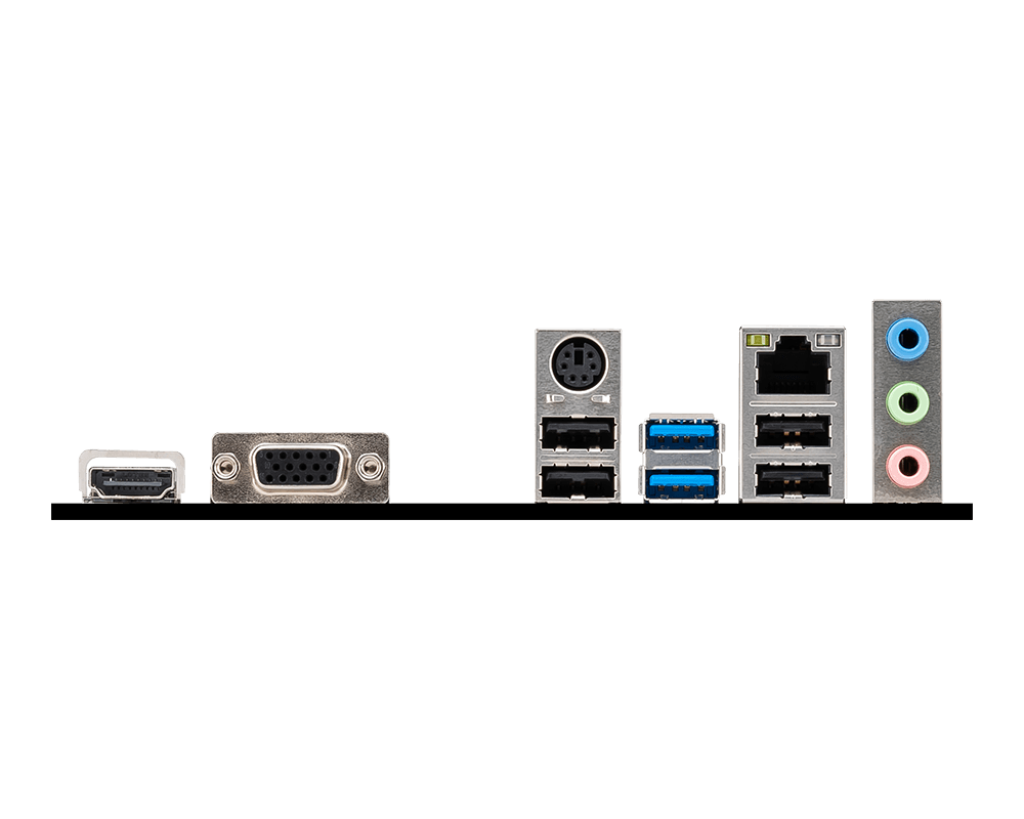

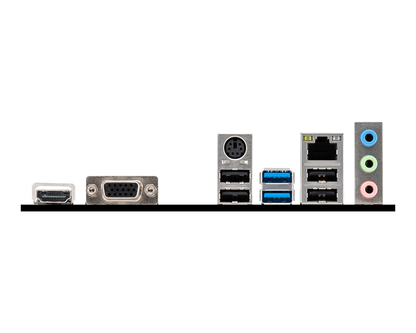

| BACK PANEL PORTS | HDMIô |
| VGA | |
| Keyboard / Mouse | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| LAN port | |
| Audio Connectors | |
| USB 2.0 | |
| USB 2.0 | |
| OPERATING SYSTEM | Support for WindowsÃ11 64-bit, WindowsÃ10 64-bit |
| PCB DIMENSION (W L) | mATX |
| 202mmx236mm |
