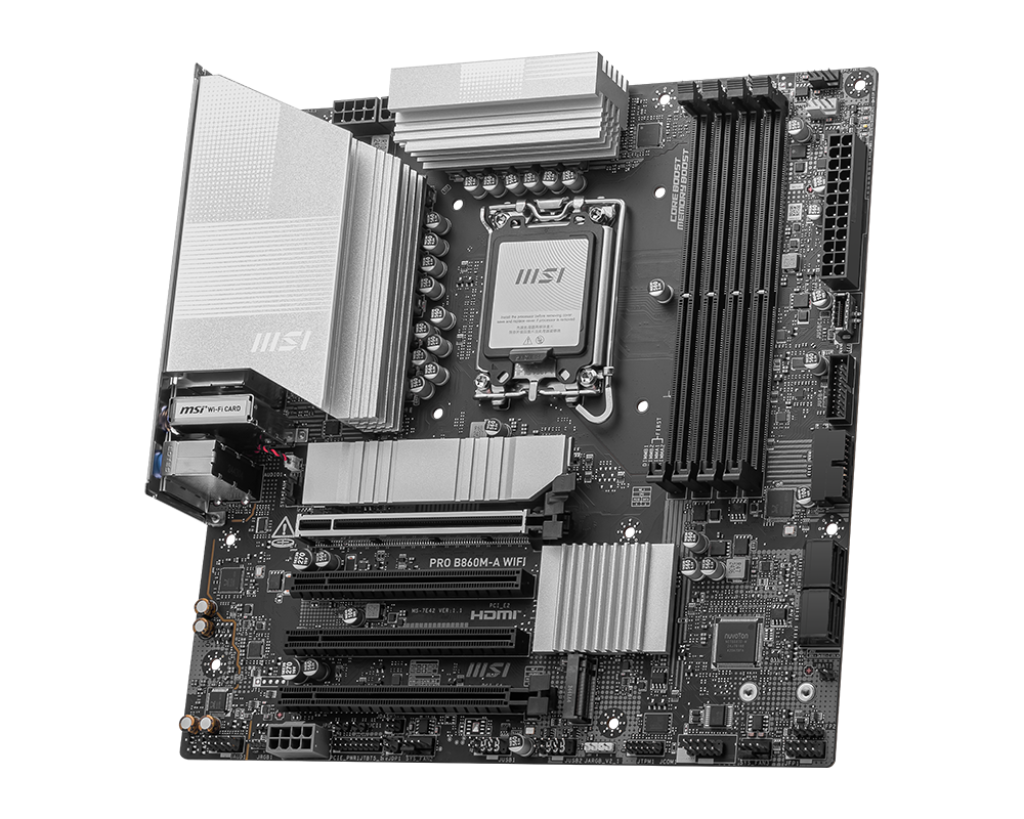

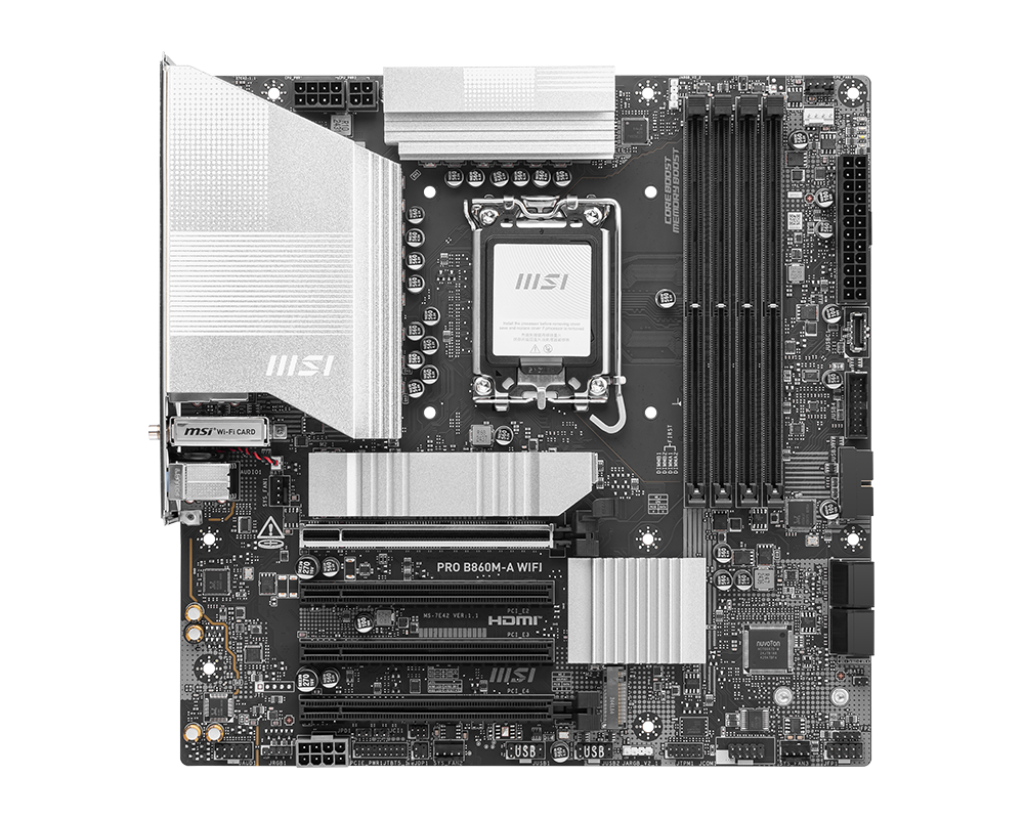

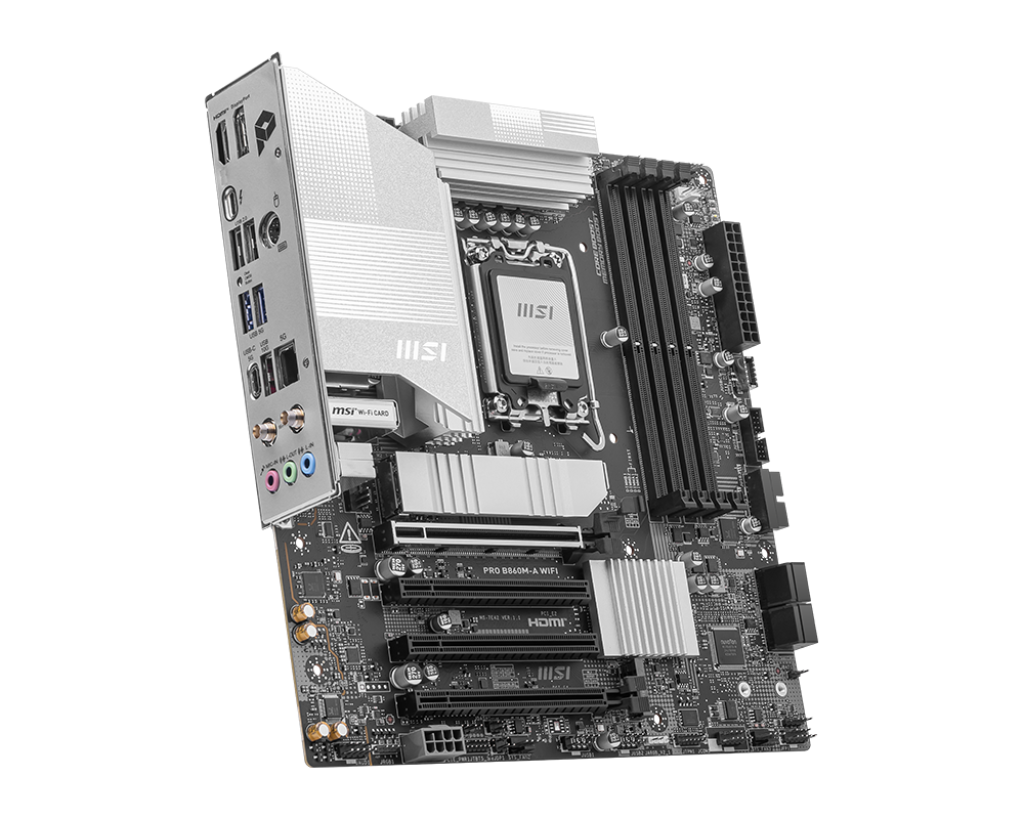

Elevate your system's performance with the MSI PRO B860M-A WIFI MOTHERBOARD, designed to support Intel Core Ultra Processors (Series 2) and advanced DDR5 memory. Experience robust power delivery, efficient cooling, and lightning-fast connectivity for both professional and multimedia applications.
Key Features at a Glance
- Support for Intel Core Ultra Processors (Series 2) on LGA 1851 socket.
- DDR5 Memory support, Dual Channel up to 8800+ MT/s (OC).
- Enhanced power delivery with a 12+1+1+1 Duet Rail Power System and 6-layer server-grade PCB.
- Advanced cooling solutions including Frozr Guard with Extended Heatsink and EZ M.2 Shield Frozr II.
- Lightning-fast data transfer with PCIe 5.0 slot and Lightning Gen 5 x4 M.2.
- Comprehensive connectivity featuring Thunderbolt 4 port, 5G LAN, and Intel Wi-Fi 7 Solution.
Unleash Next-Gen Processor Power
The MSI PRO B860M-A WIFI MOTHERBOARD is engineered to support Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. Paired with Dual Channel DDR5 Memory, capable of speeds up to 8800+ MT/s (OC), it provides a powerful foundation for high-performance computing.
Robust Power Delivery and Cooling
Built with a 12+1+1+1 Duet Rail Power System and 8+4-pin CPU power connectors, this motherboard ensures stable power to critical components. Its 6-layer server-grade PCB, along with Frozr Guard cooling featuring an Extended Heatsink and 7W/mK MOSFET thermal pads, keeps your system running efficiently under load.
Lightning-Fast Connectivity and Storage
Experience blazing-fast data transfer and networking with a PCIe 5.0 slot and Lightning Gen 5 x4 M.2 for storage. The Ultra Connect suite includes a Thunderbolt 4 port, 5G LAN, and the latest Intel Wi-Fi 7 Solution, ensuring secure, stable, and high-speed connections for all your professional and multimedia needs.
Enhanced User Experience and Audio
Simplify your build process with EZ DIY features like EZ M.2 Clip II and EZ PCIe Clip II. Additionally, Audio Boost delivers studio-grade sound quality, providing an immersive experience for gaming and multimedia consumption.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Chipset | B860 |
| Memory Speed | up to 8800+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Site. |
| Graphics Port | 1x HDMI,1x DisplayPort,1x Type-C DisplayPort |
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

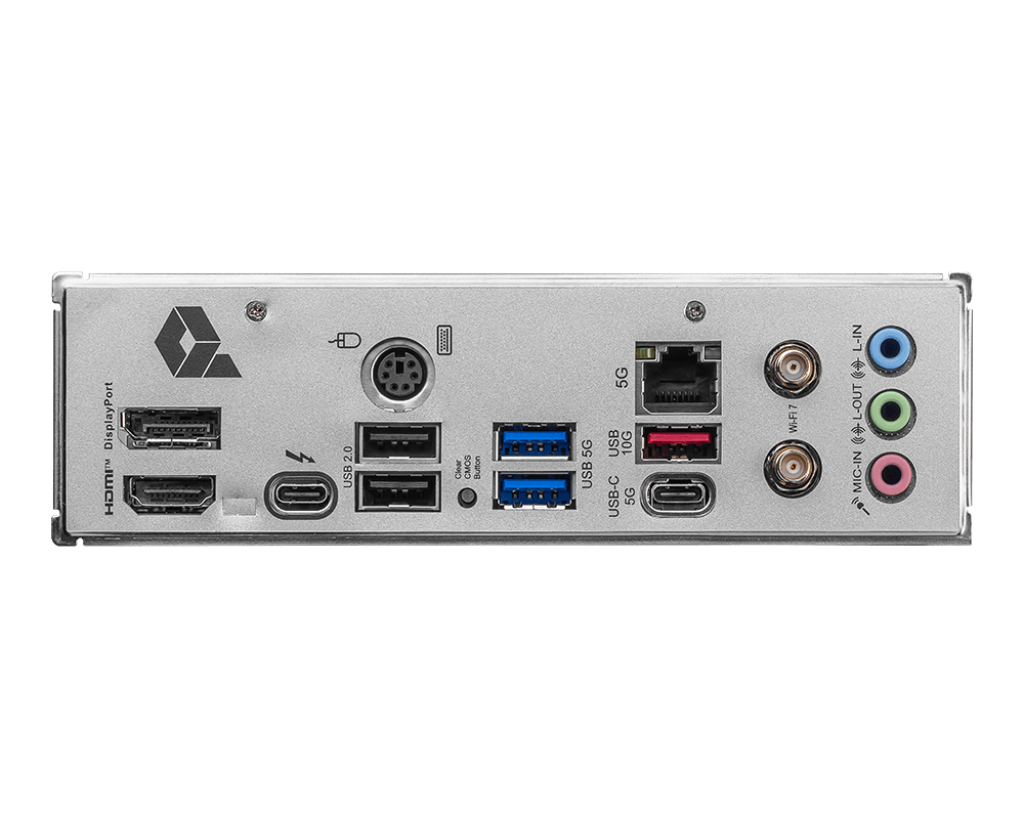

| Back Panel I/O Ports | DisplayPort Keyboard / Mouse USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI Thunderbolt 4 40Gbps (Type-C) USB 2.0 Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-C |
| Internal I/O Connector | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What processors does this motherboard support?
A: The MSI PRO B860M-A WIFI MOTHERBOARD supports Intel Core Ultra Processors (Series 2) for the LGA 1851 socket.
Q: What type of memory is compatible with this motherboard?
A: This motherboard supports DDR5 Memory in Dual Channel configuration, with speeds up to 8800+ MT/s when overclocked.
Q: What advanced connectivity options are available?
A: It features a Thunderbolt 4 port, 5G LAN, and the Intel Wi-Fi 7 Solution for secure, stable, and high-speed networking and data transmission.
