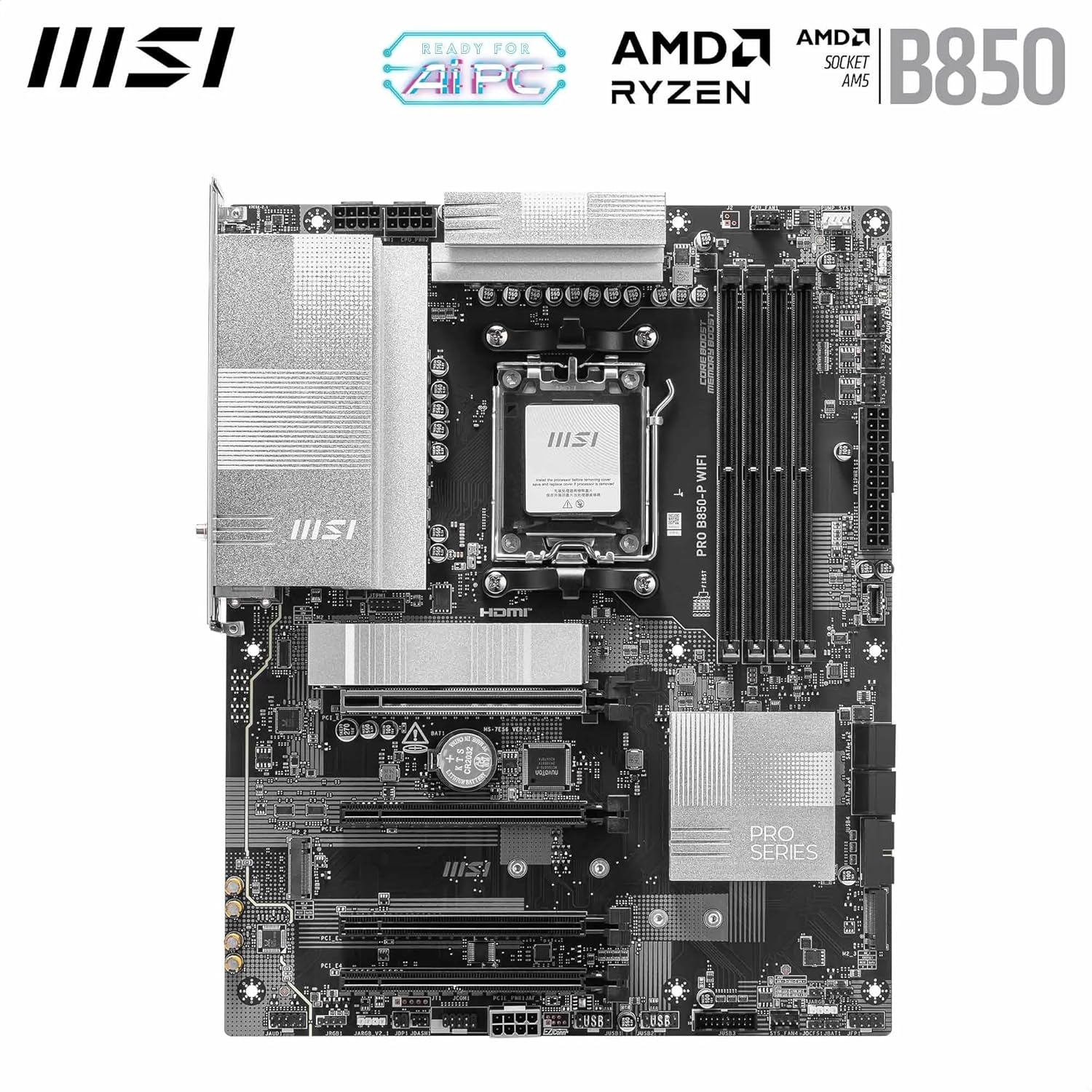

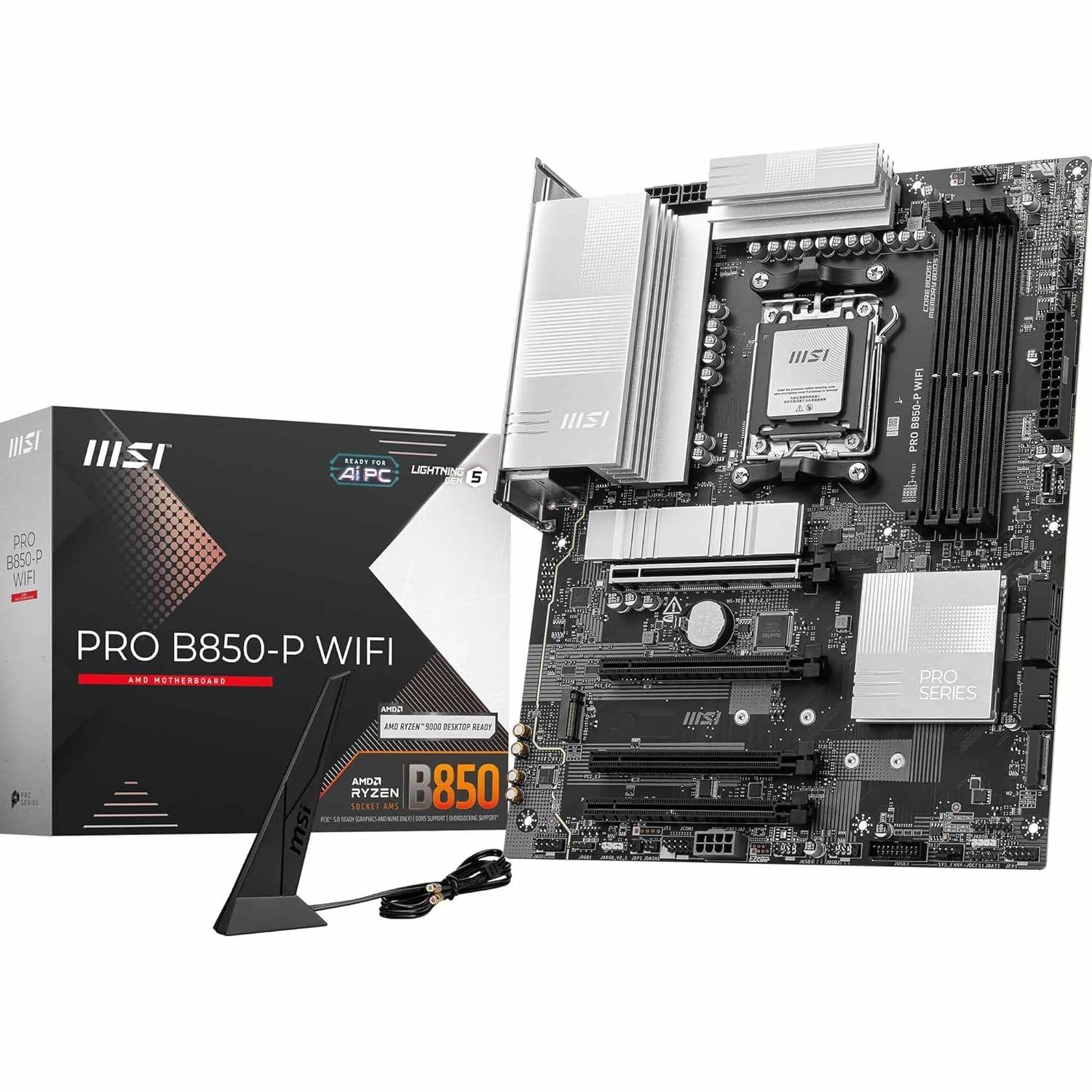

The MSI PRO B850-P WIFI MOTHERBOARD supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors and DDR5 memory, offering a robust foundation for high-performance computing. It integrates advanced power delivery, cooling, and connectivity features for professional and multimedia users seeking a stable and efficient platform.
Key Features at a Glance
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
- DDR5 Memory support with Dual Channel 8200+ MT/s (OC).
- Robust 12+2+1 Duet Rail Power System with dual 8-pin CPU power.
- Advanced Frozr Guard cooling with Extended Heatsink and 7W/mK MOSFET thermal pads.
- EZ DIY features including EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna.
- Equipped with 5G LAN and Wi-Fi 7 Solution for high-speed networking.
Enhanced Processor and Memory Support
The MSI PRO B850-P WIFI MOTHERBOARD provides comprehensive support for AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. It also supports DDR5 memory, configured for Dual Channel operation with speeds up to 8200+ MT/s (OC), ensuring your system performs efficiently with the latest components.

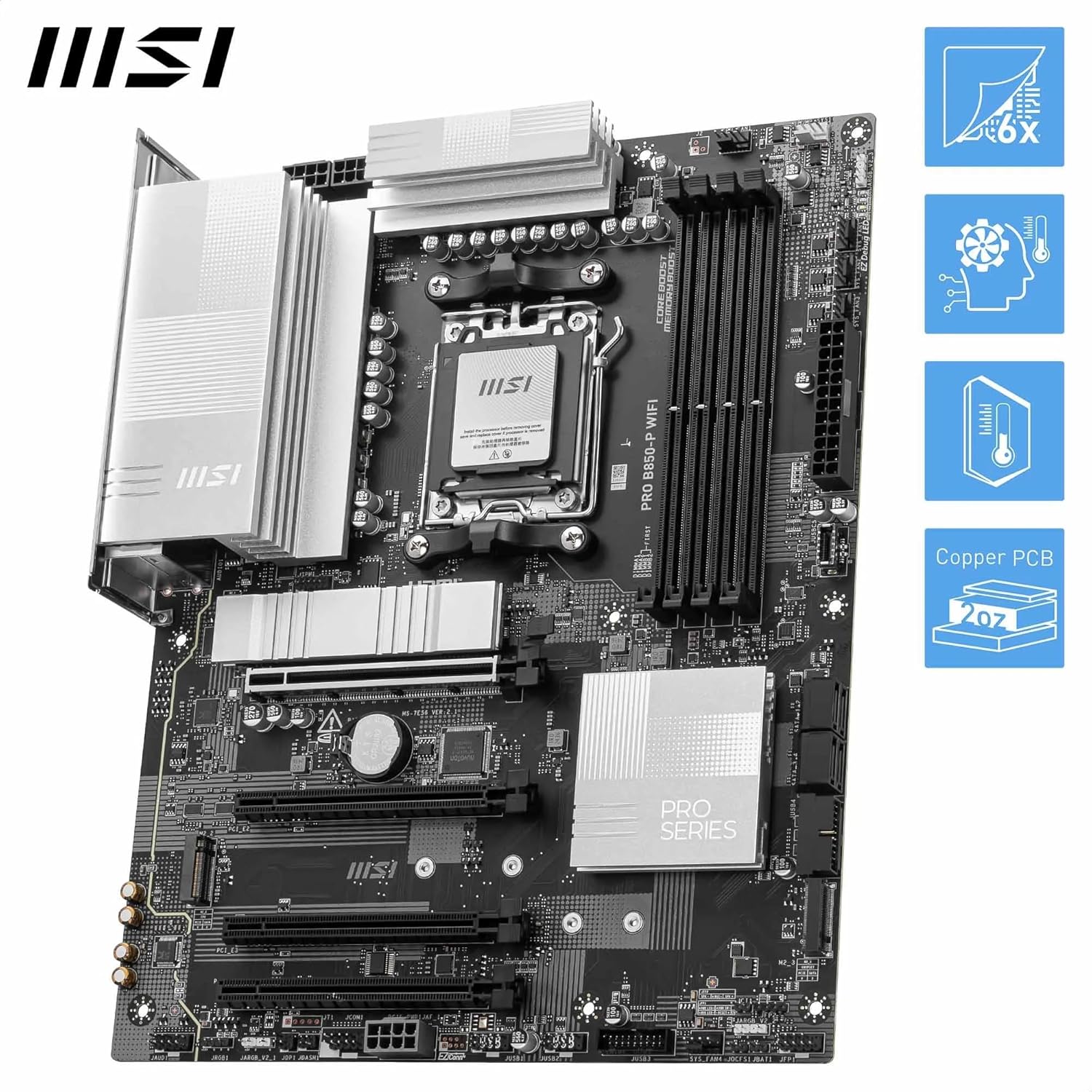

Superior Power Delivery and Performance
Experience ultra performance with the 12+2+1 Duet Rail Power System and dual 8-pin CPU power connectors. Features like Core Boost and Memory Boost, combined with a 6-layer PCB made from 2oz thickened copper and server-grade material, provide stable and efficient power delivery for demanding tasks.

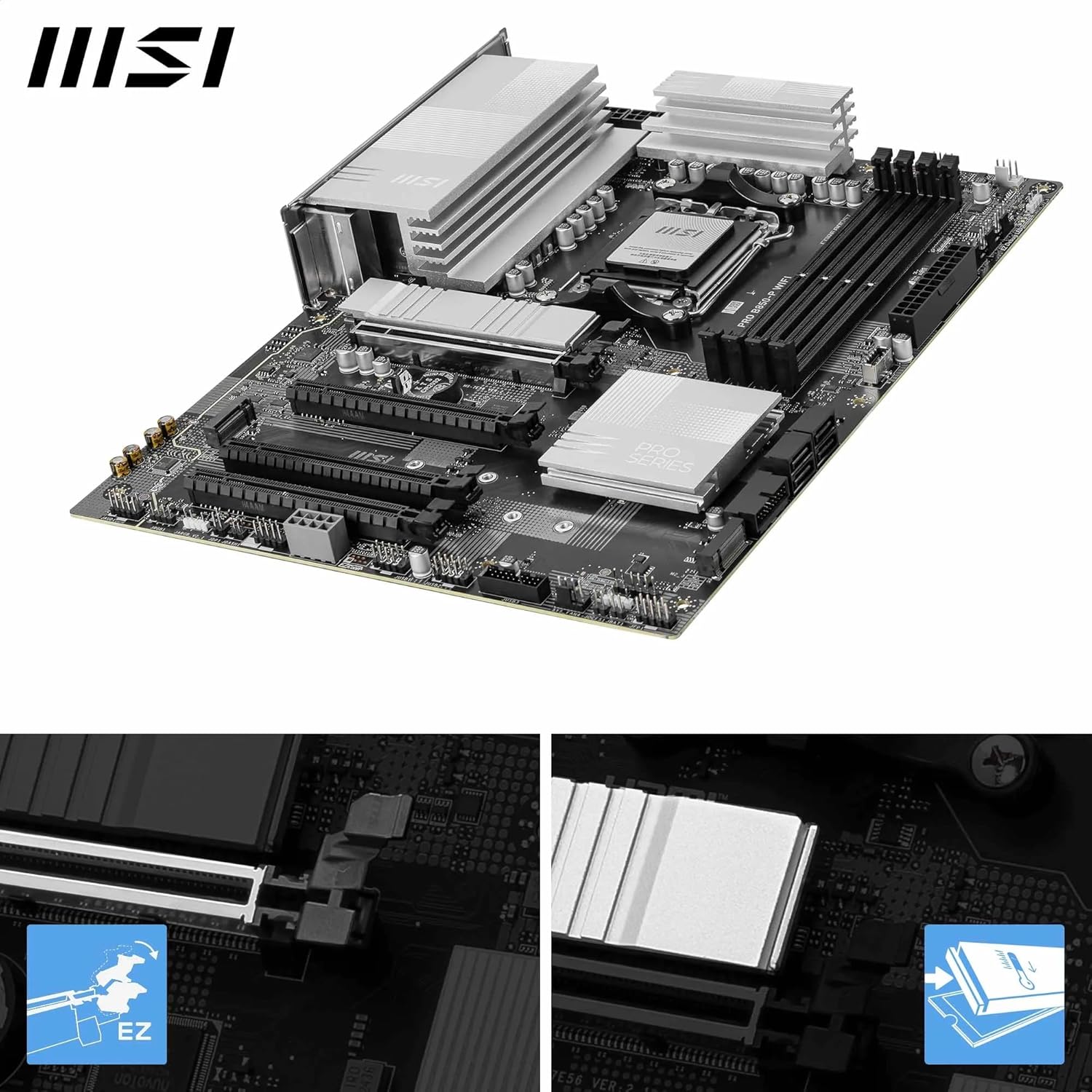

Advanced Thermal Management
The Frozr Guard design ensures optimal cooling, featuring an Extended Heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads. The EZ M.2 Shield Frozr II further aids in maintaining low temperatures for high-performance M.2 storage, preventing throttling during intense use.

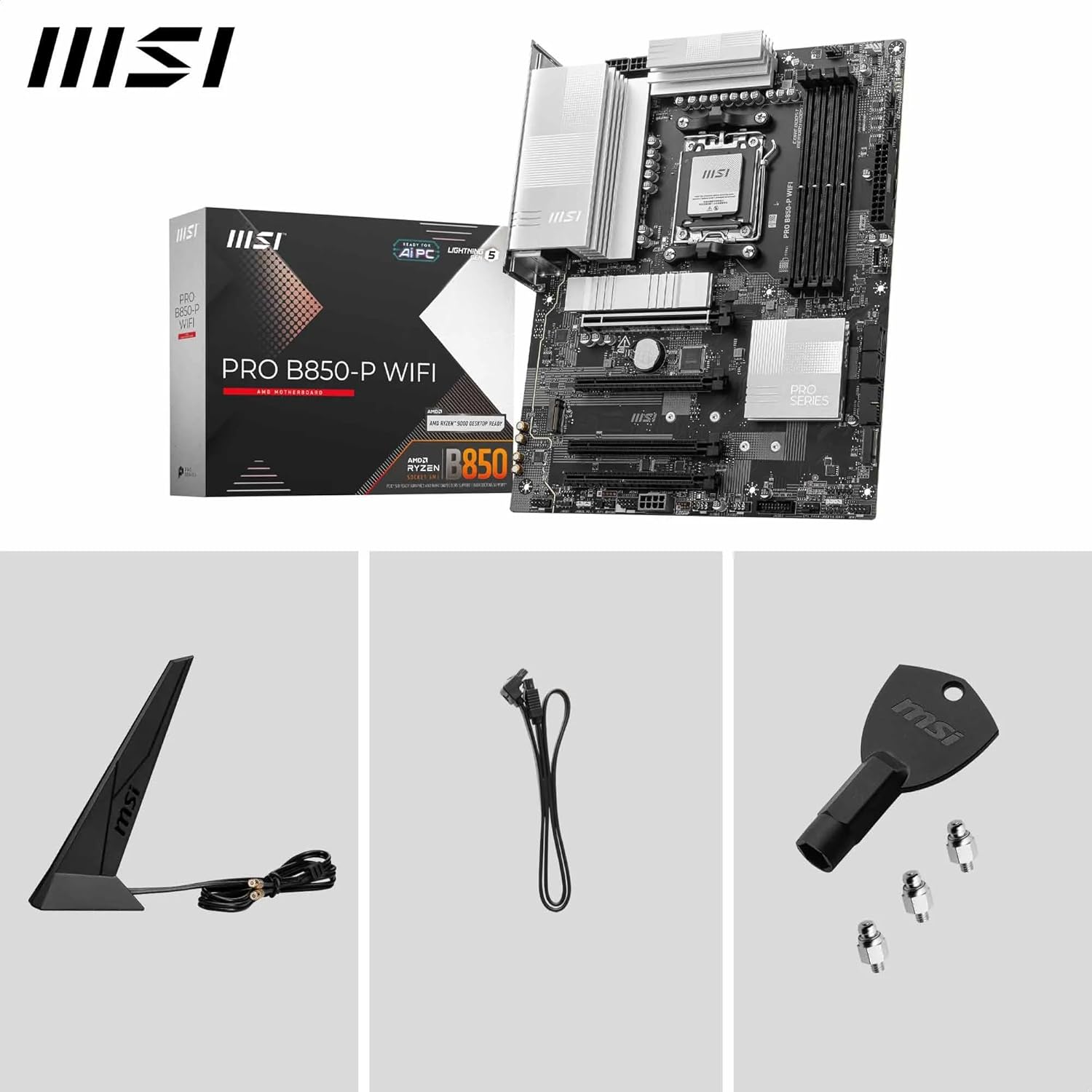

Streamlined DIY Building Experience
Building your system is made easier with convenient EZ DIY features. The EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna simplify component installation and management, providing a non-stop, hassle-free experience for enthusiasts and builders.
High-Speed Networking and Connectivity
Stay connected with the integrated 5G LAN and the advanced Wi-Fi 7 Solution. This latest networking technology is ideal for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission for all your online activities.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B850 |
| Memory Speed | up to 8200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Website. |
| Graphics Port | 1x HDMI |

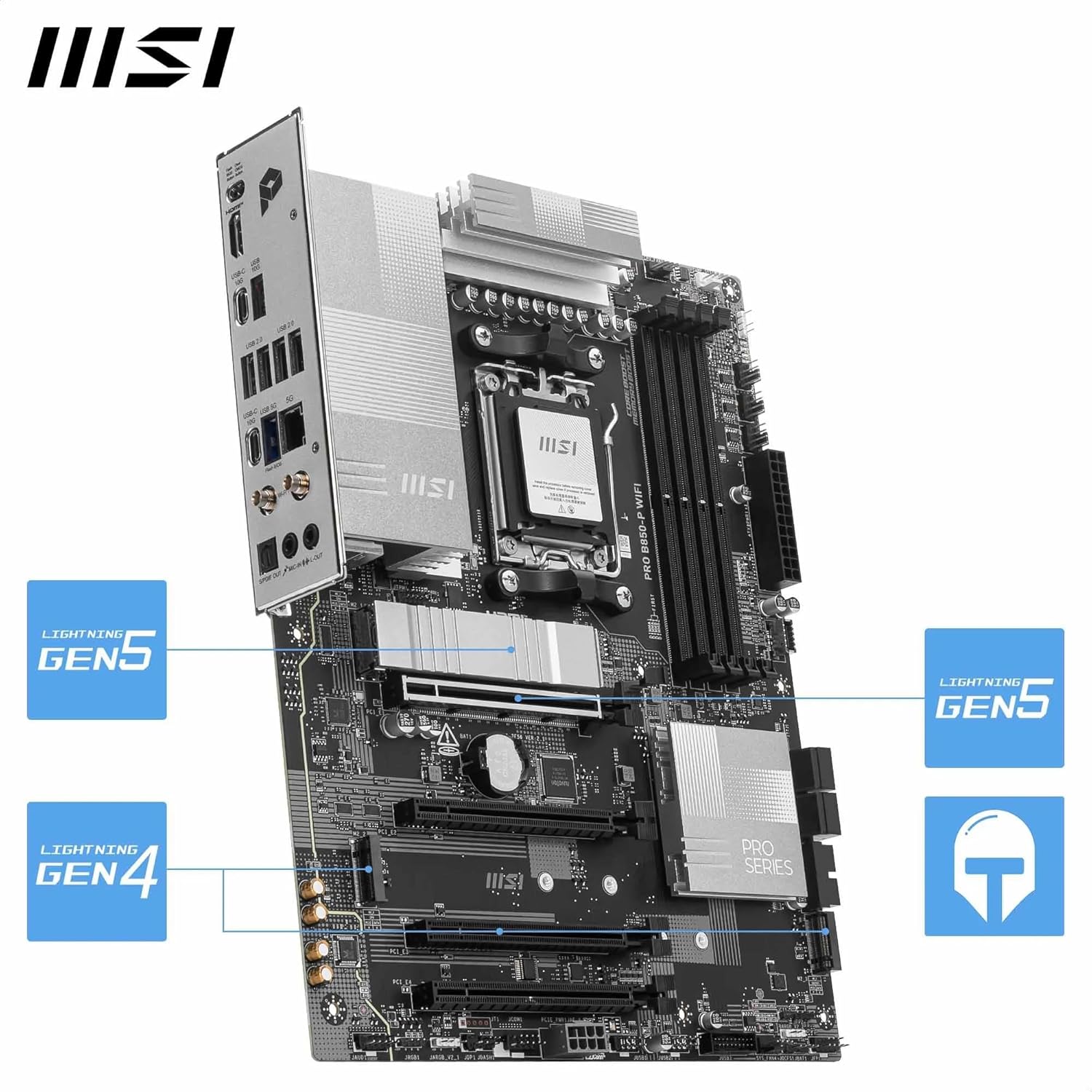

| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

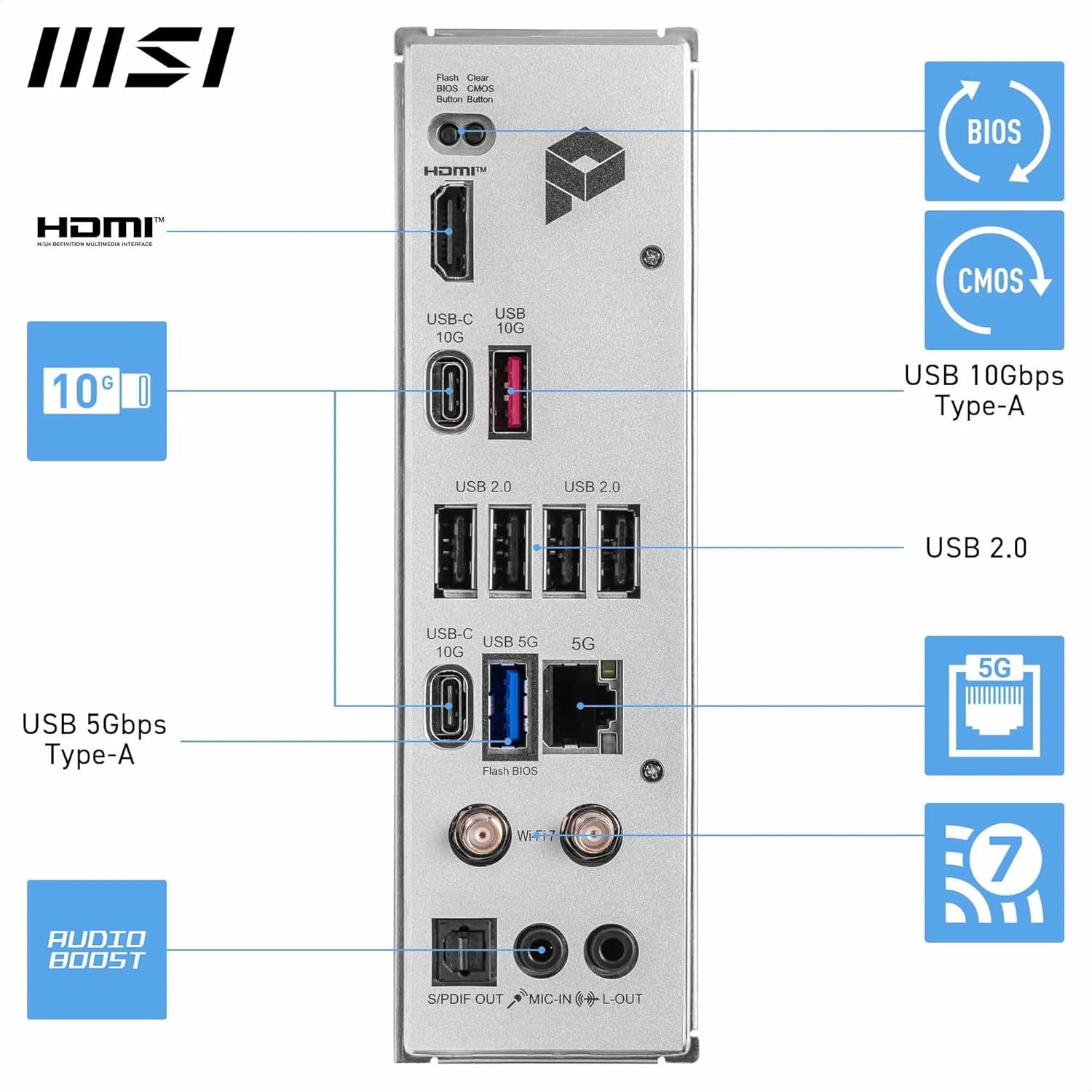

| Back Panel I/O Ports | Clear CMOS Button USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 5Gbps Type-A USB 10Gbps Type-C S/PDIF OUT |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which AMD Ryzen processors does this motherboard support?
A: The MSI PRO B850-P WIFI MOTHERBOARD supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Q: What type of memory is supported by this motherboard?
A: This motherboard supports DDR5 Memory with Dual Channel capability, reaching speeds of 8200+ MT/s when overclocked.
Q: What networking solutions are included with this motherboard?
A: It features 5G LAN and an advanced Wi-Fi 7 Solution, designed for secure, stable, and high-speed networking and data transmission.
