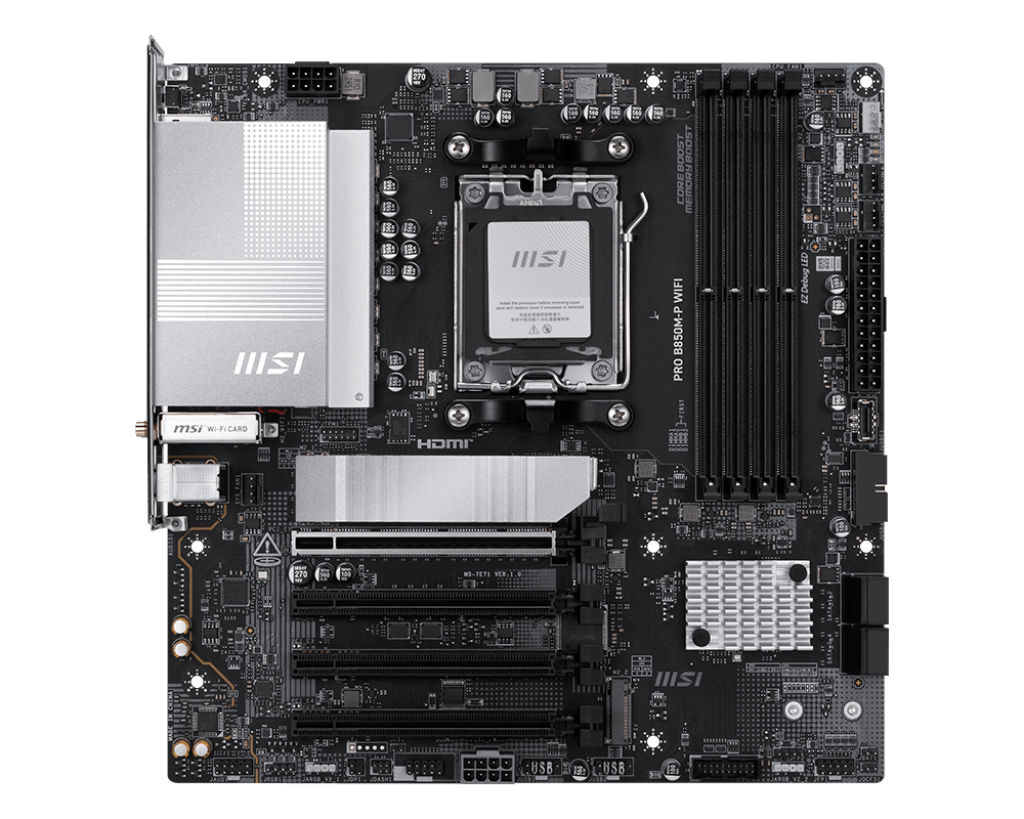

MSI PRO B850M-P WIFI DDR5 MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

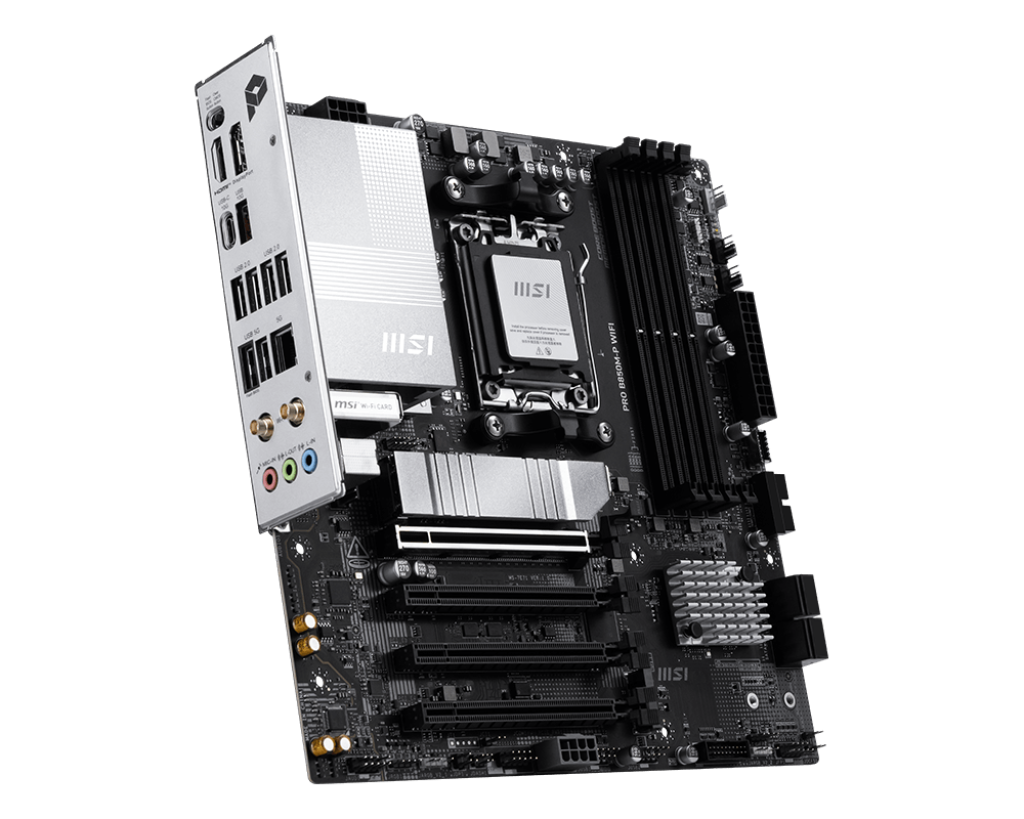

Elevate your PC build with the MSI PRO B850M-P WIFI DDR5 Motherboard, engineered to support AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. This motherboard combines robust power delivery with advanced memory support and cutting-edge networking solutions for a powerful and reliable foundation.
Key Features at a Glance
- Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
- Dual Channel DDR5 Memory support up to 8200+ MT/s (OC).
- 12+2+1 Duet Rail Power System and 6-layer PCB with 2oz thickened copper.
- Frozr Guard thermal design including Extended Heatsink and EZ M.2 Shield Frozr II.
- Features 5G LAN with Wi-Fi 7 Solution for high-speed networking.
- Includes EZ DIY features like EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna.
Optimized for AMD Ryzen Processors
Designed to fully unleash the potential of AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, this motherboard ensures compatibility and robust performance. It supports dual channel DDR5 memory with speeds up to 8200+ MT/s (OC), providing ample bandwidth for demanding applications and gaming.
Advanced Power and Thermal Design
Benefit from stable and efficient power delivery with the 12+2+1 Duet Rail Power System and dual 8-pin CPU power connectors. The Frozr Guard thermal solution, including an extended heatsink and EZ M.2 Shield Frozr II, helps maintain optimal temperatures for sustained high performance.
Next-Generation Networking
Experience unparalleled connectivity with the integrated 5G LAN and Wi-Fi 7 Solution. This cutting-edge networking technology delivers secure, stable, and high-speed data transmission, perfect for professional tasks, multimedia streaming, and competitive online gaming.
Simplified Building Experience
The MSI PRO B850M-P WIFI DDR5 Motherboard incorporates EZ DIY features designed to make installation and upgrades straightforward. With components like EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna, building your system is more convenient than ever.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B850 |
| Memory Speed | up to 8200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

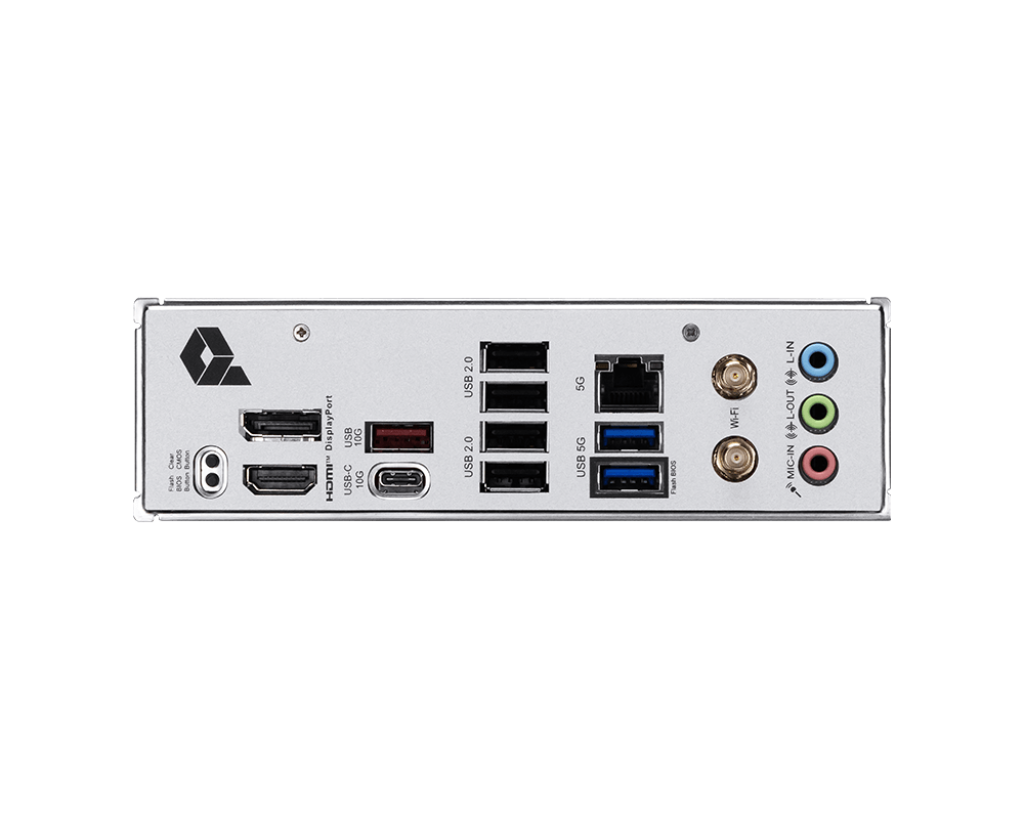

| Back Panel I/O Ports | Clear CMOS Button DisplayPort USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 10Gbps Type-C USB 5Gbps Type-A |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors are compatible with this motherboard?
A: This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Q: What type of memory does the MSI PRO B850M-P WIFI DDR5 Motherboard support?
A: It supports DDR5 memory in dual channel configuration, with speeds up to 8200+ MT/s (OC).
Q: Does this motherboard include built-in wireless connectivity?
A: Yes, it features a 5G LAN with Wi-Fi 7 Solution for advanced wireless networking.
