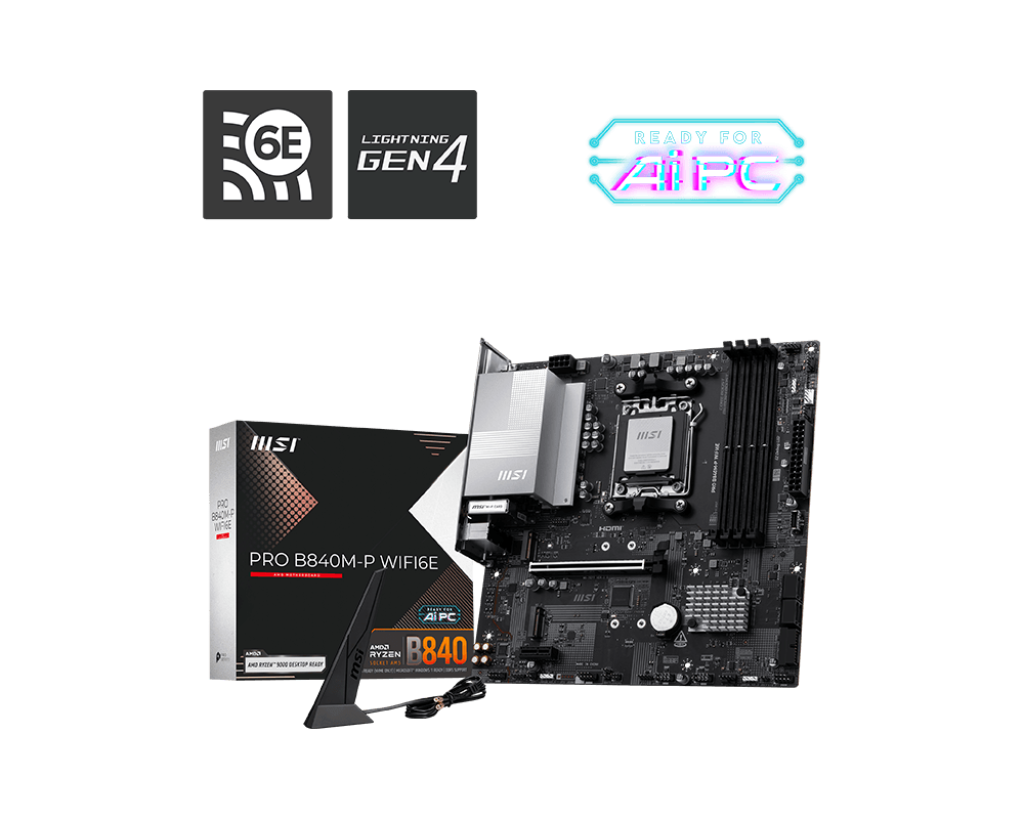

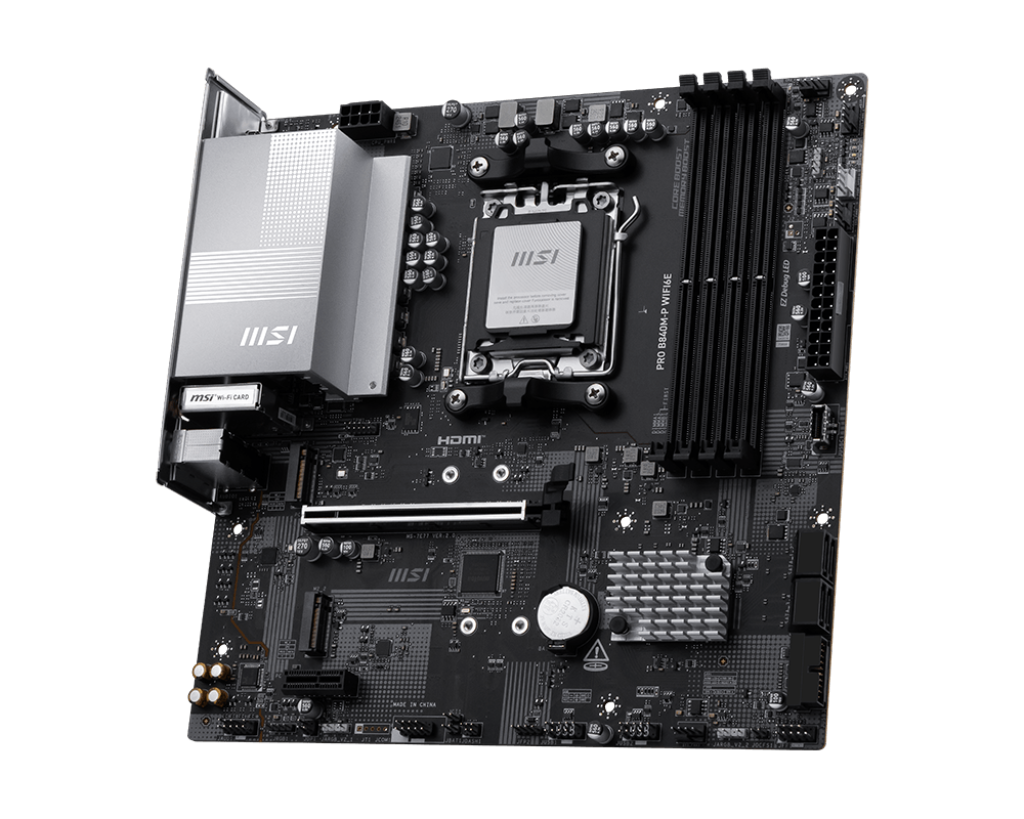

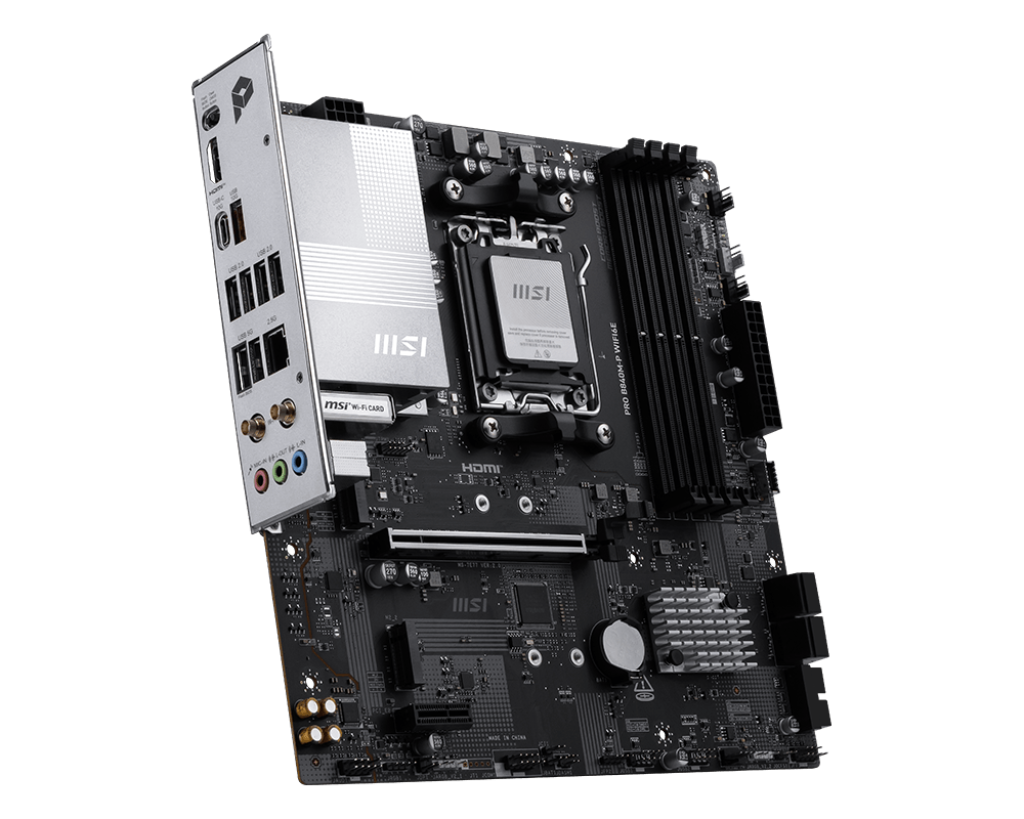

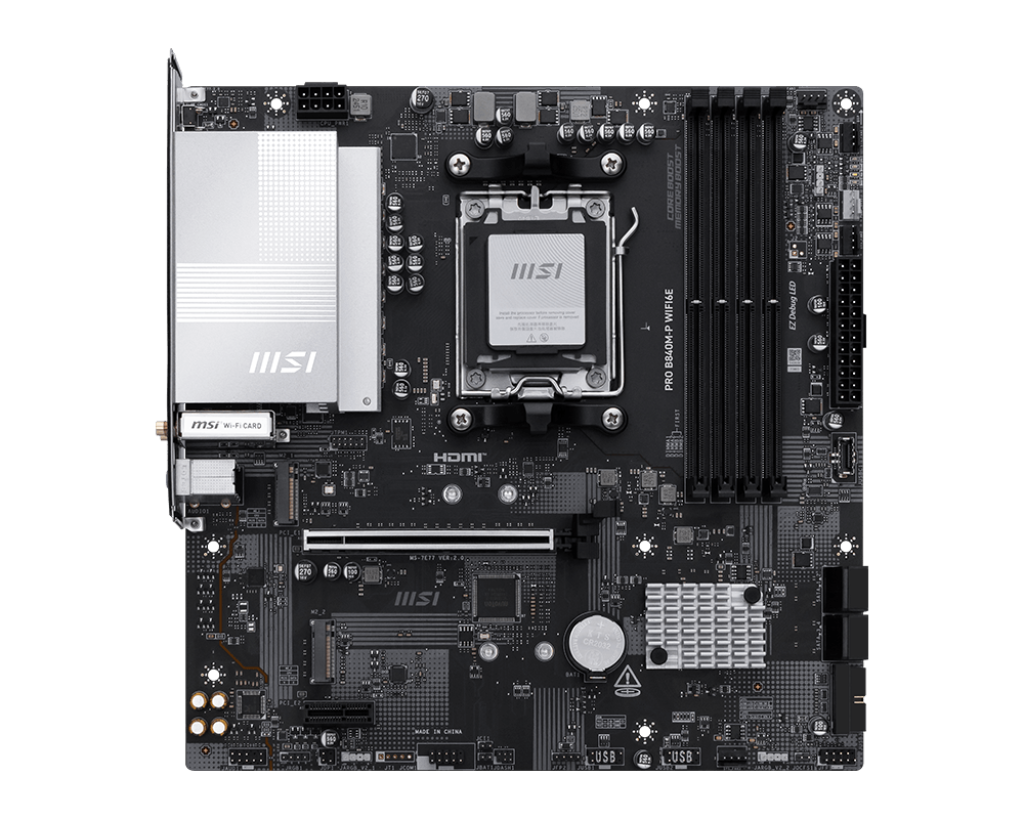

The MSI PRO B840M-P WIFI6E Motherboard offers a solid foundation for your computing needs. As part of the respected MSI PRO series, this B840M-P model is designed to integrate essential features, including advanced WIFI6E connectivity, directly into your system build.
Key Features at a Glance
- MSI brand engineering
- Part of the PRO series
- B840M-P model designation
- Motherboard form factor
- Integrated WIFI6E wireless support
Designed by MSI
Experience the quality and reliability associated with MSI products. This motherboard carries the hallmark of MSI design, ensuring a consistent and dependable component for your system.
PRO Series Foundation
As a member of the MSI PRO series, the B840M-P motherboard is built to provide a stable and efficient platform. This series is known for its focus on productivity and general computing applications.
Integrated WIFI6E Connectivity
Benefit from the convenience of built-in WIFI6E. This feature provides wireless networking capabilities, allowing for flexible system placement and connection to compatible networks without additional adapters.
Technical Specifications
| Chipset | AMD B840 |
|---|---|
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) |
| LAN | Realtek® 8125D 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * 6GHz band support may depend on every country’s regulations and Wi-Fi 6E will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
Frequently Asked Questions
Q: What type of product is the MSI PRO B840M-P WIFI6E?
A: This product is a motherboard, specifically the MSI PRO B840M-P WIFI6E model.
Q: Which brand manufactures this motherboard?
A: The MSI PRO B840M-P WIFI6E Motherboard is manufactured by MSI.
Q: Does this motherboard come with built-in wireless connectivity?
A: Yes, the MSI PRO B840M-P WIFI6E Motherboard features integrated WIFI6E support for wireless networking.
