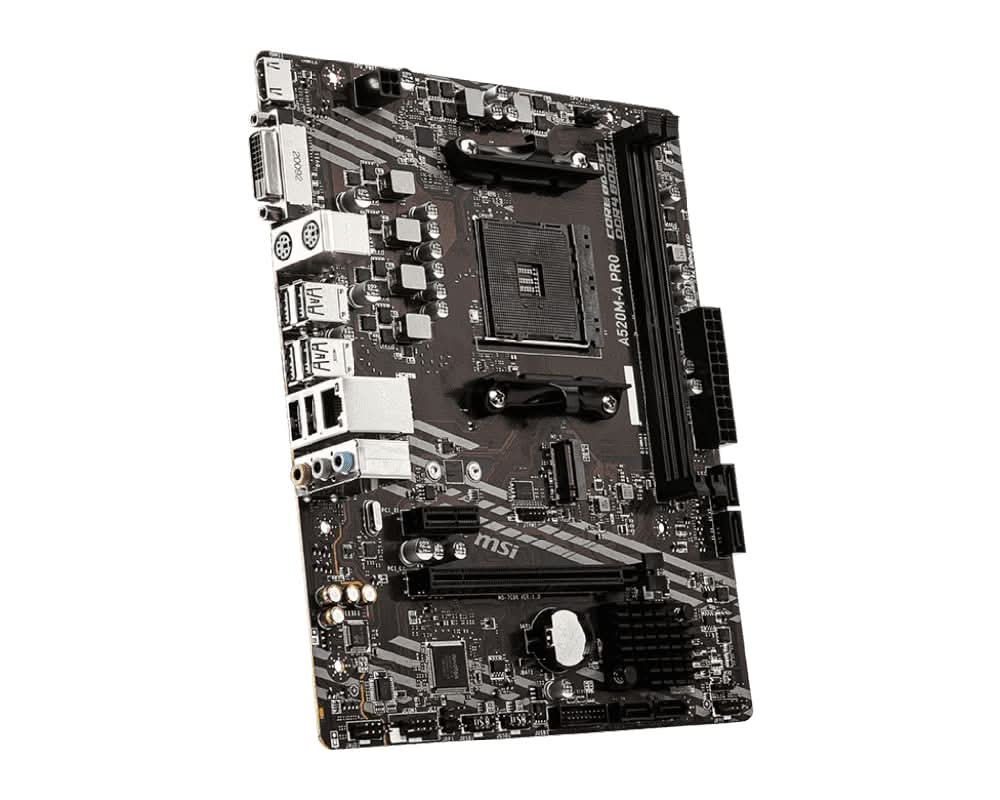

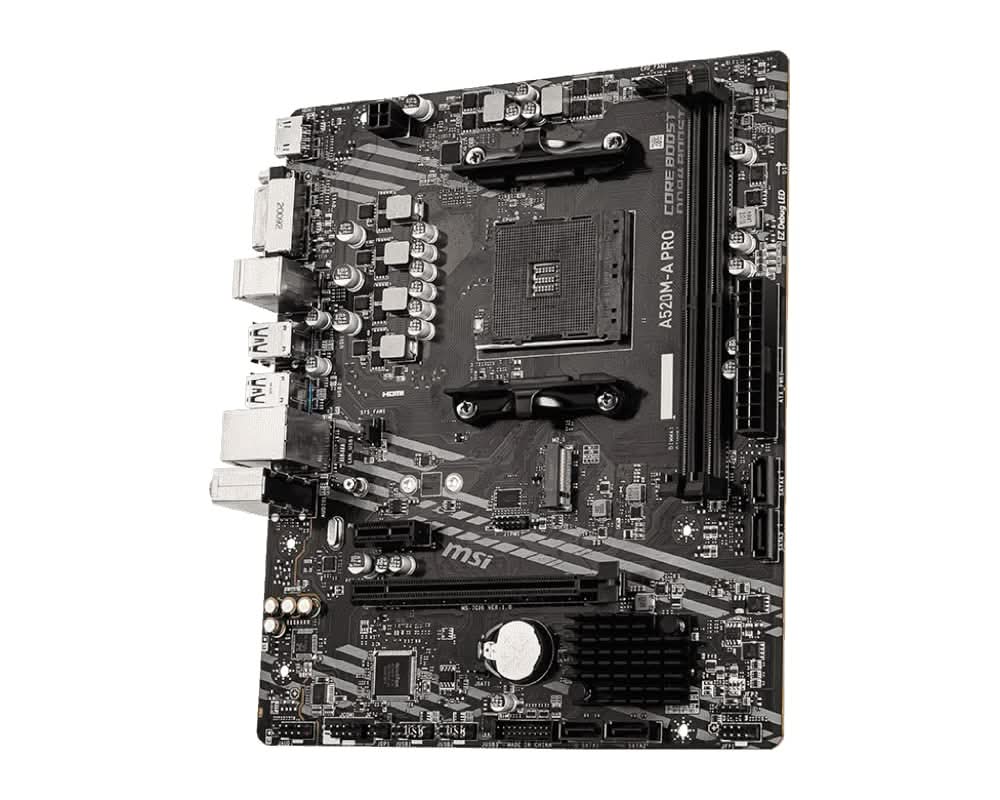

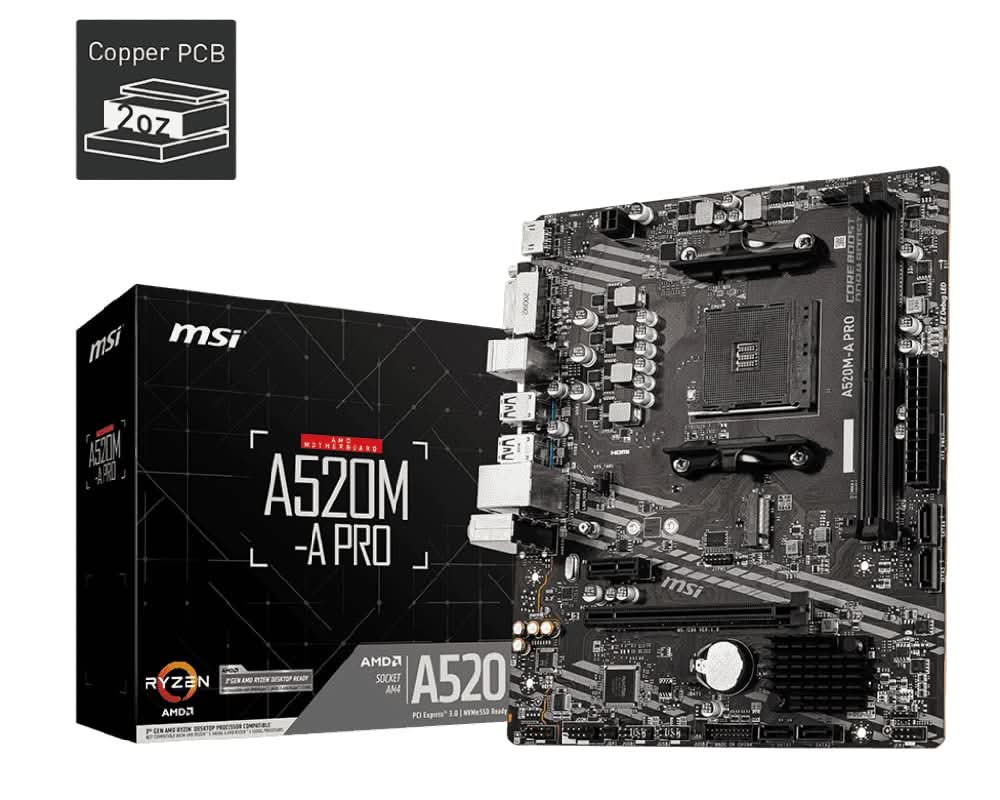

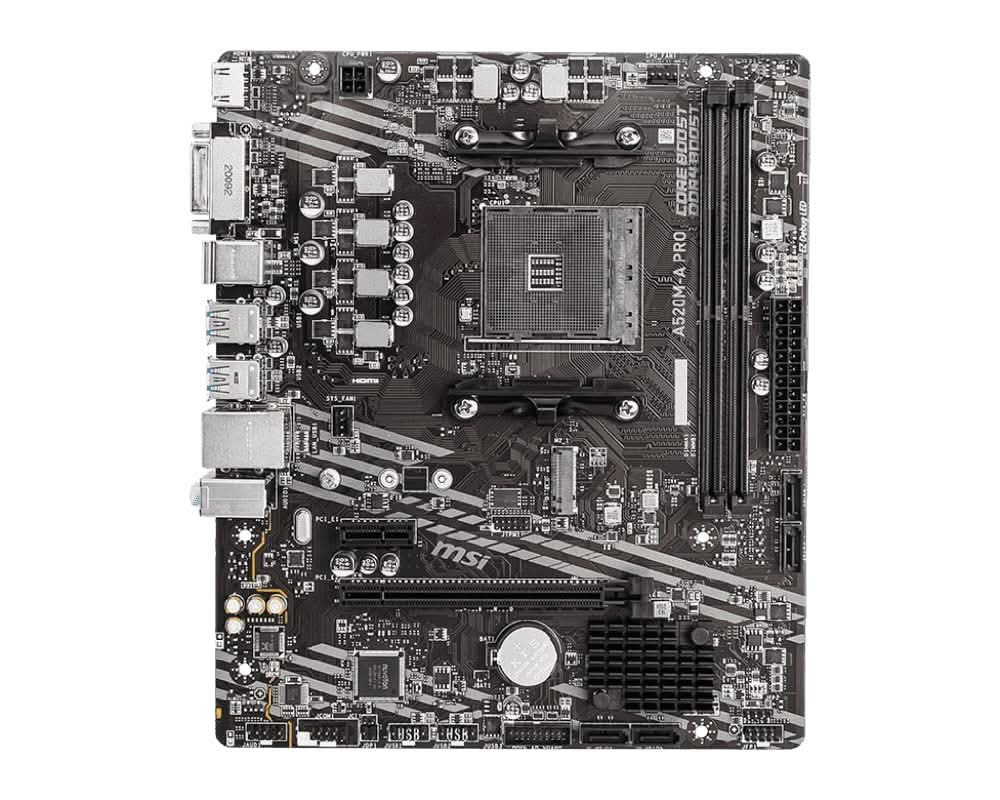

Explore the MSI PRO A520M-A AMD AM4 Motherboard, a foundational component for your PC build. This motherboard is built to support processors compatible with the AMD AM4 socket.
Key Features at a Glance
- From MSI, a leading hardware manufacturer
- Part of the PRO series
- Designed for AMD AM4 socket compatibility
- Model identifier: A520M-A
Technical Specifications
| Platform | AMD |
| Socket | AM4 |
| CPU Type | Ryzen 5000, Ryzen 5000-G, Ryzen 4000, Ryzen 4000-G, Ryzen 3000, Ryzen 3000-G |
| Chipset | A520 |
| Memory Speed | up to 4600+ |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
| Graphics Port | 1 x HDMI 2.1, 1x DVI-D |
| Expansion Slots | 1x PCIe 3.0 x16 slot (from AMD processor) Supports x16 speed with Ryzen 5000, 5000G, 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors Supports x4 speed with AMD Athlon with Radeon Graphics processors 1x PCIe 3.0 x1 slot |

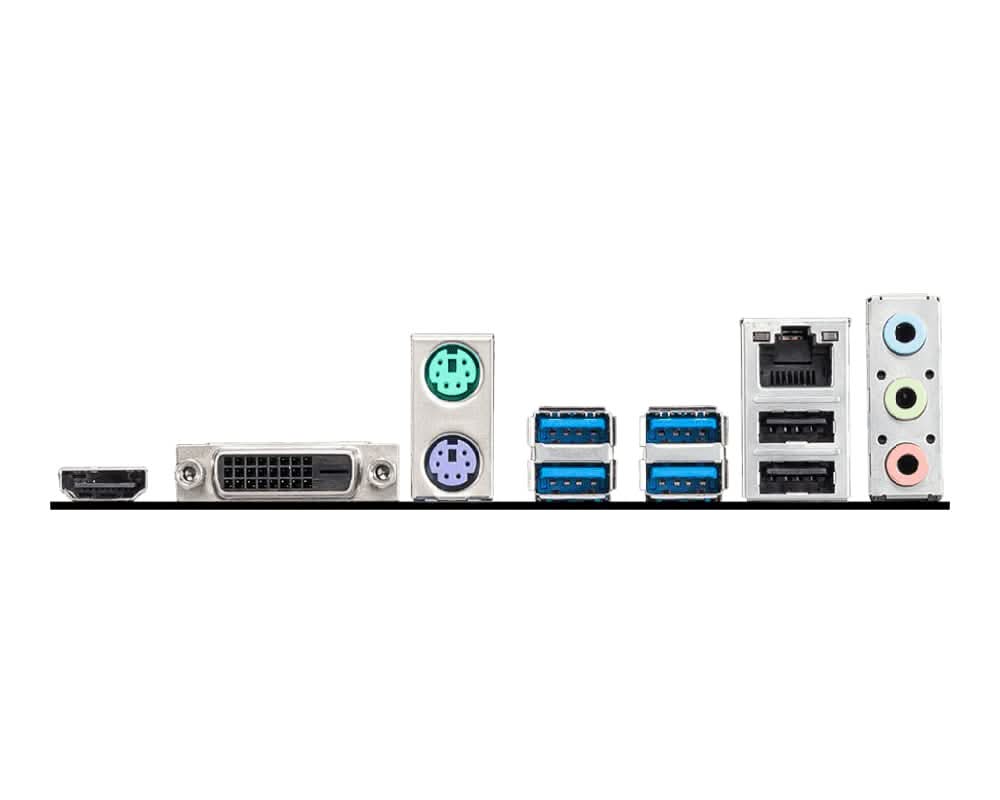

| Back Panel I/O Ports | LAN port HDMI DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors |
| Internal I/O Connector | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What is the primary function of this product?
A: This product is the MSI PRO A520M-A AMD AM4 Motherboard, serving as a main circuit board for a computer system.
Q: Which brand manufactures this motherboard?
A: This motherboard is manufactured by MSI.
Q: What type of processor socket does this motherboard support?
A: It supports processors designed for the AMD AM4 socket.
