Unleash peak performance for your gaming rig with the MSI MPG Z790I EDGE WIFI Motherboard. Designed to support 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors, this motherboard also supports high-speed DDR5 Memory, reaching up to 8000+(OC) MHz for an unparalleled computing experience.
Key Features at a Glance
- Supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron Processors.
- DDR5 Memory support, up to 8000+(OC) MHz.
- Features PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2.
- Enhanced power design with Direct 10+1+1 phases, Core Boost, and Memory Boost.
- Premium thermal solution including enlarged heatsink, heat-pipe, and M.2 Shield Frozr.
Lightning-Fast Gaming Experience
Achieve a lightning-fast gaming experience with advanced connectivity. This motherboard features cutting-edge PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 ports, ensuring rapid data transfer and reduced latency for all your peripherals and storage needs.
Enhanced Power Design
Built for stability and performance, the MSI MPG Z790I EDGE WIFI Motherboard incorporates an enhanced power design. With Direct 10+1+1 phases power, along with Core Boost and Memory Boost technologies, it ensures stable and efficient power delivery to critical components, even under heavy loads.
Premium Thermal Solution
Maintain optimal temperatures for sustained high performance with a premium thermal solution. Featuring an enlarged heatsink with a heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr, this design keeps your system cool during intense gaming sessions.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | Z790 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Graphics Port | 1x HDMI,1x DisplayPort |
| Expansion Slots | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Wireless Networking | Intel Wi-Fi 6E,Bluetooth 5.3 |

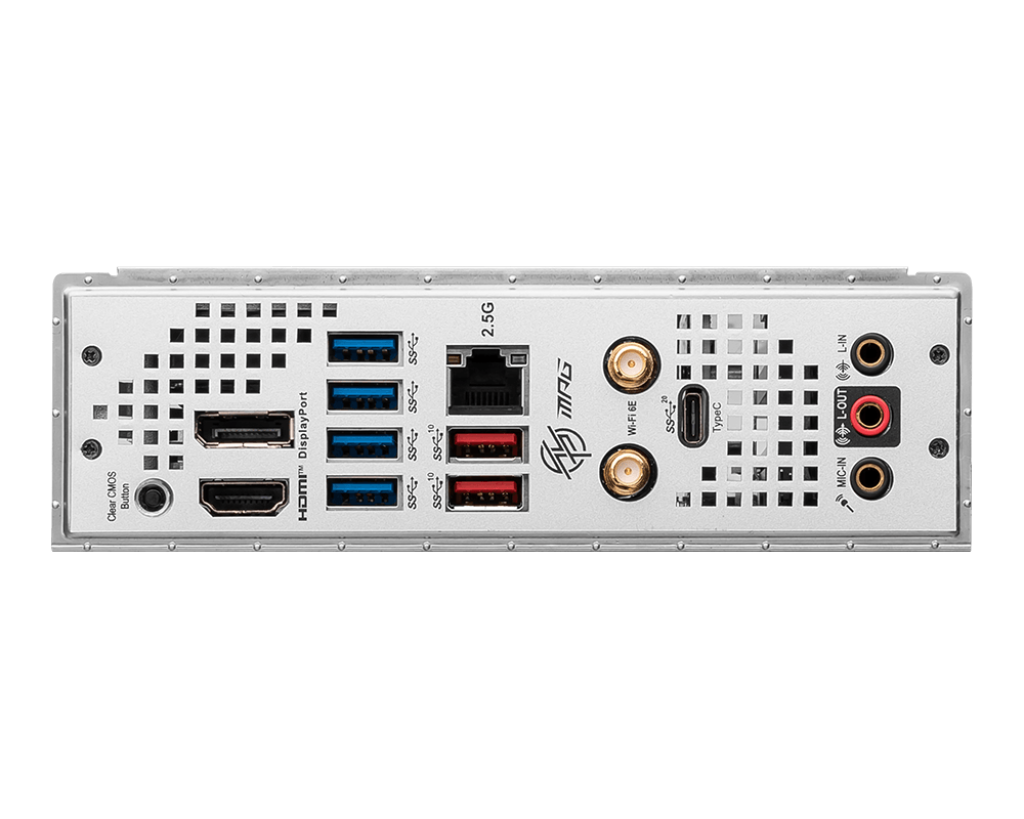

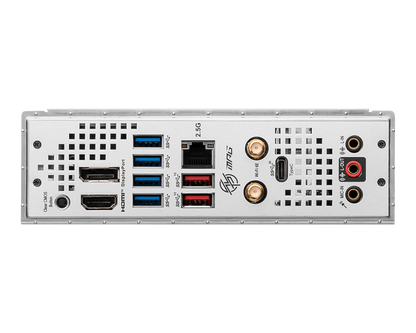

| Back Panel I/O Ports | Display Port 2.5G LAN USB 20Gbps (Type-C) Audio Connectors Clear CMOS HDMI USB 5Gbps (Type-A) USB 10Gbps (Type-A) Wi-Fi / Bluetooth |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Form Factor | Mini-ITX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors are supported by this motherboard?
A: The MSI MPG Z790I EDGE WIFI Motherboard supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron Processors.
Q: What type of memory does this motherboard support?
A: It supports DDR5 Memory, with speeds up to 8000+(OC) MHz, for high-performance computing.
Q: What features contribute to a fast gaming experience?
A: For a lightning-fast gaming experience, it includes PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 for rapid data transfer and connectivity.
