Save 46%

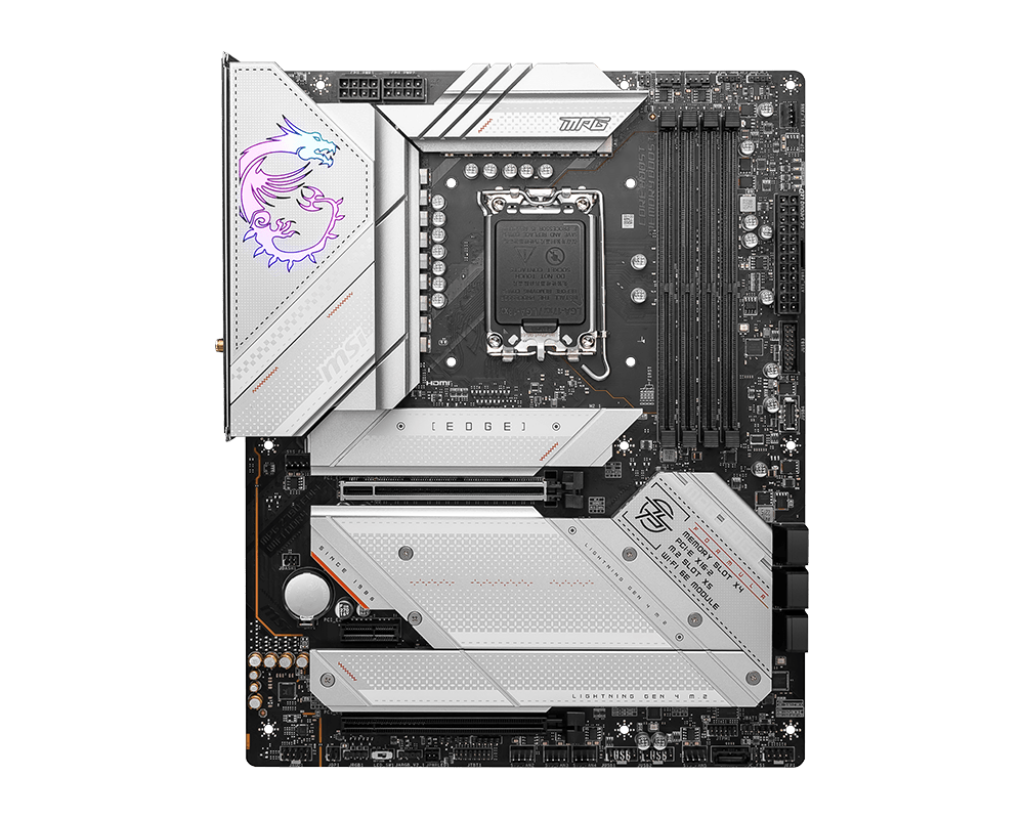

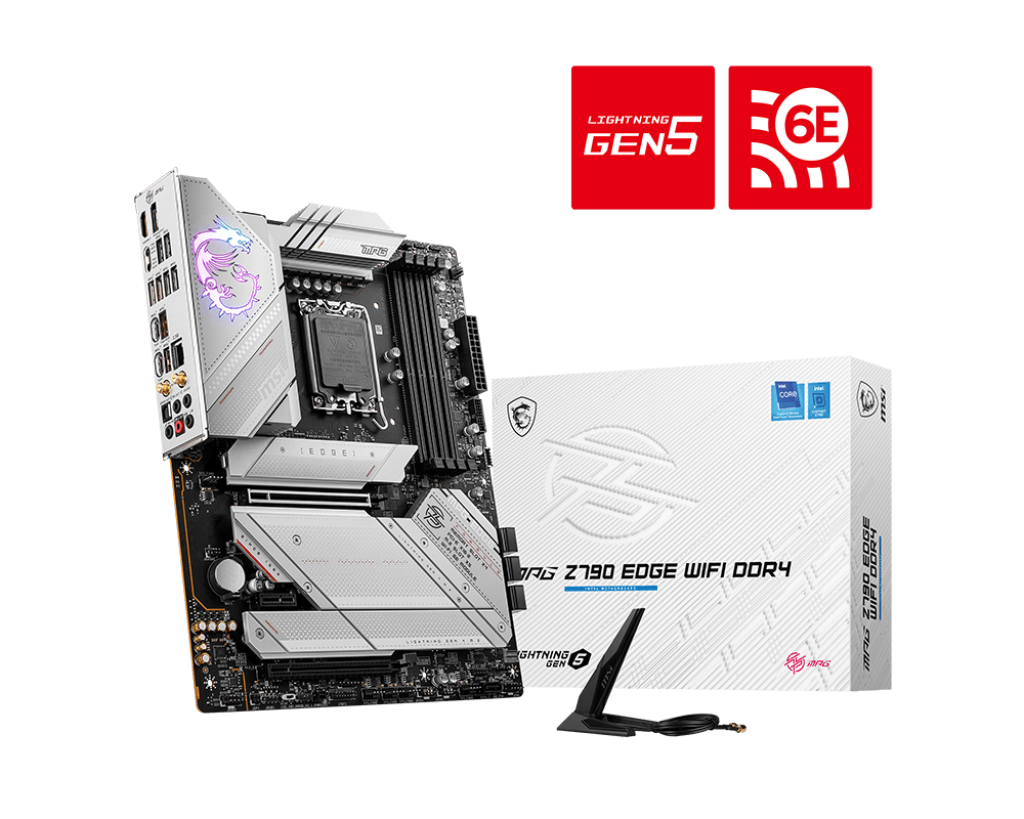

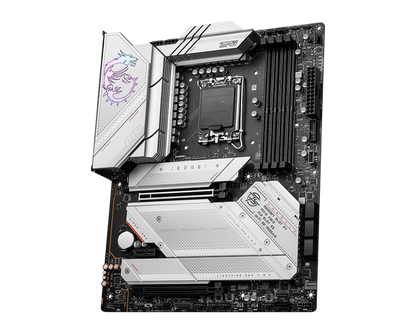

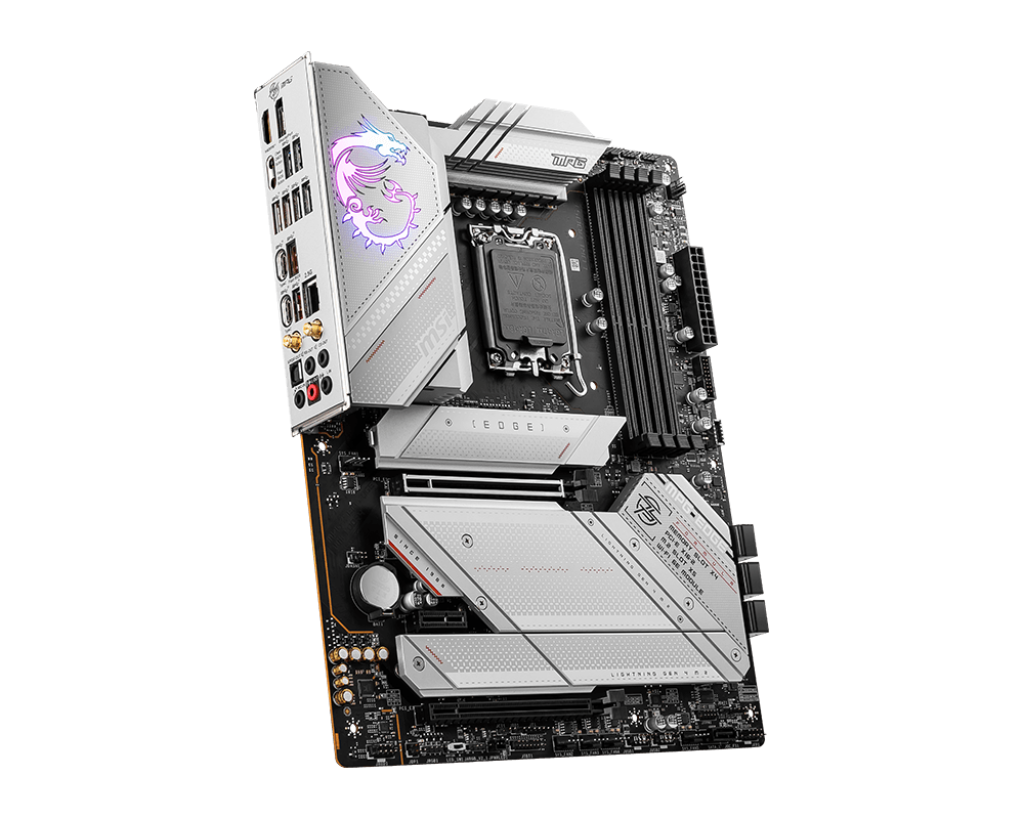

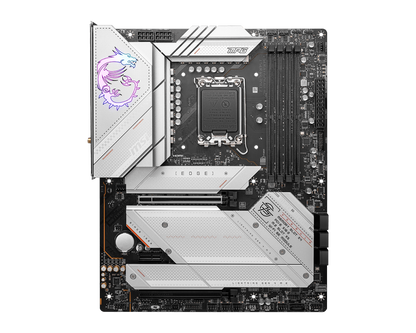

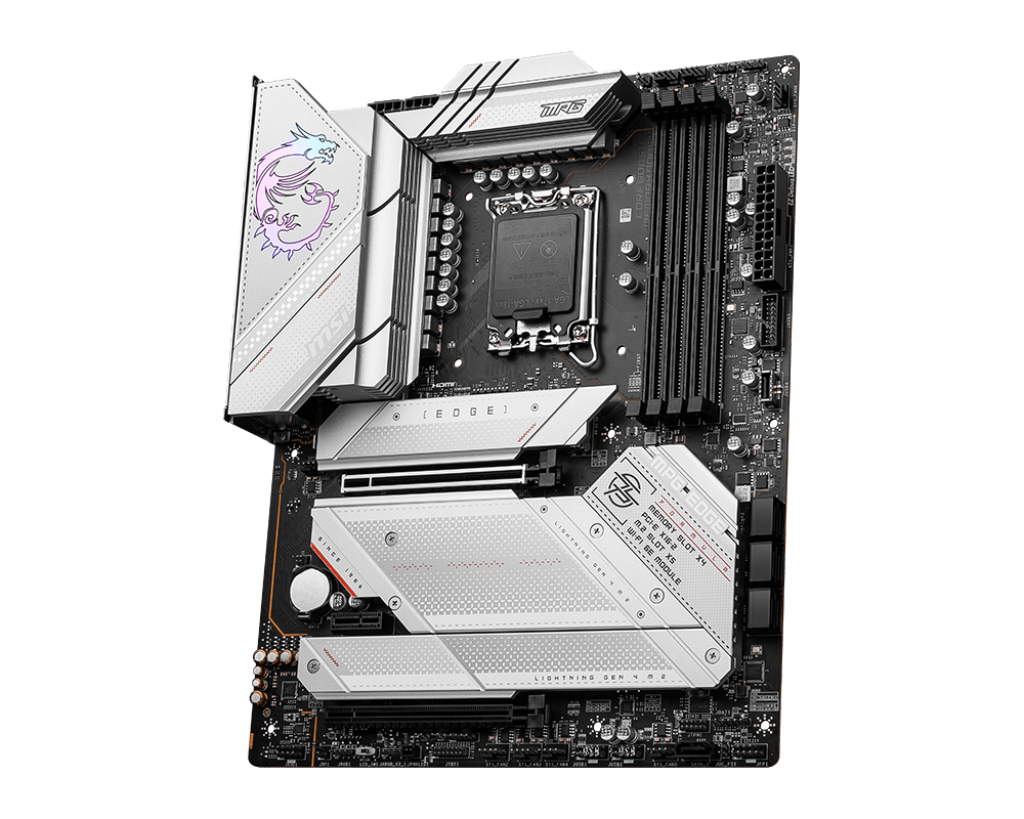

MSI MPG Z790 EDGE WIFI DDR4 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 34,055.00Regular price
Rs. 62,599.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Chipset | INTEL Z790 |
| CPU SUPPORT | Supports 12th/13th Gen Intelà Coreô Processors, Pentiumà Gold and Celeronà Processors |
| LGA 1700 | |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR) | |
| Max. overclocking frequency: | |
| ï 1DPC 1R Max speed up to 5333+ MHz | |
| ï 1DPC 2R Max speed up to 4800+ MHz | |
| ï 2DPC 1R Max speed up to 4400+ MHz | |
| ï 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Intelà XMP3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Onboard Graphics | 1x HDMIô |
| 1x DisplayPort | |
| Support HDMIô 2.1, maximum resolution of 4K 60Hz | |
| Support DP 1.4, maximum resolution of 8K 60Hz | |
| EXPANSION SLOT | 2x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | |
| Storage | 5x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 7x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 4x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| LAN | Intelà 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intelà Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz(160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetoothà 5.3, FIPS, FISMA | |
| Audio | Realtekà ALC4080 Codec |
| 7.1-Channel USB High Performance Audio | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x TBT connector (JTBT, supports RTD3) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 2x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| LED FEATURE | 4x EZ Debug LED |
| 1x EZ LED Control switch | |
| BACK PANEL PORTS | Display Port |
| USB 3.2 Gen 1 5 Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| 2.5G LAN | |
| Wi-Fi / Bluetooth | |
| Audio Connectors | |
| HDMIô | |
| Clear CMOS / Flash BIOS | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-C) | |
| USB 3.2 Gen 2x2 20Gbps (Type-C) | |
| Optical S/PDIF Out | |
| OPERATING SYSTEM | Support for Windowsà 11 64-bit, Windowsà 10 64-bit |
| PCB Dimension | ATX |
| 243.84mmx304.8mm | |
| Warranty | 3 Years |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
