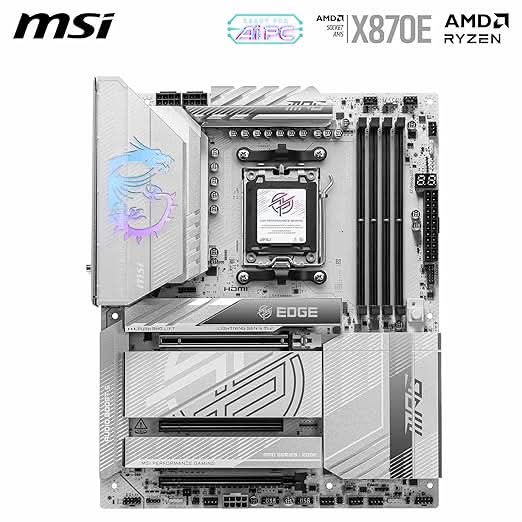

Experience advanced performance with the MSI MPG X870E Edge TI WiFi Motherboard. Designed for the latest AMD Ryzen 9000, 8000, and 7000 series processors, this motherboard features robust power delivery, comprehensive cooling, and ultra-fast connectivity for a superior system build.
Key Features at a Glance
- Supports AMD Ryzen 9000, 8000, and 7000 series processors on AM5 socket.
- Robust 14+2+1 Duet Rail Power System (80A, SPS) VRM with Core Boost architecture.
- Comprehensive Frozr Guard cooling, including Extended Heatsink and EZ M.2 Shield Frozr II.
- 4 x DDR5 DIMM SMT slots for memory overclocking up to 8400+ MT/s.
- PCIe 5.0 x16 SMT slot with Steel Armor II for next-gen graphics.

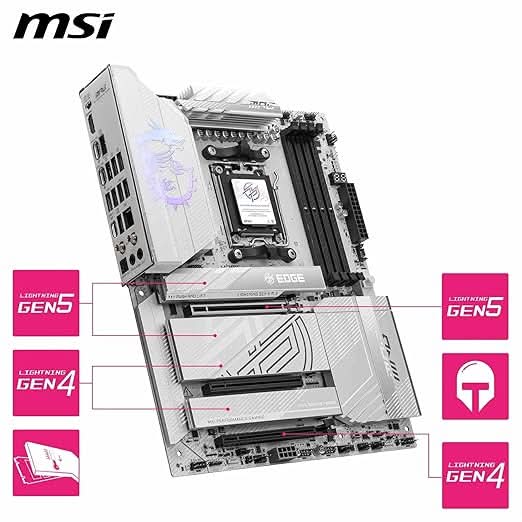

- Quadruple M.2 connectors: two Gen5 x4 and two Gen4 x4 with Shield Frozr.
- Ultra Connect features Wi-Fi 7, Bluetooth 5.4, 5Gbps LAN, and USB4 Type-C 40Gbps.
Unleash AMD Ryzen Performance
The MSI MPG X870E Edge TI WiFi Motherboard is designed to unleash the full power of AMD Ryzen 9000, 8000, and 7000 series processors. Its robust 14+2+1 Duet Rail Power System (80A, SPS) VRM with Core Boost architecture provides exceptional stability and power delivery for demanding applications and gaming.

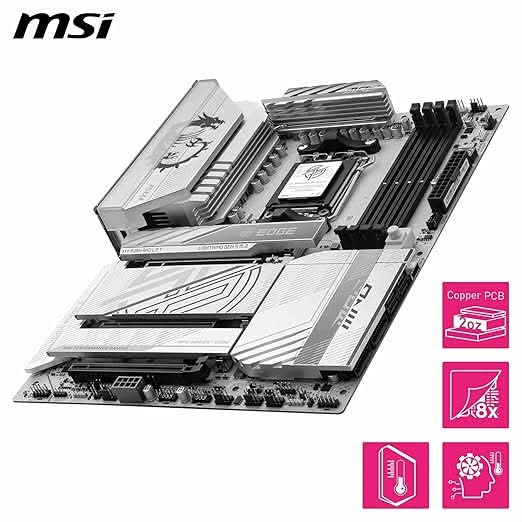

Advanced Cooling for Stability
Maintain peak system stability with Frozr Guard cooling features. This motherboard incorporates 7W/mK MOSFET thermal pads, extra choke thermal pads, and an Extended Heatsink with Heat-pipe. Double-sided EZ M.2 Shield Frozr II, along with a dedicated chipset heatsink, ensures optimal thermal management for all critical components and M.2 drives.
Next-Gen Data & Graphics Pathways
Equipped for the future, this motherboard features 4 x DDR5 DIMM SMT slots that support extreme memory overclocking up to 8400+ MT/s (1DPC 1R). A PCIe 5.0 x16 SMT slot with Steel Armor II provides 128GB/s bandwidth for cutting-edge graphics cards. For storage, leverage two M.2 Gen5 x4 (128Gbps) and two M.2 Gen4 x4 (64Gbps) slots, all with Shield Frozr to prevent thermal throttling.
Superior Connectivity Suite
Enjoy lightning-fast data transfer and networking with integrated Wi-Fi 7, Bluetooth 5.4, and a 5Gbps LAN connection. Rear ports include a USB4 Type-C (40Gbps) with display output, alongside 7.1 USB High Performance Audio with Audio Boost 5, which supports S/PDIF output for a comprehensive multimedia experience.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870E |
| Memory Speed | up to 8400+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latche. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Site. |
| Graphics Port | 1x HDMI,2x Type-C DisplayPort |
| Expansion Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

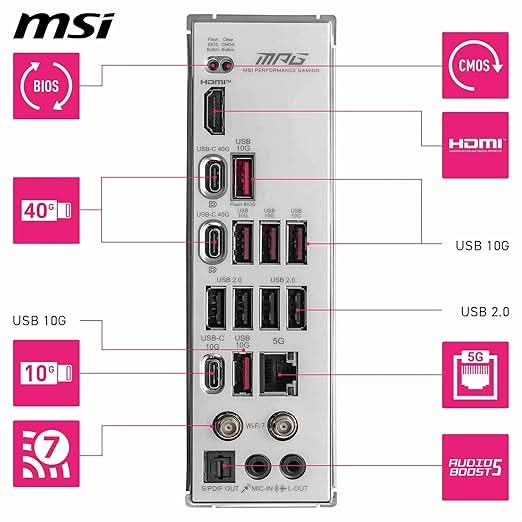

| Back Panel I/O Ports | Clear CMOS Button USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Optical S/PDIF Out |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What processors are compatible with this motherboard?
A: It supports AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket with the AMD X870E chipset.
Q: What cooling features does this motherboard include?
A: The motherboard features Frozr Guard cooling with 7W/mK MOSFET thermal pads, an Extended Heatsink with Heat-pipe, a chipset heatsink, and double-sided EZ M.2 Shield Frozr II.
Q: What are the primary connectivity options offered?
A: It includes Wi-Fi 7, Bluetooth 5.4, 5Gbps LAN, and a rear USB4 Type-C port (40Gbps) with display output, plus 7.1 USB High Performance Audio.
