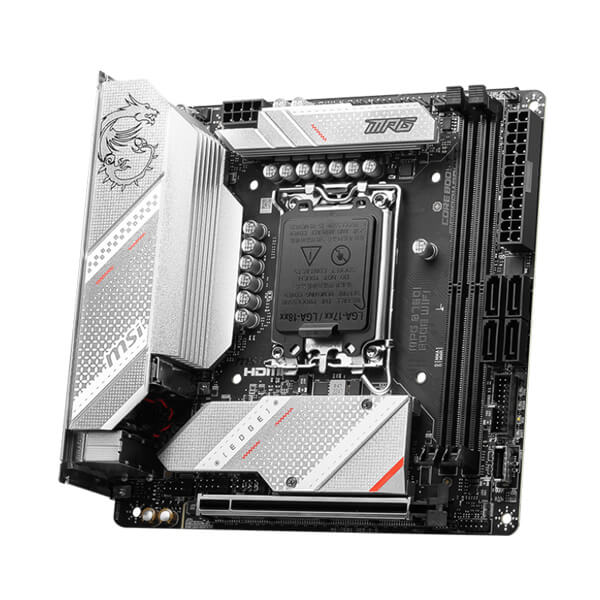

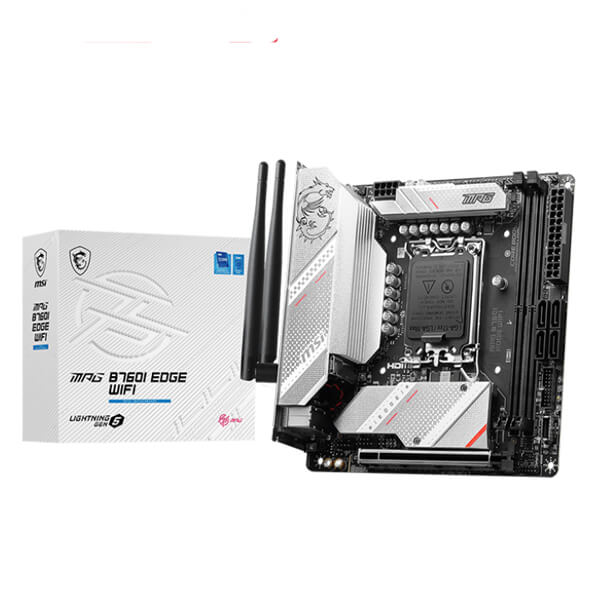

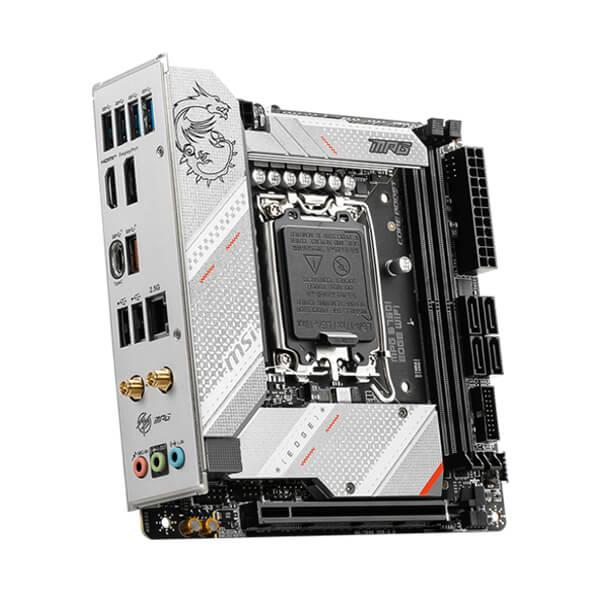

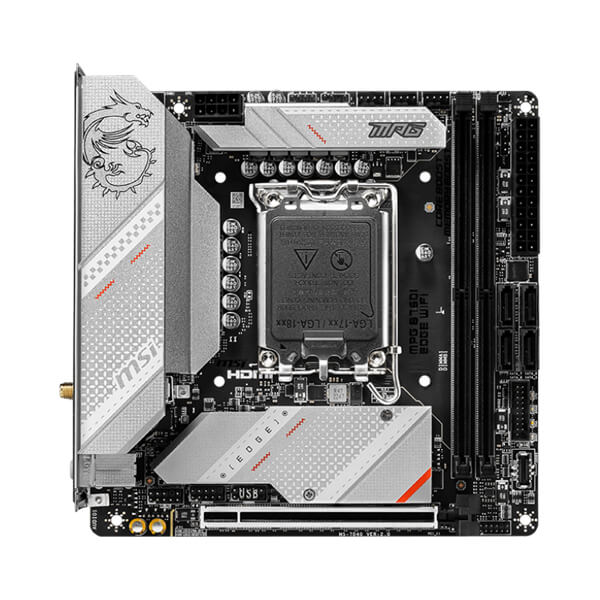

Elevate your system's performance with the MSI MPG B760I EDGE WIFI MOTHERBOARD. Designed in a Mini-ITX form factor for the latest Intel processors, this motherboard delivers advanced features for a powerful and compact computing experience.
Key Features at a Glance
- Supports 12th & 13th Gen Intel Core processors (LGA 1700).
- Robust 8+1+1 Direct (90A, DrMOS) VRM with Core Boost architecture.
- 2 x DDR5 DIMM slots with Memory Boost, supporting 7200+ MHz overclocking.
- Primary PCIe 5.0 x16 slot with Steel Armor for graphics cards.
- Dual M.2 Gen4 x4 64Gbps slots, with primary slot featuring Shield Frozr.
- Integrated Intel Wi-Fi 6E, Bluetooth 5.3, and 2.5Gbps LAN.
- Rear ports include USB 3.2 Gen 2 Type-C (10Gbps), HDMI 2.1, and DisplayPort 1.4.
Next-Gen Processing Power
Engineered to unleash the full potential of 12th and 13th Gen Intel Core processors, the MSI MPG B760I EDGE WIFI MOTHERBOARD features an 8+1+1 Direct (90A, DrMOS) VRM with Core Boost. This robust power delivery system ensures stable performance for high CPU core counts, providing reliability for demanding tasks and gaming.
Blazing-Fast Storage and Memory
Experience incredible speeds with 2 x DDR5 DIMM slots, optimized for overclocking up to 7200+ MHz through Memory Boost isolated circuitry. For storage, dual M.2 Gen4 x4 64Gbps connectors offer rapid data access, with the primary slot protected by Shield Frozr to prevent thermal throttling and maintain optimal SSD performance.
Advanced Connectivity Options
Stay connected with integrated Intel Wi-Fi 6E and Bluetooth 5.3 for seamless wireless performance, complemented by 2.5Gbps LAN for fast wired networking. A comprehensive set of rear ports, including USB 3.2 Gen 2 Type-C (10Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost, provides versatile peripheral and display connections.
Technical Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | B760 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Expansion Slots | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

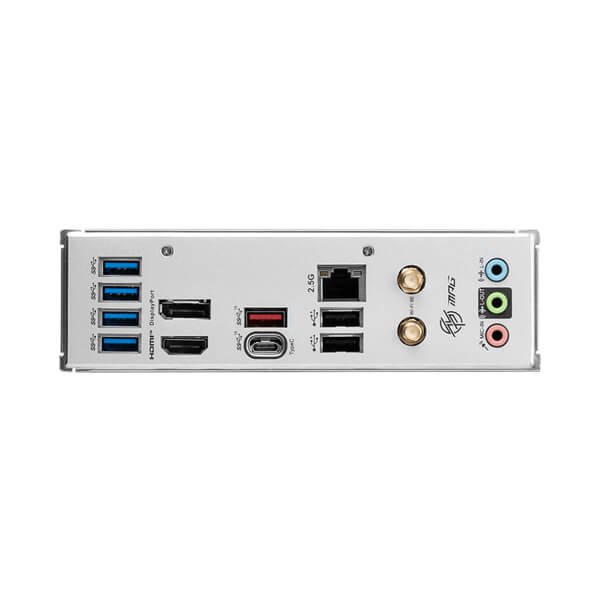

| Back Panel I/O Ports | USB 5Gbps Display Port USB 10Gbps 2.5G LAN Audio Connectors HDMI USB 10Gbps (Type-C) USB 2.0 Wi-Fi / Bluetooth |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Mini-ITX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which CPU generations are supported by the MSI MPG B760I EDGE WIFI MOTHERBOARD?
A: This motherboard supports 12th and 13th Gen Intel Core processors with an LGA 1700 socket.
Q: What type of memory does this motherboard use?
A: It features 2 x DDR5 DIMM slots, optimized for overclocking up to 7200+ MHz.
Q: Does this motherboard include built-in wireless connectivity?
A: Yes, it comes with an integrated Intel Wi-Fi 6E module and Bluetooth 5.3 for wireless connections.
