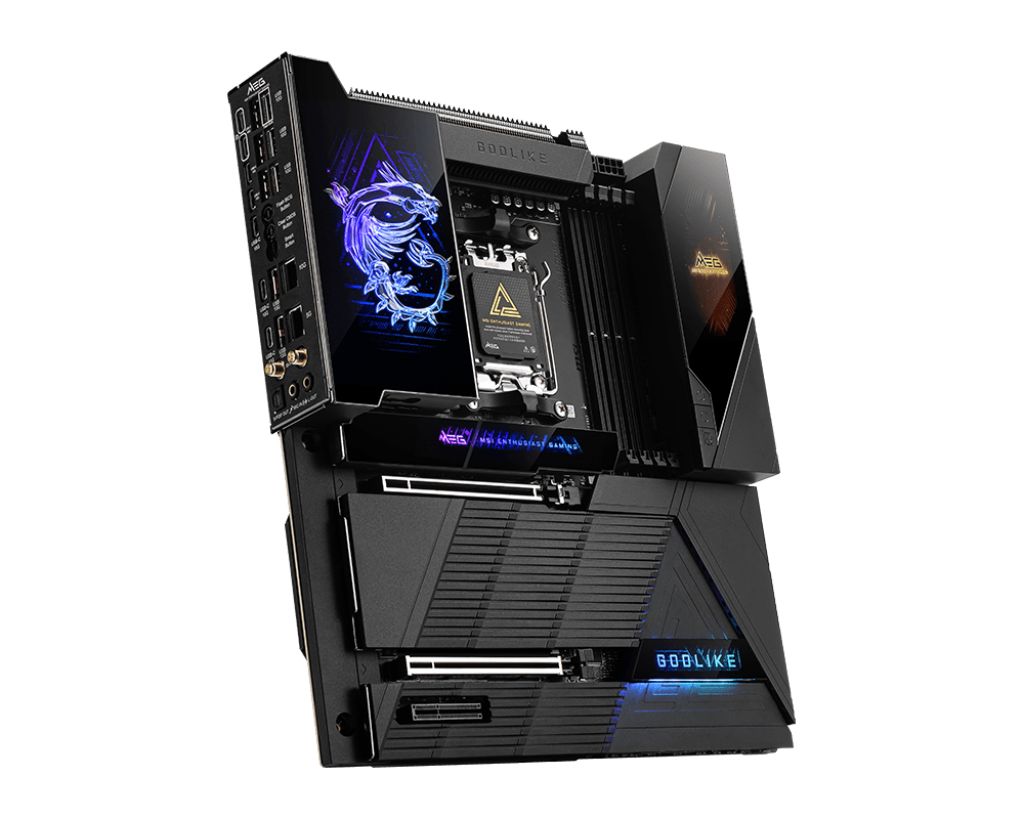

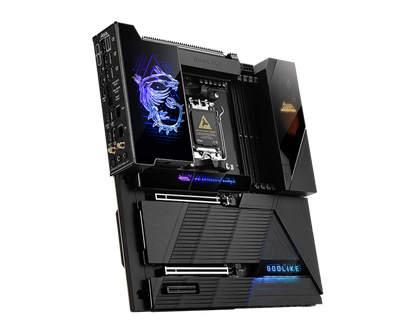

MSI MEG X870E GODLIKE AM5 E-ATX MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

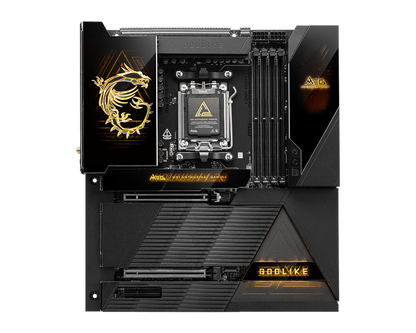

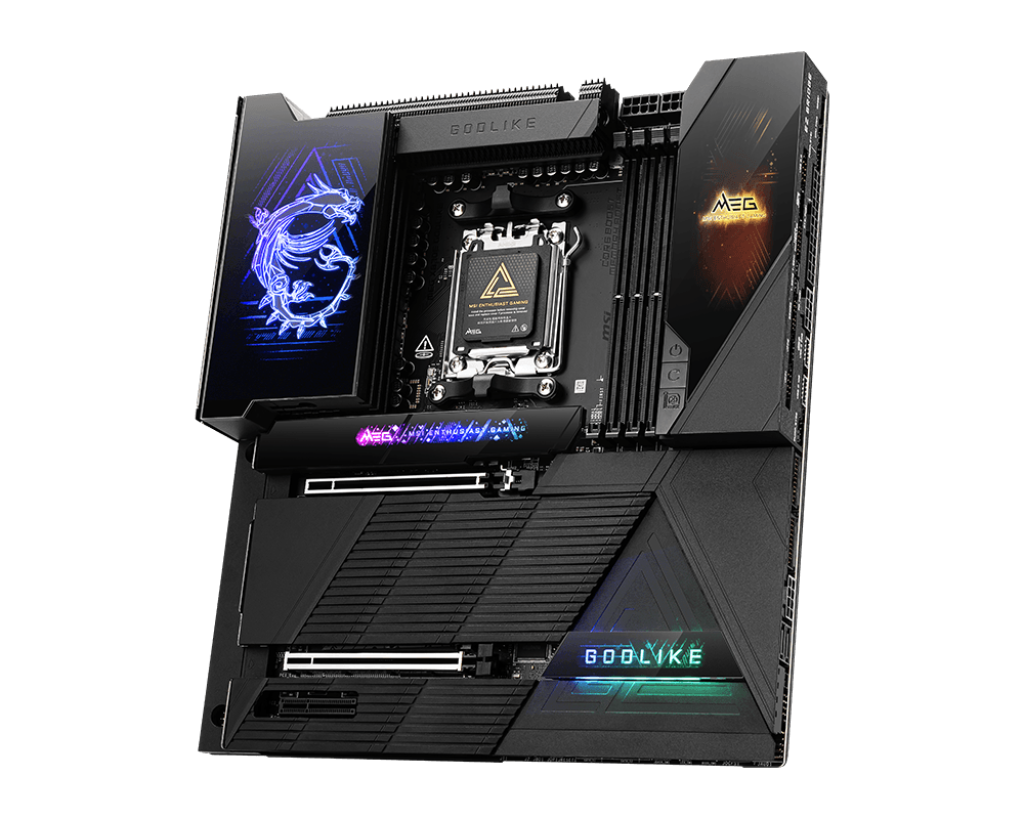

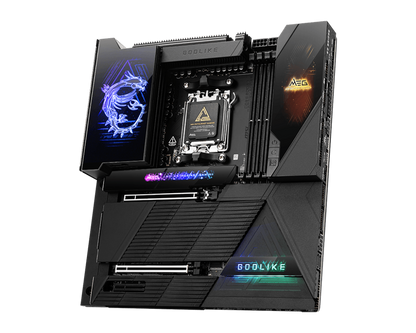

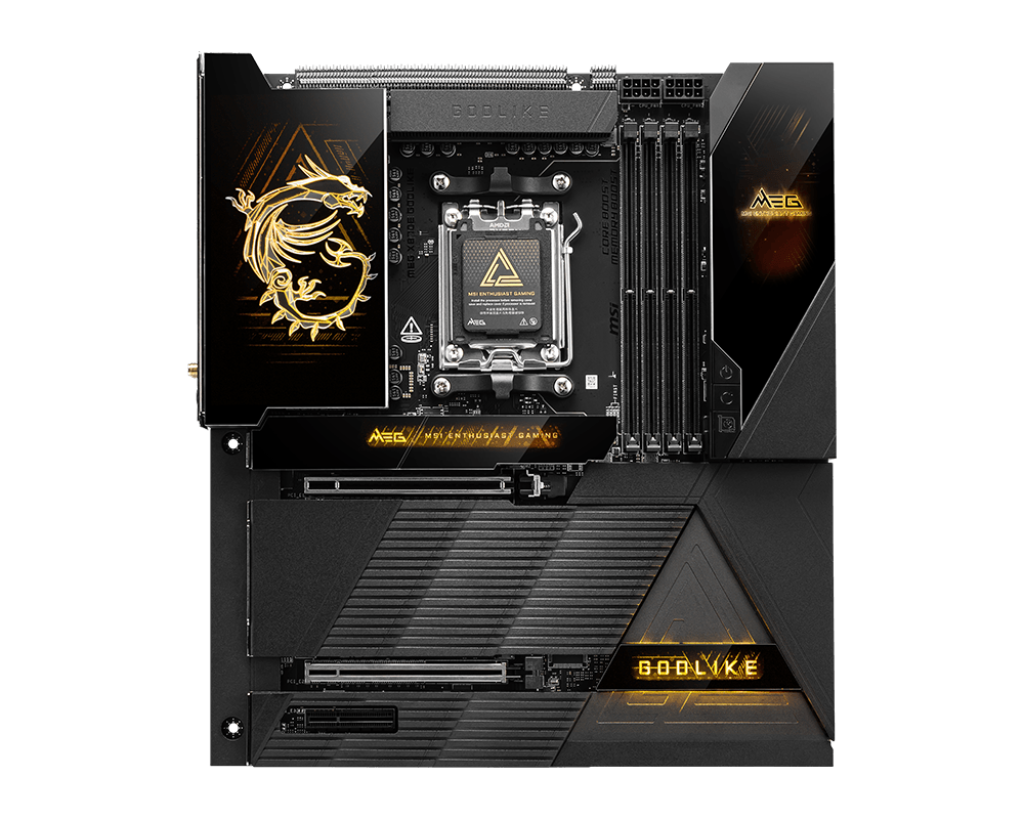

Elevate your PC build with the MSI MEG X870E GODLIKE AM5 E-ATX MOTHERBOARD, engineered to support AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. This E-ATX motherboard is designed for enthusiasts seeking high performance, advanced monitoring, and unparalleled connectivity.
Key Features at a Glance
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
- DDR5 Memory support, Dual Channel DDR5 8400+MT/s (OC) capabilities.
- Features Dynamic Dashboard III with a 3.99-inch LCD for real-time monitoring.
- Includes M.2 XPANDER-Z SLIDER GEN5 for dual high-speed Gen5 M.2 slots.
- Built with a 24+2+1 Duet Rail Power System and 10-layer PCB for ultra performance.
- Enhanced cooling with Frozr Guard technology, including a wavy fin design.
Ultimate Power Delivery and Stability
Experience unwavering power with the 24+2+1 Duet Rail Power System, featuring 110A SPS and dual 8-pin CPU power connectors. The 10-layer PCB, crafted with 2oz thickened copper and server-grade materials, combined with Core Boost and Memory Boost, ensures exceptional stability and performance for demanding tasks and overclocking.
Advanced Thermal Management
Keep your system cool under pressure with Frozr Guard. This comprehensive cooling solution includes a wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, and 9W/mK thermal pads. Double-Sided M.2 Shield Frozr and Frozr AI software work together to maintain low temperatures, maximizing performance and longevity.
Seamless Connectivity and Speed
Connect at blazing speeds with Ultra Connect features like 10G LAN + 5G LAN, a Full-speed Wi-Fi 7 Solution, and USB4. Enjoy a Lightning Fast Game Experience thanks to PCIe 5.0 slots, Lightning Gen 5 x4 M.2, and a Front USB 20G with 60W USB Power Delivery for rapid data transfer and device charging.
Enhanced User Experience with EZ DIY and Audio
The MSI MEG X870E GODLIKE offers an intuitive build and upgrade process with EZ DIY features like EZ Link, EZ PCIe Release, and EZ Magnetic M.2 Shield Frozr II. Complementing this ease of use is Audio Boost 5 HD, an ultimate audio solution with the premium ALC4082 audio processor and an ESS audio DAC and amplifier, delivering an immersive sound experience.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870E |
| Memory Speed | up to 8400+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or Brand Website. |
| Graphics Port | 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors) • Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot. Please refer to the PCIe configuration table in the manual for more details. |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

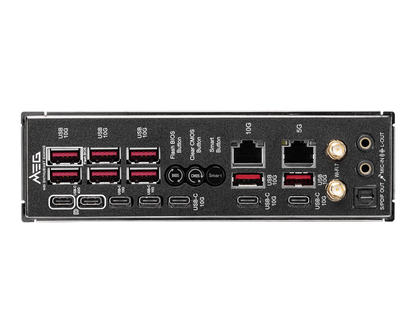

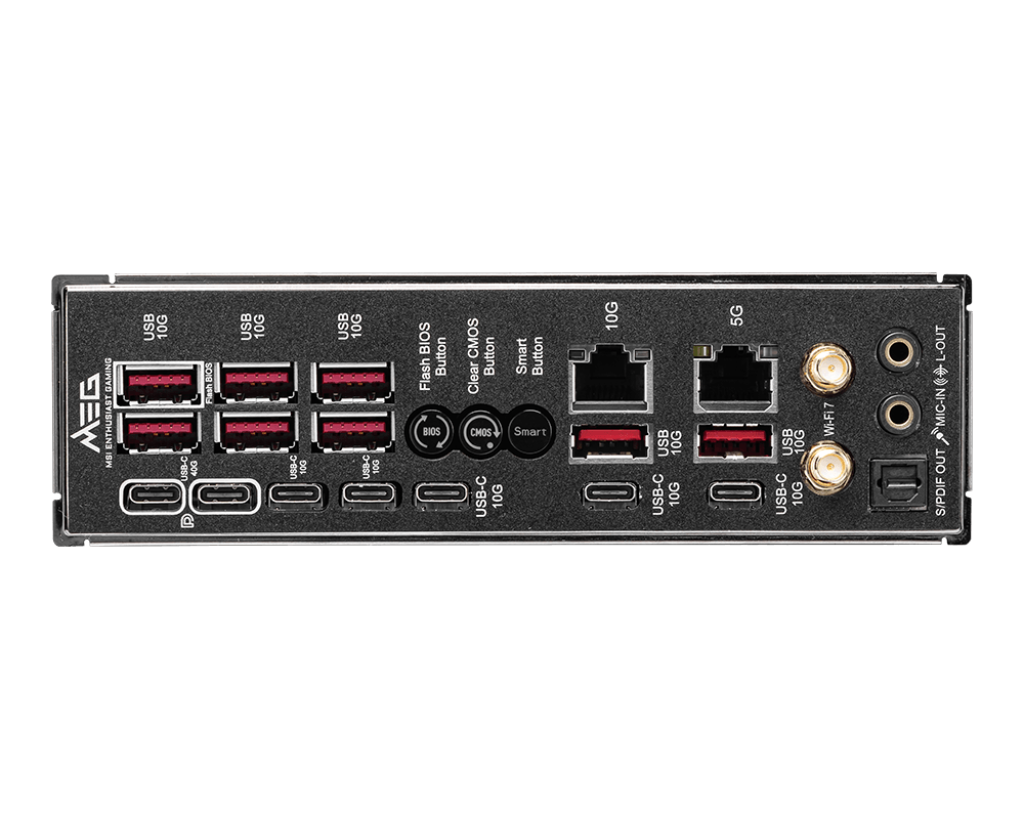

| Back Panel I/O Ports | USB 10Gbps (Type-A) Flash BIOS Button Clear CMOS Button Smart Button 10G LAN 5G LAN Wi-Fi / Bluetooth HD Audio Connectors USB 40Gbps (Type-C) USB 10Gbps (Type-C) USB 10Gbps (Type-A) Optical S/PDIF-Out |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB 20Gbps Type C ports |
| Form Factor | E-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors are compatible with this motherboard?
A: The MSI MEG X870E GODLIKE AM5 E-ATX MOTHERBOARD supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Q: What type of memory does this motherboard support?
A: It supports DDR5 Memory with Dual Channel DDR5 8400+MT/s (OC) capabilities.
Q: What is the Dynamic Dashboard III?
A: The Dynamic Dashboard III is a 3.99-inch LCD integrated into the motherboard, providing real-time hardware monitoring, troubleshooting assistance, BIOS updates, and personalized display options.
