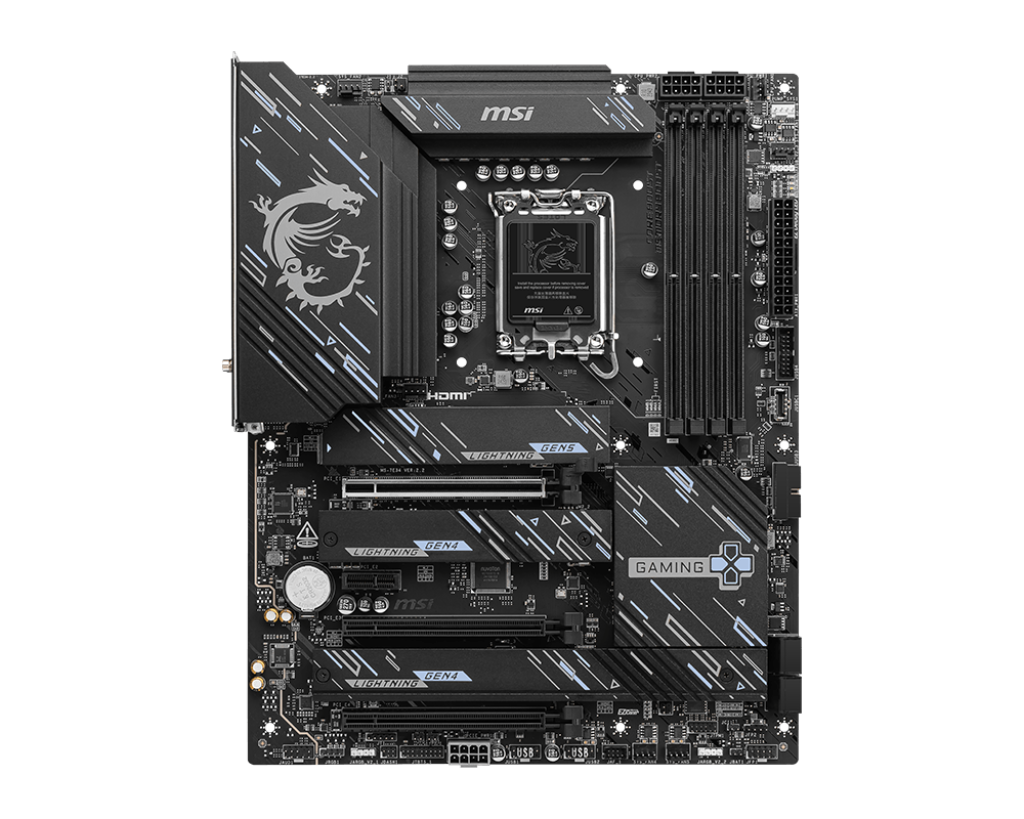

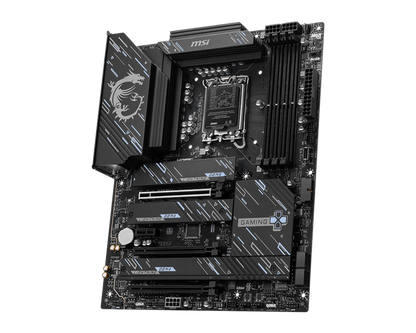

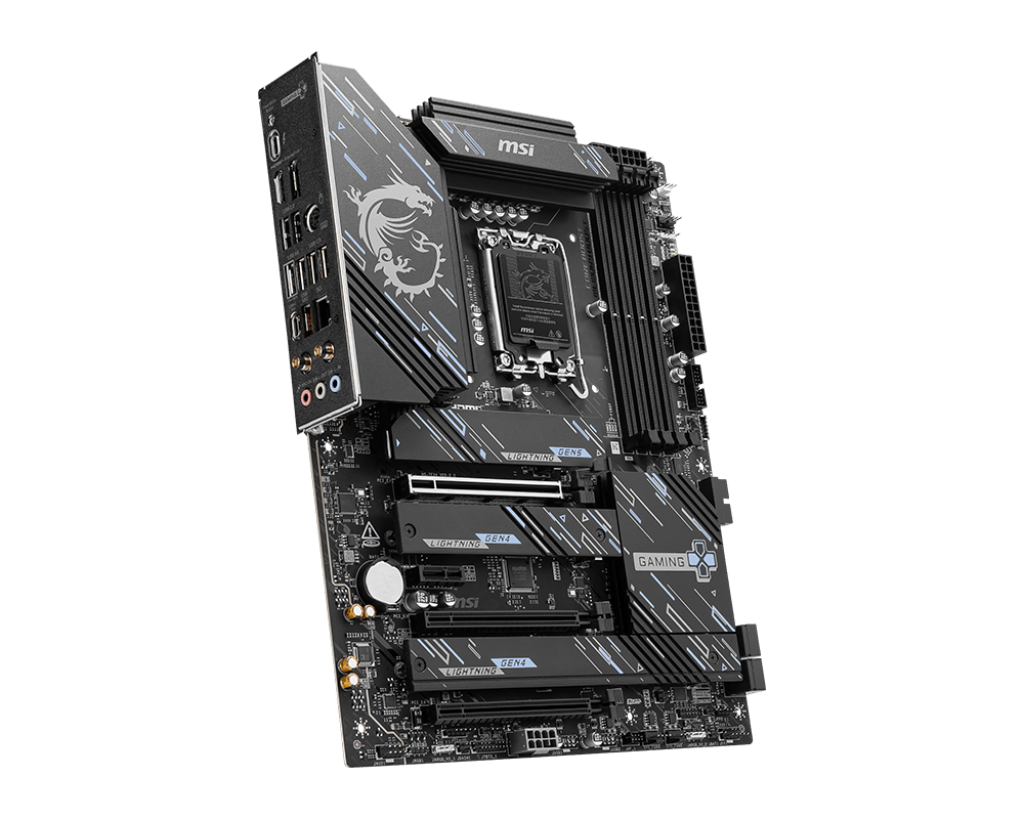

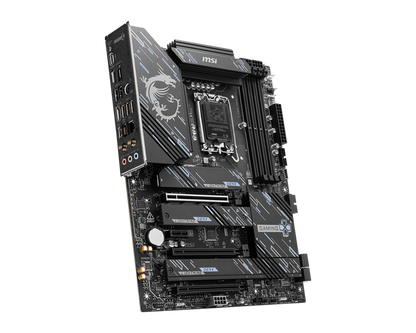

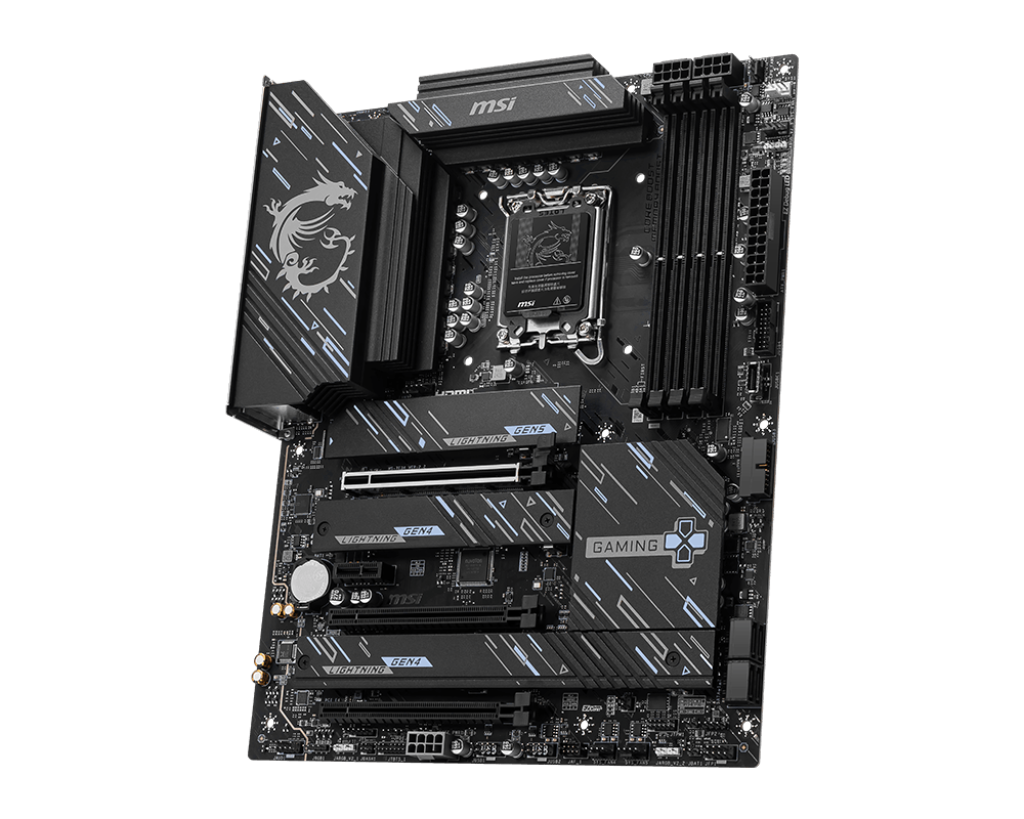

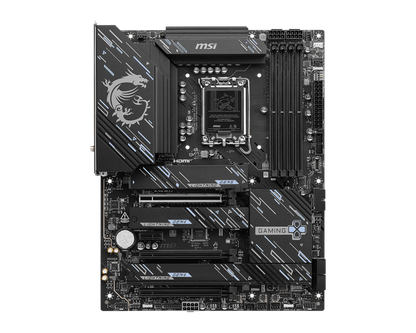

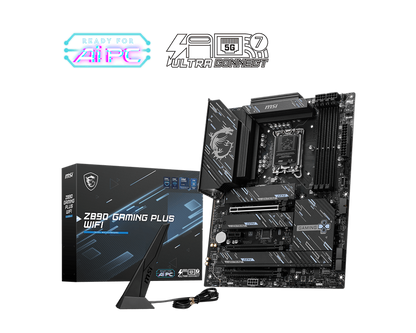

MSI Z890 GAMING PLUS WIFI MOTHERBOAD

Discover the MSI Z890 GAMING PLUS WIFI MOTHERBOARD, a central component designed for your computing needs. This motherboard integrates essential features, providing a foundation for your system.

Key Features at a Glance

• MSI brand quality for reliable performance.
• Advanced Z890 chipset platform.
• Integrated Wi-Fi connectivity for wireless networking.
• Optimized for gaming setups.
• Enhanced "Plus" series design.
• Robust and stable motherboard foundation.

Seamless Connectivity with Integrated WiFi

The MSI Z890 GAMING PLUS WIFI MOTHERBOARD includes built-in wireless networking, allowing for convenient access to your network without the need for additional adapters.

Designed for Gaming Enthusiasts

As a 'GAMING' series motherboard, this model provides a robust platform suitable for building a dedicated gaming system, focusing on stability and compatibility for gaming components.

Advanced Z890 Chipset Foundation

The Z890 chipset forms the core of this motherboard, offering a stable and capable platform for compatible processors and memory, ensuring reliable system operation.

Technical Specifications

Chipset	INTEL Z890
CPU	Supports Intel Core„ Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: € 1DPC 1R Max speed up to 9200+ MT/s € 1DPC 2R Max speed up to 7200+ MT/s € 2DPC 1R Max speed up to 4800+ MT/s € 2DPC 2R Max speed up to 4800+ MT/s Supports IntelPOR Speed and JEDEC Speed Supports Memory Overclocking and IntelXMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM € The DIMM slots on this motherboard only have single-sided latches. € Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product€™s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI„ Support HDMI„ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt„ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	RealtekALC897 Codec 7.1-Channel High Definition Audio
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt	1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN	IntelKiller„ E5000 5Gbps LAN
Internal IO	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	IntelKiller„ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth5.4**, MLO, 4KQAM * 6GHz band support may depend on every country€™s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE	4x EZ Debug LED

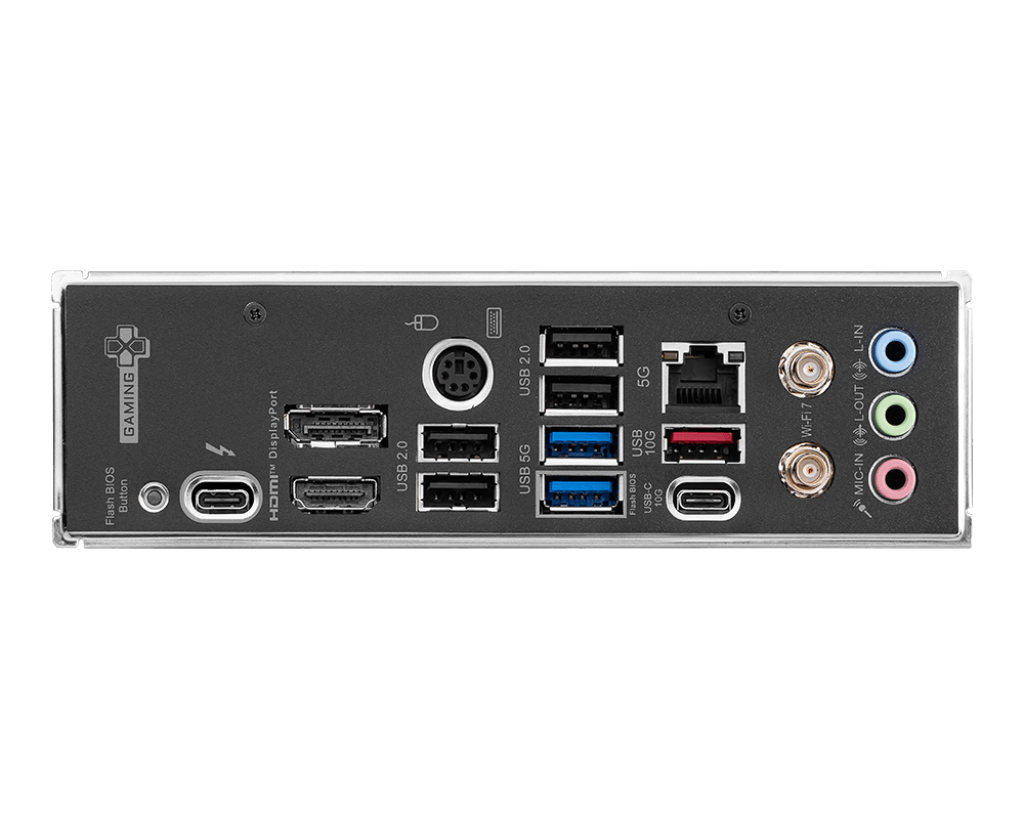

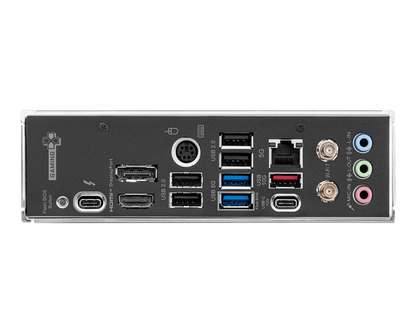

BACK PANEL PORTS	DisplayPort Keyboard / Mouse USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button Thunderbolt„ 4 40Gbps (Type-C) HDMI„ USB 2.0 USB 5Gbps Type A ports USB 10 Gbps Type C ports USB 10 Gbps Type A ports
OPERATING SYSTEM	Support for Windows11 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm

Frequently Asked Questions

Q: What is the warranty period for this motherboard?

A: The MSI Z890 GAMING PLUS WIFI MOTHERBOARD comes with a 3-year warranty.

Q: Does this motherboard include Wi-Fi capabilities?

A: Yes, the MSI Z890 GAMING PLUS WIFI MOTHERBOARD features integrated Wi-Fi connectivity, as indicated by its name.

Q: What does "GAMING PLUS" signify for this motherboard?

A: "GAMING" indicates its design for gaming systems, while "PLUS" suggests an enhanced feature set within its series, providing a strong foundation for various builds.
