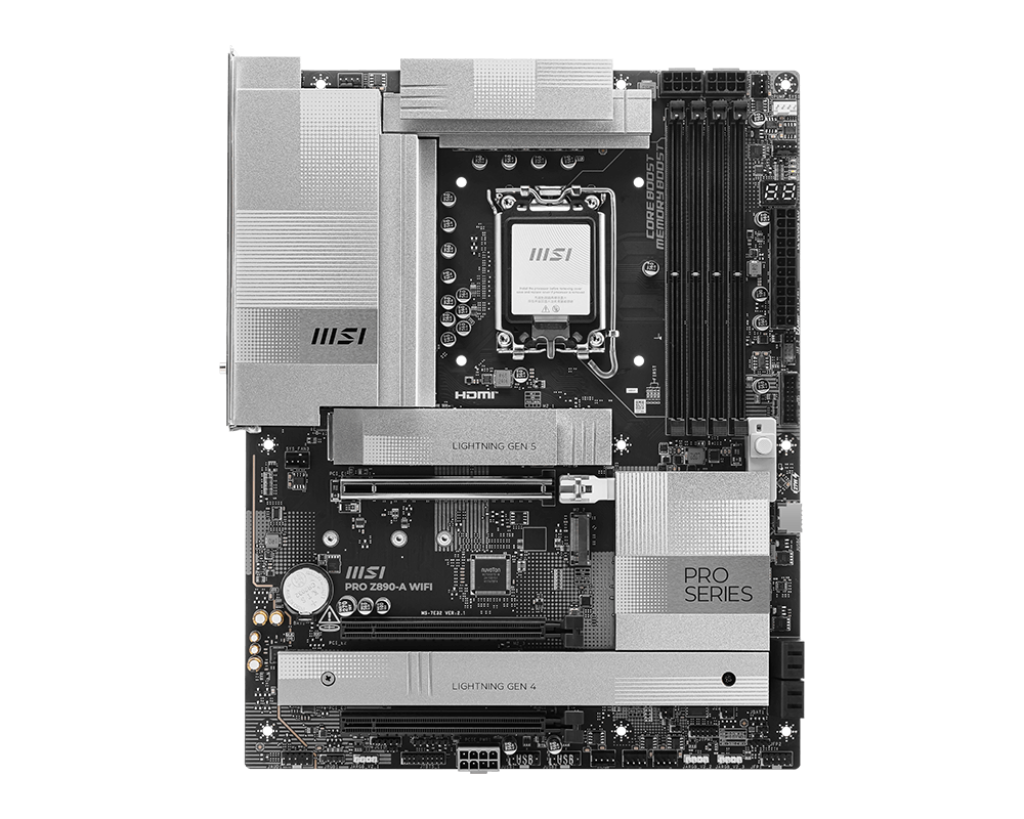

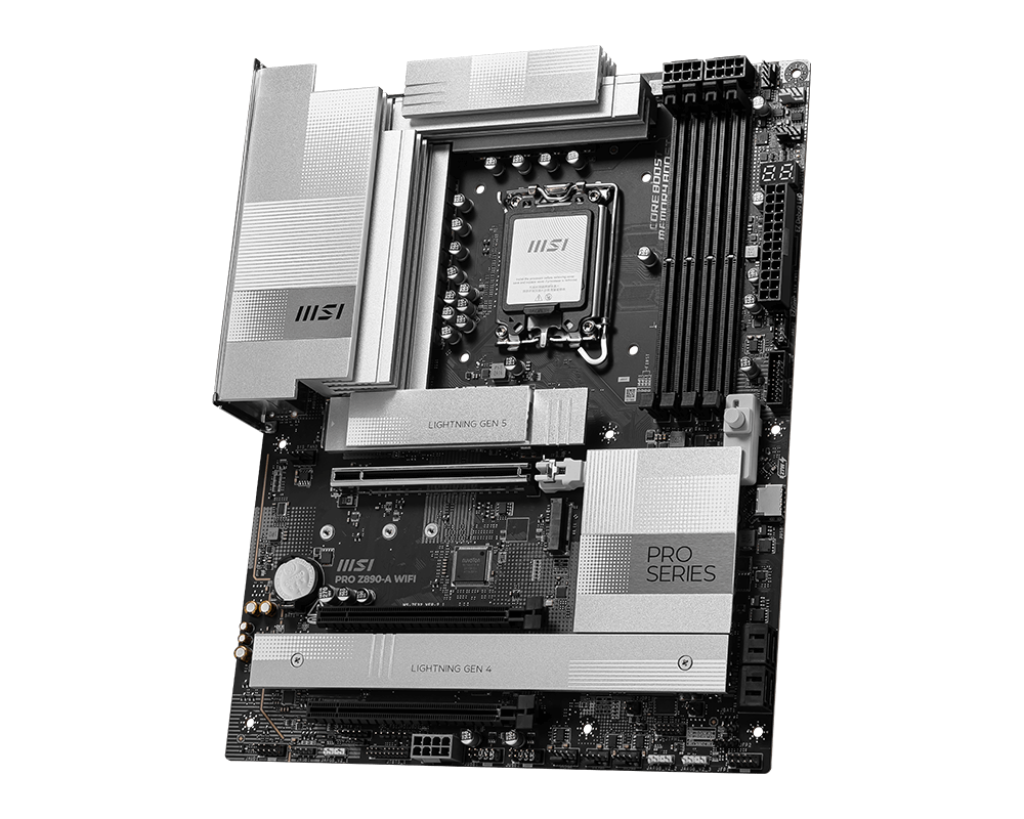

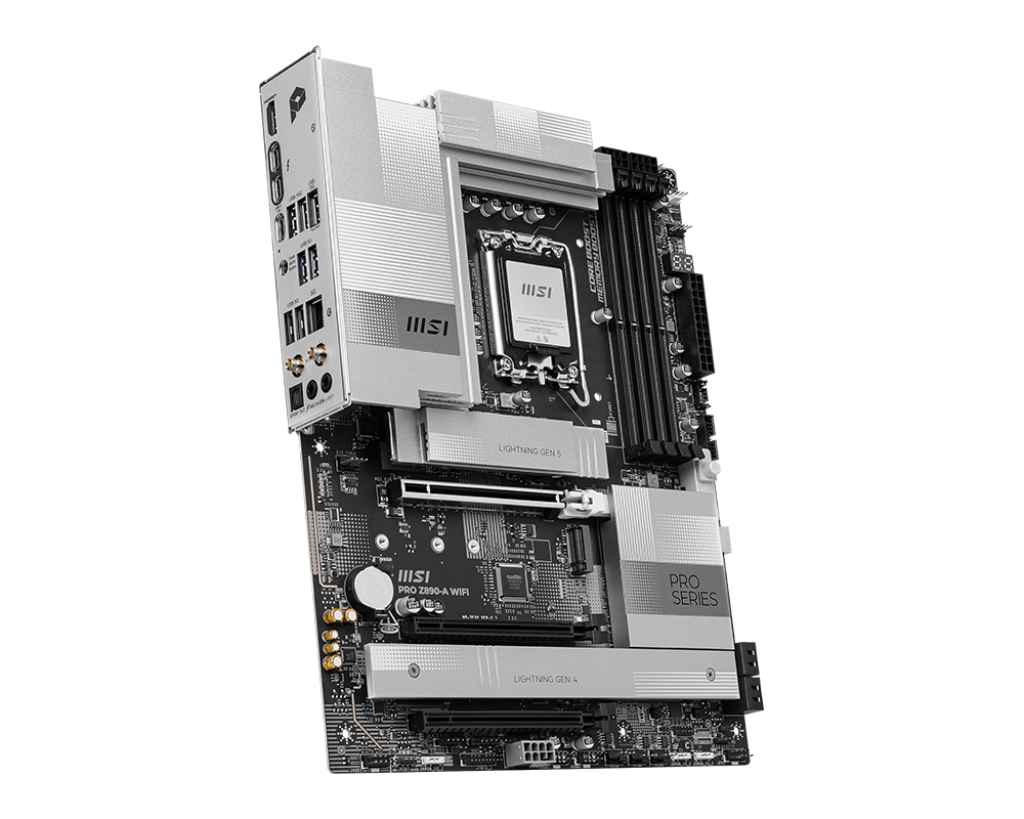

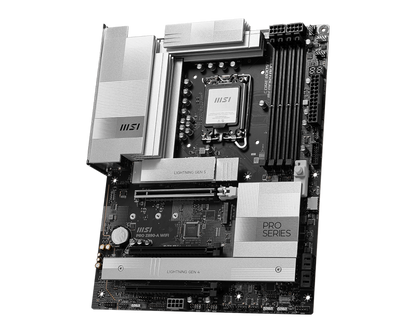

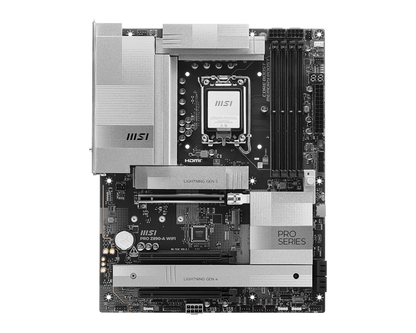

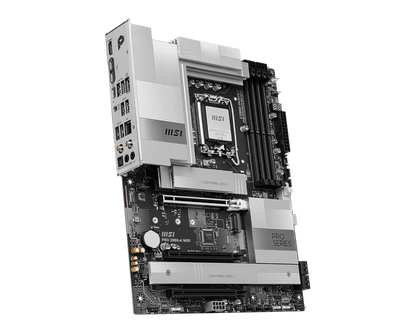

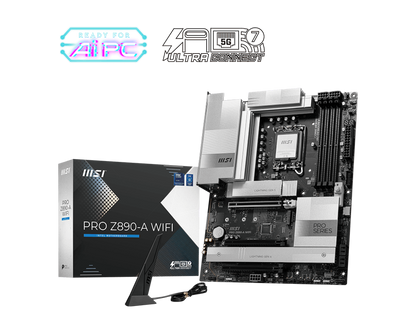

MSI PRO Z890-A WIFI LGA1851 ATX MOTHERBOARD

Elevate your system's foundation with the MSI PRO Z890-A WIFI LGA1851 ATX Motherboard. This ATX form factor motherboard is engineered to support LGA1851 processors, providing a robust platform for your computing needs. Experience convenient wireless connectivity thanks to integrated Wi-Fi.

Key Features at a Glance

• Standard ATX form factor for versatile case compatibility
• Designed for LGA1851 socket processors
• Includes integrated Wi-Fi for wireless networking
• Part of the reliable MSI PRO series
• Features the Z890-A chipset

Robust Foundation

The ATX form factor provides a widely compatible and stable base for your PC build, offering ample space for components and cooling solutions.

Next-Gen Processor Support

Equipped with the LGA1851 socket, this motherboard is ready to support compatible processors, ensuring you have the latest technology at your disposal.

Seamless Wireless Connectivity

Built-in Wi-Fi capabilities eliminate the need for additional network cards, providing convenient and reliable wireless internet access right out of the box.

Technical Specifications

Chipset	INTEL Z890
CPU	Supports Intel Core„ Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: € 1DPC 1R Max speed up to 9200+ MT/s € 1DPC 2R Max speed up to 7200+ MT/s € 2DPC 1R Max speed up to 4800+ MT/s € 2DPC 2R Max speed up to 4800+ MT/s Supports IntelPOR Speed and JEDEC Speed Supports Memory Overclocking and IntelXMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM € The DIMM slots on this motherboard only have single-sided latches. € Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product€™s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI„ Support HDMI„ 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt„ 4 ports, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio	RealtekALC1220P 7.1-Channel High Definition Audio Supports S/PDIF output
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt	2x Thunderbolt4 ports (Rear) Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Support up to 8K display
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN	Realtek8126 5Gbps LAN
Internal IO	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	IntelWi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth5.4**, MLO, 4KQAM * 6GHz band support may depend on every country€™s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor€™s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED

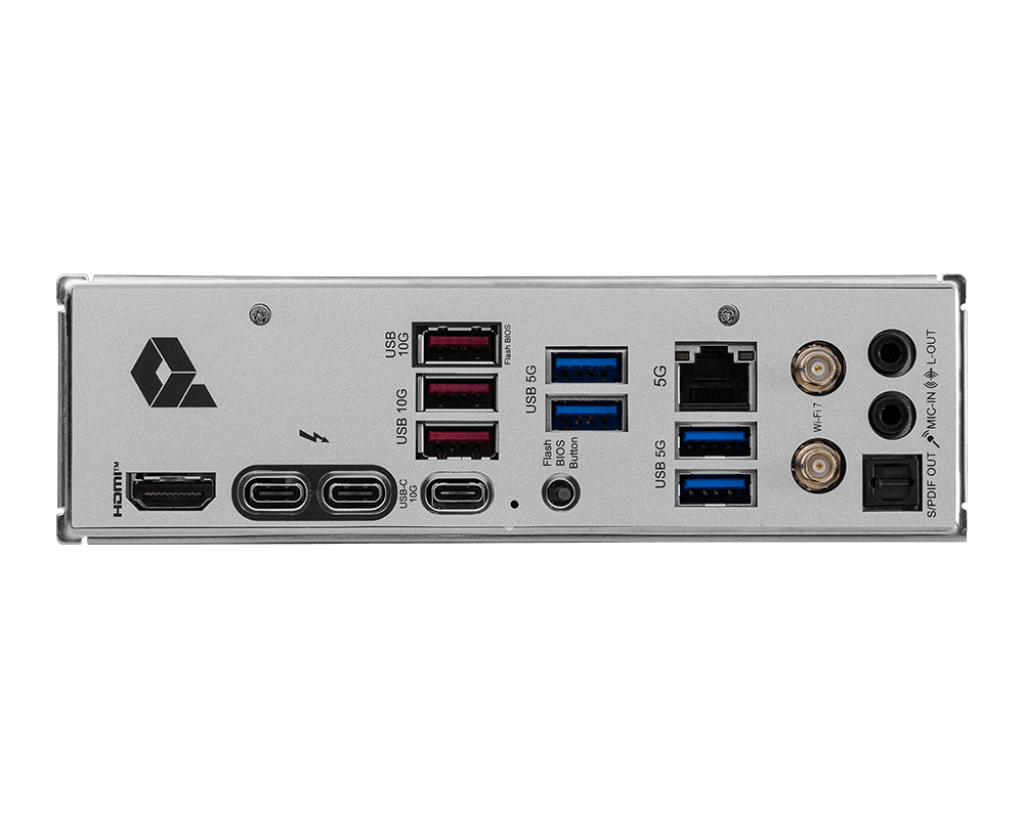

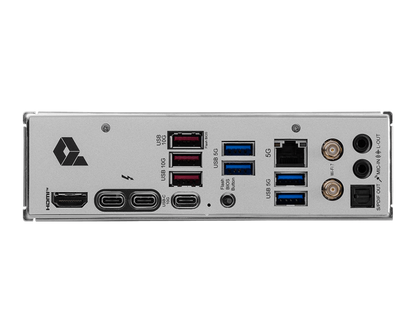

BACK PANEL PORTS	USB 10Gbps Type-A USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI„ Thunderbolt„ 4 40Gbps (Type-C) USB 10Gbps Type-C Flash BIOS Button USB 5Gbps Type-A S/PDIF-OUT
OPERATING SYSTEM	Support for Windows11 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm
Warranty	3 years

Frequently Asked Questions

Q: What CPU socket does the MSI PRO Z890-A WIFI Motherboard use?

A: This motherboard is designed with the LGA1851 socket, compatible with processors that use this socket type.

Q: Does this motherboard include wireless connectivity?

A: Yes, the MSI PRO Z890-A WIFI Motherboard features integrated Wi-Fi for convenient wireless networking.

Q: What is the form factor of this motherboard?

A: This motherboard adheres to the ATX form factor, ensuring compatibility with standard ATX cases.
