The MSI MAG Z790 TOMAHAWK MAX WIFI DDR5 MOTHERBOARD offers robust performance for your build, designed with the Intel Z790 chipset and LGA 1700 socket. This ATX motherboard supports 12th and 13th Gen Core processors, integrating advanced cooling solutions and cutting-edge connectivity for a powerful computing experience.
Key Features at a Glance
- Supports 12th & 13th Gen Core processors with Intel Z790 chipset (LGA 1700).
- Features MSI Core Boost technology for improved stability.
- Equipped with 4 DDR5 DIMM slots, supporting 7200+ MHz overclocking.
- Includes 1 PCIe 5.0 x16 slot with Steel Armor for graphics cards.
- Offers 4 M.2 connectors, including 1x Gen5 and 3x Gen4, all with Shield Frozr.
- Provides Wi-Fi 7, Bluetooth 5.4, and Intel 2.5Gbps LAN for comprehensive connectivity.
Optimized Cooling Solutions
This motherboard incorporates integrated and AI cooling features to maintain optimal performance. VRM cooling is enhanced with 7W/mK MOSFET thermal pads, complemented by a chipset heatsink and M.2 Shield Frozr. Frozr AI cooling automatically adjusts system fan settings based on real-time CPU and GPU temperatures for efficient thermal management.
Advanced Memory and Expansion
Build a powerful system with four DDR5 DIMM slots, featuring Memory Boost isolated circuitry designed for stable overclocking up to 7200+ MHz. The board includes a PCIe 5.0 x16 slot, fortified with Steel Armor, ready to support the latest graphics cards with 128GB/s bandwidth for high-speed data transfer.
High-Speed Storage and Connectivity

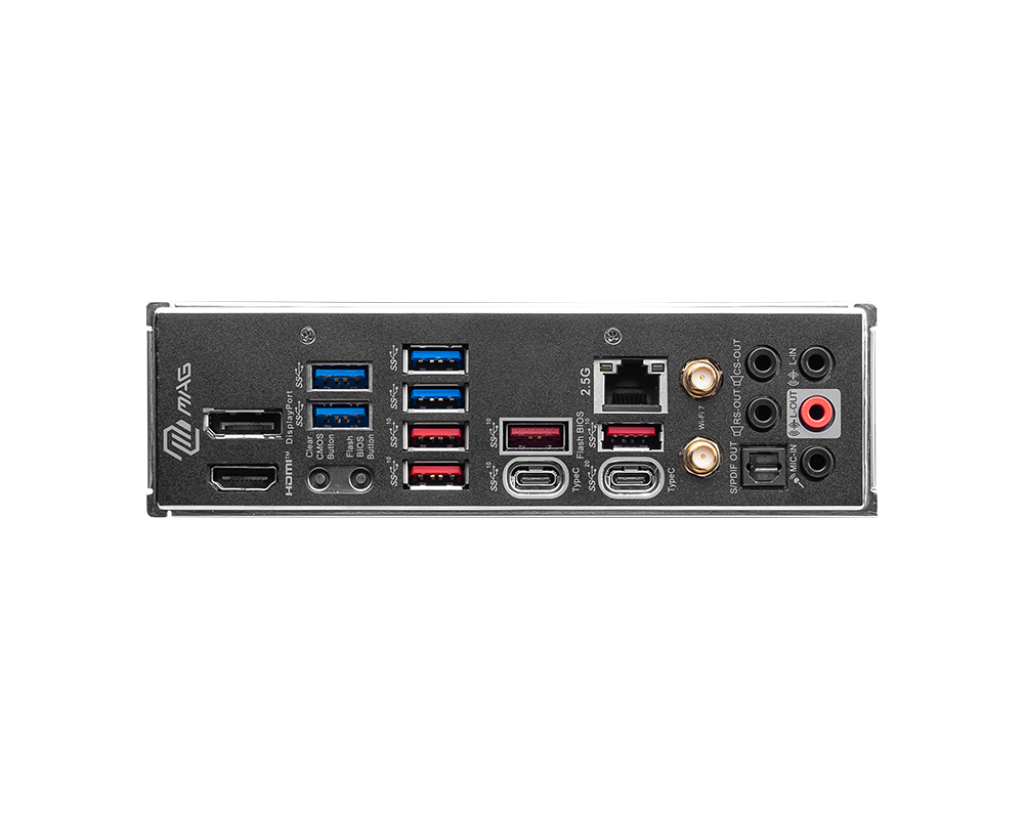

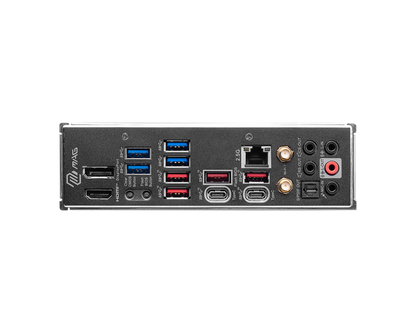

Experience lightning-fast data access with quad M.2 connectors, including one M.2 Gen5 x4 128Gbps slot and three M.2 Gen4 x4 64Gbps slots, all protected by Shield Frozr to prevent thermal throttling. A tool-free installation system with EZ M.2 Clips simplifies setup. Stay connected with Wi-Fi 7, Bluetooth 5.4, and an Intel 2.5Gbps LAN. Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, and 7.1 HD Audio with Audio Boost 5.
Technical Specifications
| Brand | MSI |
|---|---|
| Manufacturer | MSI, Micro-Star INT'L CO., LTD. No.69, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan |
| Series | MAG Z790 TOMAHAWK MAX WIFI |
| Item Height | 6 Centimeters |
| Item Width | 30.5 Centimeters |
| Product Dimensions | 24.4 x 30.5 x 6 cm; 1.5 kg |
| Item model number | 7E25-002R |
| Processor Socket | LGA 1700 |
| Memory Technology | DDR5 |
| Computer Memory Type | DIMM |
| Memory Clock Speed | 7800 MHz |
| Graphics Card Interface | PCI, PCI-Express x16 |
| Wireless Type | Bluetooth |
| Number of USB 2.0 Ports | 2 |
| Number of HDMI Ports | 2 |
| Are Batteries Included | Yes |
| Lithium Battery Energy Content | 225 Milliampere Hour (mAh) |
| Lithium Battery Weight | 2.9 g |
| Number of Lithium Ion Cells | 1 |
| Number of Lithium Metal Cells | 1 |
| Manufacturer | MSI |
| Country of Origin | China |
| Item Weight | 1 kg 500 g |
Frequently Asked Questions
Q: What CPU generations are compatible with this motherboard?
A: The MSI MAG Z790 TOMAHAWK MAX WIFI DDR5 Motherboard supports 12th and 13th Gen Intel Core processors with the LGA 1700 socket.
Q: What type of memory does this motherboard support?
A: It supports DDR5 memory across four DIMM slots, with Memory Boost isolated circuitry enabling overclocking up to 7200+ MHz.
Q: Does this motherboard have Wi-Fi?
A: Yes, it features a Wi-Fi 7 module, along with Bluetooth 5.4 and an Intel 2.5Gbps LAN for comprehensive networking capabilities.
