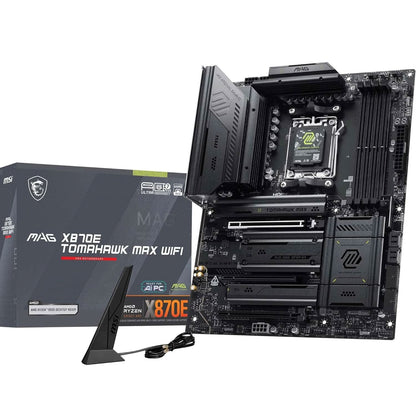

MSI MAG X870E Tomahawk MAX WIFI7 ATX Motherboard
MSI MAG X870E Tomahawk MAX WIFI7 ATX Motherboard
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

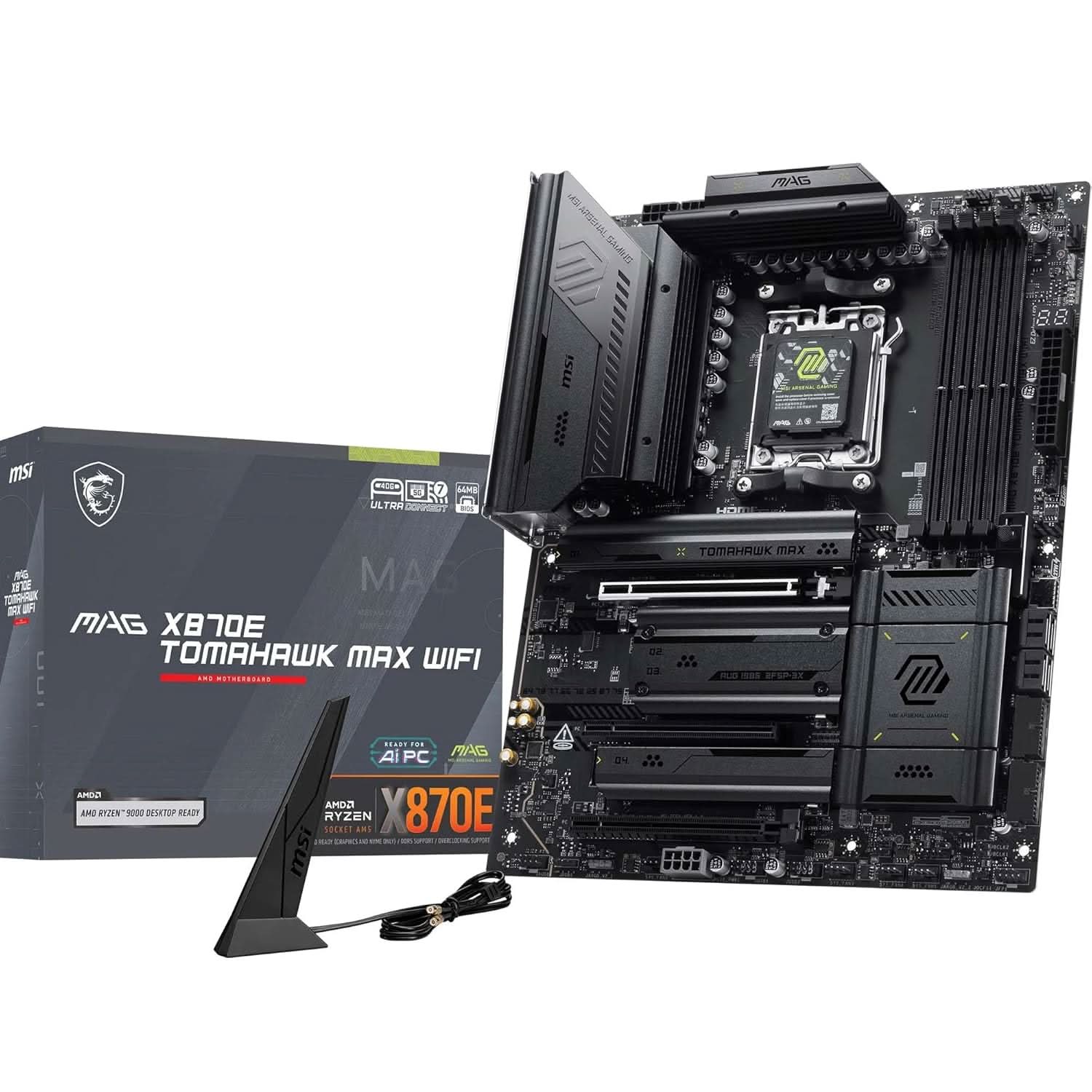

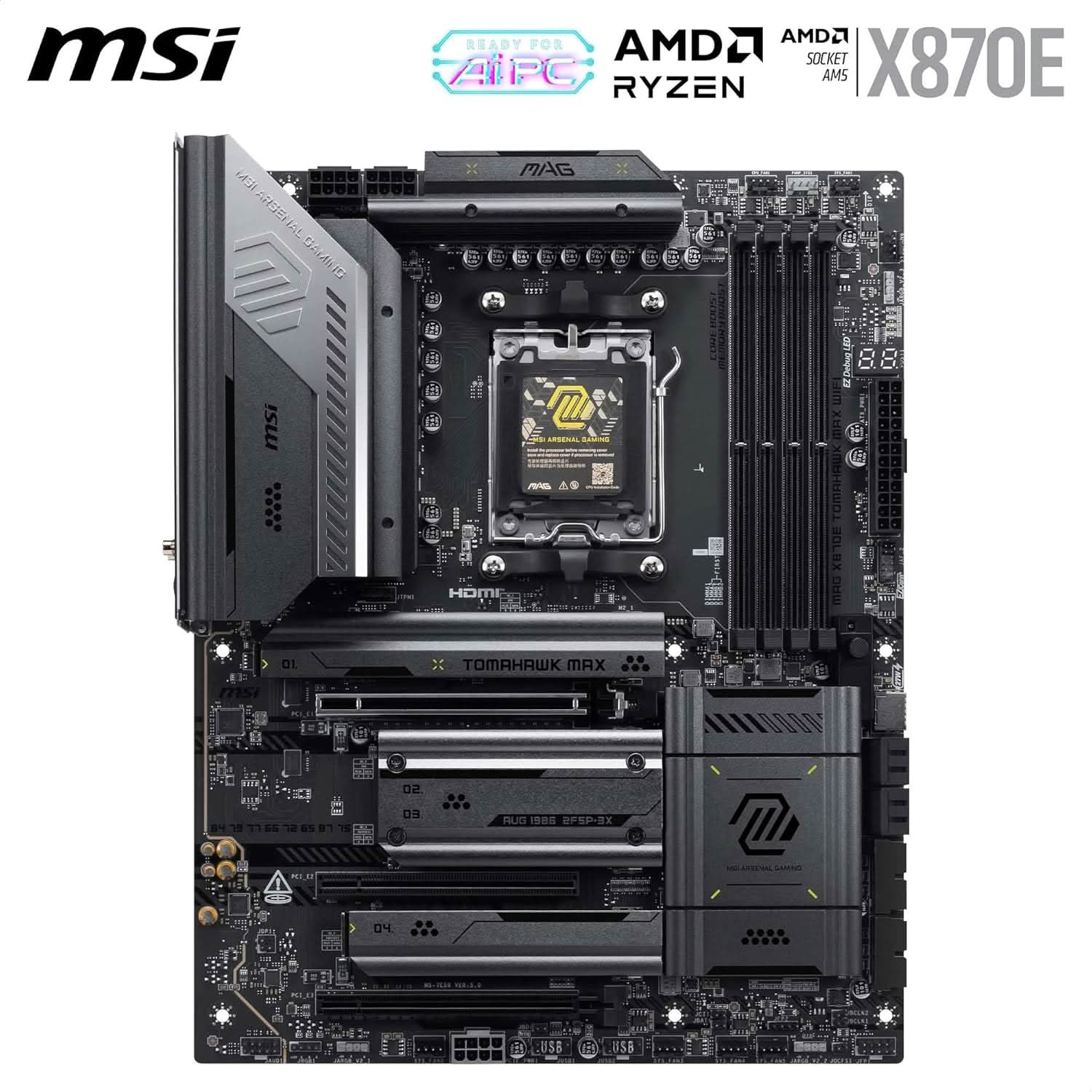

Elevate your PC build with the MSI MAG X870E Tomahawk MAX WIFI7 ATX Motherboard, engineered to support AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. This motherboard is designed to deliver robust performance and an exceptional user experience, featuring advanced power delivery, cutting-edge connectivity, and superior cooling solutions.
Key Features at a Glance
- Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
- Dual Channel DDR5 Memory support up to 8400+ MT/s (OC).
- Features a 14+2+1 Duet Rail Power System with 80A SPS and 8-layer PCB.
- Advanced cooling with an Extended Heatsink and EZ M.2 Shield Frozr II.
- Lightning-fast PCIe 5.0 slot and Lightning Gen 5 x4 M.2 for storage.
- Integrated USB4, 5G LAN, and Wi-Fi 7 Solution for superior connectivity.
Unleash Extreme Performance
Power your system with a robust 14+2+1 Duet Rail Power System, featuring 80A SPS and dual 8-pin CPU power connectors. The 8-layer PCB, crafted with 2oz thickened copper and server-grade materials, ensures stability and boosts for both CPU and memory, providing an ultra-performance foundation for demanding tasks.
Advanced Thermal Solutions for Stability
Maintain optimal temperatures with the Frozr Guard thermal design. This includes an Extended Heatsink, MOSFET thermal pads rated for 7W/mK, and additional choke thermal pads. The EZ M.2 Shield Frozr II provides effective cooling for M.2 drives, ensuring sustained high performance even under heavy loads.
Next-Gen Connectivity and Speed

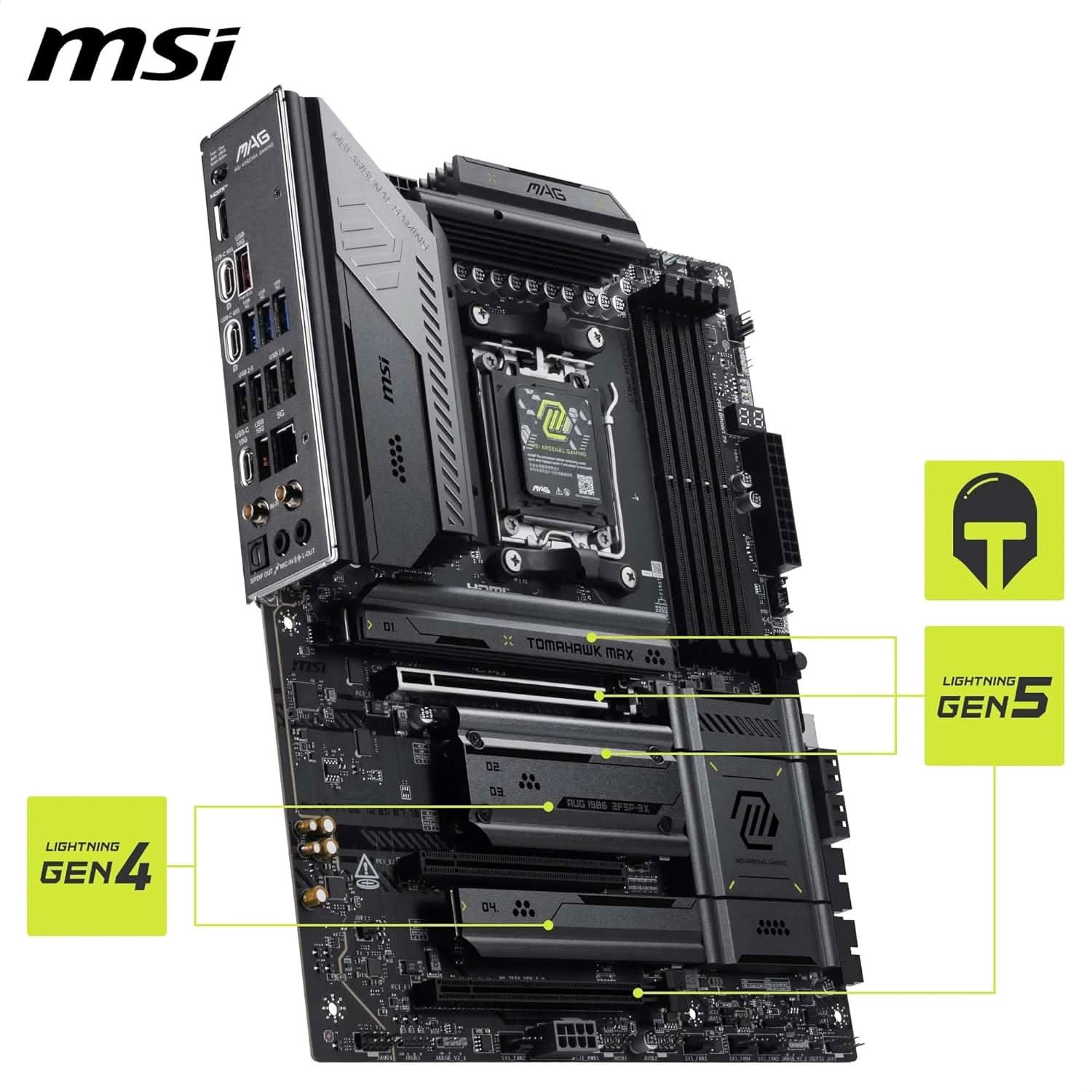

Experience blazing-fast data transfer and networking. The motherboard features a PCIe 5.0 slot and Lightning Gen 5 x4 M.2, ready for the fastest SSDs. For networking, benefit from USB4, 5G LAN, and the latest Wi-Fi 7 Solution, providing secure, stable, and high-speed connections for professional use and multimedia.
Simplified Building and Immersive Audio
Building your system is made easier with EZ DIY features like EZ M.2 Clip II and EZ PCIe Release. Once built, immerse yourself in studio-grade sound quality with Audio Boost 5, designed to deliver a rich and detailed audio experience for gaming and entertainment.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870E |
| Memory Speed | up to 8400+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Graphics Port | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz |
| Expansion Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF-OUT |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What processors does the MSI MAG X870E Tomahawk MAX WIFI7 ATX Motherboard support?
A: This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Q: What type of memory is supported and at what speeds?
A: It supports Dual Channel DDR5 Memory, with overclocked speeds reaching 8400+ MT/s.
Q: What advanced connectivity options are available on this motherboard?
A: The motherboard features a PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB4, 5G LAN, and the latest Wi-Fi 7 Solution for comprehensive connectivity.
