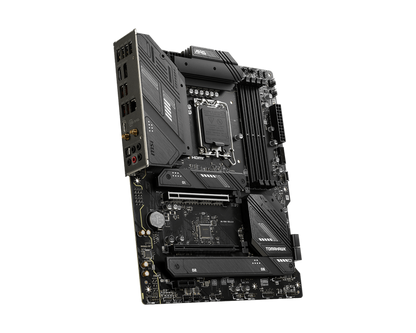

MSI MAG B760 TOMAHAWK WIFI DDR5 LGA1700 MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

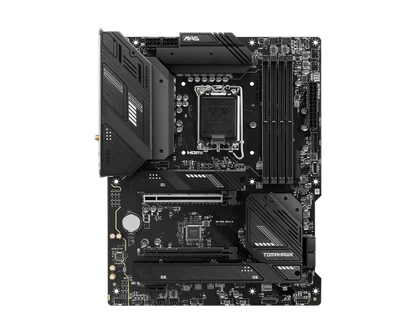

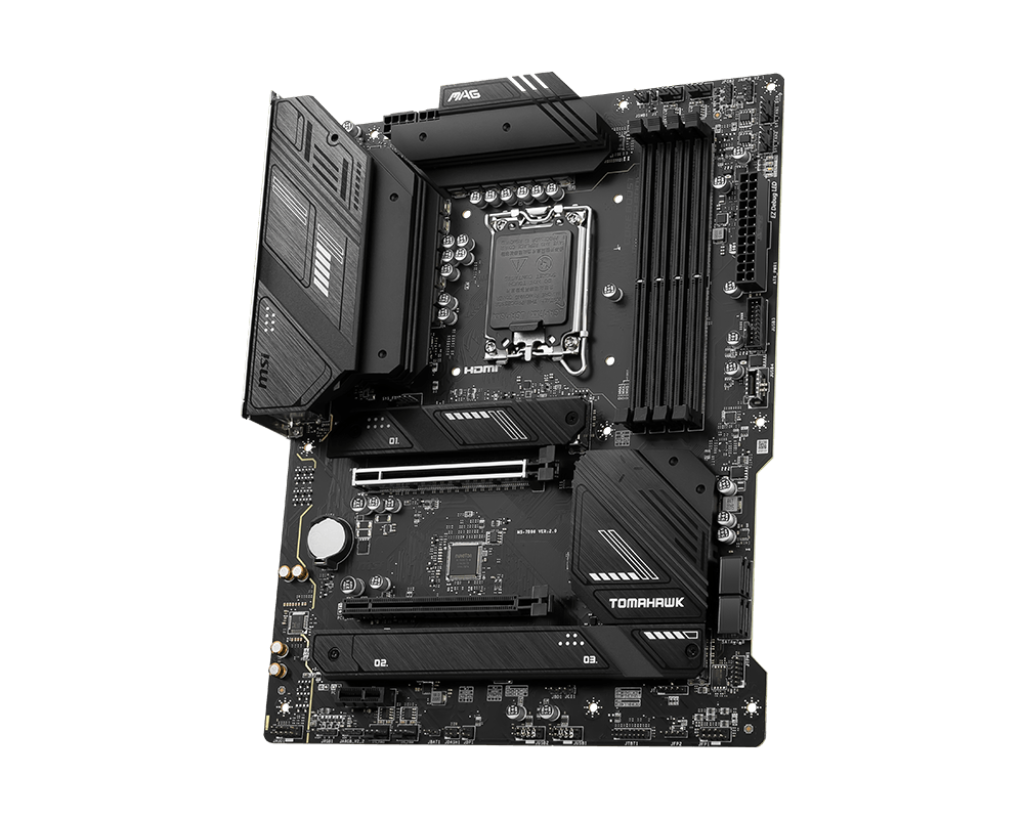

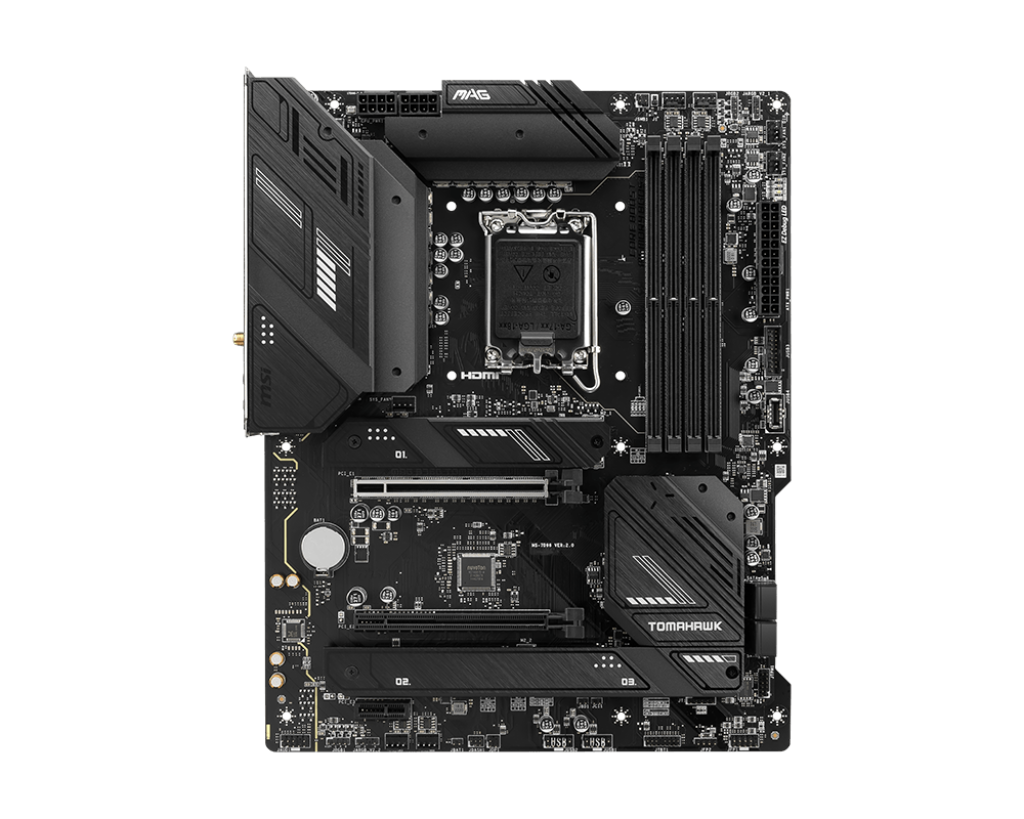

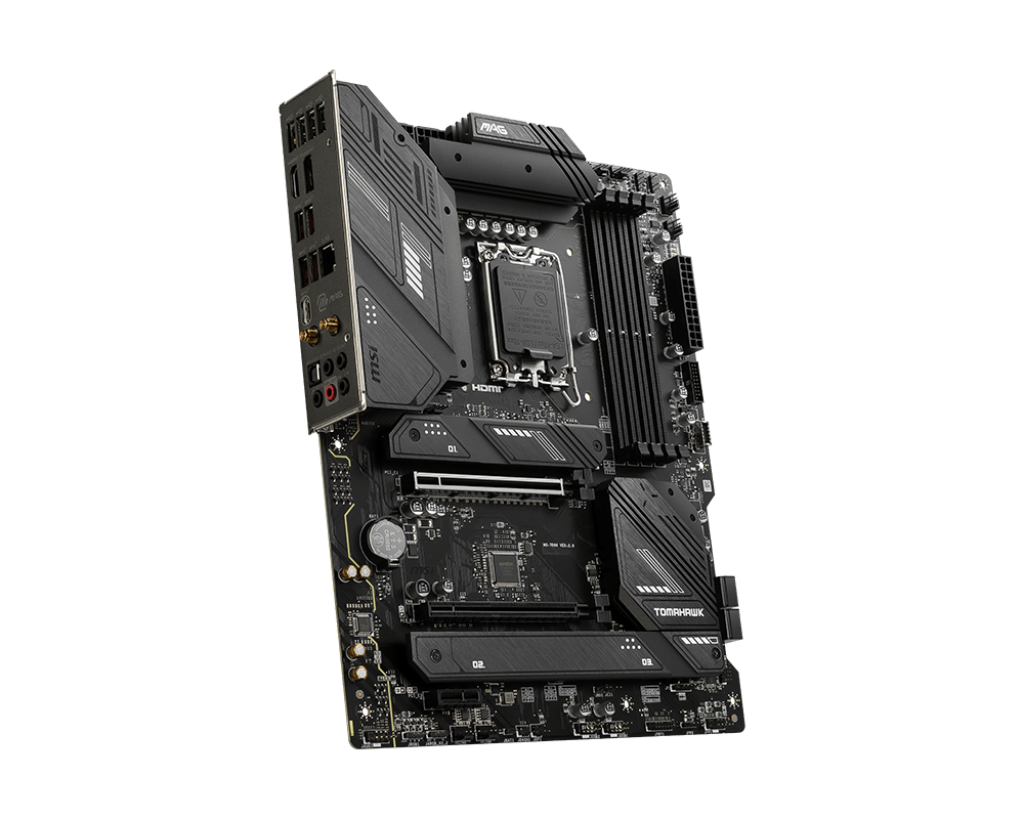

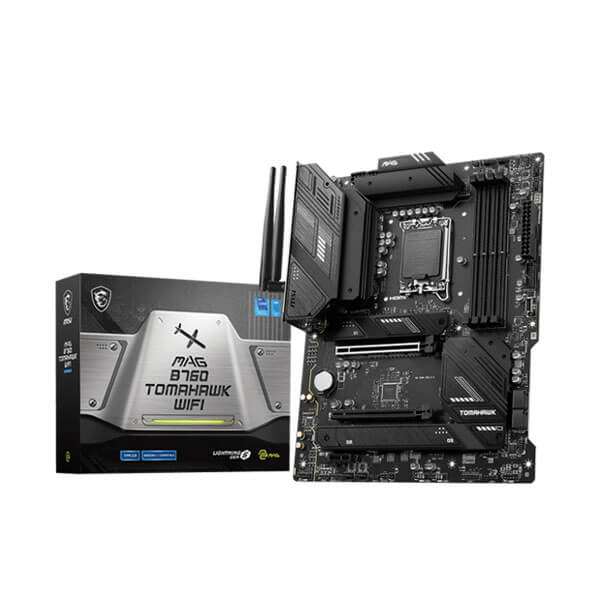

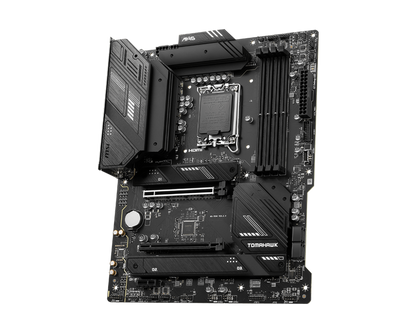

The MSI MAG B760 TOMAHAWK WIFI DDR5 LGA1700 Motherboard is built to power your next-generation system. Designed for the latest processors, this motherboard features support for DDR5 memory and integrated WIFI, providing a strong foundation for both gaming and productivity.
Key Features at a Glance
- LGA1700 socket for compatible processors
- Supports high-speed DDR5 memory technology
- Integrated WIFI for wireless network connectivity
- Part of the robust MSI MAG series
Next-Gen Performance with DDR5 Support
Unlock faster data processing and improved system responsiveness with DDR5 memory support. This motherboard is engineered to leverage the full potential of modern memory modules, essential for demanding applications and games.
Seamless Connectivity with Integrated WiFi
Experience the convenience of wireless networking without additional adapters. The integrated WIFI feature provides reliable and fast internet access, making it easier to connect to your home network and peripherals.
Reliable Platform for LGA1700 Processors
Build your system with confidence on a motherboard designed for LGA1700 socket processors. This ensures broad compatibility with a range of modern CPUs, offering a stable and efficient computing environment.
Technical Specifications
| Model | MAG B760 TOMAHAWK WIFI |
| Chipset | INTEL B760 |
| CPU SUPPORT |
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
| Onboard Graphics | 1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek 2.5Gbps LAN |
| WIRELESS / BLUETOOTH |
Intel Wi-Fi 6E Supports Bluetooth® 5.3, FIPS, FISMA |
| Audio | Realtek ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |

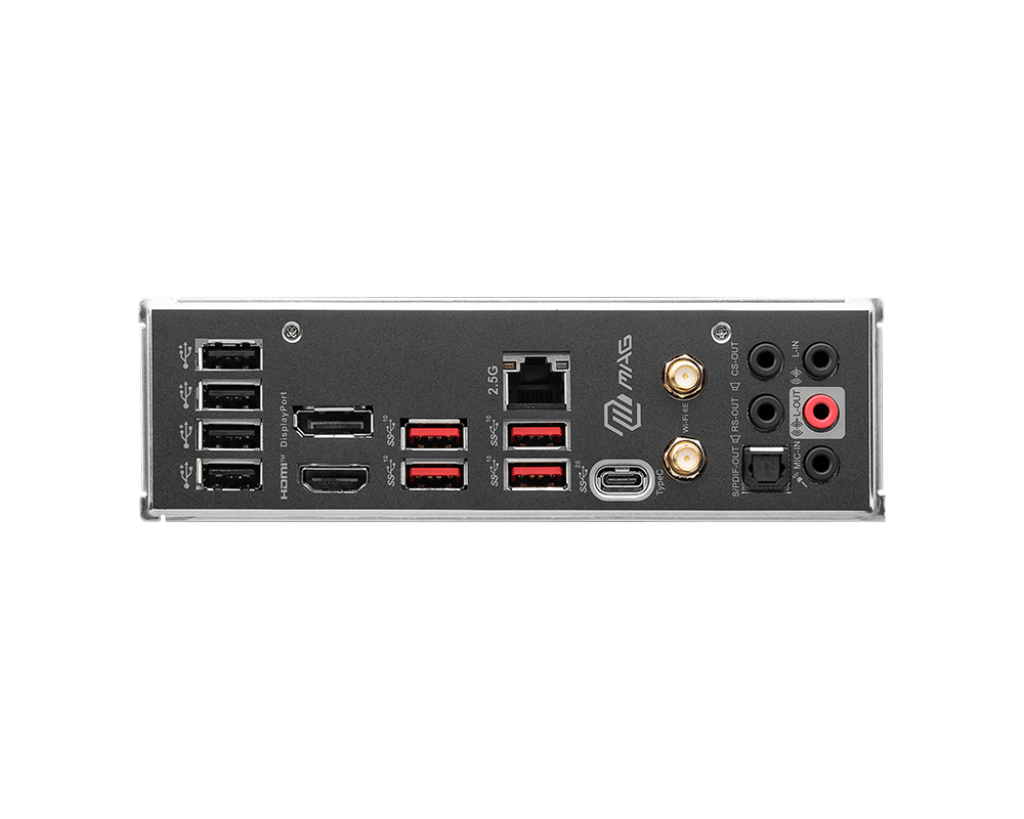

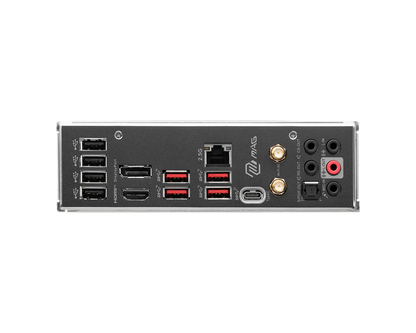

| BACK PANEL PORTS | USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What type of memory does the MSI MAG B760 TOMAHAWK WIFI motherboard support?
A: This motherboard is designed to support DDR5 memory technology.
Q: Which CPU socket is compatible with this MSI motherboard?
A: The MSI MAG B760 TOMAHAWK WIFI motherboard features the LGA1700 socket.
Q: Does this motherboard include built-in wireless connectivity?
A: Yes, it comes with integrated WIFI for convenient wireless networking.
