Save 29%

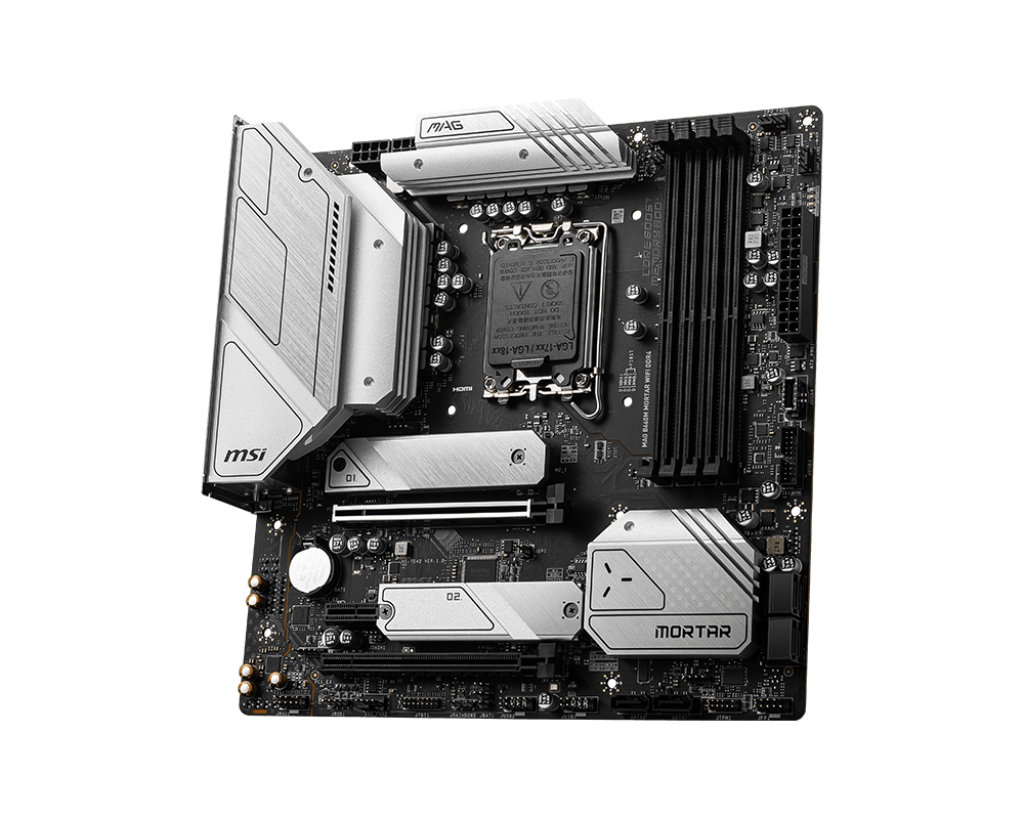

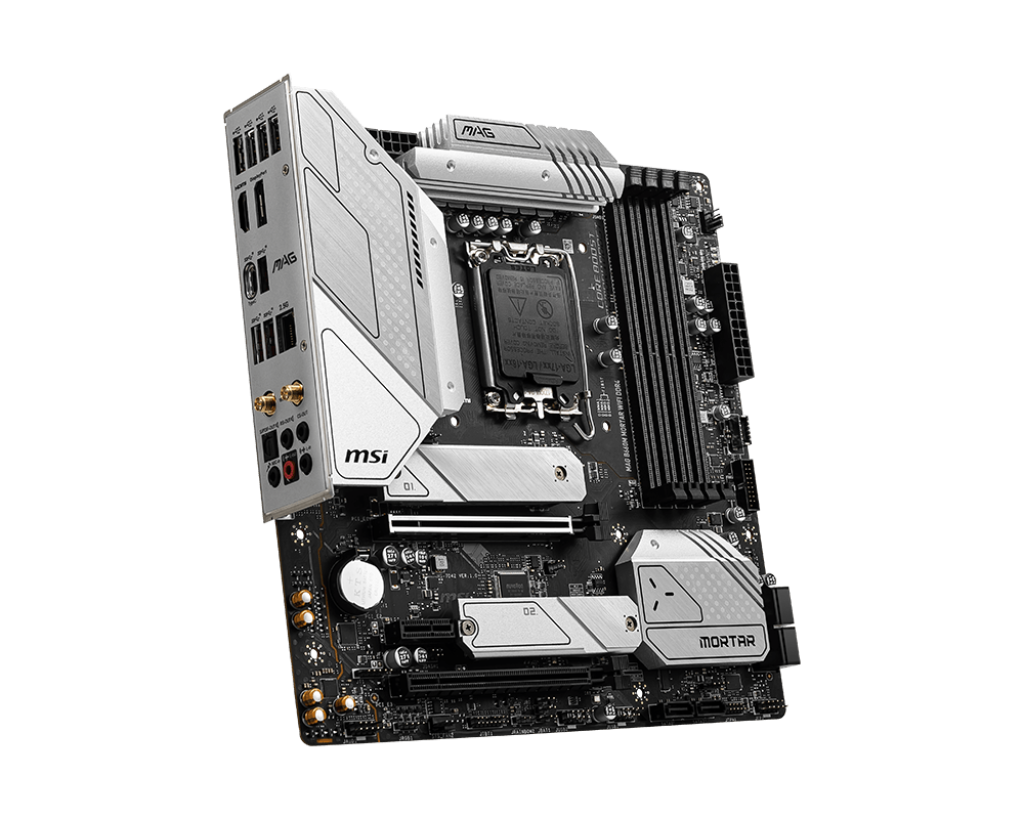

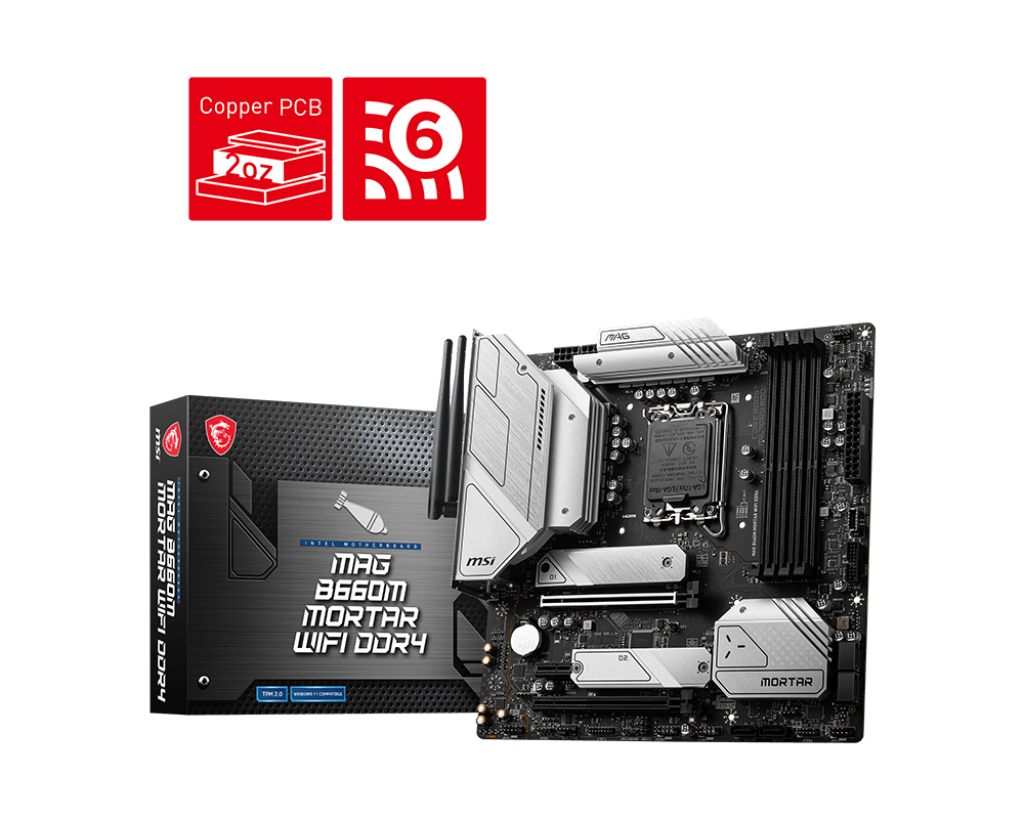

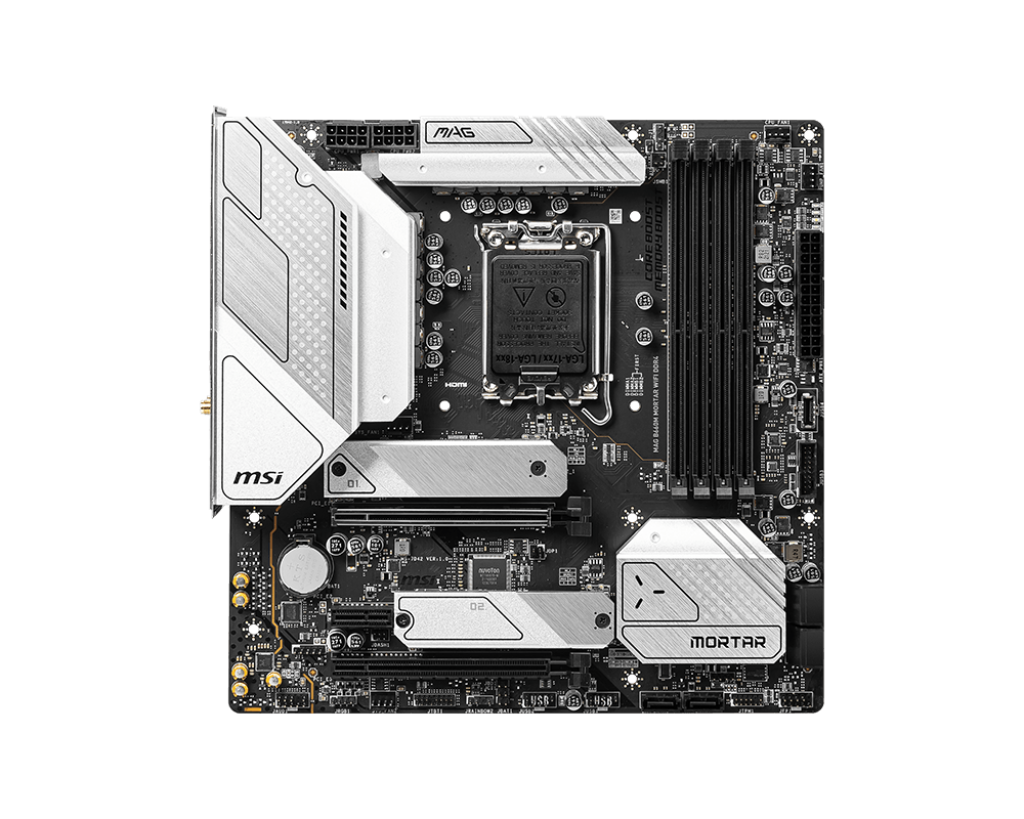

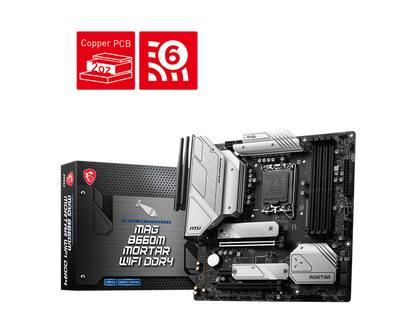

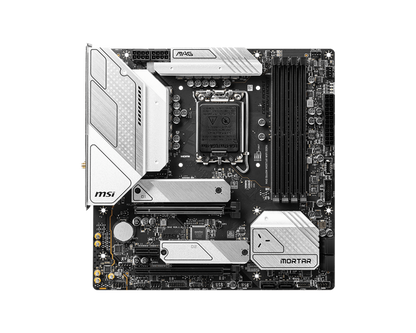

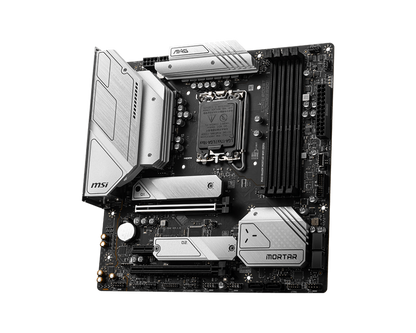

MSI MAG B660M MORTAR WIFI DDR4 INTEL LGA1700 MOTHERBOARD
Sale priceRs. 15,719.00Regular price
Rs. 22,100.00
Out of stock
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Specifications
| Processor | Supports 12th Gen Intelà Coreô, Pentiumà Gold and Celeronà processors 1 |
| Processor socket LGA1700 | |
| Chipset | Intelà B660 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB 1 |
| Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) | |
| Max overclocking frequency: | |
| 1DPC 1R Max speed up to 4800+ MHz | |
| 1DPC 2R Max speed up to 4000+ MHz | |
| 2DPC 1R Max speed up to 4000+ MHz | |
| 2DPC 2R Max speed up to 3600+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intelà Extreme Memory Profile (XMP) | |
| Expansion Slot | 2x PCIe x16 slots |
| PCI_E1 slot (From CPU) | |
| Supports PCIe 4.0 x16 | |
| PCI_E3 slot (From B660 Chipset) | |
| Supports PCIe 3.0 x4 | |
| 1x PCIe 3.0 x1 slot | |
| Multi-GPU | Supports 2-Way AMDà CrossFireô Technology |
| Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 |
| 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 | |
| Available only on processors featuring integrated graphics. | |
| Graphics specifications may vary depending on the CPU installed. | |
| Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1 |
| 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) | |
| 2x M.2 slots (Key M) | |
| M2_1 slot (From CPU) | |
| Supports PCIe 4.0 x4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| M2_2 slot (From B660 Chipset) 1 | |
| Supports PCIe 4.0 x4 | |
| Supports SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| Supports Intelà Optaneô Memory | |
| SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 |
| SATA_A & SATA_B do not support RAID function. | |
| USB | Intelà B660 Chipset |
| 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel | |
| 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector | |
| 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector | |
| 4x USB 2.0 ports on the back panel | |
| USB Hub-GL3590 | |
| 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel | |
| USB Hub-GL850G | |
| 4x USB 2.0 ports available through internal connectors | |
| Audio | Realtekà ALC1200 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| LAN | 1x Realtekà 8125BG 2.5Gbps LAN controller |
| Wireless LAN & Bluetoothà | Intelà Wi-Fi 6 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetoothà 5.2 | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 2x 8-pin ATX 12V power connectors | |
| 6x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 2 10Gbps Type-C connector | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 2x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x Clear CMOS jumper | |
| 1x TPM module connector | |
| 1x TBT connector (supports RTD3) | |
| 1x Tuning Controller connector | |
| LED Feature | 4x EZ Debug LED |
| 1x 4-pin RGB LED connector | |
| 2x 3-pin RAINBOW LED connectors | |

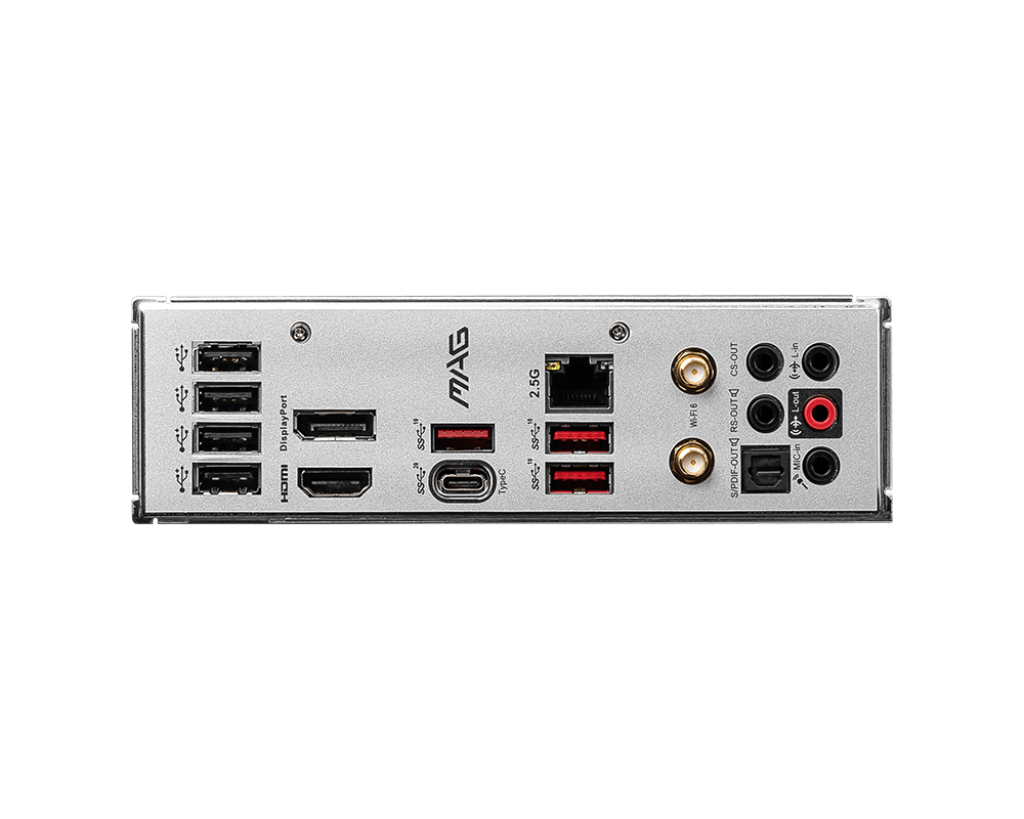

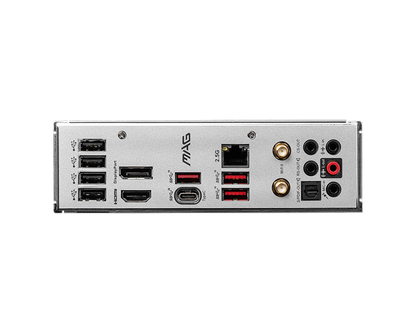

| Back panel ports | USB 2.0 Port |
| DisplayPort 1.4 | |
| USB 3.2 Gen 2 10Gbps Type-A | |
| 2.5G LAN Port | |
| Wi-Fi / Bluetooth Antenna | |
| HD Audio Connectors | |
| HDMI 2.1 Port | |
| USB 3.2 Gen 2x2 20Gbps Type-C | |
| Optical S/PDIF OUT | |
| Dimensions | Micro-ATX Form Factor |
| 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
| Warranty | 3 Years |
