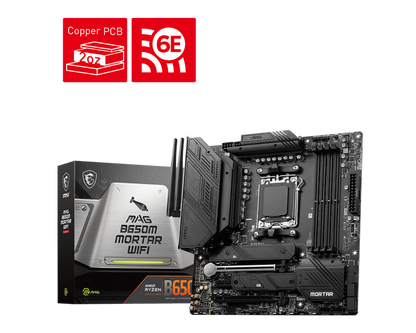

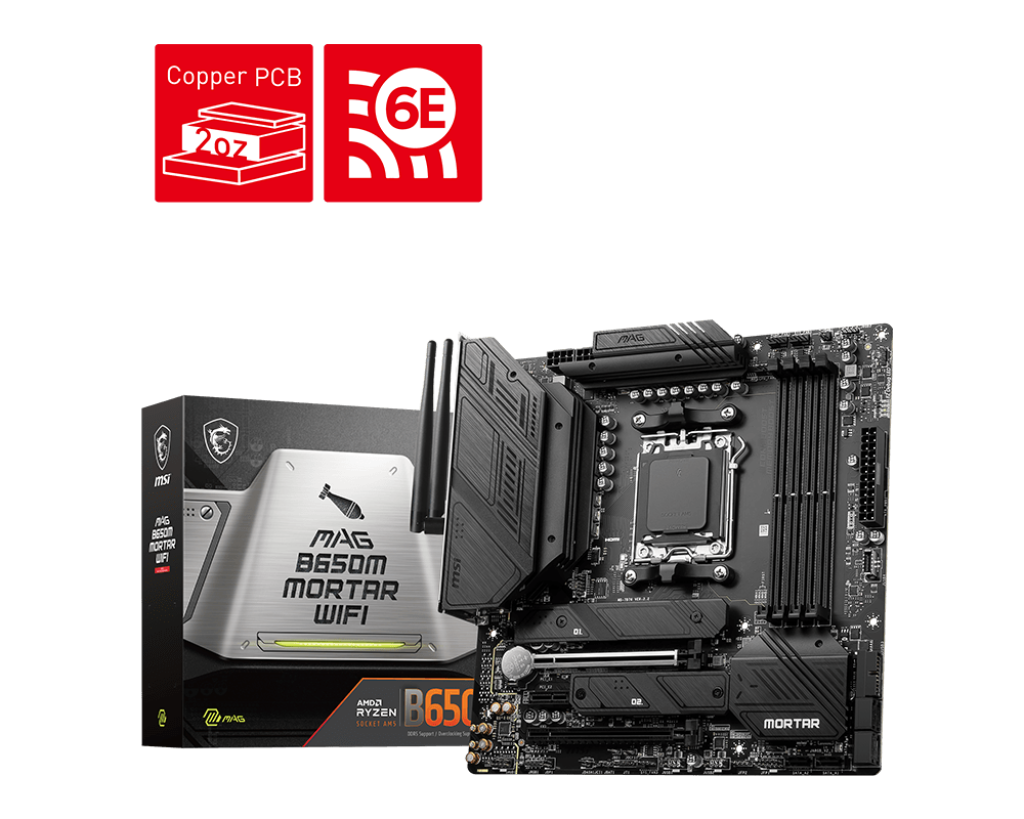

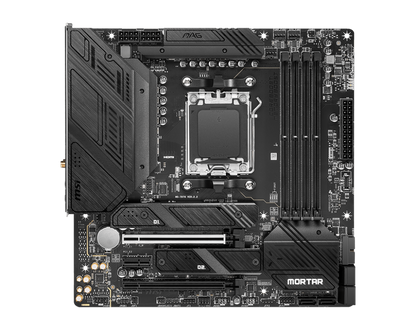

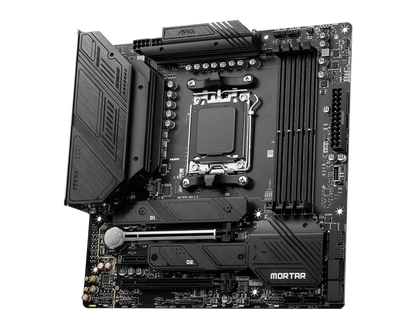

MSI MAG B650M MORTAR WIFI DDR5 MOTHERBOARD
MSI MAG B650M MORTAR WIFI DDR5 MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

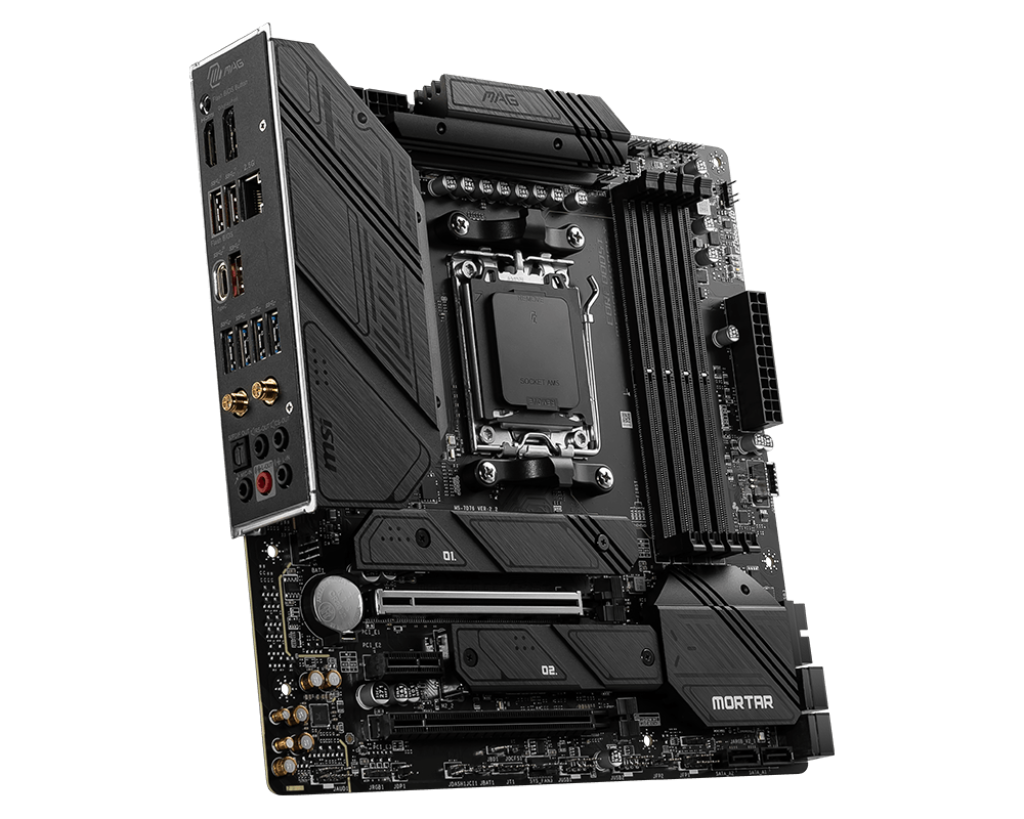

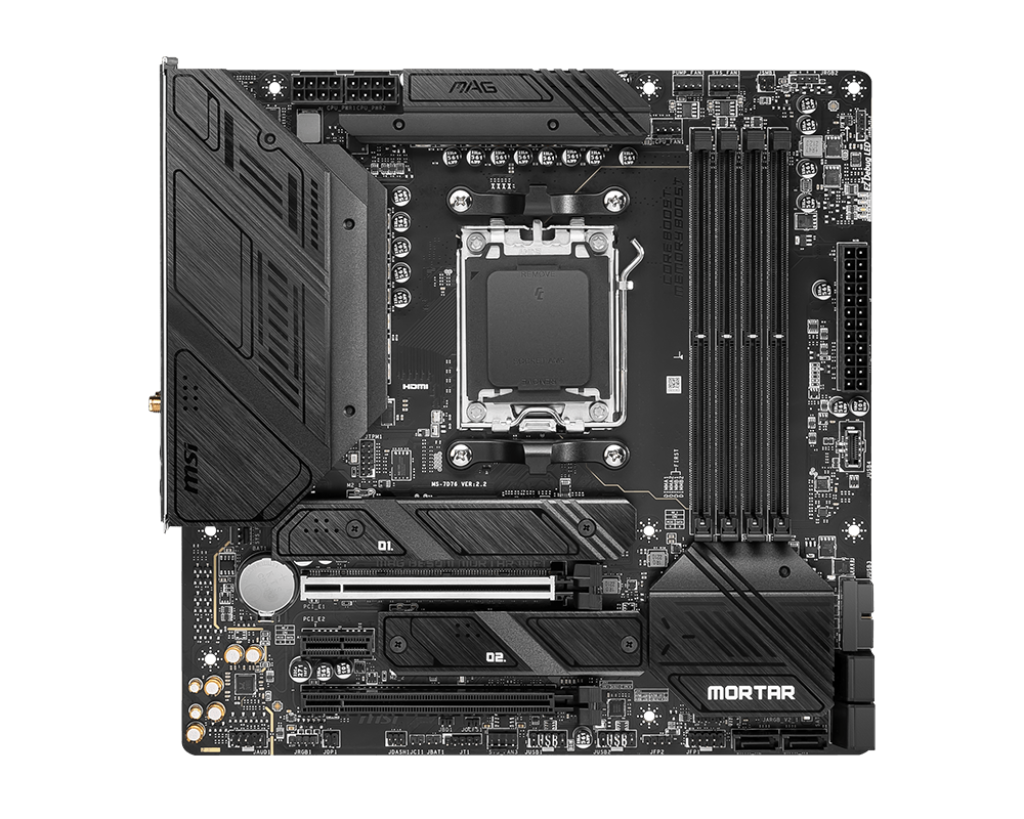

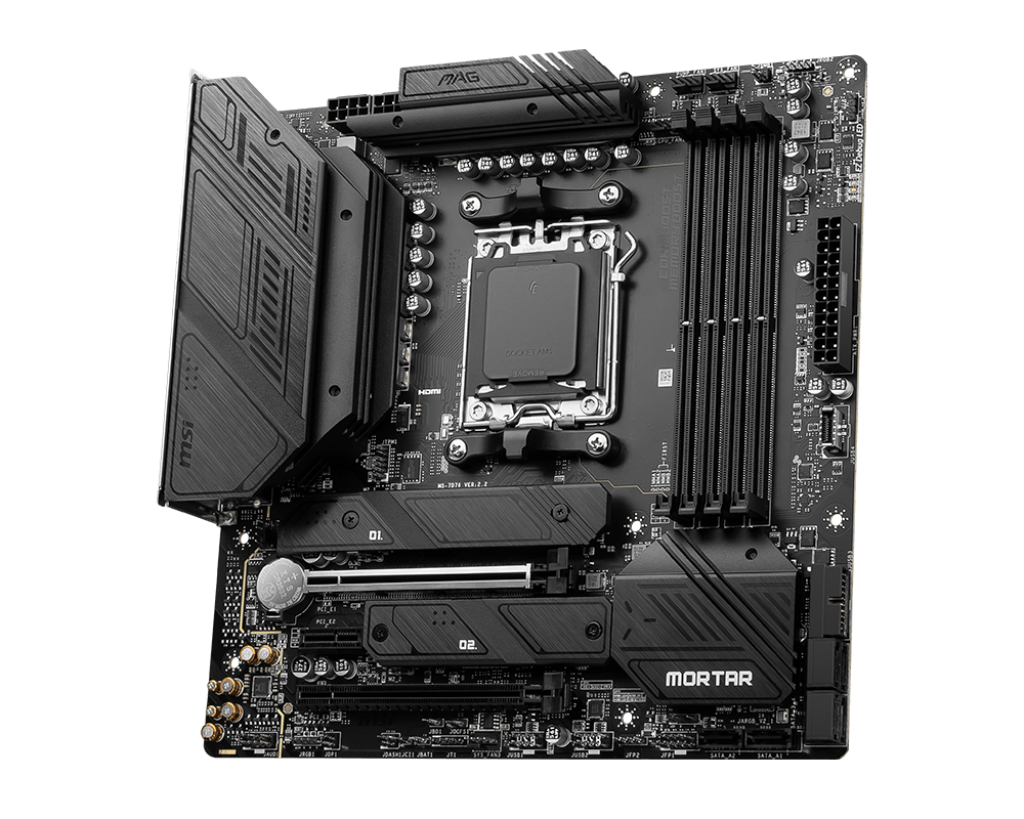

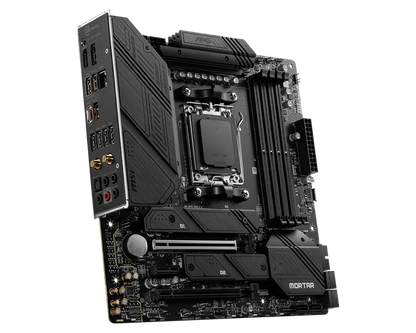

Elevate your computing experience with the MSI MAG B650M MORTAR WIFI DDR5 Motherboard. Designed to provide a robust foundation for your system, this motherboard combines essential features like DDR5 memory support and integrated WIFI connectivity, ensuring a capable and connected build for various uses.
Key Features at a Glance
- MSI MAG B650M MORTAR WIFI DDR5 Motherboard
- Supports DDR5 memory technology
- Integrated WIFI for wireless connectivity
- Built with the B650M chipset
- Part of the MSI MAG series
Integrated Wireless Connectivity
Experience seamless networking with built-in WIFI capabilities. This feature allows for convenient wireless internet access, reducing cable clutter and providing flexibility in your setup.
Next-Generation DDR5 Memory Support
Benefit from advanced system performance thanks to DDR5 memory support. This ensures your system can utilize the latest memory standards for efficient data handling.
Reliable MSI MAG Series Foundation
As part of the MSI MAG series, the B650M MORTAR WIFI DDR5 Motherboard provides a solid and dependable platform for your components. It is engineered to support a stable and functional computing environment.
Technical Specifications
| Chipset | AMD B650 |
|---|---|
| CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7600+ MHz 1DPC 2R Max speed up to 6400+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5400+ MHz |
| Onboard Graphics | 1x HDMI Support HDMITM2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot Supports x16/x4 (For Ryzen 9000 and 7000 Series processors) Supports x8/x4 (For Ryzen 7 8700G and Ryzen 5 8600G processors) Supports x4/x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | RealtekALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G The M2_2 slot will be unavailable when using Ryzen 5 8500G processor |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | RealtekRTL8125B 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth5.3** * Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |

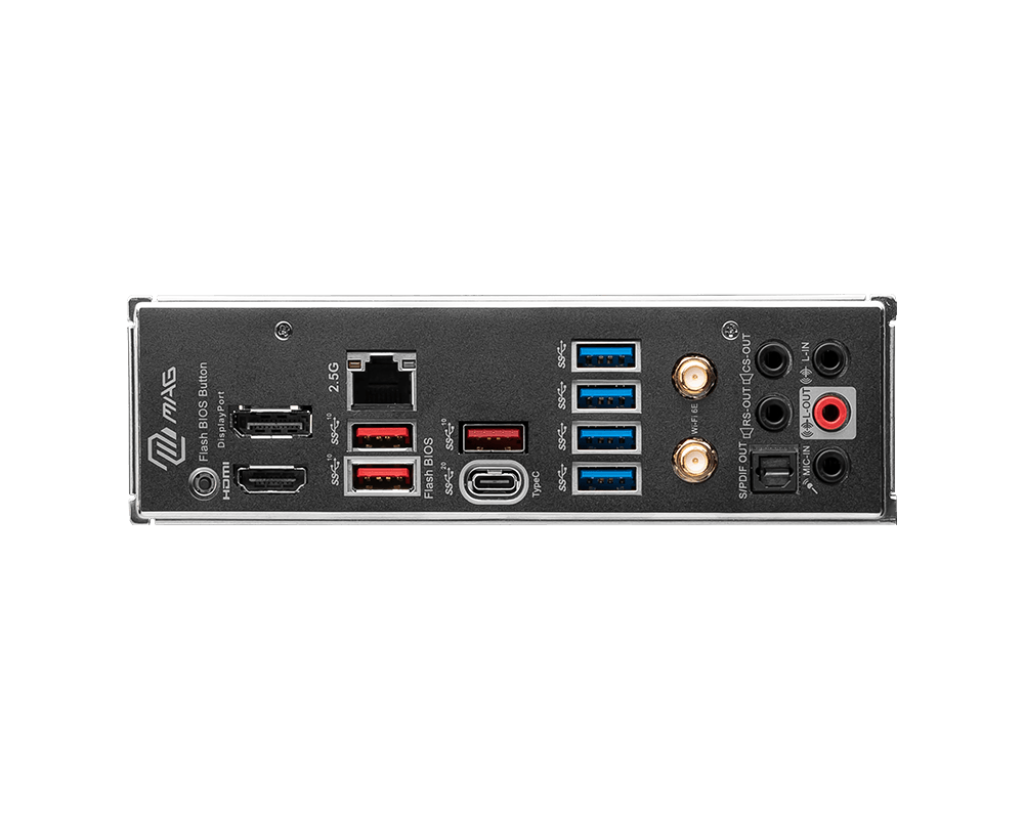

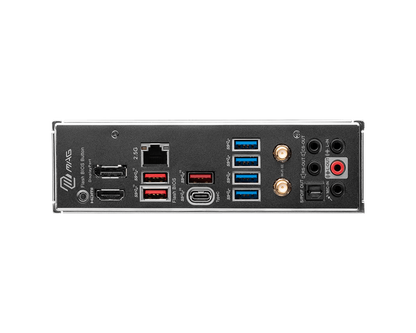

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows11 64-bit, Windows10 64-bit |
| BOX CONTENT |
 |
| PCB Info | mATX 243.84mmx243.84mm |
| Warranty |
3 Years |
Frequently Asked Questions
Q: What type of memory does the MSI MAG B650M MORTAR WIFI DDR5 Motherboard support?
A: This motherboard supports DDR5 memory technology.
Q: Does this motherboard include built-in wireless connectivity?
A: Yes, the MSI MAG B650M MORTAR WIFI DDR5 Motherboard features integrated WIFI.
Q: What is the chipset for this motherboard?
A: The MSI MAG B650M MORTAR WIFI DDR5 Motherboard is built with the B650M chipset.
