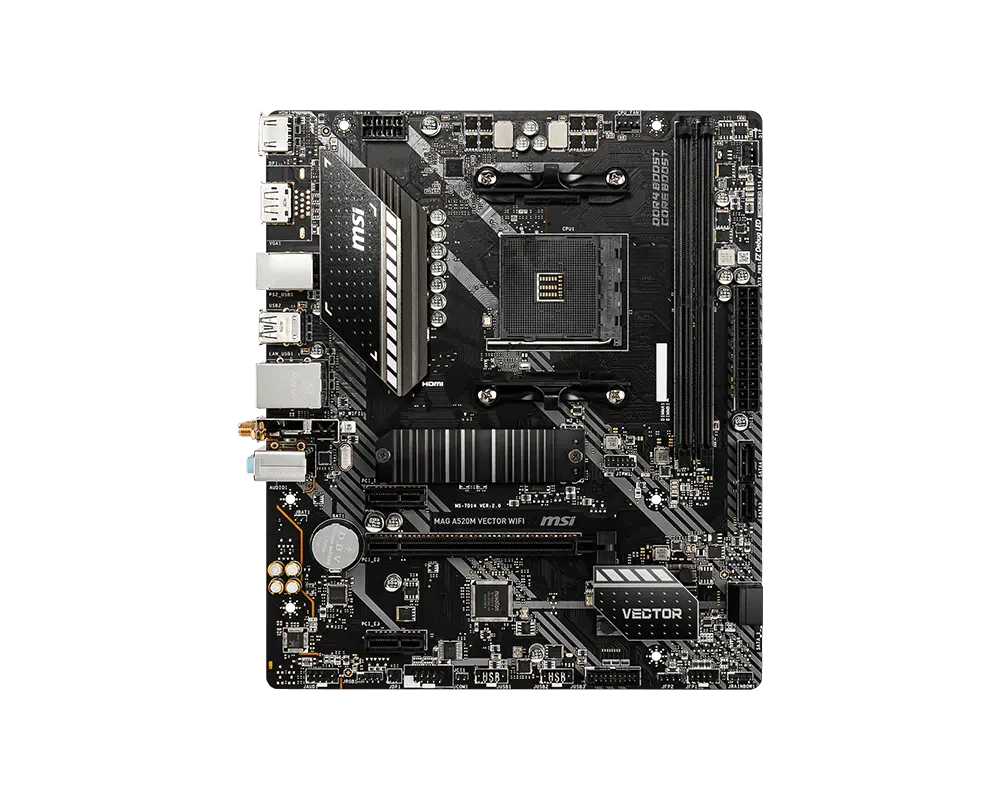

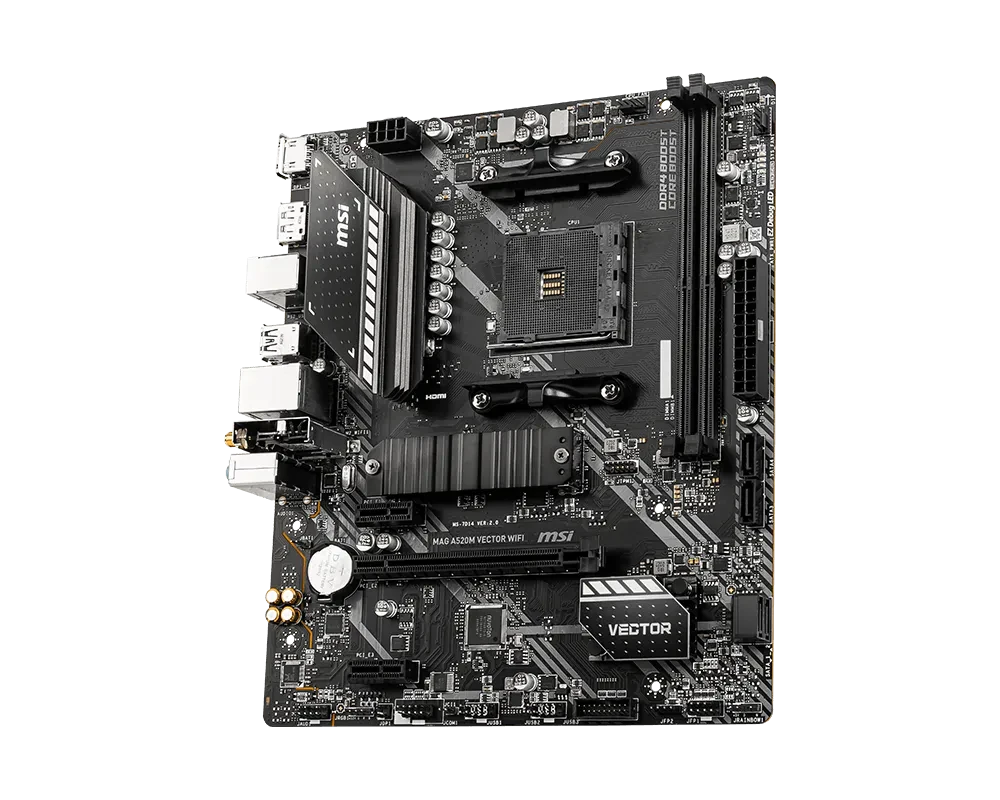

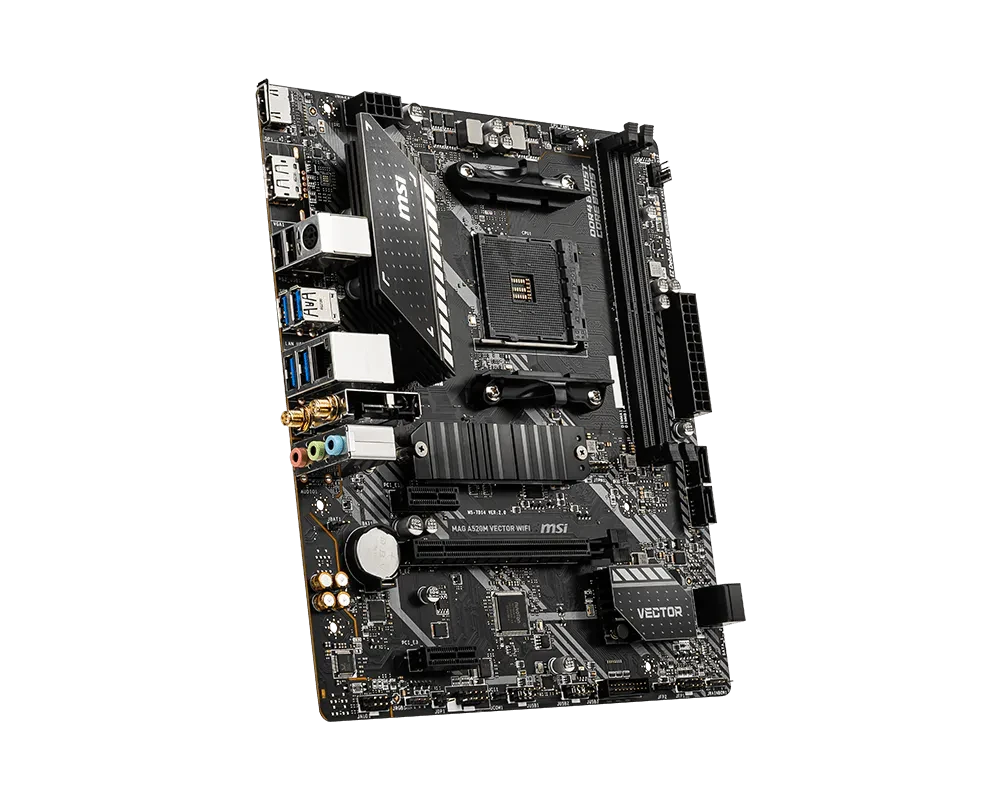

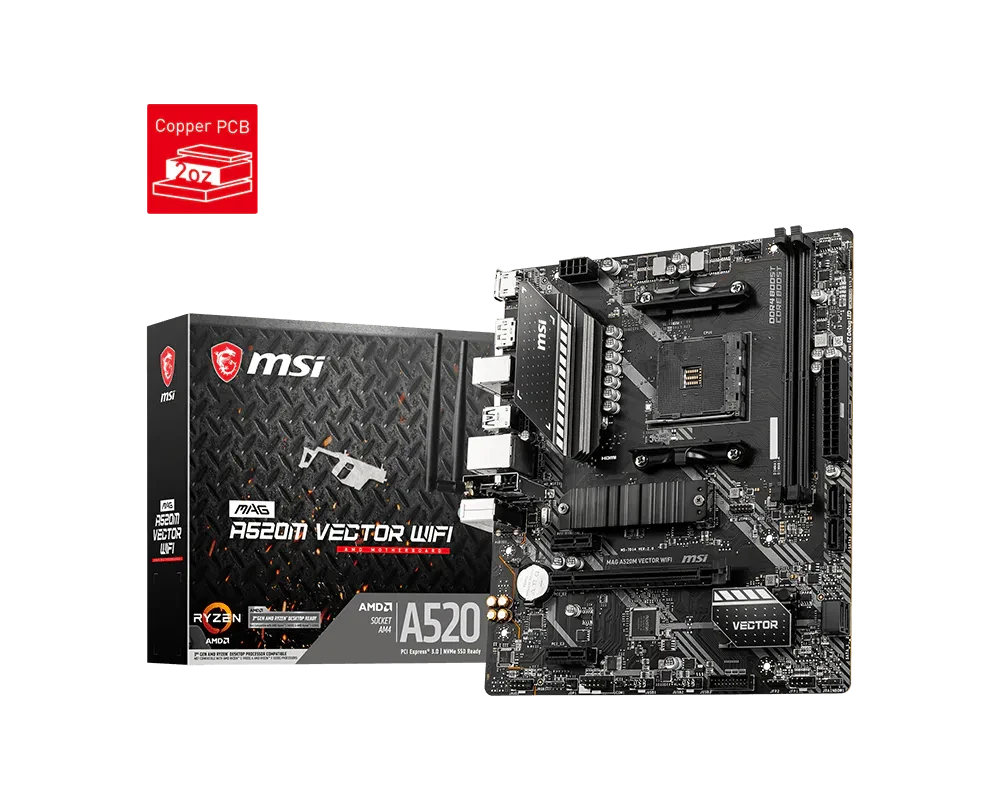

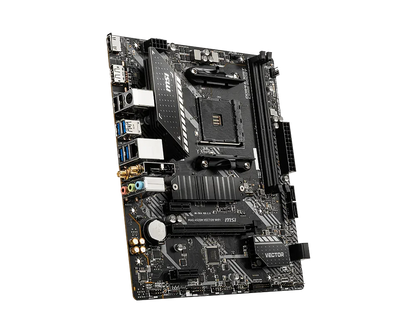

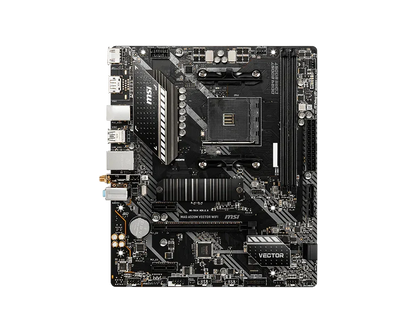

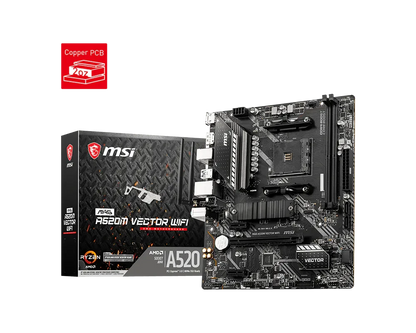

MSI MAG A520M Vector WiFi AM4 Micro ATX Motherboard

Name: MSI MAG A520M Vector WiFi AM4 Micro ATX Motherboard
Brand: MSI
SKU: 1095915
Price: 7150.00 INR
Availability: OutOfStock

Rs. 7,150.00 Rs. 10,804.00

Product variants

Out of stock

{"description_html": "

The MSI MAG A520M Vector WiFi AM4 Micro ATX Motherboard is engineered for entry-level gamers seeking a reliable and user-friendly foundation for their build. Part of the robust MAG series, this motherboard is born from rigorous quality testing, ensuring a sturdy and durable platform for your system.

Key Features at a Glance

Born from rigorous quality testing
Designed for sturdiness and durability
Focused on providing the best user experience
Simple installation process
Features a friendly user interface
Ideal choice for entry-level gamers

Engineered for Reliability

Built upon the rigorous quality testing synonymous with the MAG series, this motherboard offers exceptional sturdiness and durability, providing a stable and trustworthy platform for your gaming PC.

Seamless Setup & Use

Designed with the best user experience in mind, the MSI MAG A520M Vector WiFi ensures a simple installation process. Its friendly user interface makes it easy for anyone to get their system up and running.

Optimized for New Builders

Recognized as the best choice for entry-level gamers, this motherboard combines essential performance with straightforward usability, empowering new enthusiasts to build and "conquer the battlefield" with confidence.

Technical Specifications

CPU	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Chipset	AMD A520 Chipset
Memory	2x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slot	1x PCIe 3.0 x16 slot (From AMD processor) Supports x16 speed with Ryzen 5000, 5000G, 4000G and 3000 processors Supports x8 speed with Ryzen 3000G processors Supports x4 speed with AMD® Athlon with Radeon Graphics processors 2x PCIe 3.0x1 slots
Onboard Graphics	1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Support HDCP 1.4 & 2.3 1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 16GB
Storage	AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (From AMD processor, Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen 5000, 5000G, 4000G, 3000 and 3000G processors Supports SATA 6Gb/s with Athlon with Radeon Vega Graphics processors Supports 2242/ 2260/ 2280 storage devices
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB	AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek RTL8111H LAN controller
Wireless LAN & Bluetooth	WIFI 5 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper

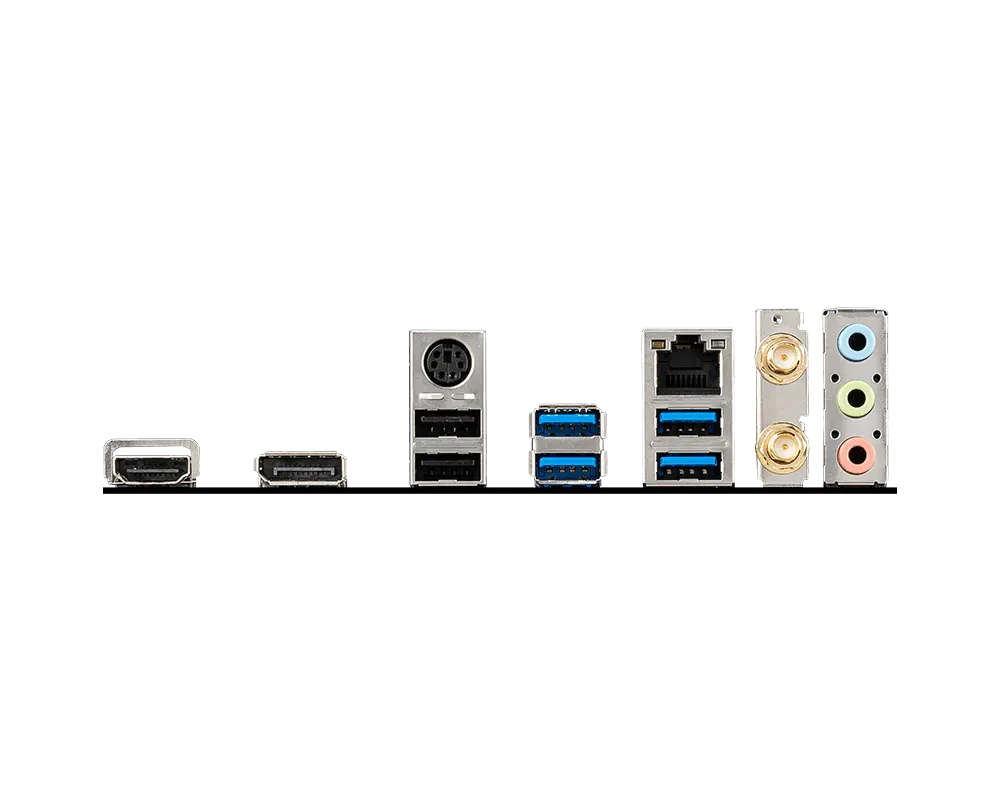

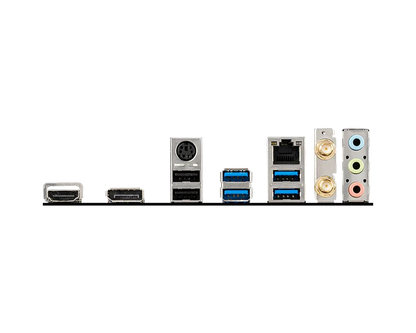

Back panel ports	Keyboard / Mouse LAN port Wi-Fi Antenna connectors Audio Connectors HDMI™ DisplayPort USB 2.0 Ports USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A
Dimensions	M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm)
MOUNTING	M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm)

Frequently Asked Questions

Q: What makes the MAG series distinct?

A: The MAG series is known for being born through rigorous quality testing and designed to be a symbol of sturdiness and durability.

Q: Is the installation process user-friendly?

A: Yes, the MAG series motherboards, including this model, have a simple installation process, focusing on the best user experience.

Q: Who is this motherboard best suited for?

A: It is described as the best choice for entry-level gamers due to its user-friendly design and robust construction.
