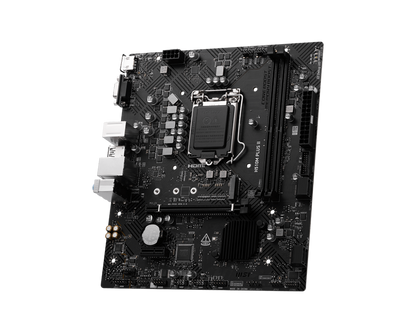

MSI H510M PLUS II M-ATX MOTHERBOARD
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

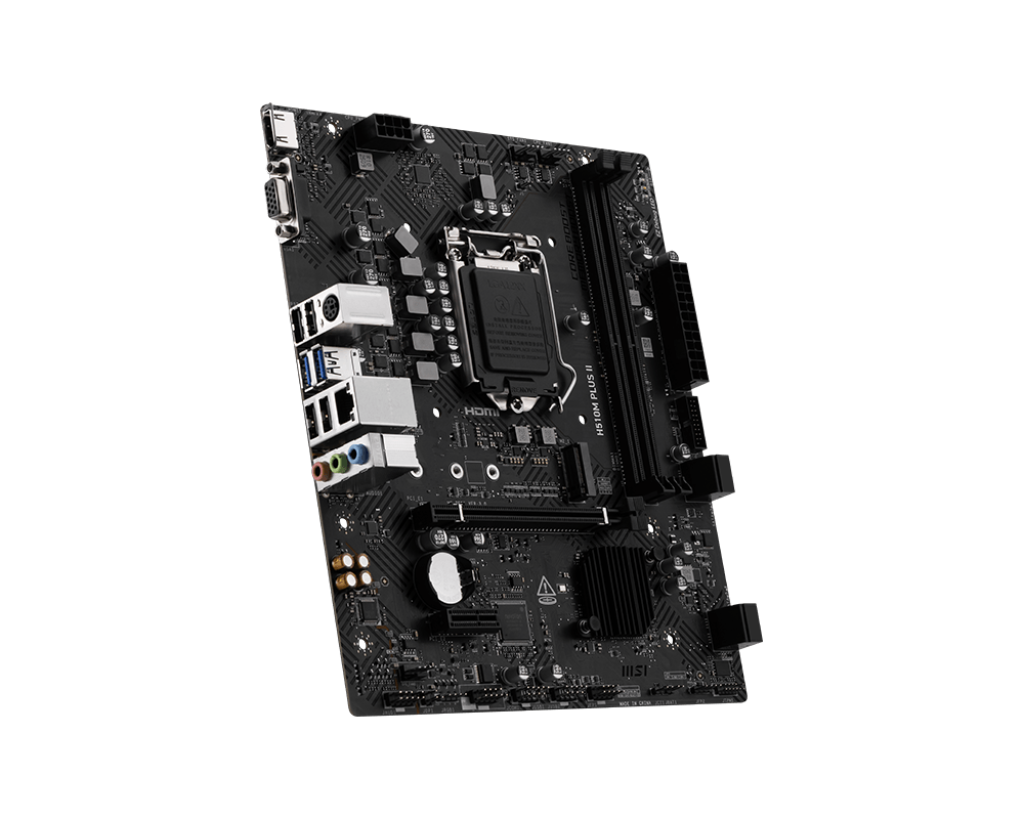

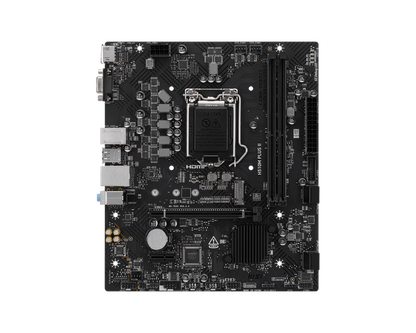

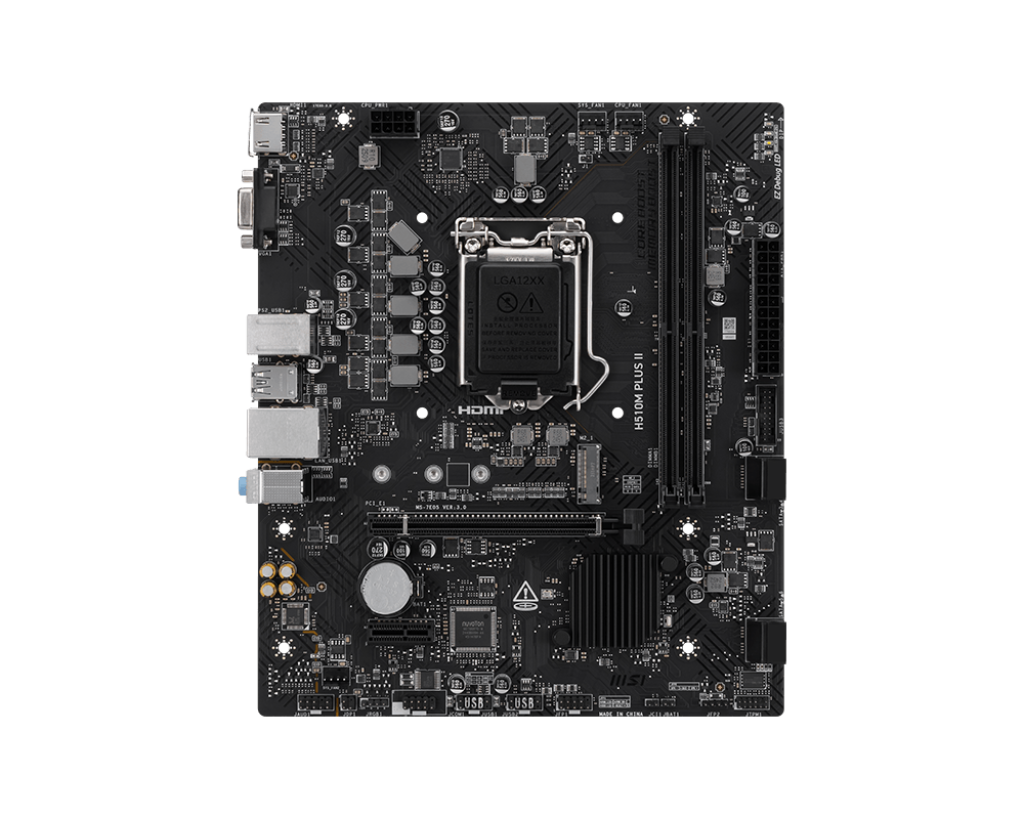

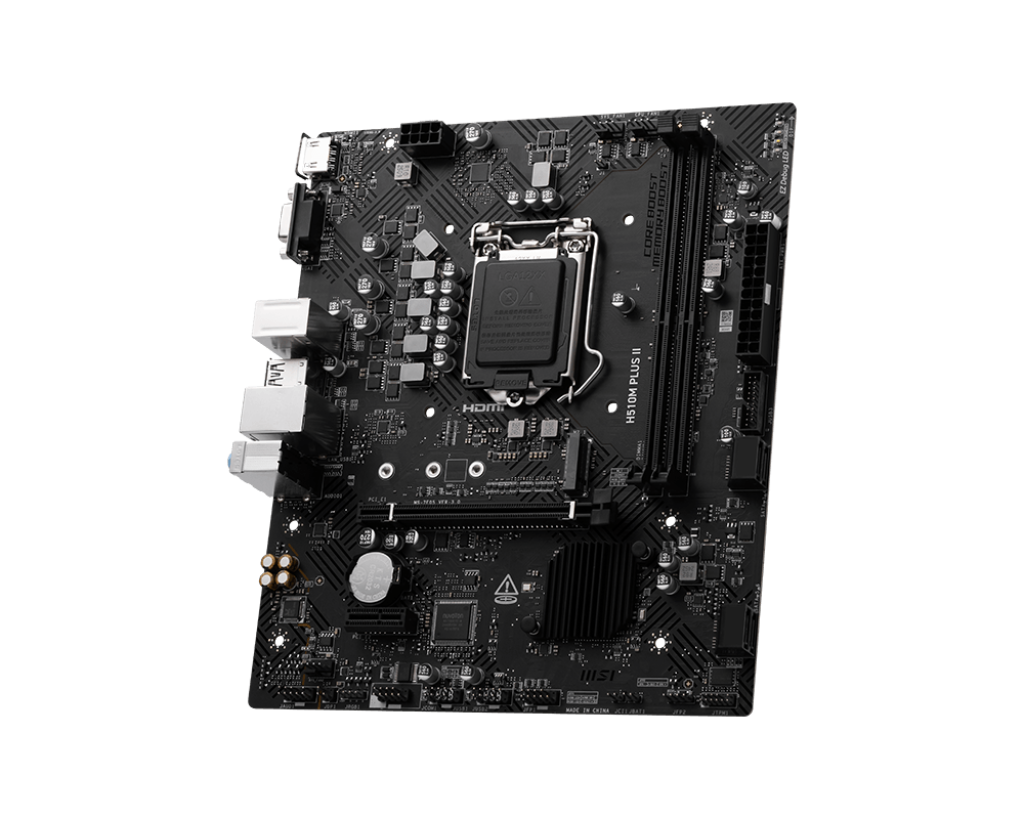

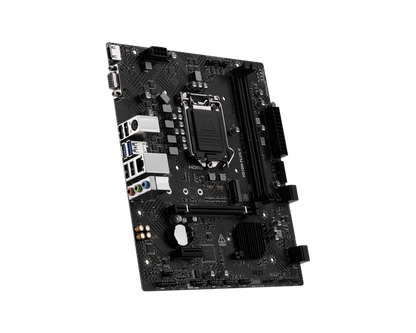

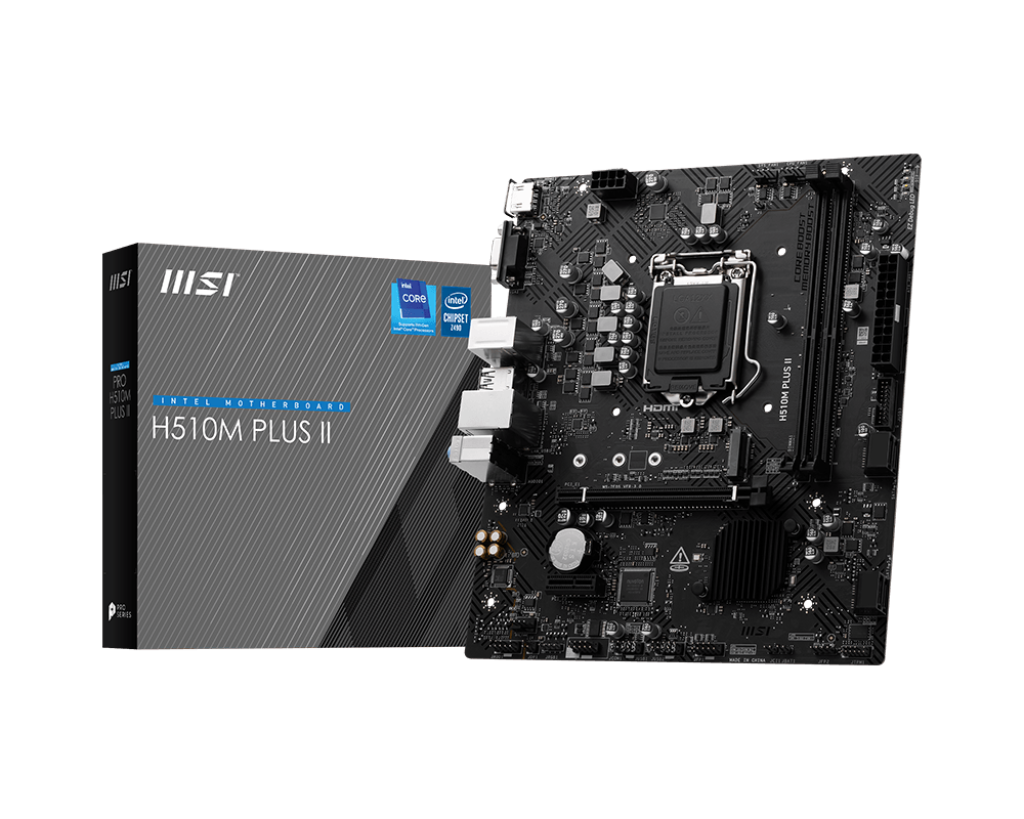

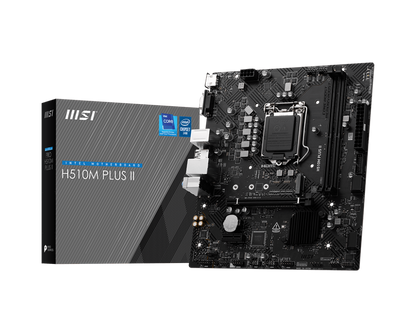

The MSI H510M PLUS II M-ATX Motherboard provides a robust and compact foundation for building your next PC. Designed to integrate essential components, this M-ATX board combines reliable characteristics with an efficient form factor, making it suitable for a variety of system setups.
Key Features at a Glance
- MSI H510M PLUS II Motherboard
- Micro-ATX (M-ATX) form factor
- Features the H510M chipset
- Optimized for efficient system integration
Compact System Integration
The Micro-ATX form factor allows for building space-efficient systems, ideal for users looking to optimize their PC footprint while still accommodating essential components. This ensures a streamlined build without compromising functionality.
Reliable Foundation
As an MSI motherboard, the H510M PLUS II provides a stable and dependable platform for your computing needs. It is built to support core system operations efficiently, offering peace of mind for daily use.
Technical Specifications
| Chipset | INTEL Z490 |
|---|---|
| CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for IntelCore i9/ Core i7 CPU Supports 1R 2133/ 2666 MHz for IntelCore i5/ Core i3/ PentiumGold and CeleronCPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports IntelExtreme Memory Profile (XMP) |
| Onboard Graphics | 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | RealtekALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | Realtek8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LED FEATURE | 4x EZ Debug LED |

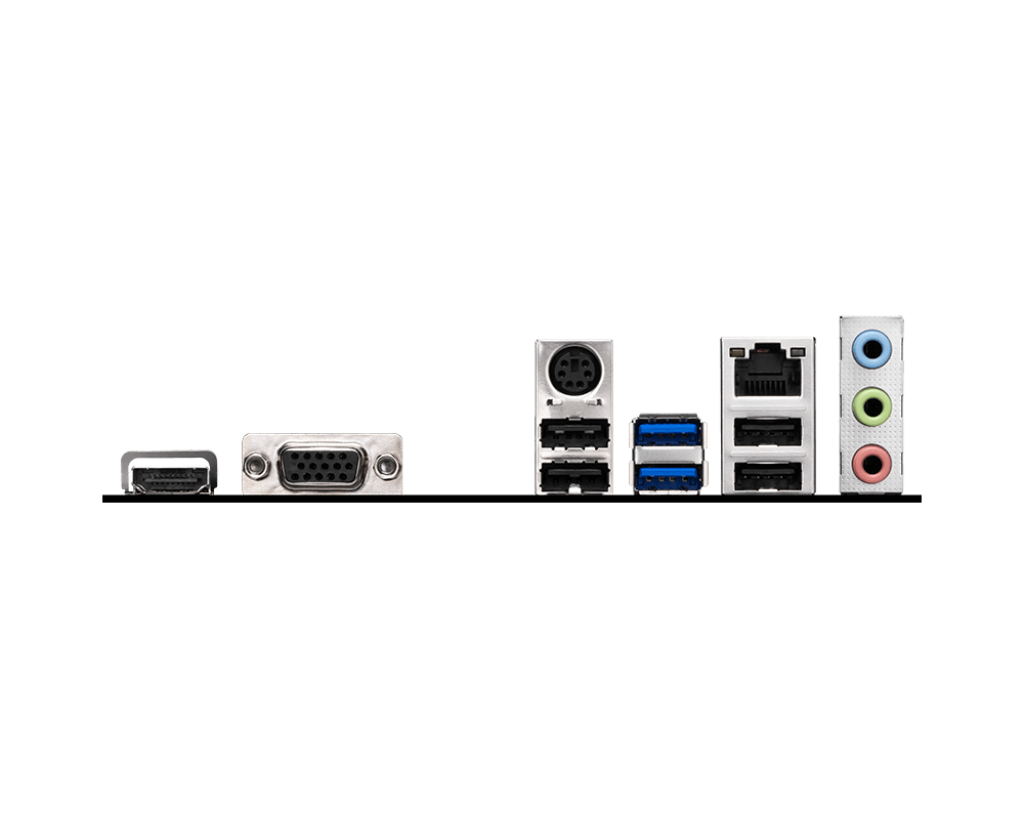

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows11 64-bit, Windows10 64-bit |
Frequently Asked Questions
Q: What is the form factor of this motherboard?
A: The MSI H510M PLUS II is a Micro-ATX (M-ATX) motherboard, designed for compact system builds.
Q: Which brand manufactures this motherboard?
A: This motherboard is manufactured by MSI, a leading brand in PC hardware.
Q: Where can I find detailed specifications for this product?
A: Comprehensive technical specifications for the MSI H510M PLUS II Motherboard are available in the "Technical Specifications" section directly above.
