Specifications



Specification Details
Socket N/A (Graphics card uses PCIe slot, not CPU socket)

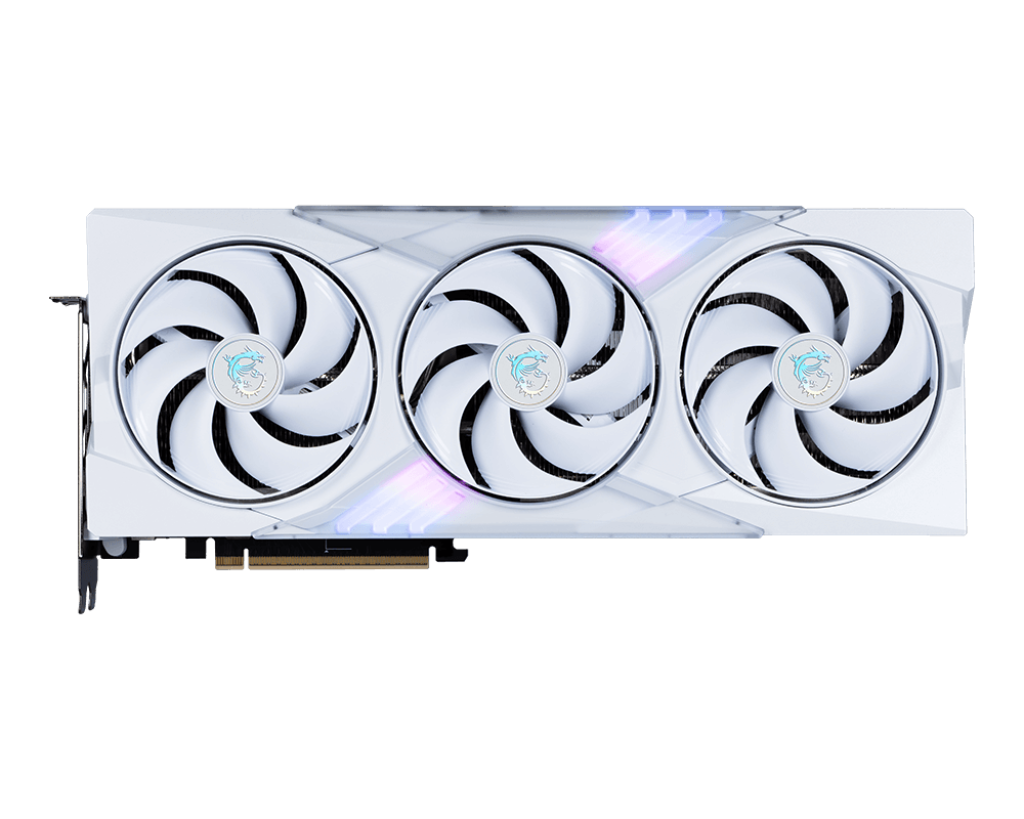

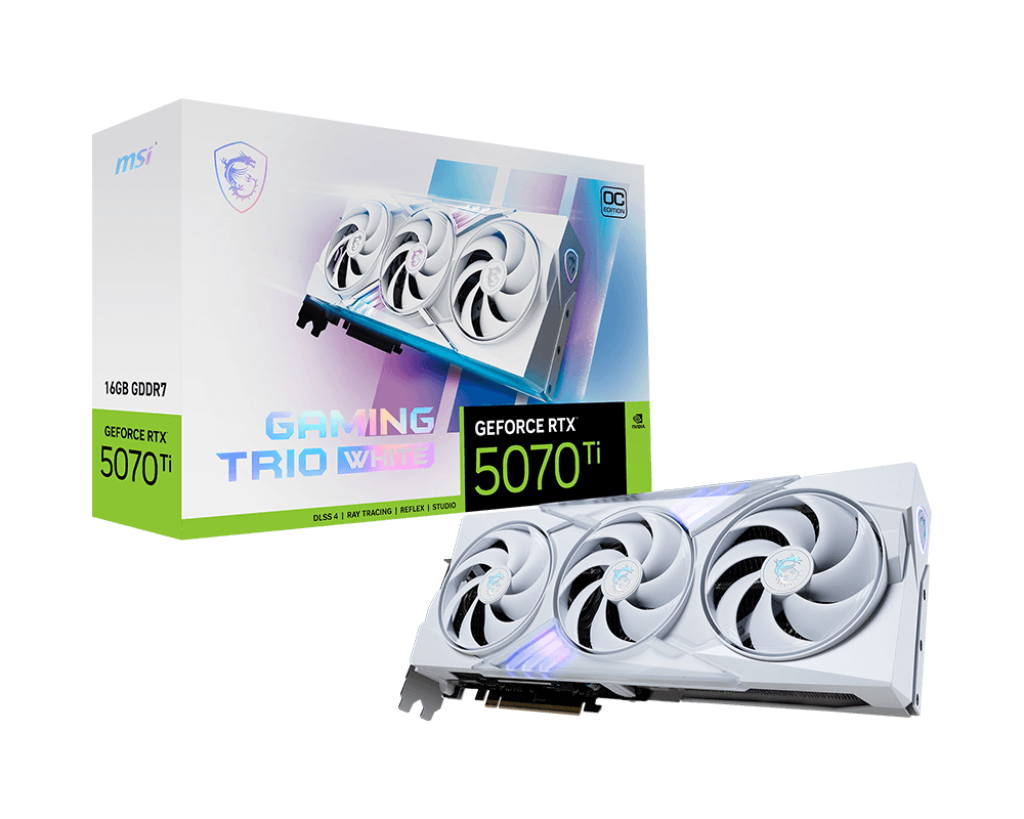

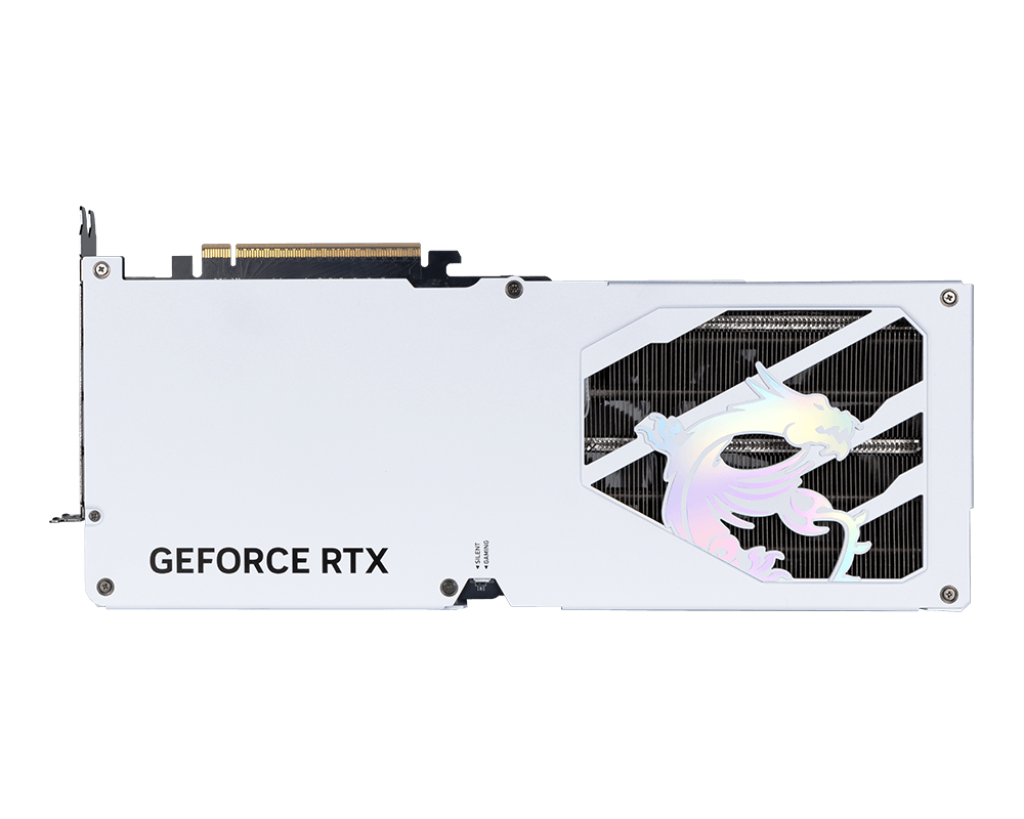

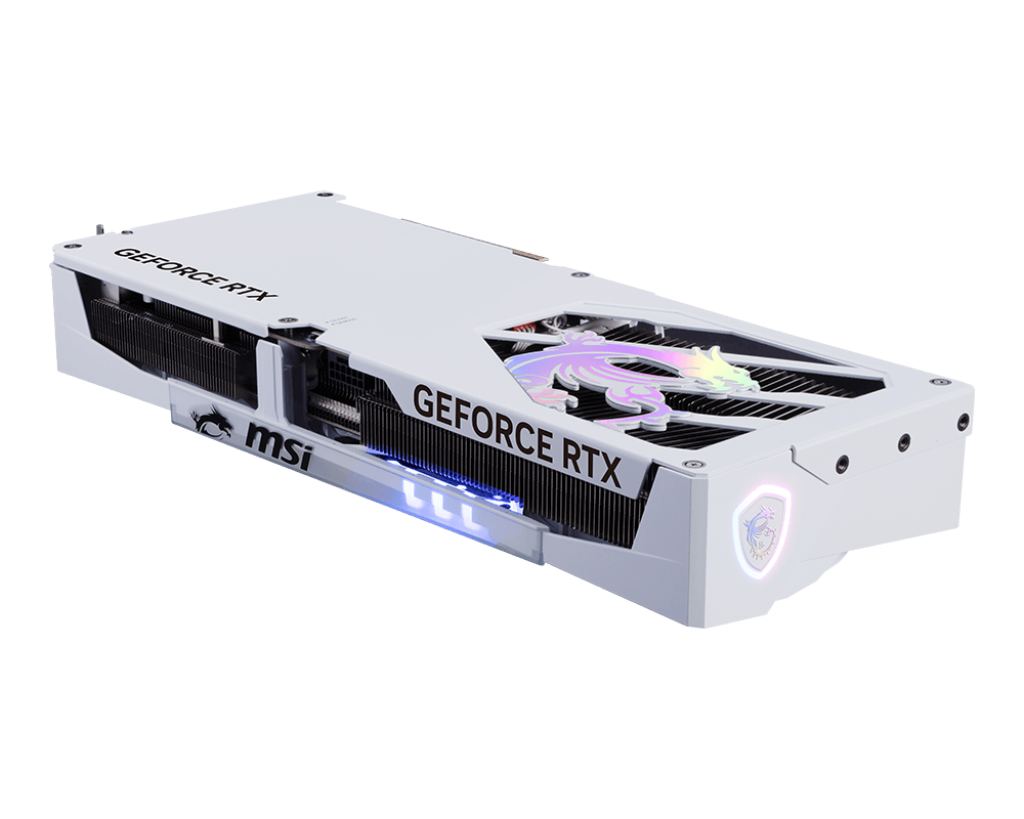

Marketing Name GeForce RTX™ 5070 Ti 16G GAMING TRIO OC WHITE
Memory 16GB GDDR7
Output DisplayPort x 3 (v2.1b), HDMI™ x 1 (HDMI 2.1b: up to 4K 480Hz / 8K 120Hz with DSC, VRR, HDR)
Graphics Processing Unit NVIDIA® GeForce RTX™ 5070 Ti
Interface PCI Express® Gen 5
Core Clock Speed (MHz) Extreme Performance: 2580 MHz (MSI Center) / Boost: 2572 MHz (GAMING & SILENT Mode)
Memory Interface 256-bit
Memory Clock Speed (MHz) 28 Gbps
OpenGL Version Support 4.6
Maximum Displays 4
HDCP Support Yes
DirectX Version Support 12 Ultimate
Card Dimensions (mm) 338 x 140 x 50 mm
Card Weight (g) 1296 g / 1819 g (packaged)
Power Consumption (W) 300 W
Recommended PSU (W) 750 W
Digital Maximum Resolution 7680 x 4320
Power Connectors 16-pin x 1 (ATX 3.1 PSU recommended)
