Discover powerful gaming and content creation capabilities with the MSI GeForce RTX 5060 Ti 8G VENTUS 3X OC GDDR7 Graphics Card. Engineered with NVIDIA Blackwell architecture and cutting-edge DLSS 4.5, this card delivers exceptional performance, complemented by an advanced cooling system and comprehensive software controls.
Key Features at a Glance
- Powered by NVIDIA Blackwell architecture and DLSS 4.5.

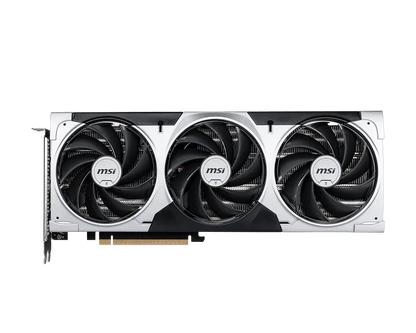

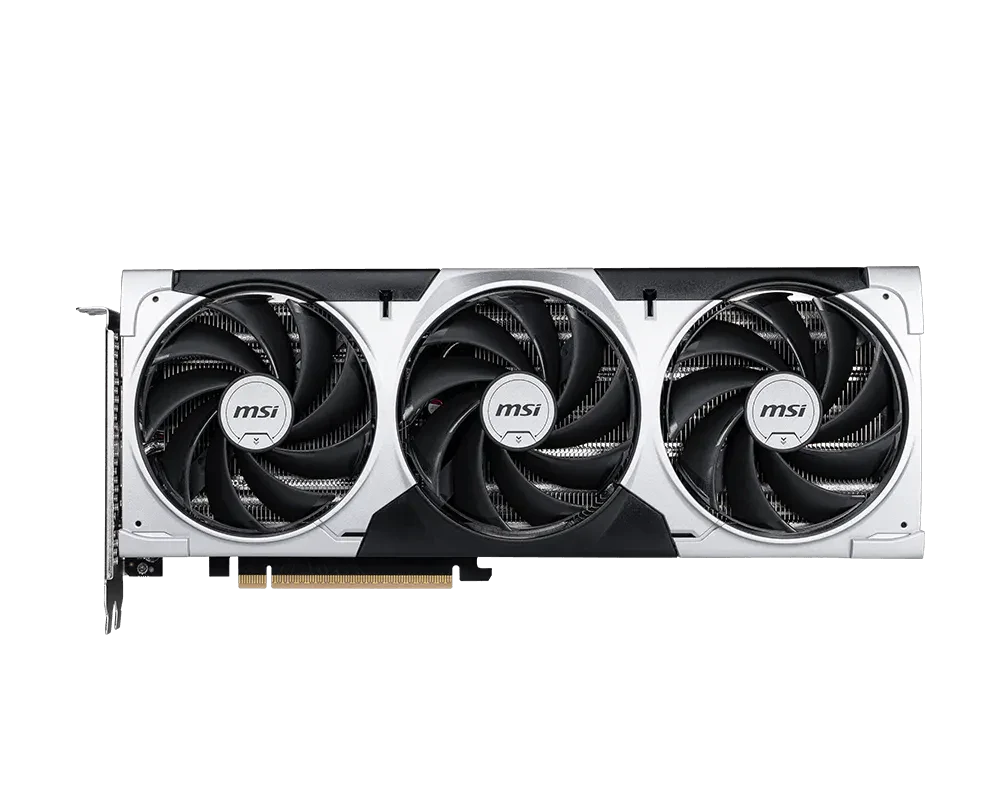

- Advanced cooling with TORX Fan 5.0, solid baseplate, and efficient heat pipes.

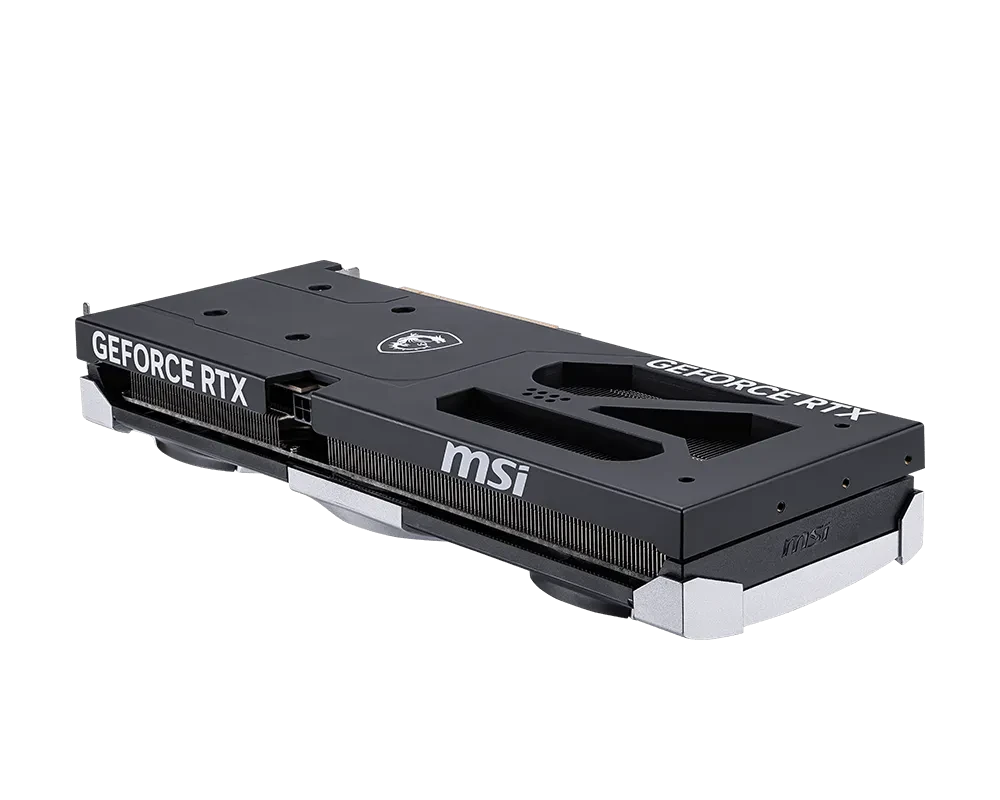

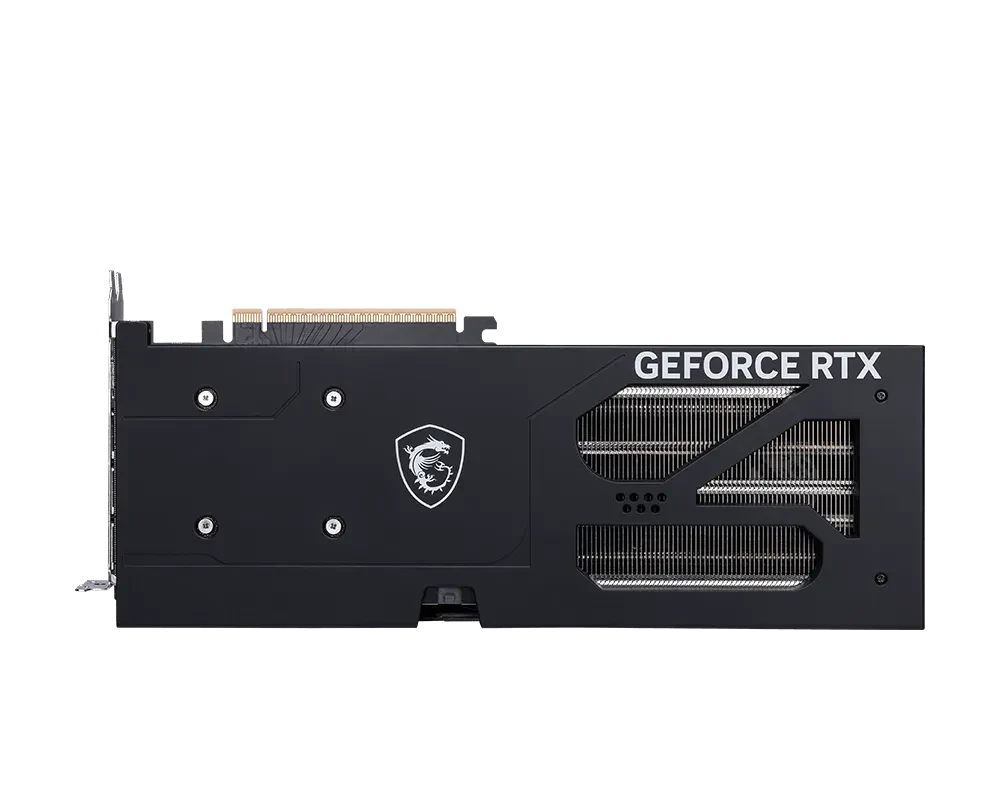

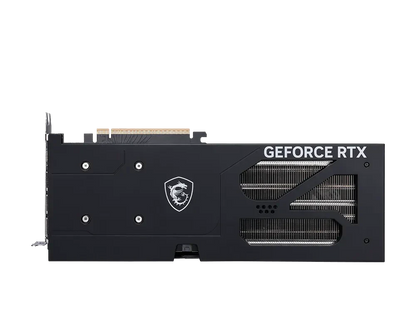

- Reinforcing backplate features an airflow vent for improved thermal performance.
- Achieve high performance with boost clocks up to 2602 MHz.
- Monitor and optimize in real-time using MSI Center and Afterburner software.
Next-Gen Performance
Harness the power of NVIDIA Blackwell architecture and cutting-edge DLSS 4.5 for exceptional graphics performance. With boost clock speeds up to 2602 MHz and extreme performance modes reaching 2617 MHz via MSI Center, this card delivers the speed needed for demanding games and applications.
Advanced Thermal Design
Stay cool under pressure thanks to the advanced thermal design featuring TORX Fan 5.0. Fan blades linked by ring arcs ensure high-pressure airflow, while a solid baseplate and efficient heat pipes effectively transfer and dissipate thermal energy from the GPU. The reinforcing backplate also includes an airflow vent, further enhancing cooling efficiency.
Total Control and Optimization
Gain full command over your graphics card with exclusive MSI software. The MSI Center allows real-time monitoring, tweaking, and optimization of your MSI products. For advanced users, Afterburner, the world's most recognized graphics card overclocking software, provides comprehensive control to push your performance limits.
Technical Specifications
| Marketing Name | GeForce RTX™ 5060 Ti 8G VENTUS 3X OC |
| Memory | 8GB GDDR7 |

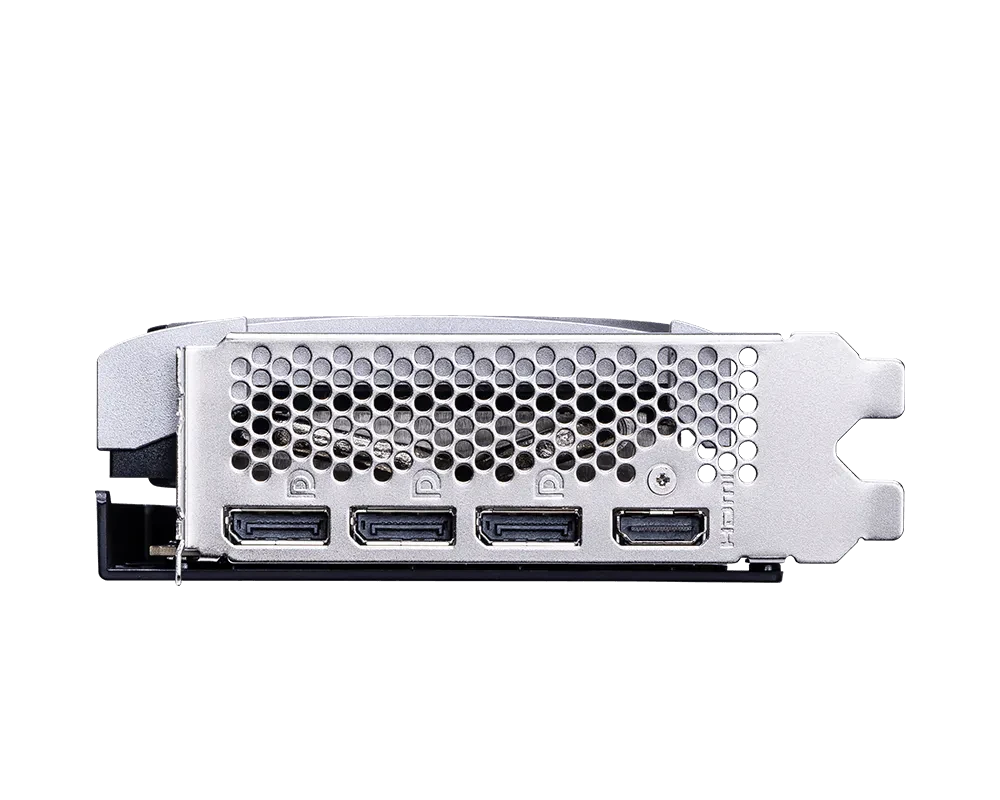

| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clock Speed (MHz) | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
| Memory Interface | 128-bit |
| Memory Clock Speed (MHz) | 28 Gbps |
| Maximum Displays | 4 |
| OpenGL Version Support | 4.6 |
| DirectX Version Support | 12 Ultimate |
| Power consumption (W) | 180 W |
| Recommended PSU (W) | 600 W |
| Power Connectors | 8-pin x 1 |
| Card Dimension(mm) | 304 x 121 x 44 mm |
Frequently Asked Questions
Q: What architecture powers this graphics card?
A: This graphics card is powered by the NVIDIA Blackwell architecture and supports DLSS 4.5.
Q: What cooling technologies are used in this card?
A: The card features TORX Fan 5.0, a solid baseplate, efficient heat pipes, and a reinforcing backplate with an airflow vent for comprehensive cooling.
Q: What software is included for monitoring and optimization?
A: It includes MSI Center for real-time monitoring and optimization, and Afterburner software for extensive graphics card overclocking control.
