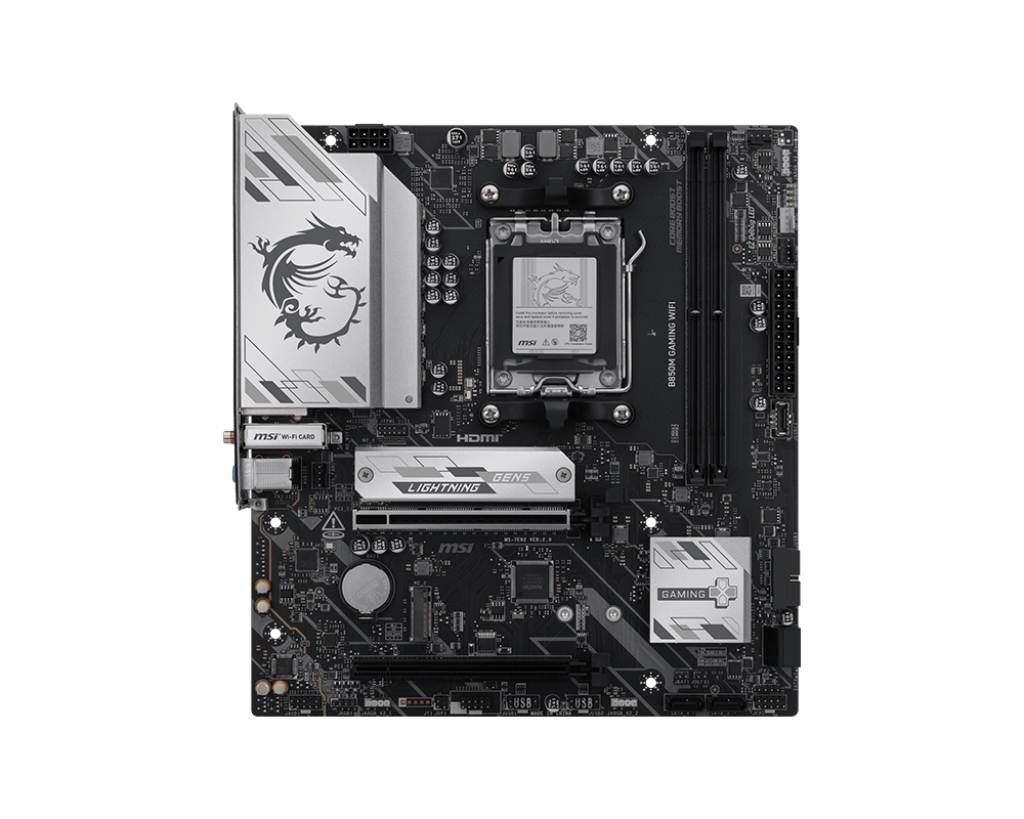

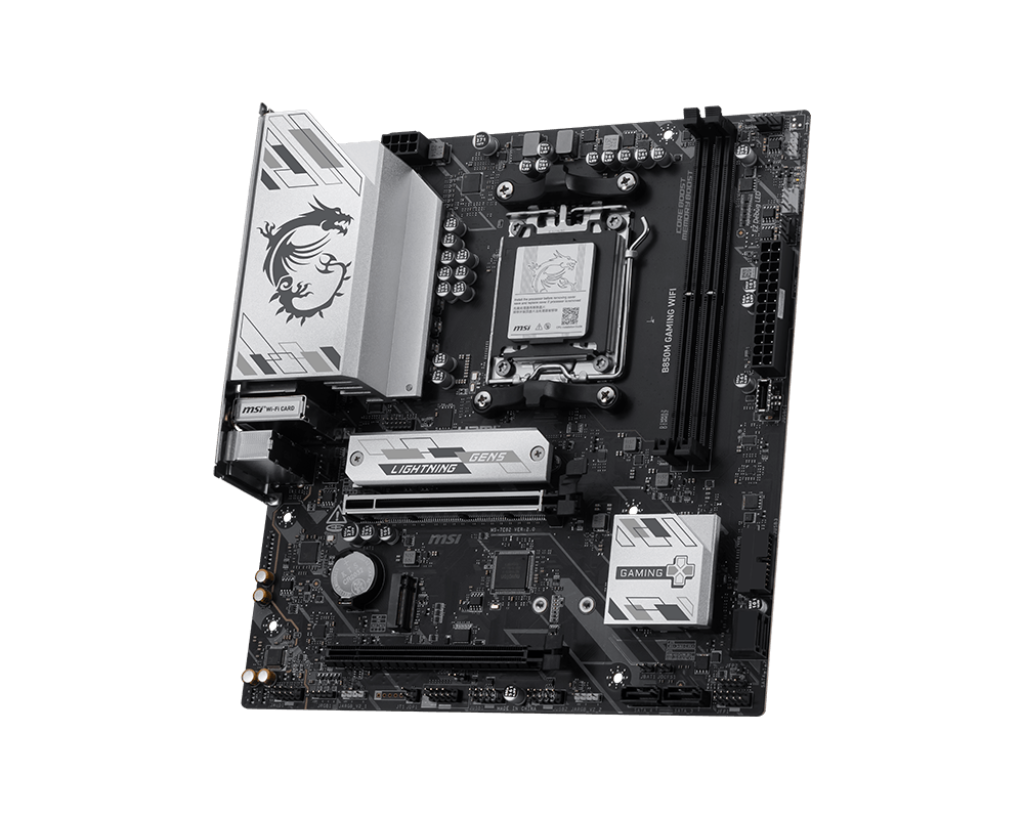

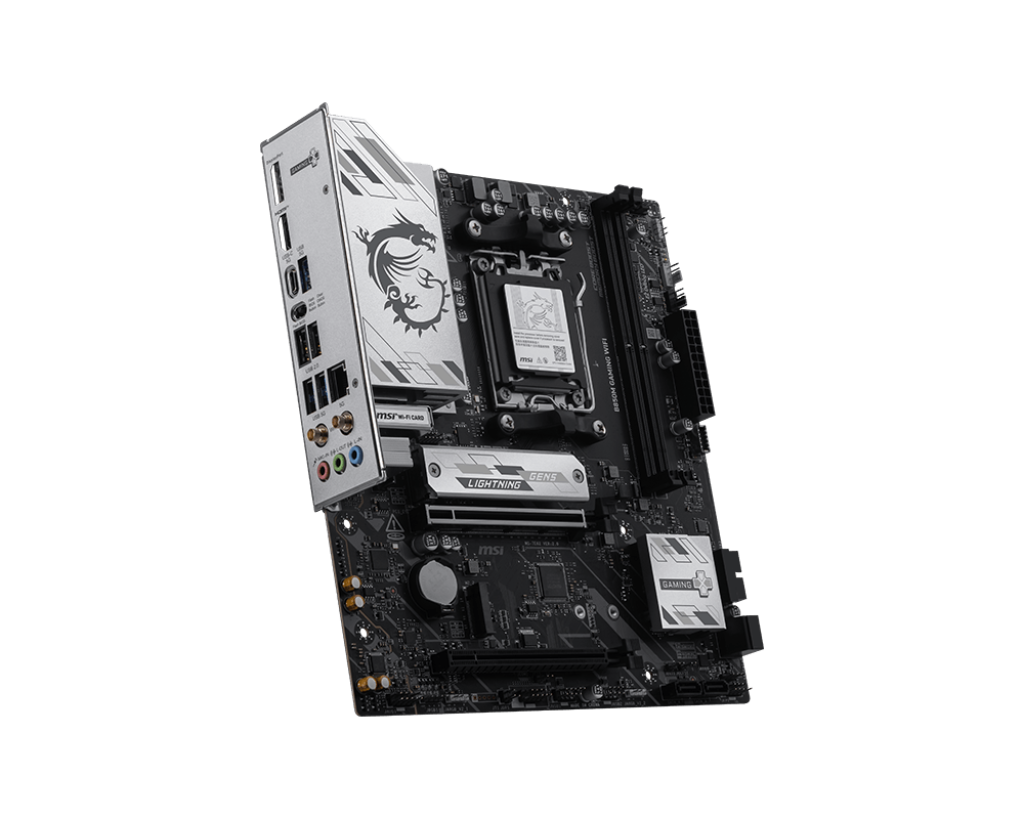

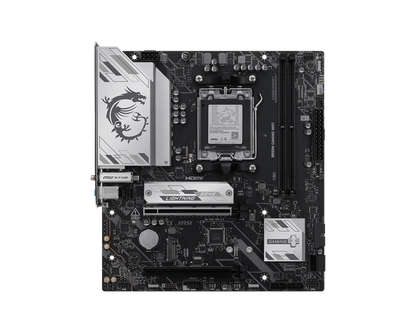

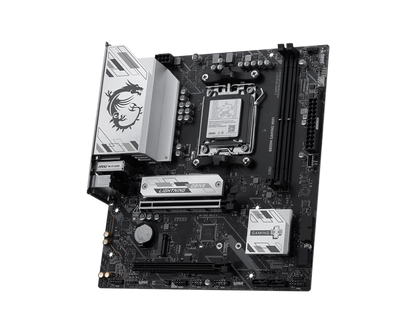

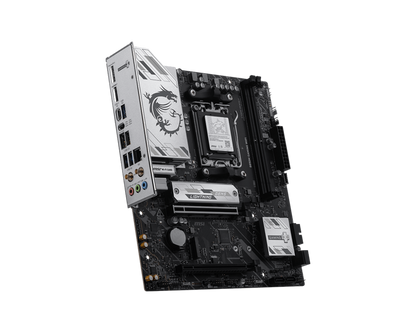

MSI B850M GAMING WIFI Motherboards

The MSI B850M GAMING WIFI Motherboard is crafted to provide extensive connectivity and versatile tools for gamers seeking a comprehensive experience. This motherboard features advanced Wi-Fi 7, 5G LAN, and a PCIe 5.0 M.2 solution, making it ready for 24/7 non-stop gaming. Optimized for AMD Ryzen™ 9000 series processors, it also includes exclusive EZ DIY features for easier setup.

Key Features at a Glance

• Advanced Wi-Fi 7 for premium wireless connectivity
• Fast 5G LAN for reliable wired networking
• PCIe 5.0 M.2 solution for high-speed storage
• Exclusive EZ DIY features for straightforward installation
• Optimized for AMD Ryzen™ 9000 series processors
• Designed for 24/7 non-stop gaming sessions

Seamless Connectivity

The MSI B850M GAMING WIFI Motherboard ensures you stay connected with cutting-edge network options. Experience smooth online gaming and rapid data transfers thanks to its advanced Wi-Fi 7 and robust 5G LAN capabilities.

Unleash Gaming Performance

Engineered for powerful performance, this motherboard is optimized for AMD Ryzen™ 9000 series processors. Its integrated PCIe 5.0 M.2 solution supports ultra-fast storage, contributing to quick game loading times and overall system responsiveness.

Effortless Setup and Use

Crafted with versatile tools and exclusive EZ DIY features, the B850M GAMING WIFI offers a straightforward installation and user-friendly experience. This thoughtful design ensures you can focus on enjoying your games with minimal hassle.

Technical Specifications

Chipset	AMD B850
CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Storage	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
LAN	Realtek 8126 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED

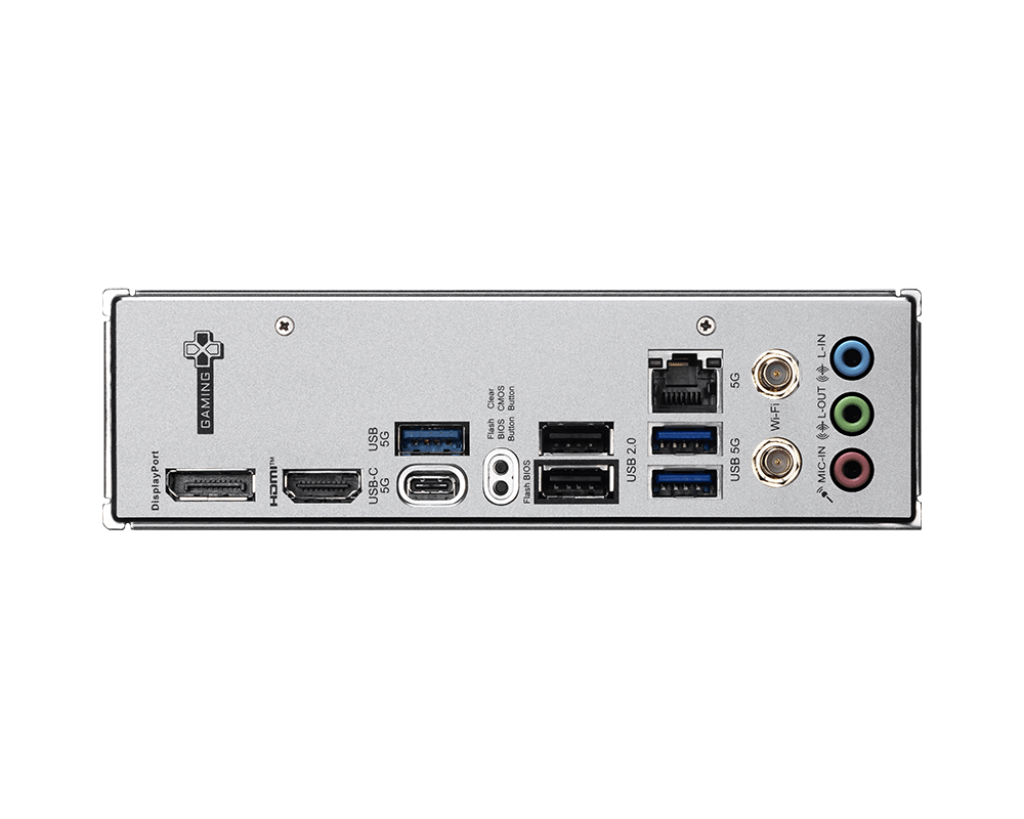

BACK PANEL PORTS	DisplayPort 1.4 HDMI™ USB 5Gbps (Type-A) Clear CMOS Button 5G LAN Wi-Fi / Bluetooth USB 5Gbps (Type-C) Flash BIOS Button USB 2.0 USB 5Gbps (Type-A) HD Audio Connectors
OPERATING SYSTEM	Support for Windows 11 64-bit
PCB Info	mATX 226mmx243.84mm

Frequently Asked Questions

Q: What processors are compatible with this motherboard?

A: The MSI B850M GAMING WIFI Motherboard is optimized for AMD Ryzen™ 9000 series processors.

Q: What kind of network connectivity does this motherboard offer?

A: It features advanced Wi-Fi 7 for wireless connections and 5G LAN for high-speed wired networking.

Q: What storage solutions are supported by this motherboard?

A: The motherboard includes a PCIe 5.0 M.2 solution, enabling support for ultra-fast storage devices.
