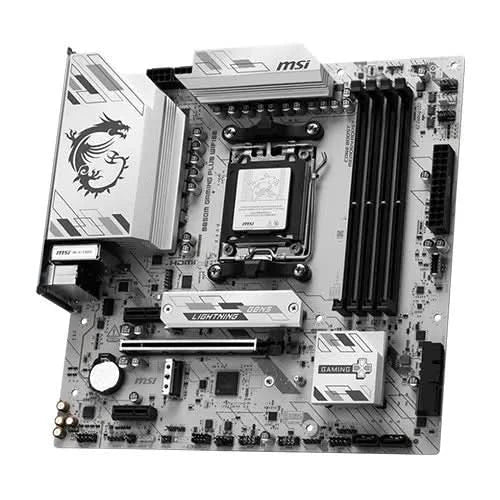

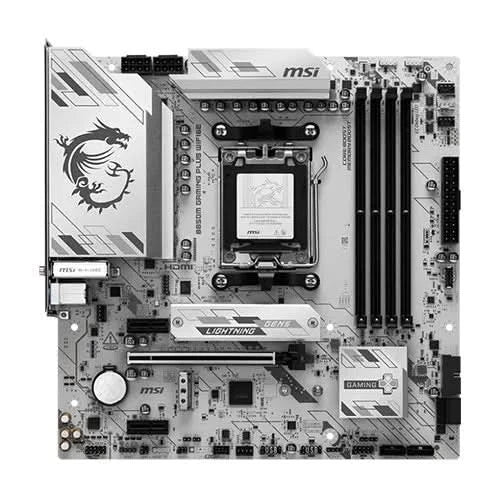

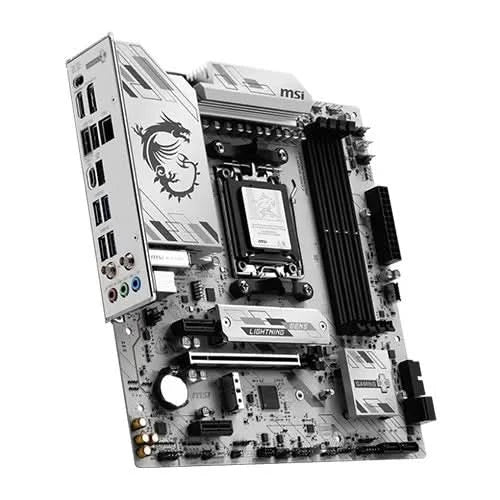

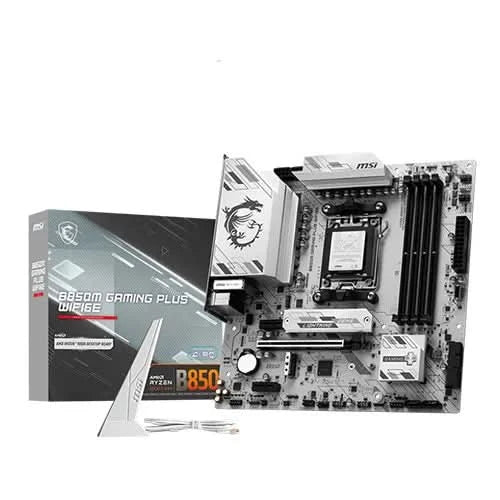

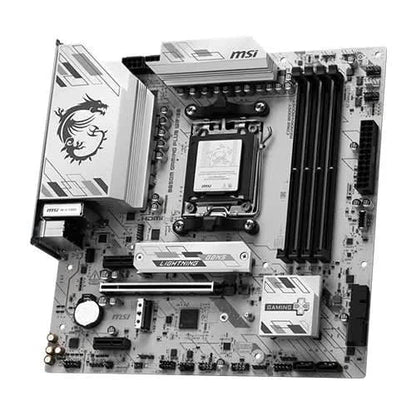

Elevate your gaming and computing experience with the MSI B850M Gaming Plus WIFI6E M-ATX Motherboard. Designed to support the latest AMD Ryzen processors and high-speed DDR5 memory, this motherboard delivers robust performance, advanced connectivity, and superior cooling for a seamless and powerful system.
Key Features at a Glance
- Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
- Dual Channel DDR5 Memory support up to 8200+ MT/s (OC).
- Features a 10+2+1 Duet Rail Power System with 6-layer 2oz thickened copper PCB.
- Frozr Guard cooling includes an Extended Heatsink and M.2 Shield Frozr.
- High-speed 2.5G LAN and Wi-Fi 6E Solution for advanced connectivity.
- Offers PCIe 4.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C, and Audio Boost for immersive experiences.
Unleash Peak Performance
The MSI B850M Gaming Plus WIFI6E M-ATX Motherboard is engineered for ultimate power. It natively supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, paired with Dual Channel DDR5 Memory capable of speeds up to 8200+ MT/s (OC). Its 10+2+1 Duet Rail Power System with P-PAK and a 6-layer PCB made by 2oz thickened copper ensures stable and efficient power delivery for demanding tasks.
Advanced Cooling and High-Speed Connectivity
Maintain optimal system temperatures even under heavy loads with Frozr Guard, featuring an Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr. Experience secure, stable, and rapid networking with the integrated 2.5G LAN and Wi-Fi 6E Solution, a premium choice for both professional and multimedia applications.
Lightning Fast Data and Immersive Sound
Achieve lightning-fast game experiences and data transfer speeds with a PCIe 4.0 slot, Lightning Gen 5 x4 M.2, and convenient Front USB Type-C connectivity. Enhance your audio with Audio Boost, delivering studio-grade sound quality designed to provide the most immersive gaming experience possible.
Effortless DIY Installation
Building your system is made easier with EZ DIY features. Benefit from the EZ M.2 Clip II for simple SSD installation, EZ-Conn Design for streamlined cable management, and an EZ Antenna for hassle-free Wi-Fi setup.
Technical Specifications
| Motherboard | |
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B850 |
| Memory Speed | up to 8200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Expansion Slots | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 slot • Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

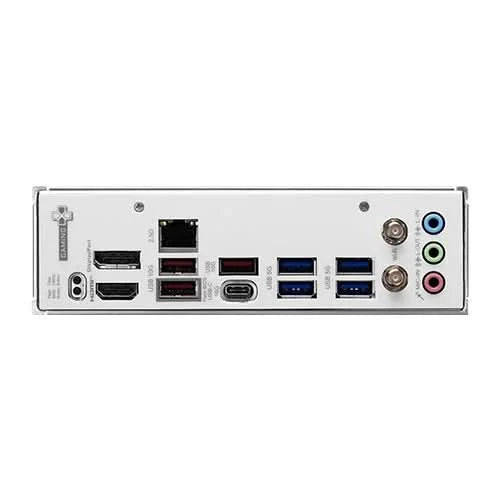

| Back Panel I/O Ports | Clear CMOS Button DisplayPort 1.4 2.5G LAN USB 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 5Gbps (Type-A) |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note |
Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Frequently Asked Questions
Q: What processors are compatible with the MSI B850M Gaming Plus WIFI6E M-ATX Motherboard?
A: This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Q: What type of memory does this motherboard support?
A: It supports DDR5 Memory with Dual Channel DDR5 up to 8200+ MT/s (OC).
Q: Does the MSI B850M Gaming Plus WIFI6E M-ATX Motherboard include high-speed networking?
A: Yes, it features 2.5G LAN and an integrated Wi-Fi 6E Solution for secure, stable, and high-speed networking.
