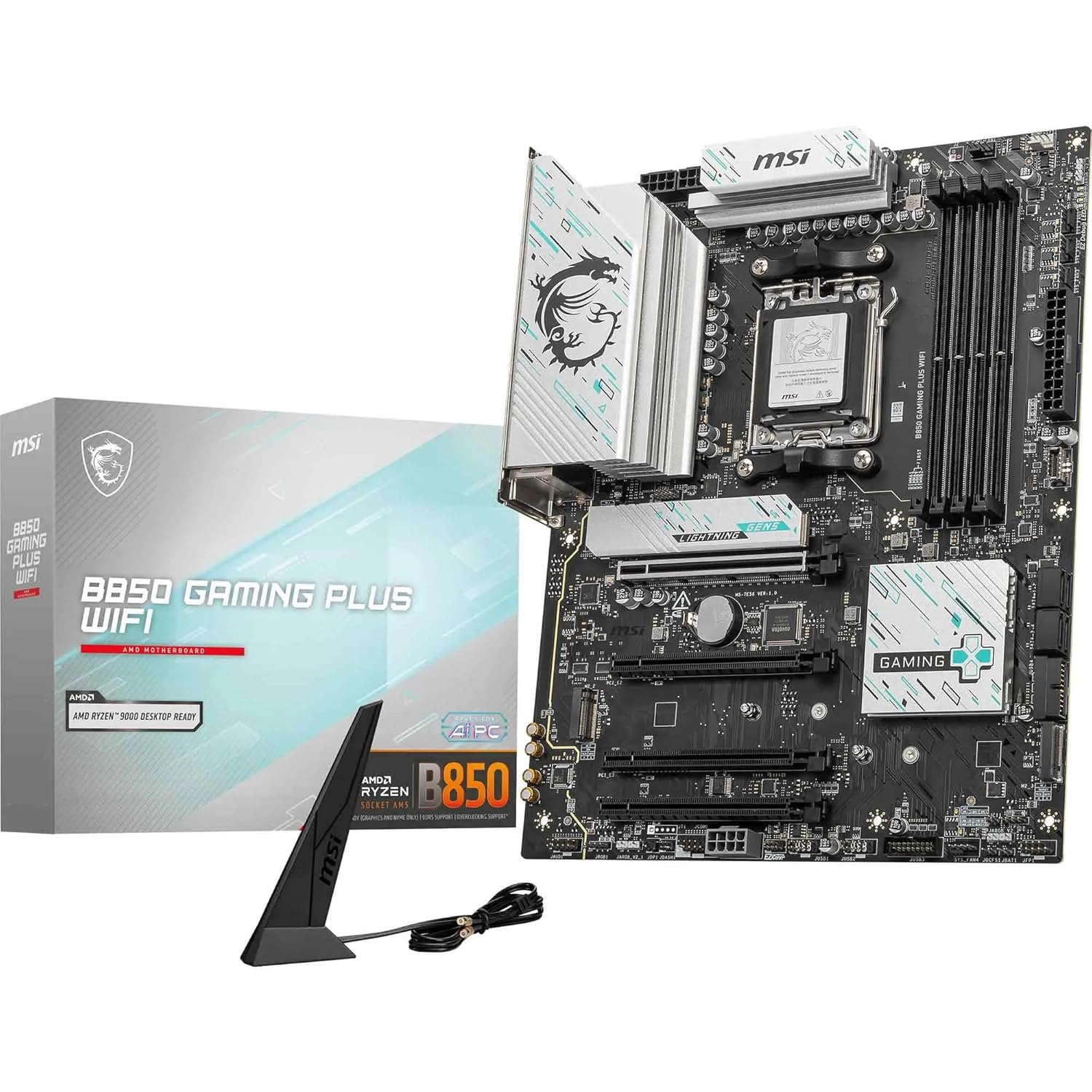

Unleash the full potential of your gaming rig with the MSI B850 GAMING PLUS WIFI MOTHERBOARD, engineered to support AMD Ryzen 9000, 8000, and 7000 Series desktop processors. This motherboard combines ultra-performance capabilities, advanced cooling solutions, and lightning-fast connectivity to deliver an exceptional computing experience for both gamers and power users.
Key Features at a Glance
- Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC).
- Features a 12+2+1 Duet Rail Power System for ultra performance.
- Equipped with Frozr Guard cooling, including Extended Heatsink and EZ M.2 Shield Frozr II.
- Offers 5G LAN and a Full-speed Wi-Fi 7 Solution for high-speed connectivity.
- Provides a lightning-fast game experience with PCIe 5.0 slot and Lightning Gen 5 x4 M.2.
Unleash Peak Performance

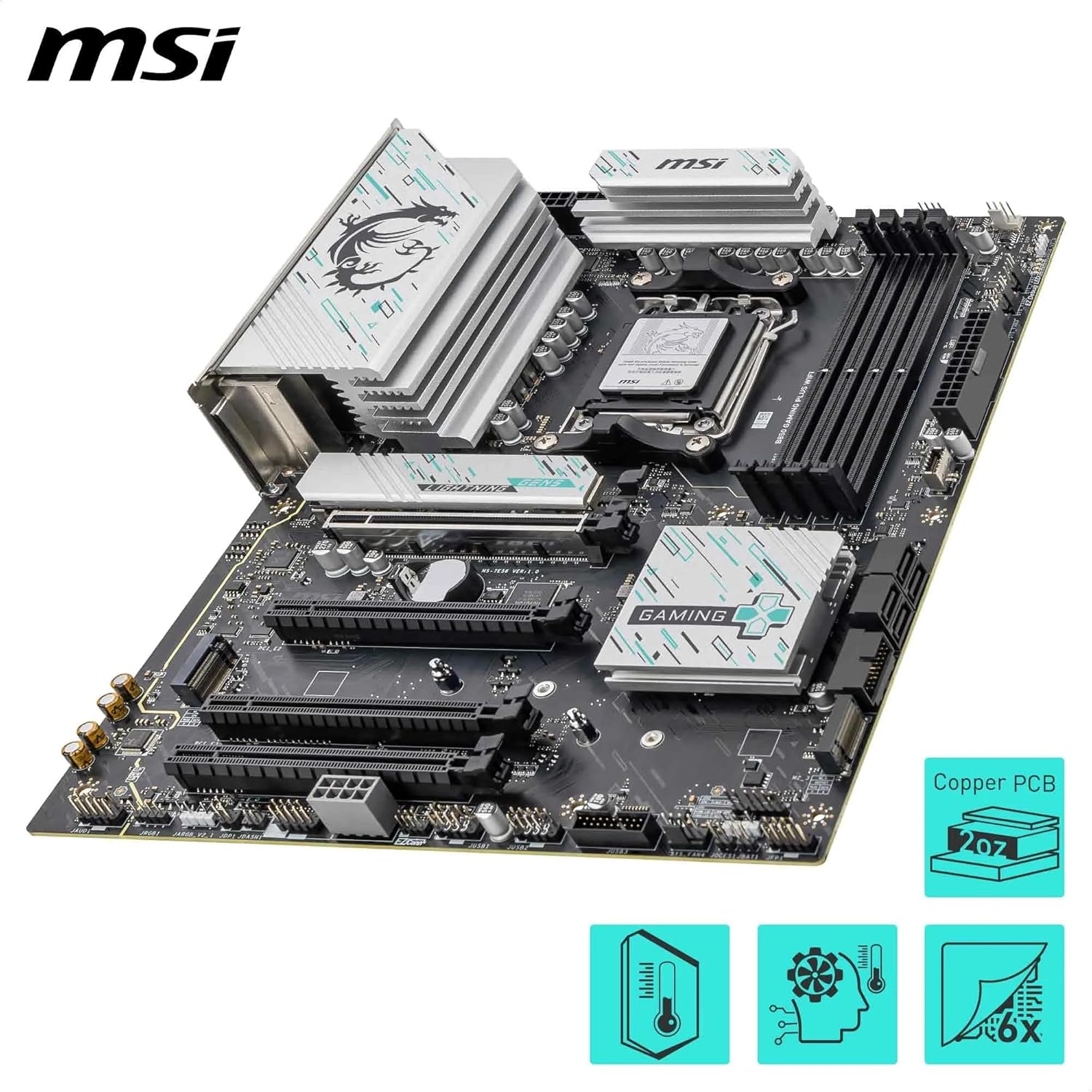

The MSI B850 GAMING PLUS WIFI MOTHERBOARD is built for extreme power, featuring a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost. Its 6-layer PCB, made with 2oz thickened copper and server-grade material, ensures stable and efficient power delivery for demanding applications, supporting DDR5 memory up to 8200+ MT/s (OC).
Stay Cool Under Pressure
Maintain optimal temperatures during intense gaming sessions with Frozr Guard thermal solutions. This motherboard includes an Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and EZ M.2 Shield Frozr II to effectively dissipate heat, ensuring high performance and a non-stop experience even under heavy loads.
Next-Gen Connectivity and Speed

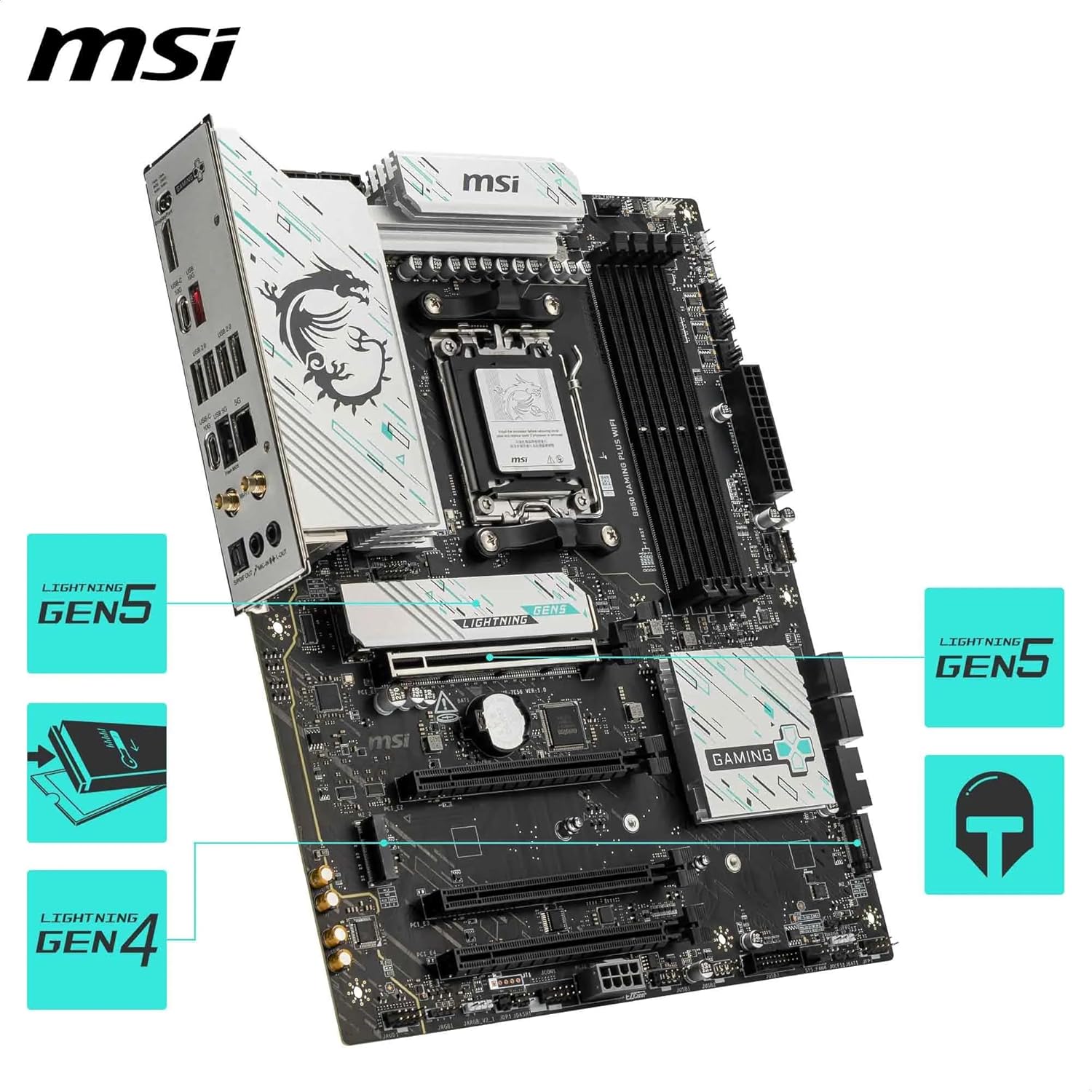

Experience unparalleled networking with 5G LAN and the Full-speed Wi-Fi 7 Solution, providing secure, stable, and high-speed data transmission for professional and multimedia use. Enjoy a lightning-fast game experience with a PCIe 5.0 slot, Lightning Gen 5 x4 M.2, and convenient Front USB Type-C connectivity, ready for the latest peripherals and storage.
Effortless Building & Superior Audio

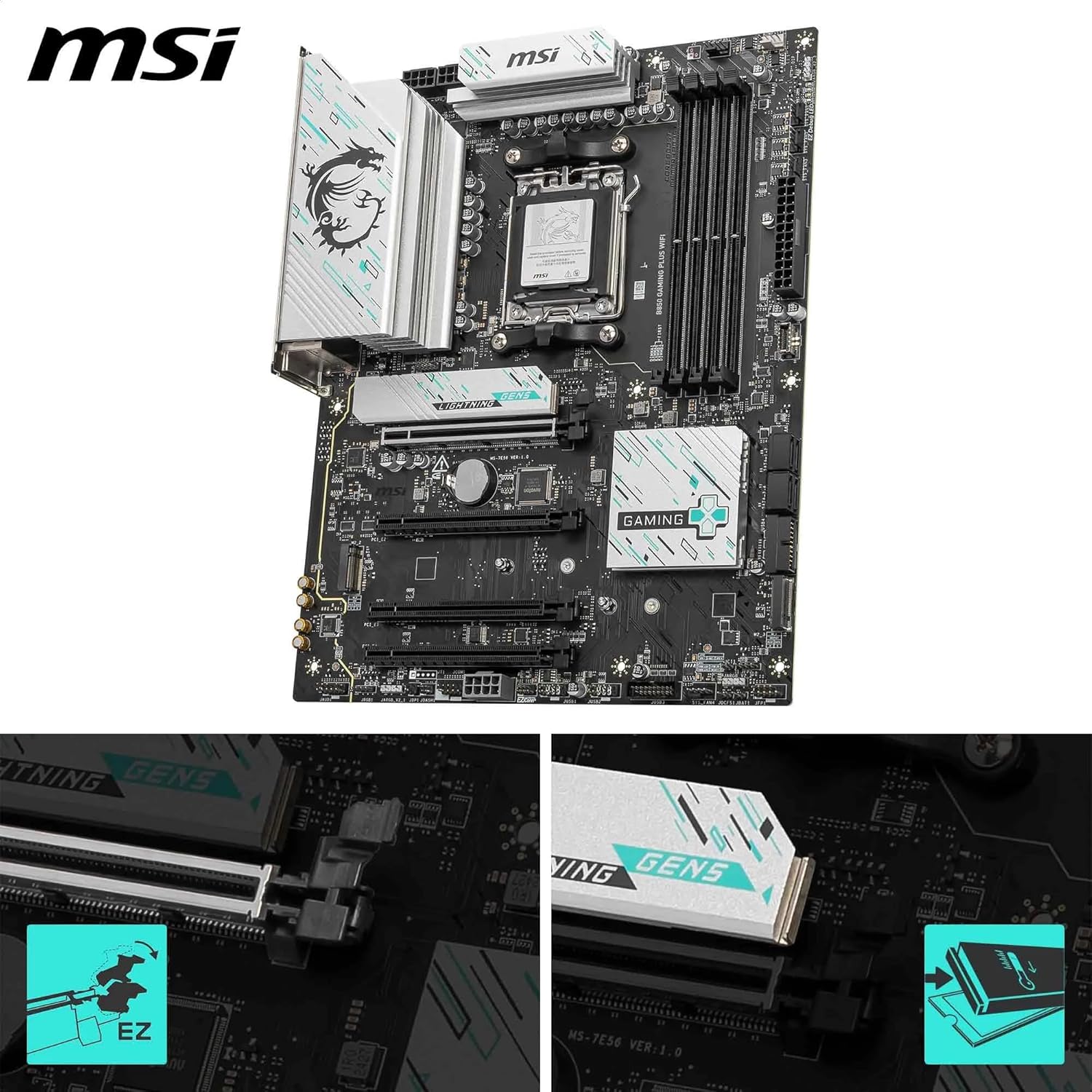

Simplify your PC assembly with EZ DIY features like EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna. Furthermore, immerse yourself in premium sound quality with Audio Boost, delivering studio-grade audio that enhances your gaming experience and brings every detail to life.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B850 |
| Memory Speed | up to 8200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support Brand website. |
| Graphics Port | 1x DisplayPort |
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

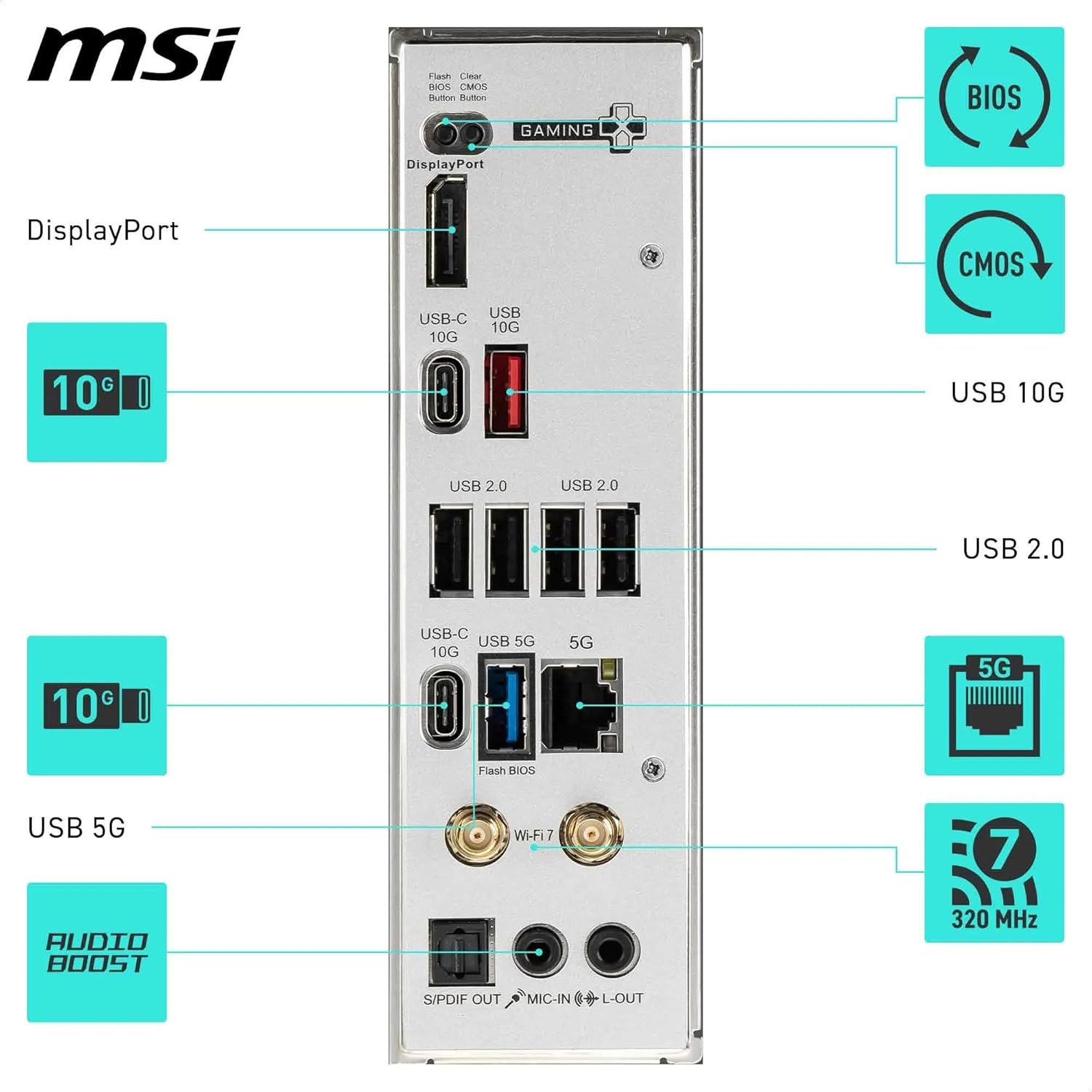

| Back Panel I/O Ports | Clear CMOS Button USB 10Gbps (Type-A) USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort USB 10Gbps (Type-C) USB 10Gbps (Type-C) USB 5Gbps (Type-A) S/PDIF-OUT |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: What processors does this motherboard support?
A: The MSI B850 GAMING PLUS WIFI MOTHERBOARD supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Q: What type of memory is supported and at what speeds?
A: It supports DDR5 Memory in a Dual Channel configuration, with speeds up to 8200+ MT/s (OC).
Q: What connectivity options are available for networking?
A: This motherboard features 5G LAN and a Full-speed Wi-Fi 7 Solution for secure, stable, and high-speed networking and data transmission.
