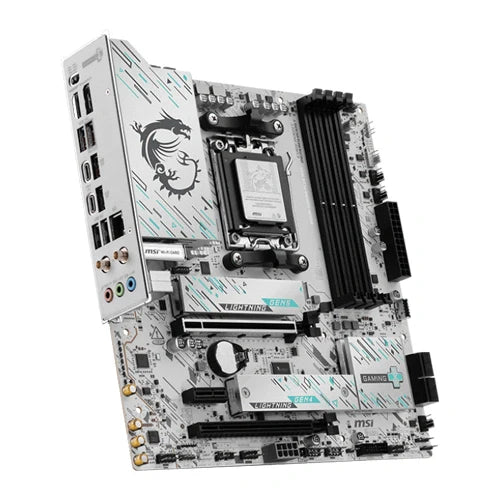

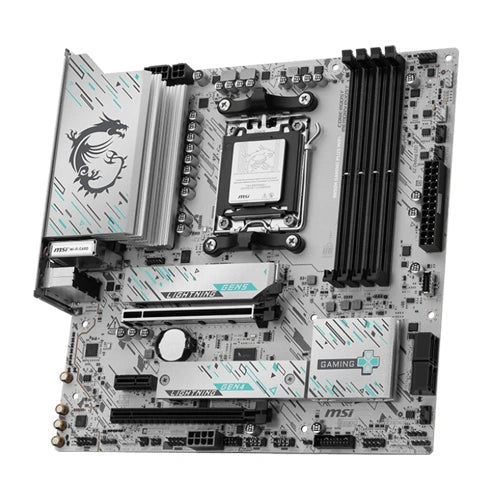

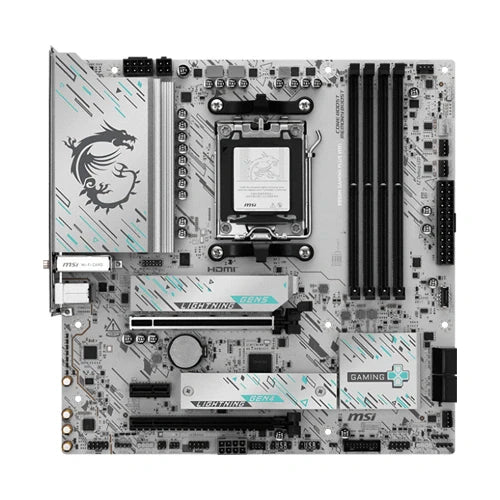

The MSI B850M DDR5 Gaming Plus WiFi Motherboard is engineered to support the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, offering a robust foundation for your high-performance system. Designed with cutting-edge features like DDR5 memory support, advanced cooling, and Wi-Fi 7, this motherboard delivers an exceptional gaming and computing experience.
Key Features at a Glance
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
- DDR5 Memory support, Dual Channel 8200+ MT/s (OC).
- Direct 8+2+1 Power System with 60A SPS and 6-layer PCB.
- Frozr Guard cooling with Extended Heatsink and EZ M.2 Shield Frozr II.
- High-speed 5G LAN with Wi-Fi 7 Solution.
- PCIe 5.0 slot, Lightning Gen 5 x4 M.2 for fast storage and expansion.
Unleashed Performance and Power Stability
Experience incredible power and stability with the Direct 8+2+1 Power System, featuring 60A SPS and 8+4-pin CPU power connectors. Core Boost and Memory Boost technologies ensure maximum performance for your AMD Ryzen processor and DDR5 memory. The 6-layer PCB, crafted with 2oz thickened copper and server-grade materials, provides enhanced durability and signal integrity.
Advanced Cooling for Sustained Operation
Keep your system running cool under heavy loads with Frozr Guard thermal solutions. This includes an Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and the EZ M.2 Shield Frozr II. These features are built to maintain high performance and ensure a non-stop experience, even during intense gaming sessions.
Blazing-Fast Connectivity and Gaming
Connect with confidence using the integrated 5G LAN and Wi-Fi 7 Solution, providing secure, stable, and high-speed networking for both professional and multimedia use. For a lightning-fast game experience, this motherboard features a PCIe 5.0 slot, Lightning Gen 5 x4 M.2 for rapid storage, and a convenient Front USB Type-C port for modern peripherals.
Effortless Installation and Premium Audio
The MSI B850M DDR5 Gaming Plus WiFi Motherboard simplifies your build process with EZ DIY features like EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna. Beyond easy setup, Audio Boost rewards your ears with studio-grade sound quality, delivering the most immersive gaming experience.
Technical Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B850 |
| Memory Speed | up to 8200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Website |
| Graphics Port | 1 x HDMI,1x DisplayPort |
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

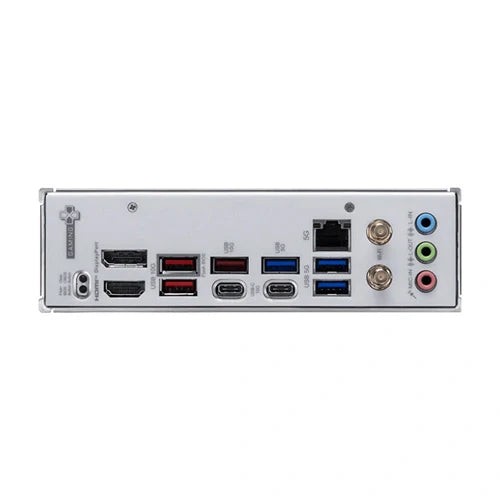

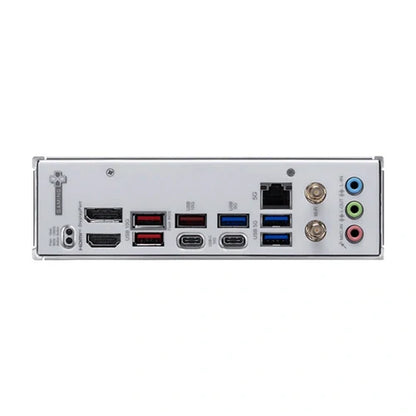

| Back Panel I/O Ports | Clear CMOS Button DisplayPort 1.4 USB 10Gbps (Type-A) USB 5Gbps (Type-A) 5G LAN Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 5Gbps (Type-A) |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Frequently Asked Questions
Q: Which processors are supported by this motherboard?
A: The MSI B850M DDR5 Gaming Plus WiFi Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Q: What type of memory does this motherboard support?
A: It supports DDR5 Memory in Dual Channel configuration, with speeds up to 8200+ MT/s when overclocked.
Q: Does this motherboard include Wi-Fi?
A: Yes, it features a high-speed Wi-Fi 7 Solution for secure, stable, and fast wireless networking.
