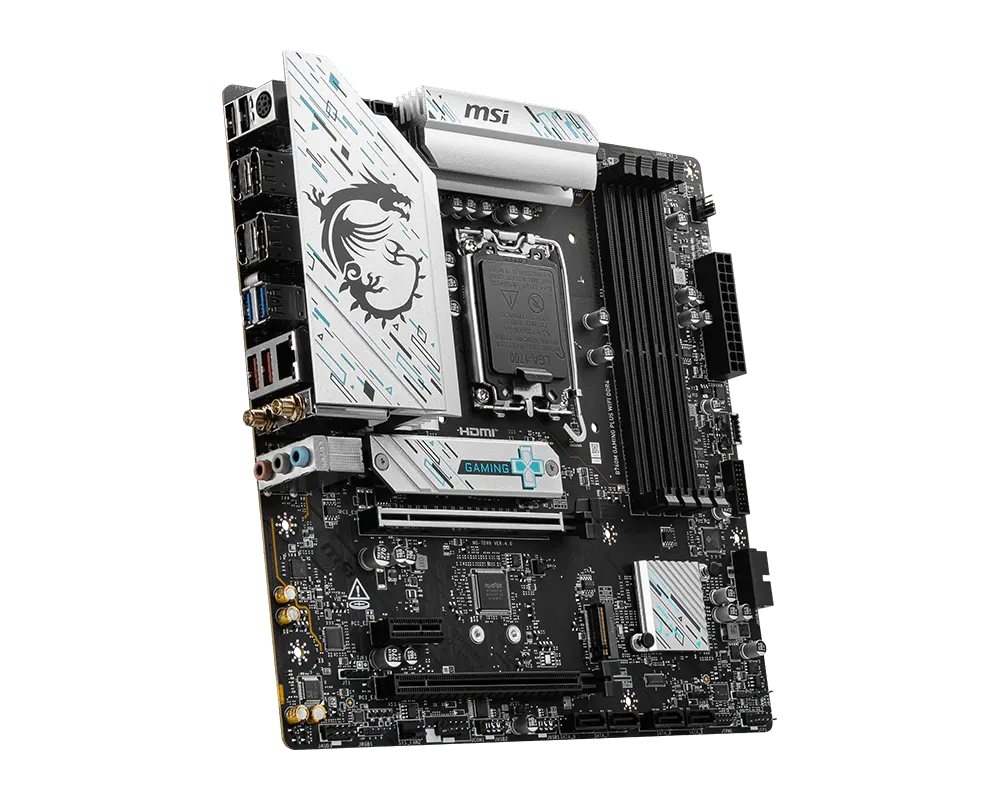

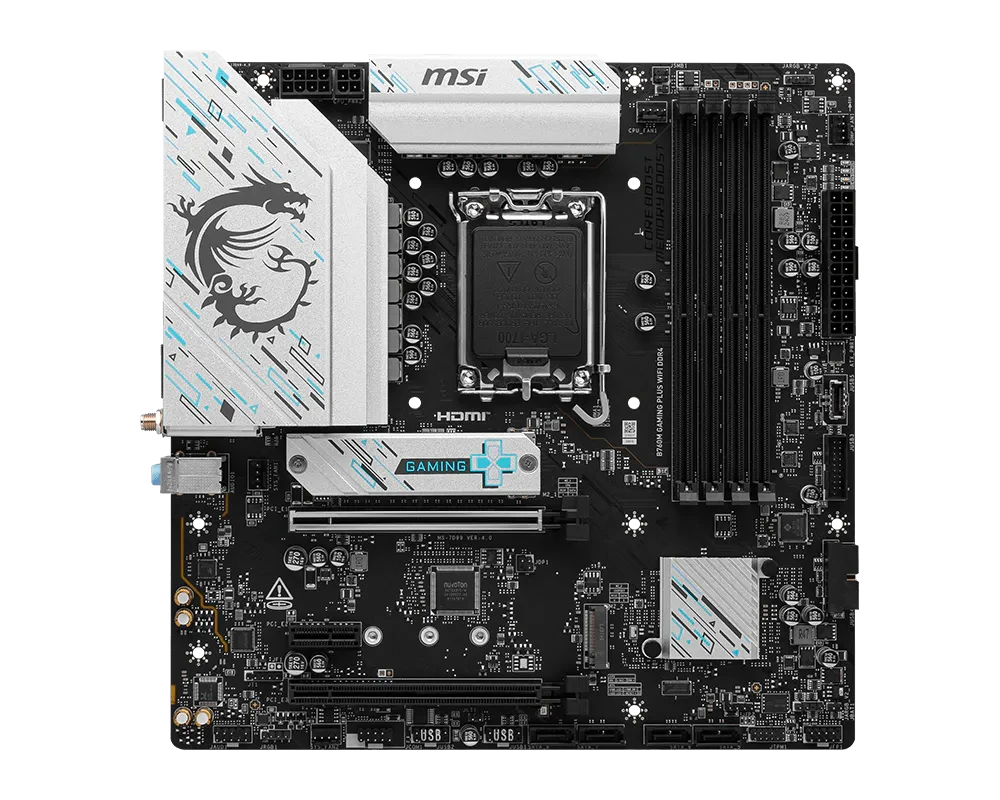

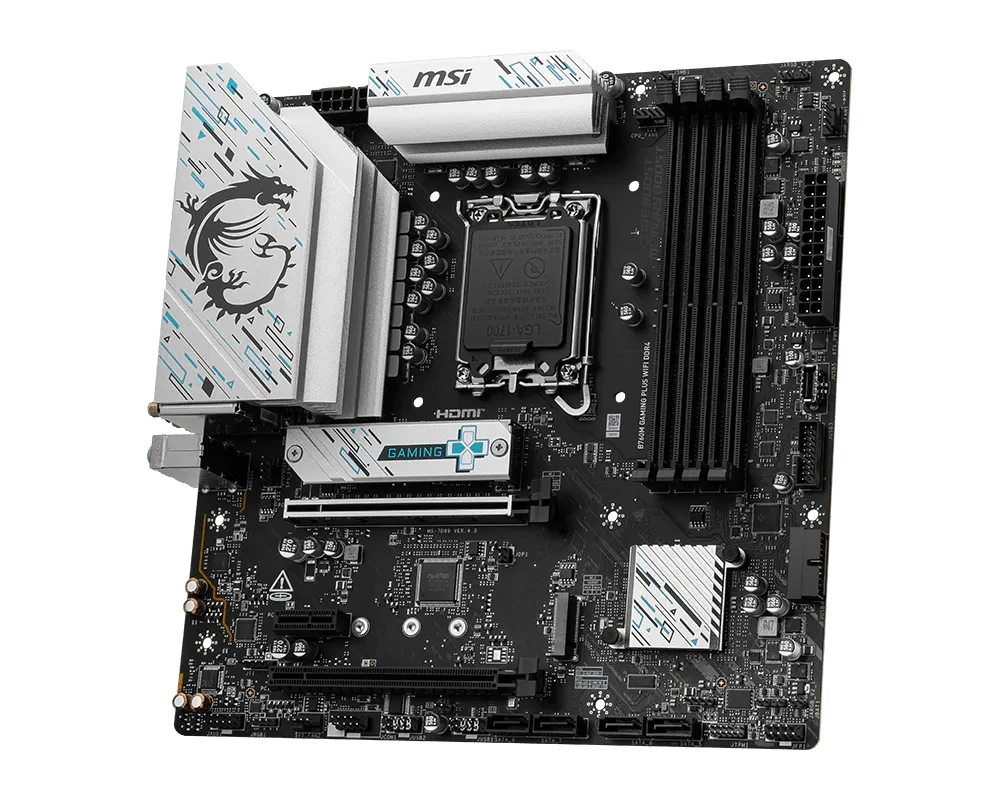

Elevate your PC build with the MSI B760M GAMING PLUS WIFI DDR4 LGA 1700 Motherboard, engineered to support Intel Core 14th, 13th, and 12th Gen Processors, along with Intel Pentium Gold and Celeron Processors for the LGA 1700 socket. This motherboard supports DDR4 Memory up to 5333+(OC) MHz and features an upgraded network solution with 2.5G LAN and Wi-Fi 6E, ensuring a secure, stable, and fast connection for professional use and gaming.
Key Features at a Glance
- Supports Intel 14th/13th/12th Gen Core, Pentium Gold, and Celeron Processors (LGA 1700).
- DDR4 Memory support up to 5333+(OC) MHz.
- Enhanced 12+1+1 Duet Rail Power System with Core Boost and Memory Boost.
- Premium Thermal Solution with Extended Heatsink and 7W/mK MOSFET thermal pads.
- Lightning-fast PCIe 4.0 slot and Lightning Gen 4 x4 M.2 with M.2 Shield Frozr.
- 2.5G LAN with Wi-Fi 6E Solution for upgraded network connectivity.
Optimized Performance for Intel Processors
Designed for the LGA 1700 socket, this motherboard provides robust support for Intel Core 14th, 13th, and 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors. It also supports DDR4 Memory at speeds up to 5333+(OC) MHz, delivering the foundation for a high-performance system.
Superior Power and Cooling
Experience stable power delivery with an enhanced 12+1+1 Duet Rail Power System, featuring P-PAK and 8-pin + 4-pin CPU power connectors. Core Boost and Memory Boost technologies are integrated for optimal performance. A premium thermal solution, including an Extended Heatsink and MOSFET thermal pads rated for 7W/mK, ensures efficient cooling for high performance and non-stop gaming.
Blazing-Fast Connectivity
Enjoy a lightning-fast experience with a PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2 10G. These features provide rapid data transfer and quick loading times for games and applications.
Reliable Networking and Immersive Audio

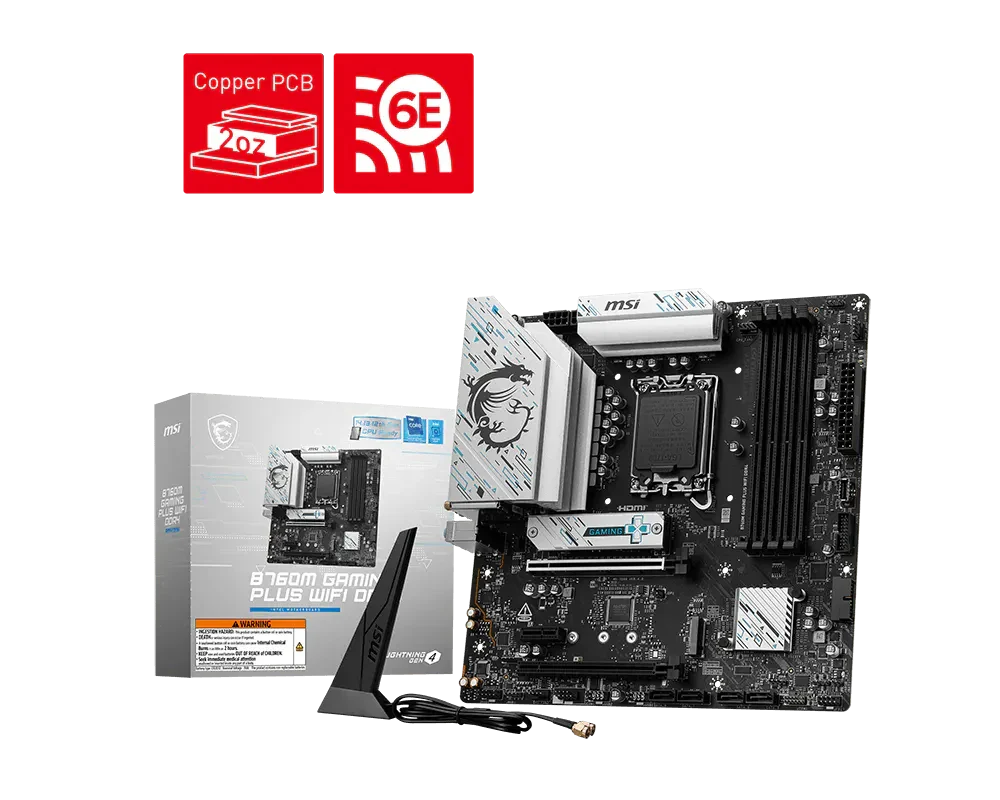

Benefit from a secure and stable network connection with 2.5G LAN and Wi-Fi 6E Solution, ideal for professional and multimedia tasks. The high-quality 6-layer PCB, made with 2oz thickened copper, enhances durability and signal integrity. Audio Boost delivers studio-grade sound quality for an immersive gaming experience.
Technical Specifications
| Chipset | INTEL B760 |
|---|---|
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

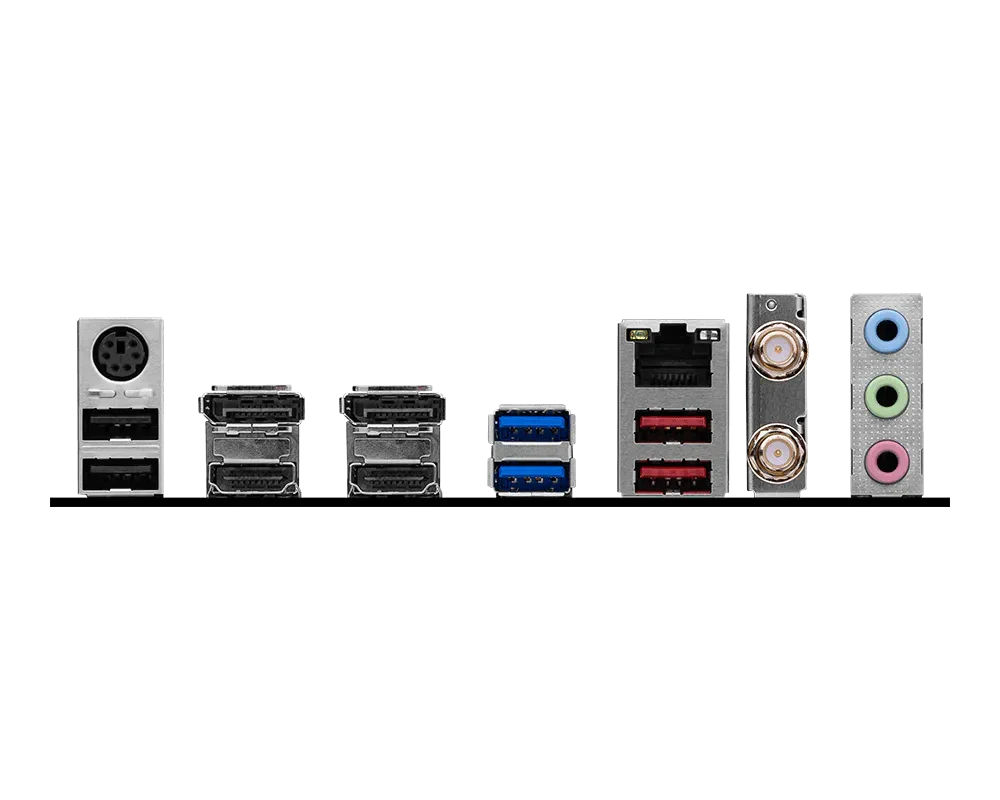

| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX 243.84mmx243.84mm |
Frequently Asked Questions
Q: What Intel processors does the MSI B760M GAMING PLUS WIFI DDR4 motherboard support?
A: This motherboard supports Intel Core 14th, 13th, and 12th Gen Processors, along with Intel Pentium Gold and Celeron Processors for the LGA 1700 socket.
Q: What type of memory is compatible with this motherboard, and what is its maximum speed?
A: The motherboard supports DDR4 Memory, with speeds up to 5333+(OC) MHz.
Q: What are the primary networking features included with this motherboard?
A: It features a 2.5G LAN with Wi-Fi 6E Solution, providing an upgraded and fast network connection for various uses.
